parallel-img1175-detailverified · printed
door-covering-material
CALFSKIN GRAINED COWHIDEPrinted source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Same court-room-side covering note previously tentatively read PIGSKIN.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: CALFSKIN GRAINED COWHIDE
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Same court-room-side covering note previously tentatively read PIGSKIN.
parallel-img1175-detailverified · printed
door-covering-color-selection
COLOR TO BE SELECTEDPrinted source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: COLOR TO BE SELECTED
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry.
parallel-img1175-detailverified · printed
door-stud-material
BRONZE STUDSPrinted source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: BRONZE STUDS
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry.
parallel-img1175-detailverified · printed
door-overpanel-carving-material
REPEAT CARVED CHERRY PANELPrinted source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Overpanel instruction only; repeat instruction is not an installed count.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: REPEAT CARVED CHERRY PANEL
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Overpanel instruction only; repeat instruction is not an installed count.
parallel-img1175-detailverified · printed
door-courtroom-face-kickplate-material
BRONZE KICK PLATEPrinted source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: BRONZE KICK PLATE
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry.
parallel-img1175-detailverified · printed
door-upper-vertical-interval
2′-4″28 in
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Right-hand elevation witness from leaf upper edge to upper horizontal panel/seam; not total opening or bare leaf height.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: 2′-4″
Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Right-hand elevation witness from leaf upper edge to upper horizontal panel/seam; not total opening or bare leaf height.
parallel-img1175-detailverified · printed
door_views

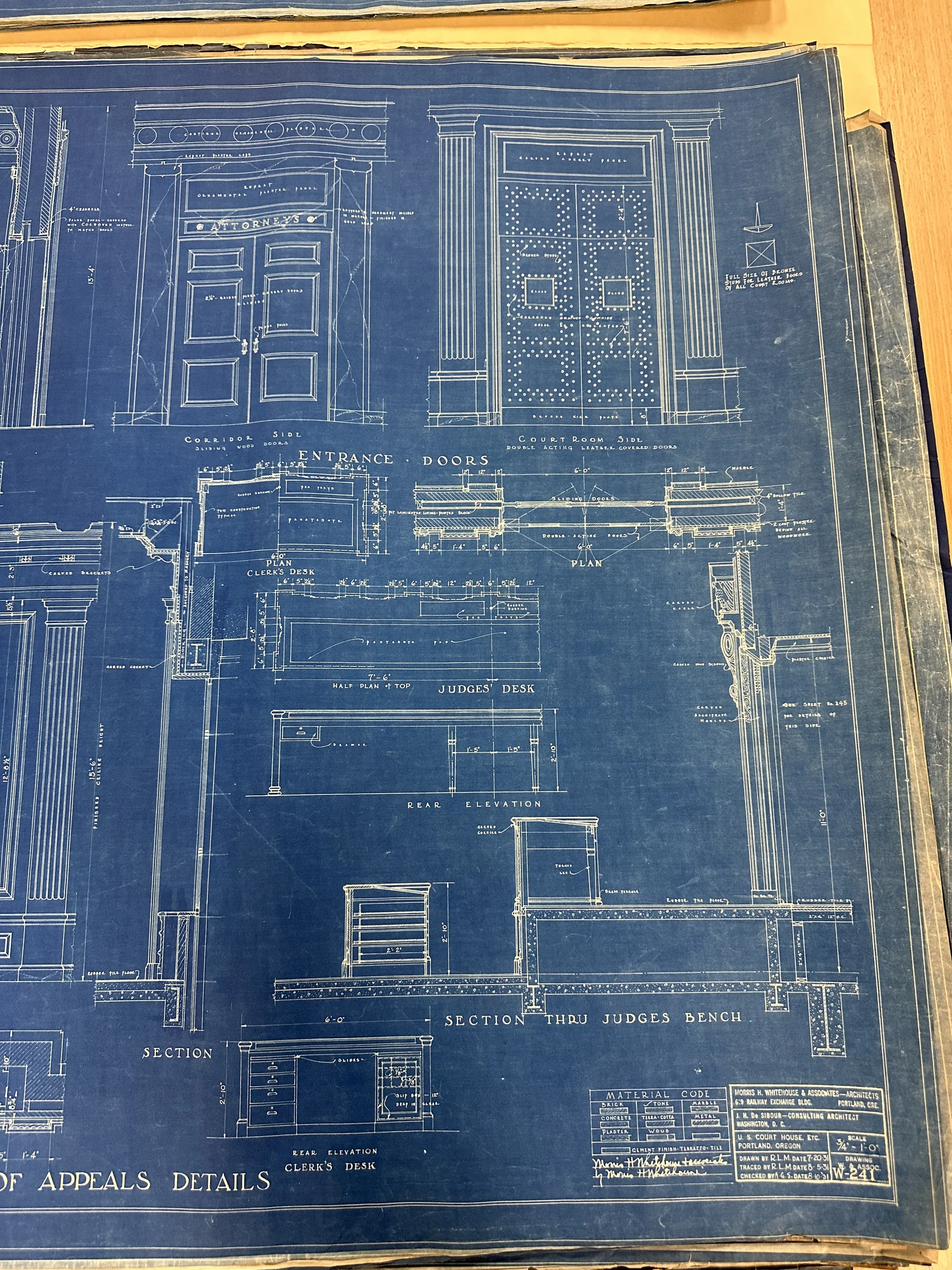

ENTRANCE DOORS — CORRIDOR SIDE / COURTROOM SIDEPartial drawing/detail evidence only; no installation count or complete room geometry established.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: ENTRANCE DOORS — CORRIDOR SIDE / COURTROOM SIDE
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
door_operation
DOUBLE ACTING SINGLE PANEL DOORPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailneeds-review · printed
door_face
PIGSKIN GRAINED COWHIDE [fine note]Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
judge_desk_view
HALF PLAN & TOP — JUDGES' DESKPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
judge_half_plan_witness
7'-6"90 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
bench_section
SECTION THRU JUDGES' BENCHPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
clerk_desk_view
REAR ELEVATION CLERK'S DESKPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
clerk_width_witness
6'-0"72 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailverified · printed
clerk_height_witness
2'-10"34 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1175-detailunreviewed · observed
fine_specs
Desk joinery, bench platform sections, door studs/plates and all hardware callouts unresolvedNumeric value unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: Desk joinery, bench platform sections, door studs/plates and all hardware callouts unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
w241-clerk-desk-prototypeverified · printed
right_rear_compartment_designation
SLIP BOXRight rear compartment noun securely read; existing12in clear-depth reading is reused, not duplicated. Small internal fraction endpoints remain unresolved.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: SLIP BOX
Right rear compartment noun securely read; existing12in clear-depth reading is reused, not duplicated. Small internal fraction endpoints remain unresolved.
w241-clerk-desk-prototypeverified · printed
plan_top_overall_front_to_back_control
2′-8″32 in
Outer front-to-back witness of clerk desk plan top, distinct from registered2ft2in inner section witness.
w241-judge-desk-prototypeverified · printed
half_plan_top_overall_front_to_back_control
2′-8″32 in
Left outer front-to-back witness of judges desk half-plan top, independent of7ft6in half-length.
w241-judge-desk-prototypeverified · printed
half_plan_left_chain_upper_outer_band
6″6 in
Uppermost6in interval of left vertical chain at judges top; no inferred member thickness.
w241-judge-desk-prototypeverified · printed
half_plan_left_chain_lower_outer_band
6″6 in
Separate lowermost6in interval of left vertical chain at judges top; not reused upper interval.
w241-clerk-desk-prototypeverified · printed
top_covering
RUBBER COVEREDClerk desk plan top note; rubber specification and thickness unresolved.
w241-clerk-desk-prototypeverified · printed
writing_surface
PLASTASTICPrinted trade/material wording in clerk desk plan; product formulation unresolved.
w241-clerk-desk-prototypeverified · printed
pen_tray
PEN TRAYSPlan rear edge accessory leader; installed tray count unresolved.
w241-clerk-desk-prototypeverified · printed
construction_reference
TOP CONSTRUCTION TYPICALClerk desk plan leader; applicable section and layer thicknesses require reconciliation.
w241-judge-desk-prototypeverified · printed
writing_surface
PLASTASTICJudge desk half-plan top surface note; no material thickness supplied.
w241-clerk-desk-prototypeverified · printed
sliding_accessory
SLIDESRear elevation leader to top accessory; mechanism and clearances unresolved.
w241-clerk-desk-prototypeverified numeric fragment; label unresolved · printed
right_compartment_clear_depth
[partial compartment label] 12" DEEP IN CLEAR12 in
Printed 12-inch depth for right rear compartment; compartment label remains partly unreadable and is not identified as drawer depth.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: [partial compartment label] 12" DEEP IN CLEAR
Printed 12-inch depth for right rear compartment; compartment label remains partly unreadable and is not identified as drawer depth.
w241-clerk-desk-prototypeverified · printed
section_inner_horizontal_witness
2'-2"26 in
Clerk desk section between inner vertical witnesses; not accepted as overall desk depth.
w241-judge-desk-prototypeverified · printed
carved_support
CARVED CORBELJudge desk section front top support leader; carving profile untraced.
w241-judge-bench-platform-prototypeverified · printed
floor_finish
RUBBER TILE FLOORLeader to upper platform surface; no thickness, color or tile size read.
detail-courts-20261010-img1175-assemblyverified · printed
judge_desk_rear_height
2'-10"34 in
Judge desk rear elevation right-hand vertical dimension: floor/leg-foot datum to top; local assembly only.
detail-courts-20261010-img1175-assemblyverified · printed
judge_desk_leg_spacing
1'-5"17 in
Rear judge desk dimension between two adjacent right-hand leg axes; neither full desk width nor room geometry.
detail-courts-20261010-img1175-assemblyverified · printed
judge_leg_material
TURNED LEGJudge-bench section leg leader; profile not traced.
detail-courts-20261010-img1175-assemblyverified · printed
judge_leg_fitting
BRASS FERRULEJudge-bench section foot leader; no fitting diameter inferred.
detail-courts-20261010-img1175-assemblyverified · printed
door_plan_span
6'-0"72 in
Entrance plan across central door span between inner side returns; sliding and double-acting door lines are separate, not a room-width control.
IMG_1175 · W-241 · Locate on drawing ↗Drawing notation: 6'-0"
Entrance plan across central door span between inner side returns; sliding and double-acting door lines are separate, not a room-width control.
detail-courts-20261010-img1175-assemblyverified · printed
door_kick_plate_height
8"8 in
Courtroom-side door elevation bottom vertical dimension from floor to kick-plate top; bronze kick-plate note adjoining.
detail-courts-20261010-img1175-assemblyverified · printed
bench_companion_reference
SEE SHEET No.245 FOR DETAILS OF THIS SIDEJudge-bench section right side finish/detail leader; companion review remains outstanding.
