Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: undefined Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1174.webp after OCR/catalogue and existing reports. Clockwise reading rotation 0 degrees; normalized access-image regions before rotation. No claim of full-region extraction. Partial timed visual review: Bounded targeted native derivative review; prior verified properties reused without duplicate transfer. No complete coverage or installed geometry claim. Partial timed visual review: Bounded text-first follow-up using sequential upright 2200px WebP derivative inspection; this photograph is a cropped or perspective view. New local properties only; no complete-sheet or geometry acceptance claim.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
7 floor
Partial drawing/detail evidence only; no installation count or complete room geometry established.

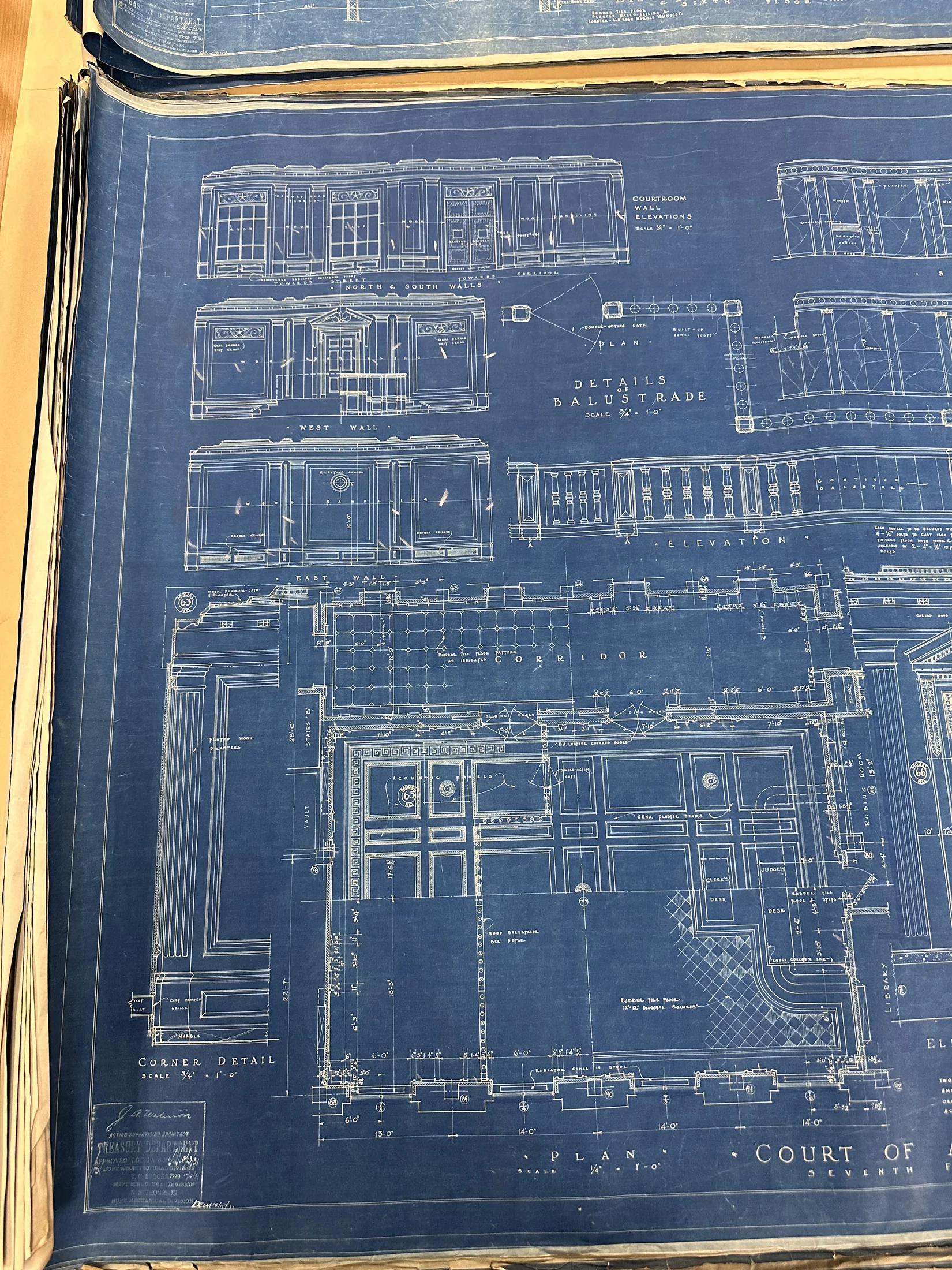

Drawing notation: SEVENTH FLOOR
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: North & South walls; West wall; East wall
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: Details of balustrade; double acting gate
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: FLUTED WOOD PILASTER
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: RUBBER TILE FLOOR IN PATTERN AS INDICATED
Partial drawing/detail evidence only; no installation count or complete room geometry established.
156 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: 13'-0"
Partial drawing/detail evidence only; no installation count or complete room geometry established.
168 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: 14'-0"
Partial drawing/detail evidence only; no installation count or complete room geometry established.
168 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: 14'-0"
Partial drawing/detail evidence only; no installation count or complete room geometry established.
168 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: 14'-0"
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Numeric value unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: Grid controls recorded as witnesses only; room boundary registration and interior element dimensions unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Corner-detail low wall grille leader; no panel dimensions or installed count inferred.
Drawing notation: CAST BRONZE GRILLE
Corner-detail low wall grille leader; no panel dimensions or installed count inferred.
Lowest corner-detail base leader; marble species/color and height unresolved.
Drawing notation: MARBLE
Lowest corner-detail base leader; marble species/color and height unresolved.
Balustrade plan leader; post assembly/type material, not installed total.
Drawing notation: BUILT-UP BIRCH POSTS
Balustrade plan leader; post assembly/type material, not installed total.
Corner detail upper left ceiling leader; support assembly specified, thickness unresolved.
Drawing notation: METAL FURRING, LATH & PLASTER
Corner detail upper left ceiling leader; support assembly specified, thickness unresolved.
