Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: undefined Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1173.webp after OCR/catalogue and existing reports. Clockwise reading rotation 0 degrees; normalized access-image regions before rotation. No claim of full-region extraction. Partial timed visual review: Additive targeted derivative crop review after OCR, prior packages and reports; orientation upright, clockwise reading rotation 0 degrees. Regions use uncropped 2200px access photograph coordinates. Existing verified properties reused without duplication. Partial extraction only. Partial timed visual review: Bounded text-first follow-up using sequential upright 2200px WebP derivative inspection; this photograph is a cropped or perspective view. New local properties only; no complete-sheet or geometry acceptance claim.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
7 floor
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: SEVENTH FLOOR
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: RUBBER TILE
Partial drawing/detail evidence only; no installation count or complete room geometry established.
2 colors
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: TWO COLORS
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: SELECTED COLORS IN DESIGN AS INDICATED
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: SELECTED ST. GENEVIEVE ROSE MARBLE
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: ORNAMENTAL PLASTER CORNICE
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: HARD FINISH PLASTER CEILING
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: AMERICAN RED CHERRY
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: SEE SHEET NO.241 FOR DETAILS
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.

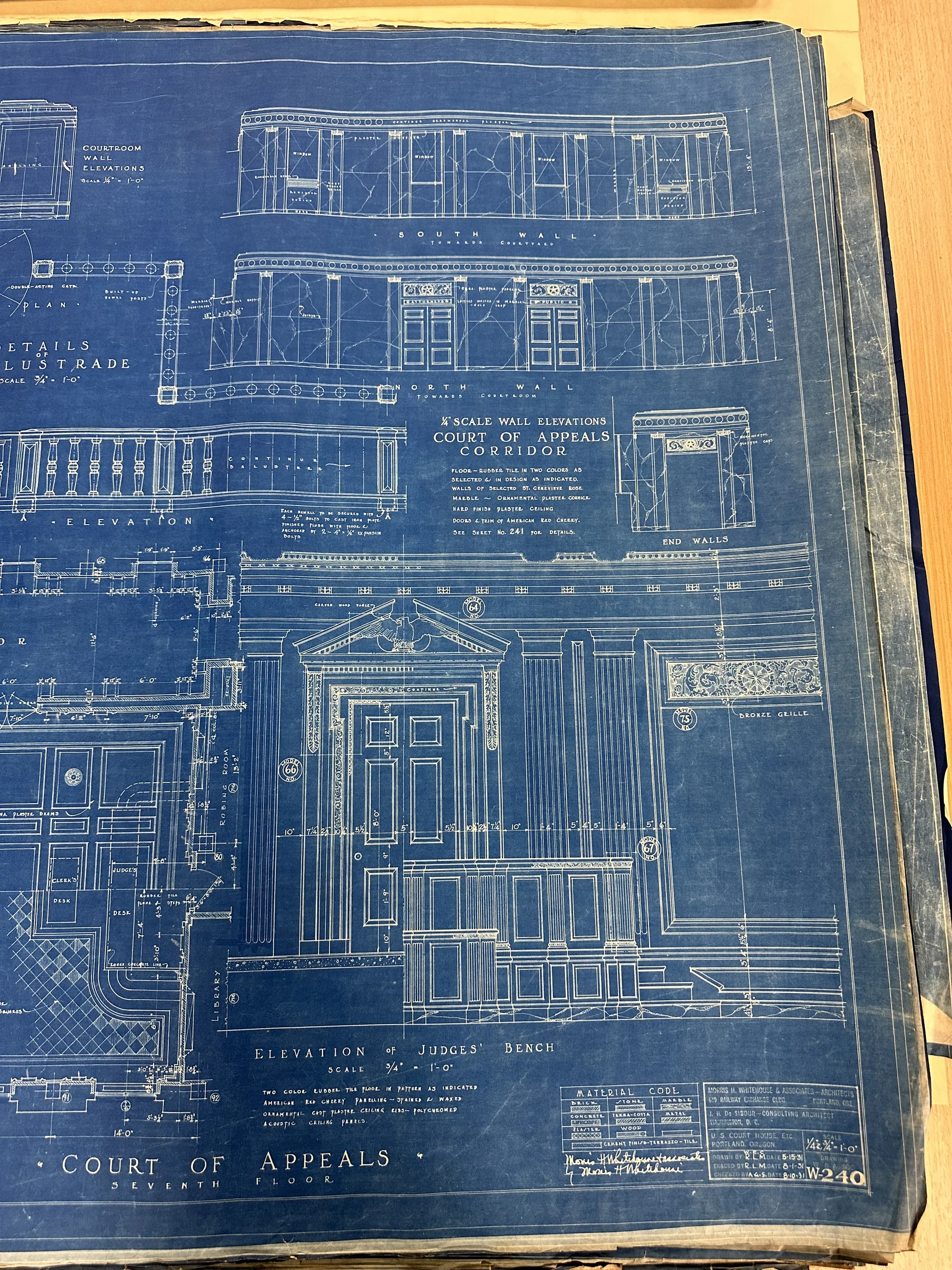

Drawing notation: ELEVATION OF JUDGES' BENCH
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: AMERICAN RED CHERRY PANELLING
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: STAINED & WAXED
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: ORNAMENTAL CAST PLASTER CEILING RIBS — POLYCHROMED
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: ACOUSTIC CEILING PANELS
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: BRONZE GRILLE
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Numeric value unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
Drawing notation: Overall plan, desk/bench, balustrade, doors and decorative dimensions not fully extracted
Partial drawing/detail evidence only; no installation count or complete room geometry established.
4 bolts
Count per depicted newel, not installed newel total. Resolves size/count uncertainty in detail-courts-20261010-img1173-m003; original null retained in prior package.
Drawing notation: EACH NEWELL TO BE SECURED WITH 4 — 1/2" BOLTS TO CAST IRON PLATE
Count per depicted newel, not installed newel total. Resolves size/count uncertainty in detail-courts-20261010-img1173-m003; original null retained in prior package.
0.5 in
Diameter in bolt specification; no length given.
Drawing notation: 4 — 1/2" BOLTS
Diameter in bolt specification; no length given.
2 bolts
Expansion anchor count for plate-to-floor fixing, distinct from four newel bolts.
Drawing notation: ANCHORED BY 2 — 4" x 1/2" EXPANSION BOLTS
Expansion anchor count for plate-to-floor fixing, distinct from four newel bolts.
4 in
First dimension interpreted as anchor length, conventional length x diameter notation; thread/embedment unresolved.
Drawing notation: 2 — 4" x 1/2" EXPANSION BOLTS
First dimension interpreted as anchor length, conventional length x diameter notation; thread/embedment unresolved.
0.5 in
Second dimension in printed expansion bolt notation; not plate thickness.
Drawing notation: 2 — 4" x 1/2" EXPANSION BOLTS
Second dimension in printed expansion bolt notation; not plate thickness.
Leader to eagle in judge-entrance pediment; carved ornament only.
Drawing notation: CARVED WOOD EAGLE
Leader to eagle in judge-entrance pediment; carved ornament only.
Balustrade fixing note below elevation; post base connection, not floor structural design.
Drawing notation: CAST IRON PLATE FINISHED FLUSH WITH FLOOR
Balustrade fixing note below elevation; post base connection, not floor structural design.
Numeric value unresolved
Fixing note. Numerals are visible but size versus count punctuation needs crop; null retained.
Drawing notation: [four bolt and expansion-anchor size/count wording unresolved]
Fixing note. Numerals are visible but size versus count punctuation needs crop; null retained.
