The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1172 · Folder 190

Judges*

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: undefined Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1172.webp after OCR/catalogue and existing reports. Clockwise reading rotation 0 degrees; normalized access-image regions before rotation. No claim of full-region extraction. Partial timed visual review: Bounded text-first follow-up using sequential upright 2200px WebP derivative inspection; this photograph is a cropped or perspective view. New local properties only; no complete-sheet or geometry acceptance claim. Partial timed visual review: Source-local view inventory and selective notes/individual properties; repeated-photo correspondence does not establish revision equivalence, installed quantity or exact geometry.

Unresolved extraction work

Partial locator only: review all fine dimensions, notes, schedules, callouts and companion details
Reconcile original drawing with handwritten annotations/revisions
Register physical instances and installed quantities; geometry remains unmodeled
Full-region dimensional/notation review outstanding
No calibrated drawing-to-floor registration
Alternate-photo conflicts and cropped-away source areas outstanding
Full high-resolution fine-fraction and endpoint review of each inventoried view remains
Handwriting, original/revision dates, approved samples and source precedence remain unclosed
Companion detail matching and source-to-installed-object / room registration remain
Cropped views need corresponding source photographs; missing evidence has not been declared irrecoverable
Individual objects retain specific missing properties; no source or floor completed by this inventory
Source-local controls are not physical building coordinates or accepted room717/716/701 placements
Complete remaining endpoint/profile/hardware/finish/quantity extraction and companion review
Original/revision/annotation precedence and installed applicability remain unresolved

Download OCR observations (unverified)

Loading the selected drawing…

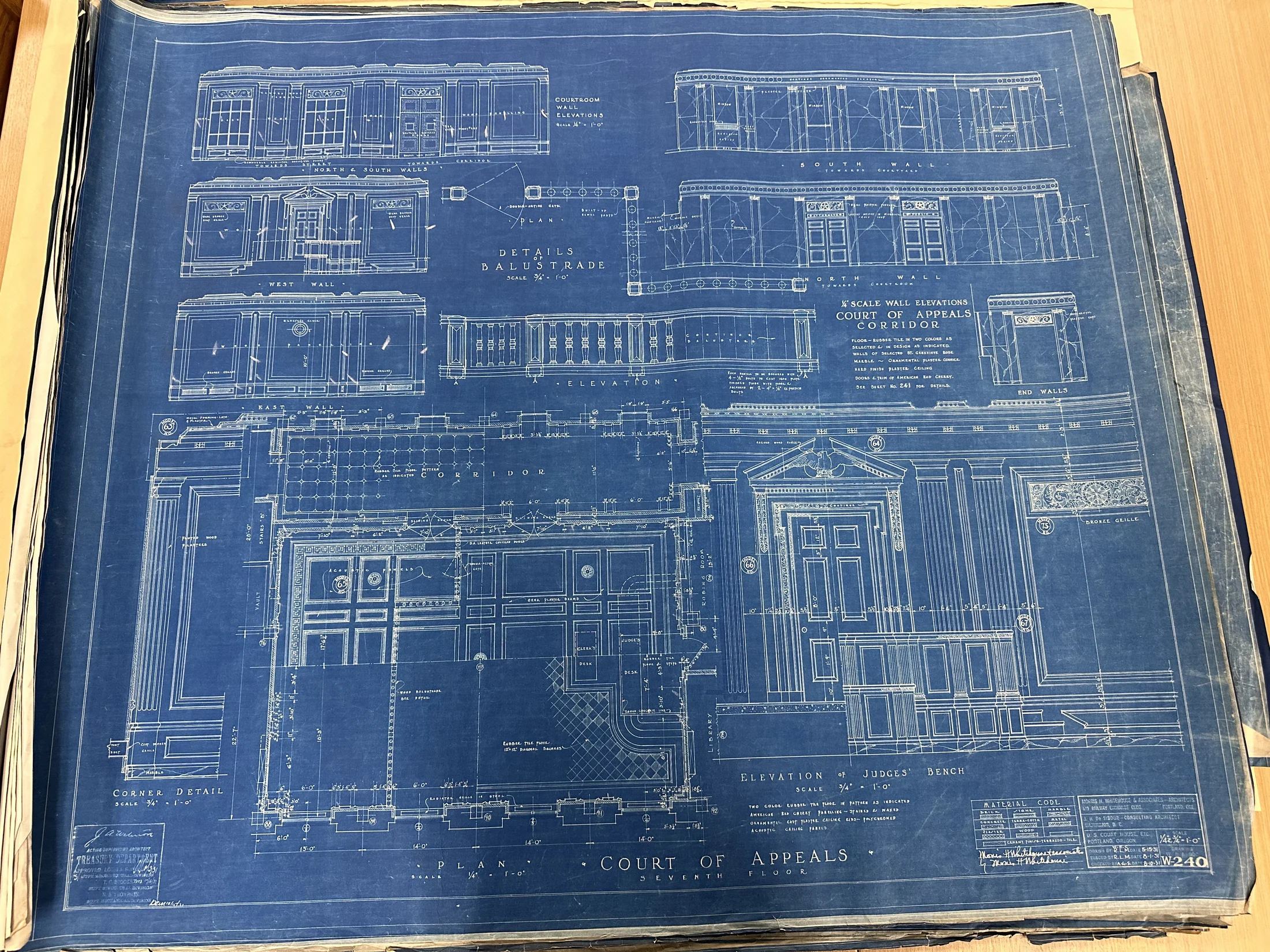

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

23 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

detail-courts-20261010-img1172-assemblyverified · printed

bench-platform-inner-vertical-witness

5′-10″

70 in

Printed source-local detail control. Exact historical revision and physical installation unresolved; does not accept whole-room geometry. Inner vertical witness within judge platform adjacent to desk, ending at labeled rough-concrete line. Endpoint construction faces remain unclassified.
