Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
f6-court602-w238-baluster-typeverified · observed
observed_baluster_component_morphology
UnresolvedBounded elevation observation. The outline supports articulated square/turned visual vocabulary, not an exact lathe profile, relief depth or full fabrication interpretation. No pixel-to-unit conversion.
IMG_1170 · W-238 · Locate on drawing ↗Bounded elevation observation. The outline supports articulated square/turned visual vocabulary, not an exact lathe profile, relief depth or full fabrication interpretation. No pixel-to-unit conversion.
f6-court602-w238-paneled-post-typeverified · observed
observed_post_face_and_cap_morphology
UnresolvedSource-local front elevation appearance only. Nested outline does not establish panel recess depth, moulding section, hidden face treatment or a cap radius. Existing 8-inch plan control remains separately scoped.
IMG_1170 · W-238 · Locate on drawing ↗Source-local front elevation appearance only. Nested outline does not establish panel recess depth, moulding section, hidden face treatment or a cap radius. Existing 8-inch plan control remains separately scoped.
f6-court602-w238-open-gate-typeverified · observed
observed_gate_topology
DOUBLE-ACTING GATE 4" THICKDrawn balusters are partial representation, not installed gate count. Scroll shape is observed; radii, joint construction, hardware and exact leaf silhouette are not recovered. Four-inch thickness is retained in existing numeric property, not reread here.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: DOUBLE-ACTING GATE 4" THICK
Drawn balusters are partial representation, not installed gate count. Scroll shape is observed; radii, joint construction, hardware and exact leaf silhouette are not recovered. Four-inch thickness is retained in existing numeric property, not reread here.
f6-court602-w238-open-gate-typeverified · observed
observed_two_feet_ten_half_top_span_witness_class
2′-10½″Endpoint-class observation, not a new numeric control. The visible dimension does not establish spacing of the long fixed-run posts. Existing repeat-bay-named properties remain preserved; this finding requires primary scope review. It corroborates the separately registered IMG1309 scroll-center witness, without merging exposures or selecting a revision.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: 2′-10½″
Endpoint-class observation, not a new numeric control. The visible dimension does not establish spacing of the long fixed-run posts. Existing repeat-bay-named properties remain preserved; this finding requires primary scope review. It corroborates the separately registered IMG1309 scroll-center witness, without merging exposures or selecting a revision.
f6-court602-w257-wood-balustradeverified · printed
printed_continued_baluster_instruction
CONTINUE BALUSTERSInstruction across the fixed-run elevation accounts for blank spans between illustrative balusters. The few fully drawn symbols cannot be counted as the complete installed infill. Does not establish an exact count or spacing.

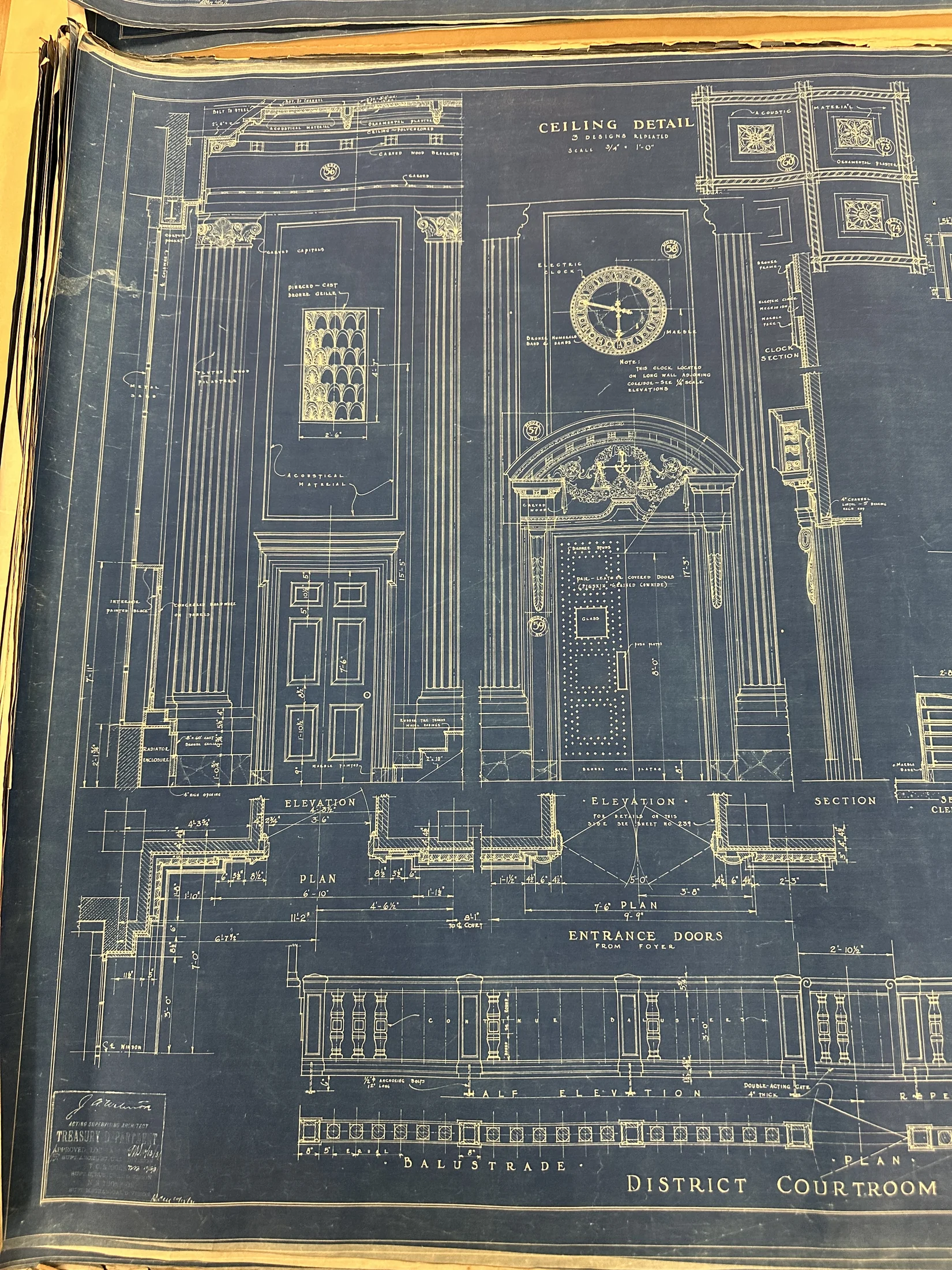

IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: CONTINUE BALUSTERS
Instruction across the fixed-run elevation accounts for blank spans between illustrative balusters. The few fully drawn symbols cannot be counted as the complete installed infill. Does not establish an exact count or spacing.
parallel-img1170-detailverified · printed
entrance_location
ENTRANCE DOORS FROM FOYERPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · printed
clock_power
ELECTRIC CLOCKPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · printed
clock_face_material
NEBO GOLDEN TRAVIS MARBLEPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · printed
wall_acoustic_material
ACOUSTICAL MATERIALPartial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · printed
door_face_spec
PIG SKIN GRAIN COWHIDE (COLOR TO BE SELECTED)Partial drawing/detail evidence only; no installation count or complete room geometry established.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: PIG SKIN GRAIN COWHIDE (COLOR TO BE SELECTED)
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · printed
door_height
8'-0"96 in
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · printed
ceiling_design_count
3 DESIGNS REPEATED3 designs
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailunreviewed · printed
balustrade_bay_candidate
2'-10 1/2" [fine half-inch fraction blurry]Numeric value unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: 2'-10 1/2" [fine half-inch fraction blurry]
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailverified · observed
sheet_identity_note
Visual layout matches W238 details; earlier report's W239 companion candidate is not supported by this imagePartial drawing/detail evidence only; no installation count or complete room geometry established.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: Visual layout matches W238 details; earlier report's W239 companion candidate is not supported by this image
Partial drawing/detail evidence only; no installation count or complete room geometry established.
parallel-img1170-detailunreviewed · observed
fine_specs
Door leather/stud/kickplate/grille/cornice dimensions not fully reviewed in locatorNumeric value unresolved
Partial drawing/detail evidence only; no installation count or complete room geometry established.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: Door leather/stud/kickplate/grille/cornice dimensions not fully reviewed in locator
Partial drawing/detail evidence only; no installation count or complete room geometry established.
f6-court602-w257-wood-balustradeverified · printed
balustrade_repeat_bay_printed_witness_same_image_resolution
2′-10½″34.5 in
Targeted IMG1170 half elevation resolves prior blurry numeric glyph. Extension endpoints remain unresolved as center-versus-face; no gate clear width, full run or installed count.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: 2′-10½″
Targeted IMG1170 half elevation resolves prior blurry numeric glyph. Extension endpoints remain unresolved as center-versus-face; no gate clear width, full run or installed count.
f6-court602-w257-wood-balustradeverified · printed
double_acting_gate_printed_thickness_same_exposure
DOUBLE-ACTING GATE 4″ THICK4 in
Source note at gate leaf. Thickness only; opening clear width, hinge/pivot construction and installed gate count remain unresolved.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: DOUBLE-ACTING GATE 4″ THICK
Source note at gate leaf. Thickness only; opening clear width, hinge/pivot construction and installed gate count remain unresolved.
f6-court602-w257-wood-balustradeverified · printed
balustrade_square_post_plan_local_width
8″8 in
Plan dimension below a square post depicted in balustrade. Component-type/source-local face-to-face width, not installed member count or full rail length.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: 8″
Plan dimension below a square post depicted in balustrade. Component-type/source-local face-to-face width, not installed member count or full rail length.
detail-courts-20261010-img1170-assemblyverified · printed
entrance_decoration_fastener
BRONZE STUDSLeather entrance leaf face leader; studs depicted, spacing/quantity not measured.
detail-courts-20261010-img1170-assemblyverified · printed
pilaster_carving
CARVED CAPITALSLeft entrance composition pilaster capitals; carving geometry not traced.
detail-courts-20261010-img1170-assemblyverified · printed
ceiling_bracket_material
CARVED WOOD BRACKETSUpper-left cornice/ceiling support note; quantity/registration unresolved.
f6-court602-w257-wood-balustradeverified · printed
balustrade_anchor_bolt_designated_diameter
½″ ANCHOR BOLTS0.5 in
Printed anchor bolt note under the left balustrade elevation. Diameter is source-local designation; no bolt count, embedment or actual installation.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: ½″ ANCHOR BOLTS
Printed anchor bolt note under the left balustrade elevation. Diameter is source-local designation; no bolt count, embedment or actual installation.
f6-court602-w257-wood-balustradeverified · printed
balustrade_anchor_bolt_designated_length
12″ LONG12 in
Length in same anchor bolt note; separate from overall rail height and full run.
Calculated from: district1013i-1170-anchor-diameter
district-court-w238-entrance-door-typeverified · printed
entrance_local_channel_lintel_nominal_size
4″ CHANNEL LINTEL4 in
Source-local channel lintel note in ornate entrance section. Four inches is a nominal section designation, not leaf thickness or full lintel cross section.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: 4″ CHANNEL LINTEL
Source-local channel lintel note in ornate entrance section. Four inches is a nominal section designation, not leaf thickness or full lintel cross section.
district-court-w238-entrance-door-typeverified · printed
entrance_local_channel_lintel_end_bearing
5″ BEARING EACH END5 in
Printed end-bearing note paired with local4in channel lintel; no length computed from entrance opening candidates.
Calculated from: district1013i-1170-door-lintel-nominal
district-court-w238-entrance-door-typeverified · printed
entrance_other_side_companion
FOR DETAILS OF THIS SIDE SEE SHEET NO.239239 sheet
Arrow identifies the reverse entrance side in the plan; source companion linkage only. W239 lobby oak sliding-door design is not automatically the same leather-covered leaf.
IMG_1170 · W-238 · Locate on drawing ↗Drawing notation: FOR DETAILS OF THIS SIDE SEE SHEET NO.239
Arrow identifies the reverse entrance side in the plan; source companion linkage only. W239 lobby oak sliding-door design is not automatically the same leather-covered leaf.
