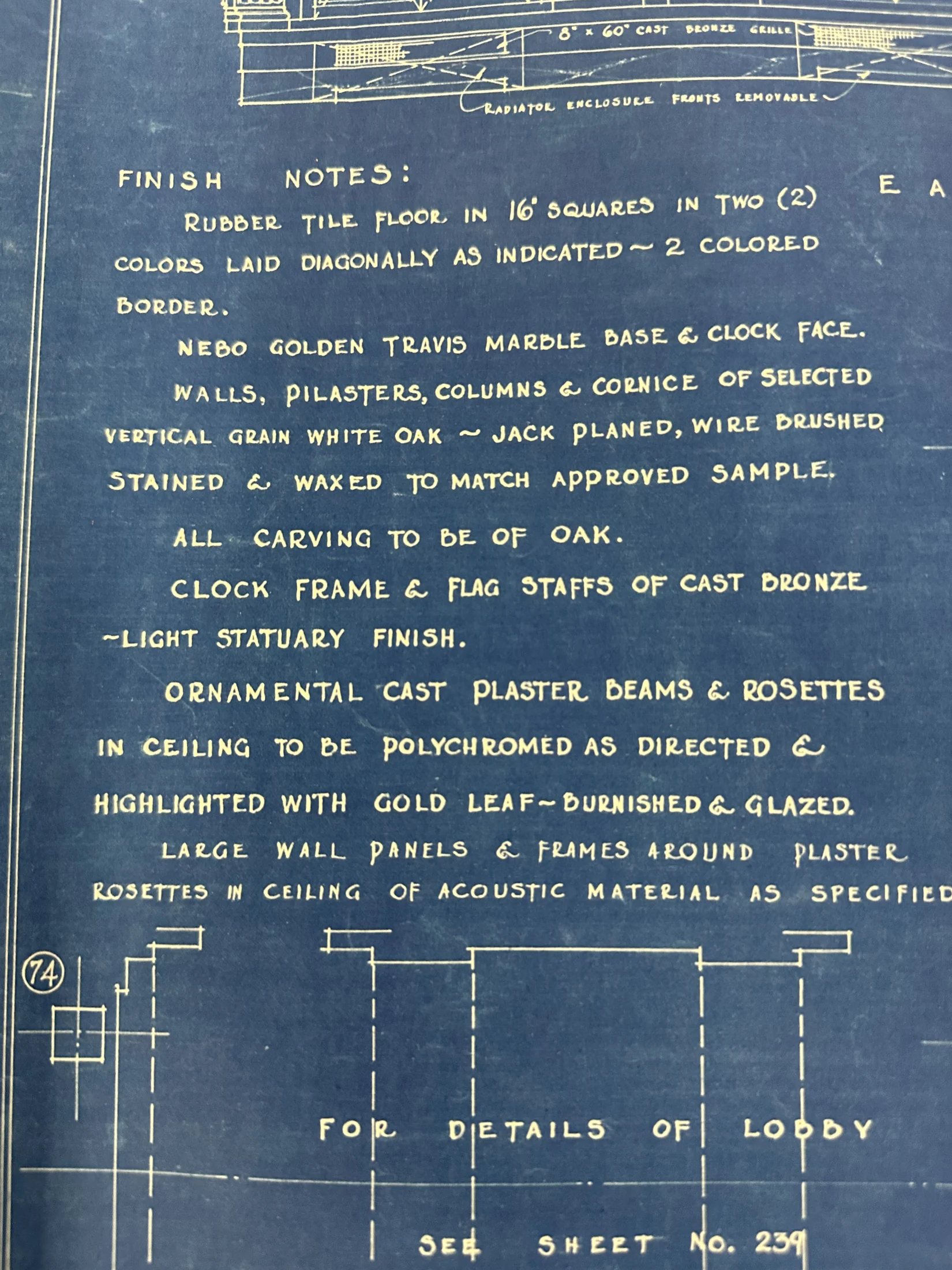

IMG_1165 · Folder 190

Ornamental Cast Plaster Beams & Rosettes

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1165.webp after OCR/catalogue and existing reports. Clockwise reading rotation 0 degrees; normalized access-image regions before rotation. No claim of full-region extraction. Partial timed visual review: undefined Partial timed visual review: Source-local drawing evidence; all new properties excluded from architectural authoring. Partial timed visual review: undefined Partial timed visual review: Source-local detail property only; no installed quantity, world geometry or acceptance established. Partial timed visual review: Selected source-local details only. All dimensions remain witness spans; no accepted room geometry. Partial timed visual review: Additive targeted review; source-local witnesses only; no physical quantities or geometry established. Partial timed visual review: undefined Partial timed visual review: Sixth-floor district-court source evidence only. Exact Court602/612 and lobby installed-instance allocation, original/revision authority and full geometry remain unresolved. Crop sourcePixelDimensions describe inspected encoded assets; normalized regions refer to corresponding whole reading-upright source frame.
