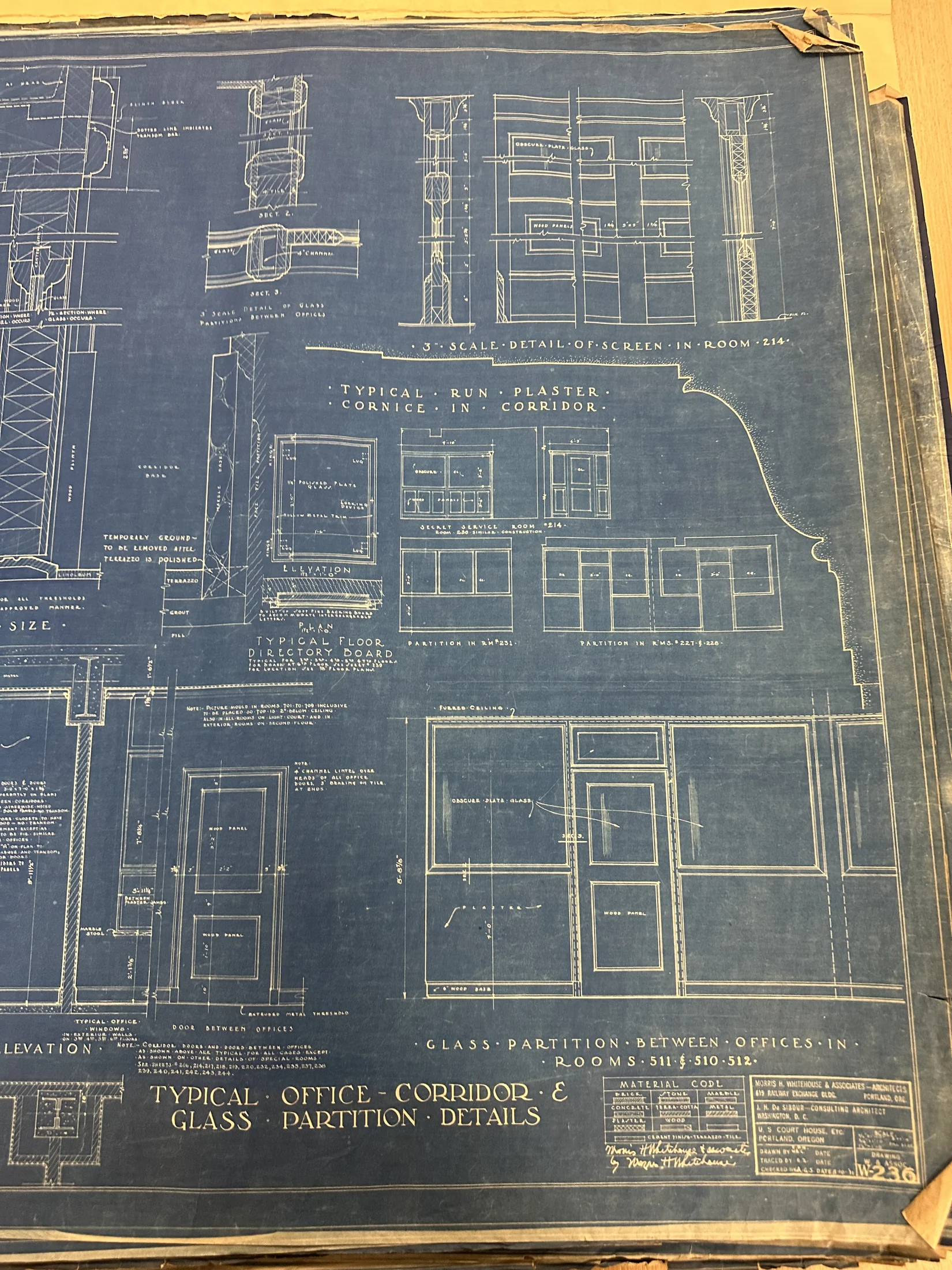

Drawing notation: TYPICAL INTERIOR DETAILS FULL SIZE
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: TEMPORARY GROUND TO BE REMOVED AFTER TERRAZZO IS POLISHED
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: TERRAZZO
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: 3" SCALE DETAIL OF SCREEN IN ROOM 214
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: 3"=1'-0"
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: TYPICAL RUN PLASTER CORNICE IN CORRIDOR
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: GLASS PARTITION BETWEEN OFFICES IN ROOMS 511 & 510-512
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: OBSCURE PLATE GLASS
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: WOOD PANEL
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Numeric value unresolved
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: TYPICAL FLOOR DIRECTORY BOARD
Selected source evidence only; partial locator review. Applies only to depicted assembly.
48 in
Vertical local witness from drawn floor/base line to lower transverse rail of glazed partition. Finish-face classification and exact owning rail edge remain open; this is not whole partition height.
Drawing notation: 4′-0″
Vertical local witness from drawn floor/base line to lower transverse rail of glazed partition. Finish-face classification and exact owning rail edge remain open; this is not whole partition height.
Calculated from: detail-1158-1167-20261011k-1161-m001
36 in
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Drawing notation: 3'-0"
Source-local detail property only; no installed quantity, world geometry or acceptance established.
78.5 in
Floor/base to upper partition rail witness; additive reading supplements prior null without replacing it.
Drawing notation: 6'-6 1/2"
Floor/base to upper partition rail witness; additive reading supplements prior null without replacing it.
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Drawing notation: PARTITION IN RM No.231
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Drawing notation: PARTITION IN RMS.227 & 228
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: WOOD PANEL
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: OBSCURE PLATE GLASS
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: POLISHED PLATE GLASS
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: HOLLOW METAL TRIM
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: LEVELLING DEVICES
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
6 in
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: 6" WOOD BASE
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Leader applies to glazed fields including door/transom. Existing overall material reading retained; this records specific transom application.
Drawing notation: OBSCURE PLATE GLASS
Leader applies to glazed fields including door/transom. Existing overall material reading retained; this records specific transom application.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: PICTURE MOULD IN ROOMS 701 TO 709 INCLUSIVE TO BE PLACED SO TOP IS 12" BELOW CEILING; ALSO IN ALL ROOMS ON LIGHT COURT AND IN EXTERIOR ROOMS ON SECOND FLOOR
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
12 in
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: 12"
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
