Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1160.webp. Selected legible regions only, not full extraction. Coordinates normalized to unrotated access image; actual principal text upright. No modeling authorized. Partial timed visual review: Partial bounded source review. Existing measurements and identities retained; original/revision and installed applicability unresolved. Partial timed visual review: undefined Partial timed visual review: Source-local detail property only; no installed quantity, world geometry or acceptance established. Partial timed visual review: Selected source-local details only. All dimensions remain witness spans; no accepted room geometry. Partial timed visual review: Additive source-local detail followup; existing verified readings retained. Sequential upright WebP review or explicit text-summary reuse; no modeling acceptance.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected source evidence only; partial locator review. Applies only to depicted assembly.

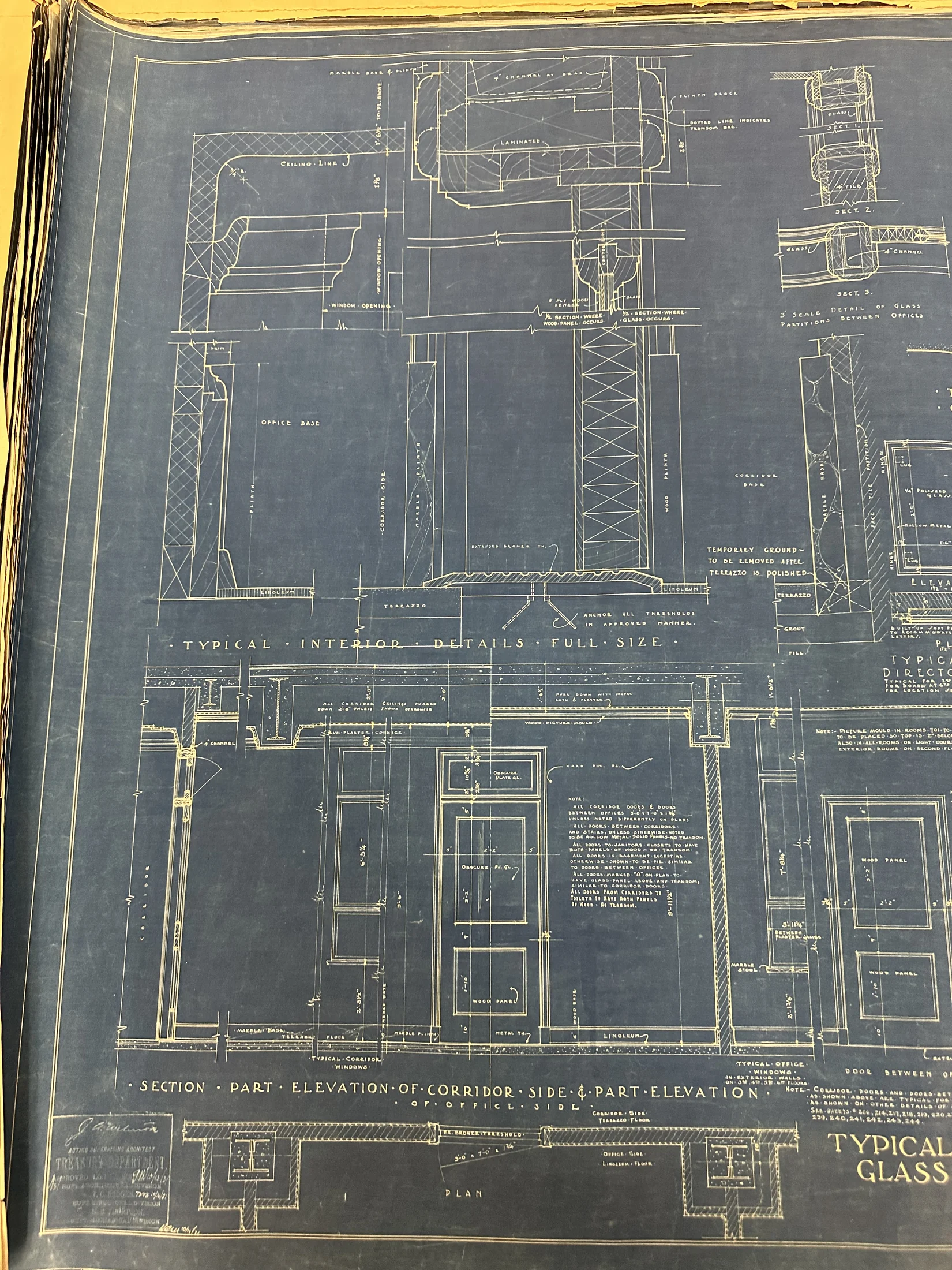

Drawing notation: TYPICAL INTERIOR DETAILS FULL SIZE
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: TEMPORARY GROUND TO BE REMOVED AFTER TERRAZZO IS POLISHED
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: TERRAZZO
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: LINOLEUM
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: MARBLE BASE
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: OBSCURE PL.GL.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: WOOD PANEL
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Drawing notation: Glass and panel specifications densely printed; full transcription outstanding
Selected source evidence only; partial locator review. Applies only to depicted assembly.
Dense door-note paragraph now reads securely for this clause. Exception applies to corridor/stair door family; not glazed office doors and not a hardware/installed-instance allocation.
Drawing notation: ALL DOORS BETWEEN CORRIDORS AND STAIRS, UNLESS OTHERWISE NOTED TO BE HOLLOW METAL SOLID PANELS - NO TRANSOM
Dense door-note paragraph now reads securely for this clause. Exception applies to corridor/stair door family; not glazed office doors and not a hardware/installed-instance allocation.
Companion relationship in same paragraph; explicit EXCEPT OTHERWISE SHOWN retained. No basement door quantity, leaf width or universal installed specification.
Drawing notation: ALL DOORS IN BASEMENT EXCEPT OTHERWISE SHOWN TO BE SIMILAR TO DOORS BETWEEN OFFICES
Companion relationship in same paragraph; explicit EXCEPT OTHERWISE SHOWN retained. No basement door quantity, leaf width or universal installed specification.
Leader names the stool in the adjacent window section, not the marble base or all trim.
Drawing notation: MARBLE STOOL
Leader names the stool in the adjacent window section, not the marble base or all trim.
47.25 in
Printed local width between plaster jambs of the depicted adjacent window detail. Opening instance, rough opening and wall placement remain unknown.
Drawing notation: 3′-11¼″ BETWEEN PLASTER JAMBS
Printed local width between plaster jambs of the depicted adjacent window detail. Opening instance, rough opening and wall placement remain unknown.
24 in
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Drawing notation: ALL CORRIDOR CEILINGS FURRED DOWN 2'-0" UNDER BEAMS
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Drawing notation: FURR DOWN WITH METAL LATH & PLASTER
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Drawing notation: WOOD PICTURE MOULD
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Drawing notation: 3 PLY WOOD PANEL
Source-local detail property only; no installed quantity, world geometry or acceptance established.
3 plies
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Drawing notation: 3 PLY WOOD PANEL
Source-local detail property only; no installed quantity, world geometry or acceptance established.
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Drawing notation: 4" CHANNEL LINTEL OVER HEADS OF ALL OFFICE DOORS & BEARING ON TILE AT ENDS
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
4 in
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Drawing notation: 4"
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved. Review correction review-correction-20261014r-janitor-door-clause: Same IMG1160 dense original door-note clause reads JANITORS CLOSETS, not BROOM CLOSETS. Native reinspection confirms existing verified same-image clause at overlapping access locus [0.6,0.671,0.745,0.69]. Preserve earlier wording and withdraw verified transcription status; no different historical door family, revision selection or installed allocation inferred.
Drawing notation: ALL DOORS TO BROOM CLOSETS TO HAVE BOTH PANELS OF WOOD - NO TRANSOM
Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.
36 in
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: 3'-0"
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
84 in
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: 7'-0"
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
1.75 in
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: 1¾"
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: UNLESS NOTED DIFFERENTLY ON PLANS
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: ALL DOORS TO JANITORS CLOSETS TO HAVE BOTH PANELS OF WOOD - NO TRANSOM
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: ALL DOORS MARKED 'A' ON PLAN TO HAVE GLASS PANEL ABOVE AND TRANSOM, SIMILAR TO CORRIDOR DOORS
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
Drawing notation: ALL DOORS FROM CORRIDORS TO TOILETS TO HAVE BOTH PANELS OF WOOD - NO TRANSOM
Applies only to depicted source-local assembly; no exact room geometry or installed state established.
