The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters
IMG_1159 · Folder 190

Corridor

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1159.webp. Selected legible regions only, not full extraction. Coordinates normalized to unrotated access image; actual principal text upright. No modeling authorized. Partial timed visual review: Partial bounded source review. Existing measurements and identities retained; original/revision and installed applicability unresolved. Partial timed visual review: Source-local detail property only; no installed quantity, world geometry or acceptance established. Partial timed visual review: Selected source-local details only. All dimensions remain witness spans; no accepted room geometry. Partial timed visual review: Additive targeted review; source-local witnesses only; no physical quantities or geometry established. Partial timed visual review: Additive source-local detail followup; existing verified readings retained. Sequential upright WebP review or explicit text-summary reuse; no modeling acceptance. Partial timed visual review: Selected source-local properties; source remains incomplete.

Unresolved extraction work
  • locator review only; full region coverage, dimension chains and fine fractions remain outstanding
  • remaining schedules, notes, quantities, materials and companion details
  • historical instance registration, revision/annotation reconciliation and finish sample identity
  • Directory mounting/dimensions, partition height exact fraction in this exposure, profile depths and full room assignments remain open.
  • Remaining fine dimension chains, endpoints and profile depths
  • Companion detail and governing revision reconciliation
  • Installed instance registration, quantities and finish sample identity
  • Modeling and whole-building acceptance checking outstanding
  • Fine fractions and dimension endpoints outside selected regions
  • Companion sheets, notes and revision reconciliation
  • Physical instance quantities and world-coordinate registration
  • Physical installation quantities and room instance registration
  • Governing revision and companion detail reconciliation
  • Fine dimensions outside reviewed regions
  • Model checking not performed
  • Remaining fine dimension fractions and endpoints require higher-resolution region evidence
  • Fixture/partition instance mapping, governing schedules and companion details
  • Accepted source-to-building registration and physical geometry remain withheld
  • Overall partition-height fraction remains unresolved after native crop and rotated supplementary view.
  • Directory mounting/dimensions, remaining profile depths and full room assignments unresolved.
  • Installed instances, full component dimensions and hardware specifications remain unresolved.
  • Governing revisions, companion details and source-to-building registration remain unresolved.
  • No geometry acceptance or architectural release; all unreviewed source regions remain open.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

18 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1159-interiorverified · printed

drawing_scope

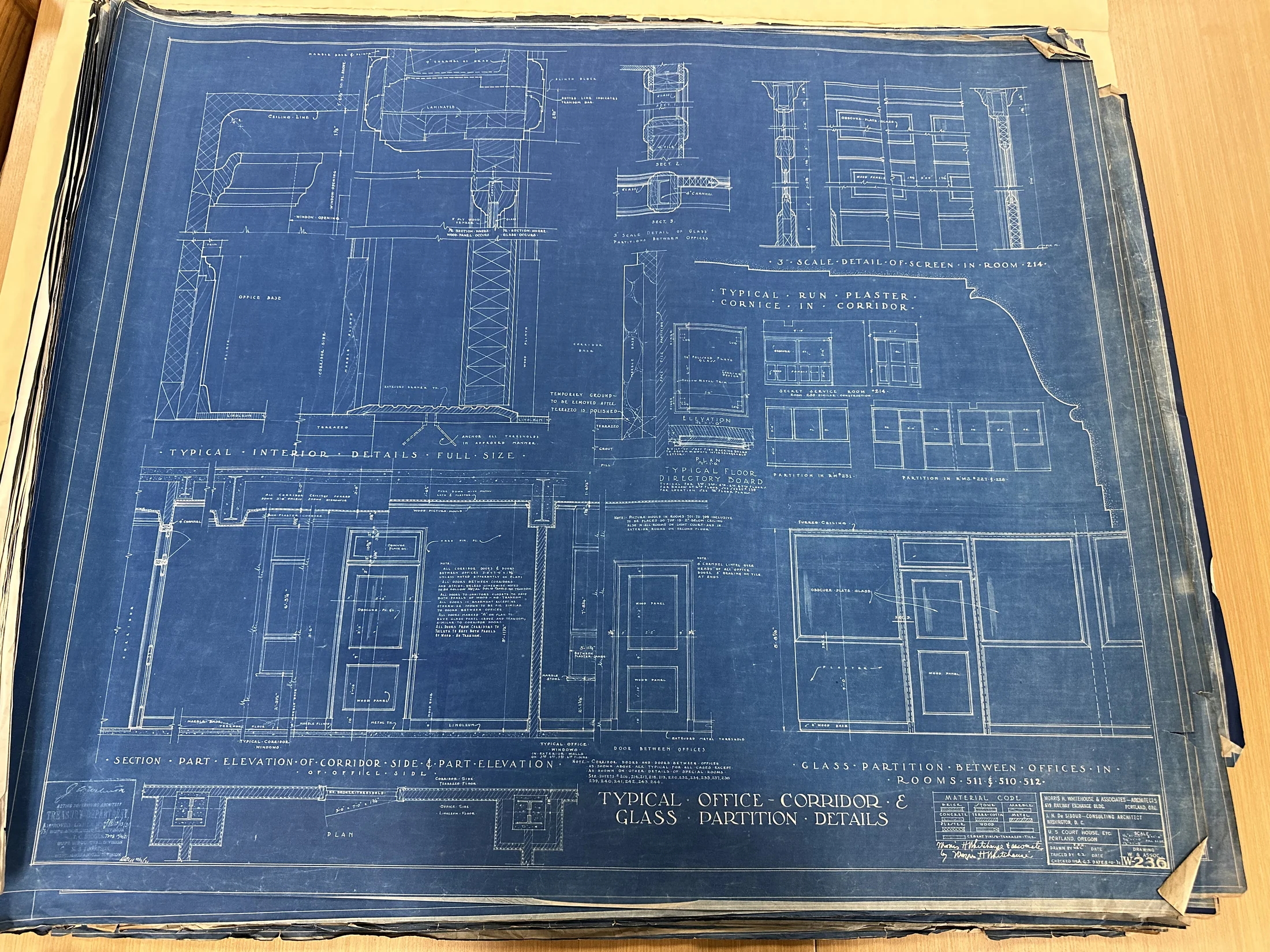

TYPICAL INTERIOR DETAILS FULL SIZE

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: TYPICAL INTERIOR DETAILS FULL SIZE

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-screenverified · printed

assignment

3" SCALE DETAIL OF SCREEN IN ROOM 214

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: 3" SCALE DETAIL OF SCREEN IN ROOM 214

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-screenverified · printed

drawing_scale

3"=1'-0"

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: 3"=1'-0"

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-corniceverified · printed

material

TYPICAL RUN PLASTER CORNICE IN CORRIDOR

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: TYPICAL RUN PLASTER CORNICE IN CORRIDOR

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-officepartitionverified · printed

assignment

GLASS PARTITION BETWEEN OFFICES IN ROOMS 511 & 510-512

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: GLASS PARTITION BETWEEN OFFICES IN ROOMS 511 & 510-512

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-officepartitionverified · printed

glazing_material

OBSCURE PLATE GLASS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: OBSCURE PLATE GLASS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-officepartitionverified · printed

lower_panel_material

WOOD PANEL

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: WOOD PANEL

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-officepartitionunreviewed · printed

overall_partition_height

Unresolved

Numeric value unresolved

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-directoryverified · printed

assignment

TYPICAL FLOOR DIRECTORY BOARD

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: TYPICAL FLOOR DIRECTORY BOARD

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1159-screenverified · printed

screen_assigned_service_room_note

SECRET SERVICE ROOM 214

Caption below companion small screen elevation group on W236; room214 is a printed assignment, not an installed-screen count or geometry.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: SECRET SERVICE ROOM 214

Caption below companion small screen elevation group on W236; room214 is a printed assignment, not an installed-screen count or geometry.

Calculated from: parallel-img1159-m002

detail-w236-partition-room231verified · printed

room_assignment

PARTITION IN RM No.231

Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: PARTITION IN RM No.231

Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.

detail-w236-partition-rooms227-228verified · printed

room_assignment

PARTITION IN RMS.227 & 228

Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: PARTITION IN RMS.227 & 228

Printed source-local property. Physical installation, endpoints and governing revision remain unresolved.

detail-sanitary-w236-thresholdverified · printed

threshold-anchorage

ANCHOR ALL THRESHOLDS IN APPROVED MANNER

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: ANCHOR ALL THRESHOLDS IN APPROVED MANNER

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

detail-sanitary-w236-thresholdverified · printed

threshold-material

EXTRUDED BRONZE TH.

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: EXTRUDED BRONZE TH.

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

lookoutsanitary1014q-1159-office-partitionverified · printed

wood-base-height

6" WOOD BASE

6 in

Printed base height in this partition elevation; no profile depth.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: 6" WOOD BASE

Printed base height in this partition elevation; no profile depth.

lookoutsanitary1014q-1159-office-partitionverified · printed

lower-transverse-reference-height

4'-0"

48 in

Vertical witness from floor line to glazing-bottom/transverse reference, source-local; not whole partition height.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: 4'-0"

Vertical witness from floor line to glazing-bottom/transverse reference, source-local; not whole partition height.

lookoutsanitary1014q-1159-office-partitionverified · printed

lower-solid-field-material

PLASTER

Leaders point to lower solid fields beside door; distinct from door's wood panel.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: PLASTER

Leaders point to lower solid fields beside door; distinct from door's wood panel.

lookoutsanitary1014q-1159-office-partitionverified · printed

ceiling-treatment

FURRED CEILING

Leader at upper horizontal partition reference; no furring depth inferred.

IMG_1159 · W-236 · Locate on drawing ↗

Drawing notation: FURRED CEILING

Leader at upper horizontal partition reference; no furring depth inferred.

View all source photographs →
