The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

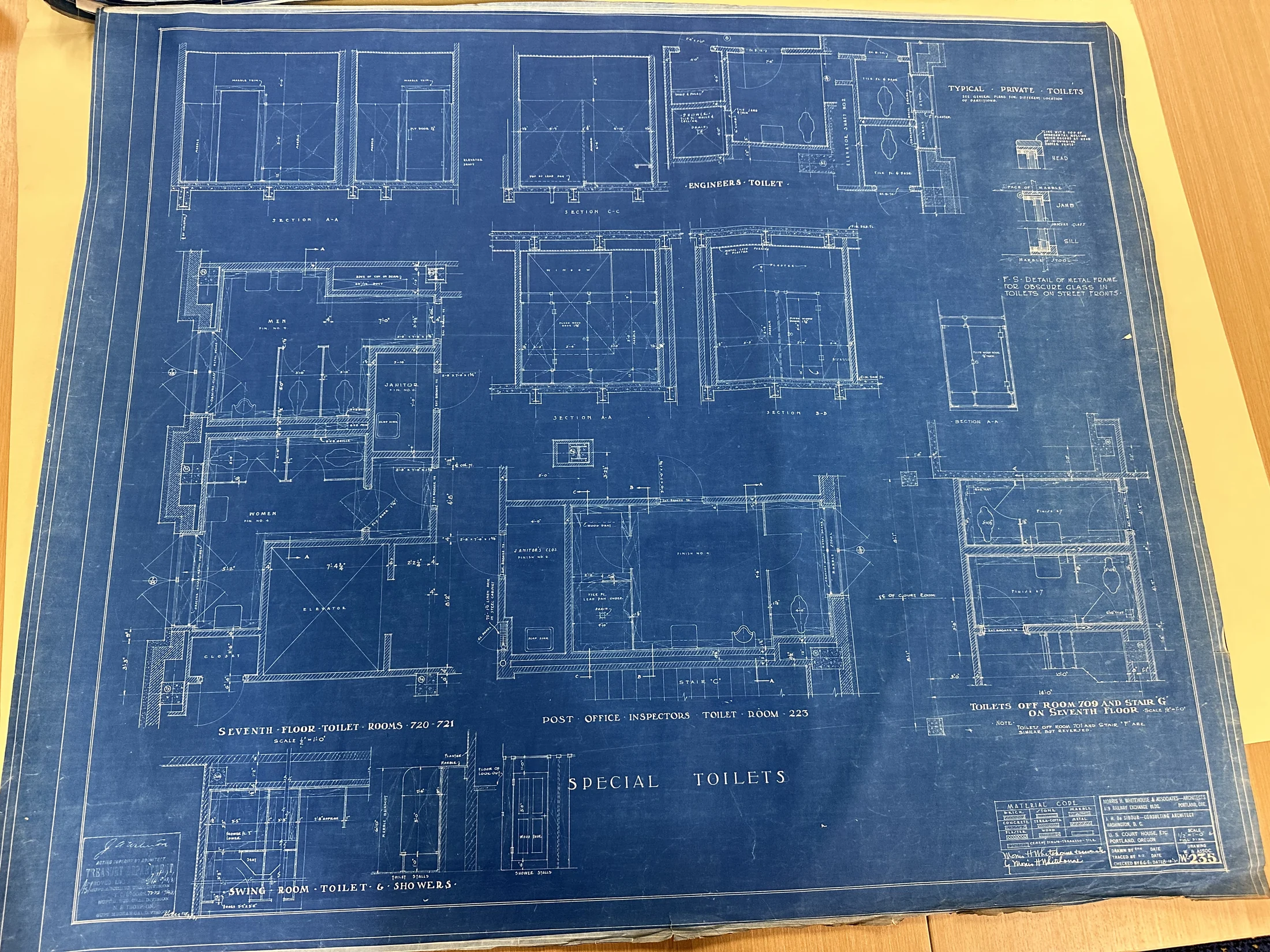

IMG_1155 · Folder 191

Post Office Inspectors Toilet Room - 223

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial text-first then sequential <=1000px JPEG65 locator review of public/archive/drawings/complete-upright/IMG_1155.webp. Selected legible regions only, not full extraction. Coordinates normalized to unrotated access image; actual principal text upright. No modeling authorized. Partial timed visual review: Additive bounded remaining-region review of upright WebP after queue, OCR and prior packages; no geometry acceptance. Partial timed visual review: Additive source-local detail followup; existing verified readings retained. Sequential upright WebP review or explicit text-summary reuse; no modeling acceptance. Partial timed visual review: Verified sanitary shower-seat and frame materials reused; no new source inspection Partial timed visual review: Additive finish/fixture note review after prior records; fine detail limited by access derivative resolution; no geometry acceptance. Partial timed visual review: Selected source-local properties; source remains incomplete. Partial timed visual review: Raw master is upright despite EXIF3. Corrected bounded swing elevation crop provides independent type-component dimensions.

Unresolved extraction work
  • locator review only; full region coverage, dimension chains and fine fractions remain outstanding
  • remaining schedules, notes, quantities, materials and companion details
  • historical instance registration, revision/annotation reconciliation and finish sample identity
  • Fine fractional dimensions and classified extension endpoints in remaining regions
  • Complete individual component inventory and companion-sheet/revision reconciliation
  • Accepted source-to-building transform and actual installed geometry
  • Remaining fine dimension fractions and endpoints require higher-resolution region evidence
  • Fixture/partition instance mapping, governing schedules and companion details
  • Accepted source-to-building registration and physical geometry remain withheld
  • Remaining regions, fine fractions and extension endpoints need review
  • Installed instance mapping and accepted source-to-building transform
  • Companion details and revision reconciliation
  • No additional source regions visually reviewed in this bounded package
  • Remaining dimensions, fractions, endpoint classification and revision reconciliation
  • Installed instance mapping and governing finish schedules
  • Accepted source-to-building transform and full region extraction remain outstanding
  • Swing-room shower hardware, full Room223 dimension chain and generic private-toilet applicability unresolved.
  • Installed instances, full component dimensions and hardware specifications remain unresolved.
  • Governing revisions, companion details and source-to-building registration remain unresolved.
  • No geometry acceptance or architectural release; all unreviewed source regions remain open.
  • Governing sanitary fixture key/specification, manufacturer, fixture-body material and finish remain unestablished.
  • All unvisited notes, schedules, dimensions, callouts, revision marks and companion regions still require review.
  • Accepted architectural faces, source-to-building registration, fixture offsets, installed state and whole-building checks remain outstanding.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

32 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1155-inspectorverified · printed

room_assignment

POST OFFICE INSPECTORS TOILET ROOM - 223

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: POST OFFICE INSPECTORS TOILET ROOM - 223

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-inspectorverified · observed

fixtures

Lavatory and W.C. compartment shown beside janitor closet

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: Lavatory and W.C. compartment shown beside janitor closet

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-inspectorunreviewed · printed

room_dimensions

Unresolved

Numeric value unresolved

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-privateverified · printed

assignment

TYPICAL PRIVATE TOILETS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: TYPICAL PRIVATE TOILETS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-engineerverified · printed

assignment

ENGINEERS TOILET

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: ENGINEERS TOILET

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-frameverified · printed

material

F.S. DETAIL OF METAL FRAME FOR OBSCURE GLASS IN TOILETS ON STREET FRONTS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: F.S. DETAIL OF METAL FRAME FOR OBSCURE GLASS IN TOILETS ON STREET FRONTS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-frameverified · printed

detail_components

HEAD / JAMB / SILL

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: HEAD / JAMB / SILL

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-room709verified · printed

assignment

TOILETS OFF ROOM 709 AND STAIR G ON SEVENTH FLOOR

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: TOILETS OFF ROOM 709 AND STAIR G ON SEVENTH FLOOR

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-rooms720721verified · printed

room_assignment

SEVENTH FLOOR TOILET ROOMS 720-721

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: SEVENTH FLOOR TOILET ROOMS 720-721

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-swingverified · printed

assignment

SWING ROOM TOILET & SHOWERS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: SWING ROOM TOILET & SHOWERS

Selected source evidence only; partial locator review. Applies only to depicted assembly.

parallel-img1155-frameverified · printed

sill-support-material

MARBLE STOOL

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: MARBLE STOOL

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

parallel-img1155-frameverified · printed

jamb-adjacent-finish

FACE OF MARBLE

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: FACE OF MARBLE

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

parallel-img1155-frameverified · printed

glazing-label

OBSCURE GLASS

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: OBSCURE GLASS

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

parallel-img1155-swingverified · printed

stall-floor-level-label

SHOWER FL. LEVEL

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: SHOWER FL. LEVEL

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

parallel-img1155-swingverified · printed

shower-seat-label

SEAT

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: SEAT

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

parallel-img1155-swingverified · printed

shower-door-material

WOOD DOOR

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: WOOD DOOR

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

detail-sanitary-w235-swing-stallverified · printed

shower-seat-material

WOOD SEAT

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: WOOD SEAT

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

detail-sanitary-w235-swing-stallverified · printed

shower-seat-detail-label

SHOWER STALLS

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: SHOWER STALLS

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

detail-sanitary-w235-swing-stallmanual-source-review · printed

stall-leaf-width

2'-4"

28 in

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 2'-4"

Applies only to depicted source-local assembly; no exact room geometry or installed state established.

parallel-img1155-swingverified · printed

shower-floor-relative-lowering

SHOWER FL. 2" LOWER

2 in

Printed lowering relative to adjoining floor; absolute floor datum and assembly depth unresolved.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: SHOWER FL. 2" LOWER

Printed lowering relative to adjoining floor; absolute floor datum and assembly depth unresolved.

parallel-img1155-swingverified · printed

toilet-stall-marble-material

MARBLE

Source-local printed requirement only; no actual installed room dimensions or quantities established.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: MARBLE

Source-local printed requirement only; no actual installed room dimensions or quantities established.

parallel-img1155-swingverified · printed

toilet-stall-plaster-finish

PLASTER

Source-local printed requirement only; no actual installed room dimensions or quantities established.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: PLASTER

Source-local printed requirement only; no actual installed room dimensions or quantities established.

parallel-img1155-swingverified · printed

fixture-bay-spacing

2'-0" FIXTURES

24 in

Printed transverse fixture-bay spacing in swing-room plan; applies locally, not accepted room geometry.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 2'-0" FIXTURES

Printed transverse fixture-bay spacing in swing-room plan; applies locally, not accepted room geometry.

lookoutsanitary1014q-1155-men-finishverified · printed

men-finish-schedule-number

MEN / FIN. NO. 4

4 finish-schedule-number

Printed finish identifier in men plan; no schedule material or whole-floor inference.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: MEN / FIN. NO. 4

Printed finish identifier in men plan; no schedule material or whole-floor inference.

sanitary1013d-w235-swing-shower-door-typeverified · printed

leaf-height

5'-0"

60 in

Vertical witness between shower-door leaf top and bottom; type-component only.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 5'-0"

Vertical witness between shower-door leaf top and bottom; type-component only.

sanitary1013d-w235-swing-shower-door-typeverified · printed

bottom-clearance

6"

6 in

Vertical witness from shower-stall floor line to leaf bottom; local depicted type.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 6"

Vertical witness from shower-stall floor line to leaf bottom; local depicted type.

sanitary1013d-w235-swing-shower-door-typeverified · printed

upper-gap

1'-0"

12 in

Vertical witness from leaf top to upper frame reference; not room ceiling height.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 1'-0"

Vertical witness from leaf top to upper frame reference; not room ceiling height.

sanitary1013d-w235-swing-shower-door-typeverified · printed

leaf-material

WOOD DOOR

Direct shower-leaf annotation, confined to illustrated type.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: WOOD DOOR

Direct shower-leaf annotation, confined to illustrated type.

sanitary1013d-w235-swing-shower-door-typeunreviewed · observed

hardware-specification

Unresolved

Hinges are illustrated but no governing named hardware specification read in bounded crop.

IMG_1155 · W-235 · Locate on drawing ↗

Hinges are illustrated but no governing named hardware specification read in bounded crop.

detail-sanitary-w235-swing-stallverified · printed

toilet-elevation-leaf-height

5'-0"

60 in

Separate toilet-stall elevation on left of shower leaf; not a repeated installed quantity.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 5'-0"

Separate toilet-stall elevation on left of shower leaf; not a repeated installed quantity.

detail-sanitary-w235-swing-stallverified · printed

toilet-elevation-bottom-clearance

1'-0"

12 in

Toilet leaf lower witness to stall floor line.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 1'-0"

Toilet leaf lower witness to stall floor line.

detail-sanitary-w235-swing-stallverified · printed

toilet-elevation-wainscot-height

6'-0" MARBLE WAINSCOT

72 in

Source toilet-elevation material-height annotation; not all building toilet finishes.

IMG_1155 · W-235 · Locate on drawing ↗

Drawing notation: 6'-0" MARBLE WAINSCOT

Source toilet-elevation material-height annotation; not all building toilet finishes.

View all source photographs →
