Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

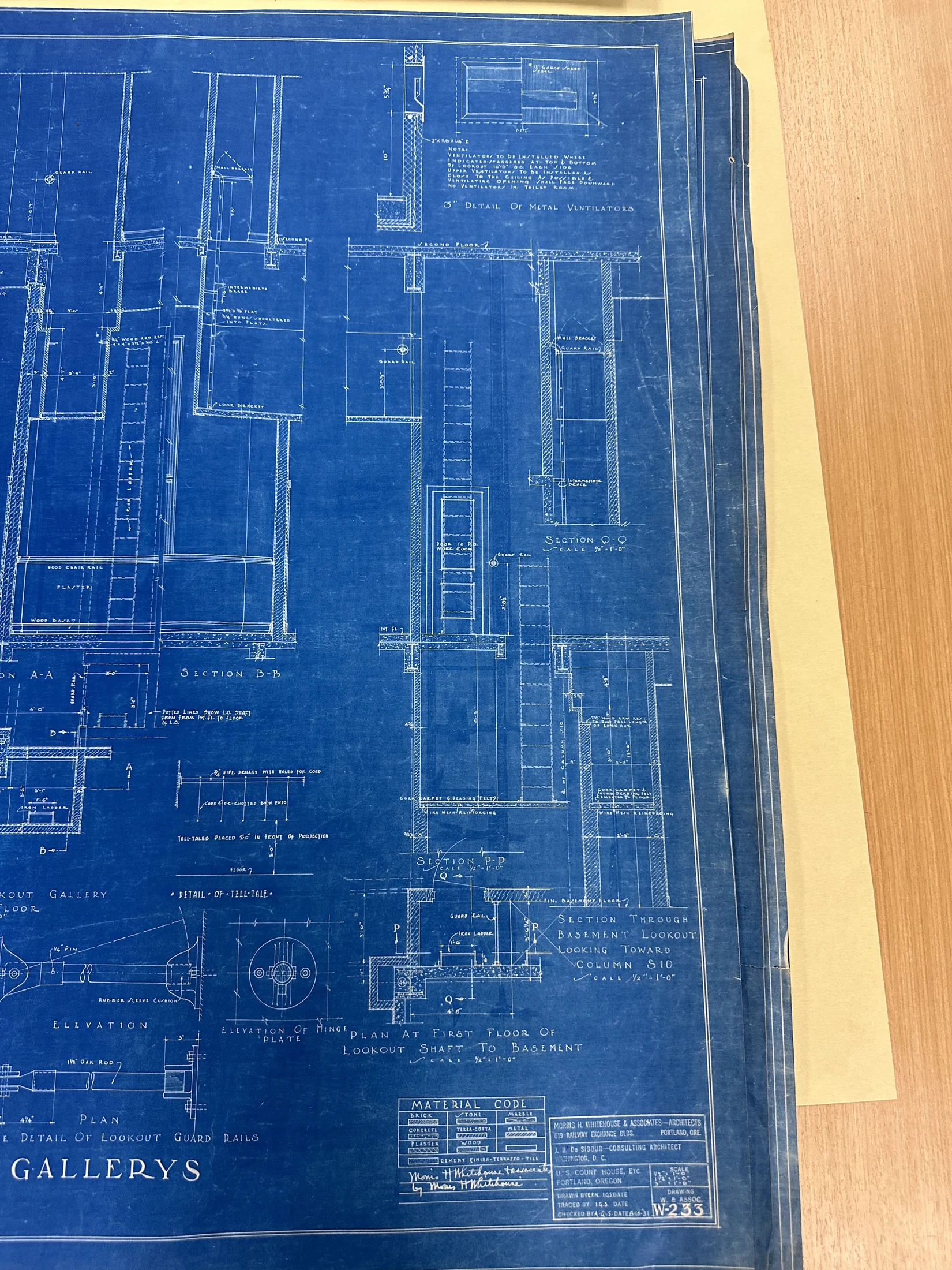

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1151.webp. Lettering upright. Regions are original access-image normalized coordinates. Locating a region does not claim full review of its fine detail. No modeling. Partial timed visual review: Additive bounded remaining-region review of upright WebP after queue, OCR and prior packages; no geometry acceptance. Partial timed visual review: Verified 20261011k basement finish/reinforcement records reused; duplicate shaft sheet not reopened Partial timed visual review: Prior finish/material/fixture text findings reused; source not reopened and no duplicate properties added. Partial timed visual review: Source-local view inventory and selective notes/individual properties; repeated-photo correspondence does not establish revision equivalence, installed quantity or exact geometry. Partial timed visual review: Selected source-local properties; source remains incomplete.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: 3" DETAIL OF METAL VENTILATORS
Selected legible locator evidence; partial assembly-local extraction.
3 in/ft
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: 3" DETAIL OF METAL VENTILATORS
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: RUBBER SLEEVE CUSHION
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: OAK ROD
Selected legible locator evidence; partial assembly-local extraction.
24 in
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: TELL-TALES PLACED 2'-0" IN FRONT OF PROJECTION
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: SECTION THROUGH BASEMENT LOOKOUT LOOKING TOWARD COLUMN S10
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: PLAN AT FIRST FLOOR OF LOOKOUT SHAFT TO BASEMENT
Selected legible locator evidence; partial assembly-local extraction.
Numeric value unresolved
Uncertain locator reading; value withheld; full detail review outstanding.
Drawing notation: [metal ventilator requirements, shaft levels and rail/hinge dimensions unresolved]
Uncertain locator reading; value withheld; full detail review outstanding.
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: CORK CARPET & SOUND DEADENING FELT CEMENTED TO FLOOR
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: WIRE MESH REINFORCING
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: INTERMEDIATE BRACE
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
0.875 in
Printed armrest stock thickness in this basement section, not the whole wall thickness.
Drawing notation: 7/8" WOOD ARM REST TO RUN FULL LENGTH OF LOOKOUT
Printed armrest stock thickness in this basement section, not the whole wall thickness.
Text requirement for armrest extent; numeric lookout length not supplied by this note.
Drawing notation: WOOD ARM REST TO RUN FULL LENGTH OF LOOKOUT
Text requirement for armrest extent; numeric lookout length not supplied by this note.
46 in
Local vertical witness between lookout floor and armrest top; no building datum.
Drawing notation: 3'-10"
Local vertical witness between lookout floor and armrest top; no building datum.
35 in
Printed upper horizontal interval between depicted inside wall lines; finish-face class remains unaccepted.
Drawing notation: 2'-11"
Printed upper horizontal interval between depicted inside wall lines; finish-face class remains unaccepted.
29 in
Printed lower horizontal interval between depicted inside wall lines; separate from upper witness.
Drawing notation: 2'-5"
Printed lower horizontal interval between depicted inside wall lines; separate from upper witness.
156 in
Source vertical witness from finished basement-floor line to upper construction reference; no global height or floor-level assignment.
Drawing notation: 13'-0"
Source vertical witness from finished basement-floor line to upper construction reference; no global height or floor-level assignment.
