IMG_1150 · Folder 191

First Floor Of

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1150.webp. Lettering upright. Regions are original access-image normalized coordinates. Locating a region does not claim full review of its fine detail. No modeling. Partial timed visual review: Additive bounded remaining-region review of upright WebP after queue, OCR and prior packages; no geometry acceptance. Partial timed visual review: Additive targeted review; source-local details only. No installed quantities, finished room geometry or model acceptance established. Partial timed visual review: Prior finish/material/fixture text findings reused; source not reopened and no duplicate properties added. Partial timed visual review: Source-local view inventory and selective notes/individual properties; repeated-photo correspondence does not establish revision equivalence, installed quantity or exact geometry. Partial timed visual review: Selected source-local properties; source remains incomplete.

Unresolved extraction work
  • complete review of each region and fine note
  • remaining dimensions, materials, schedules, callouts and revisions
  • floor/object registration and cropped companion evidence
  • Fine fractional dimensions and classified extension endpoints in remaining regions
  • Complete individual component inventory and companion-sheet/revision reconciliation
  • Accepted source-to-building transform and actual installed geometry
  • Remaining regions, fine fractions and extension endpoints need review
  • Installed instance mapping and accepted source-to-building transform
  • Companion details and revision reconciliation
  • Remaining dimensions, fractions, endpoint classification and revision reconciliation
  • Installed instance mapping and governing finish schedules
  • Accepted source-to-building transform and full region extraction remain outstanding
  • Full high-resolution fine-fraction and endpoint review of each inventoried view remains
  • Handwriting, original/revision dates, approved samples and source precedence remain unclosed
  • Companion detail matching and source-to-installed-object / room registration remain
  • Cropped views need corresponding source photographs; missing evidence has not been declared irrecoverable
  • Individual objects retain specific missing properties; no source or floor completed by this inventory
  • Ventilator folded profile, fasteners, remaining shaft/hinge dimensions and full manufacture/finish note unresolved.
  • Installed instances, full component dimensions and hardware specifications remain unresolved.
  • Governing revisions, companion details and source-to-building registration remain unresolved.
  • No geometry acceptance or architectural release; all unreviewed source regions remain open.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

22 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1150-assemblyverified · printed

ventilator_detail

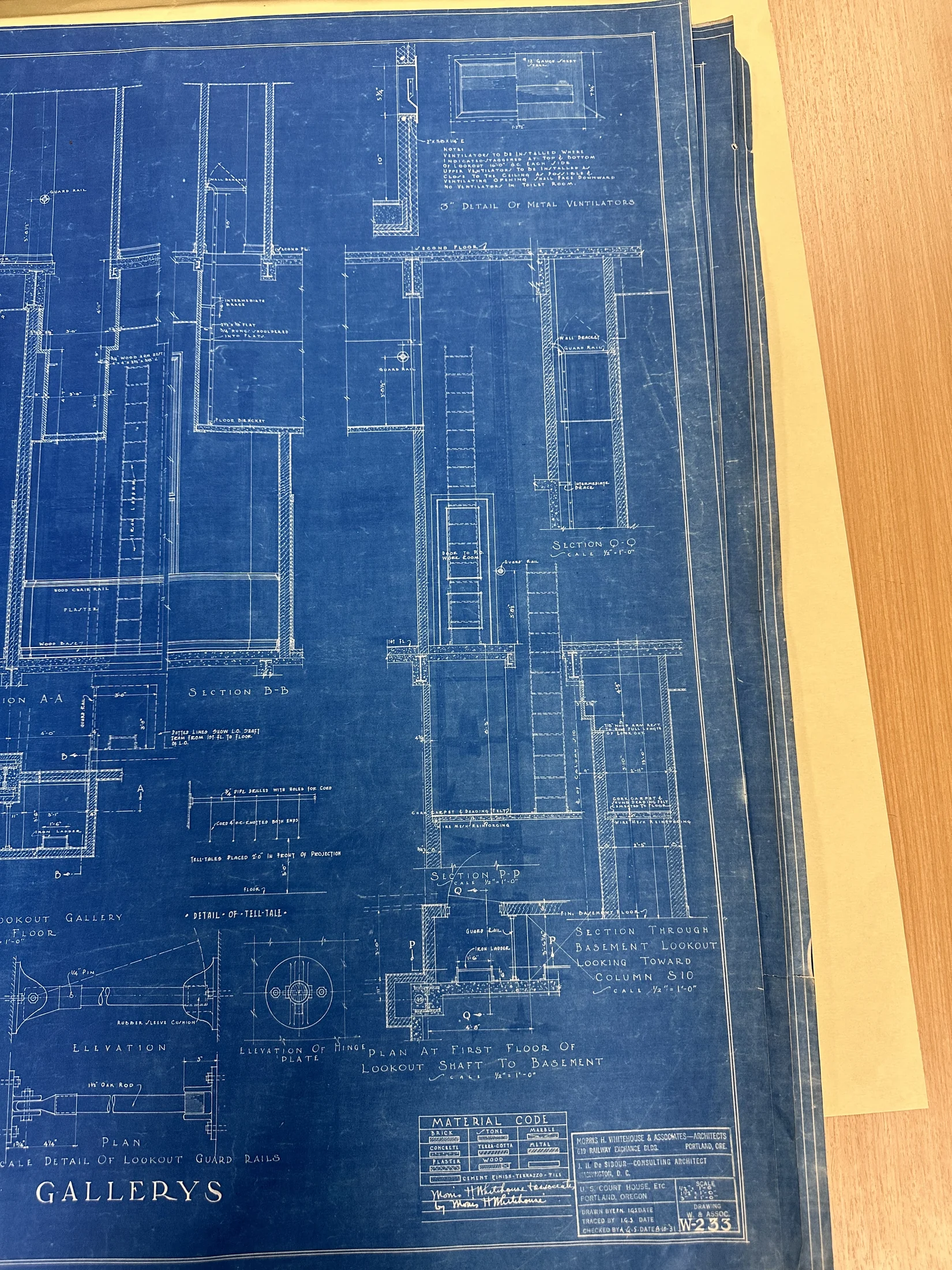

3" DETAIL OF METAL VENTILATORS

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: 3" DETAIL OF METAL VENTILATORS

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

ventilator_material

METAL

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: METAL

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

shaft_first_floor_plan

PLAN AT FIRST FLOOR OF LOOKOUT SHAFT TO BASEMENT

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: PLAN AT FIRST FLOOR OF LOOKOUT SHAFT TO BASEMENT

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

basement_section_location

SECTION THROUGH BASEMENT LOOKOUT LOOKING TOWARD COLUMN S10

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: SECTION THROUGH BASEMENT LOOKOUT LOOKING TOWARD COLUMN S10

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

column_mark

S10

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: S10

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

section_QQ

SECTION Q-Q

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: SECTION Q-Q

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

section_PP

SECTION P-P

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: SECTION P-P

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

tell_tale_offset

TELL-TALES PLACED 2'-0" IN FRONT OF PROJECTION

24 in

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: TELL-TALES PLACED 2'-0" IN FRONT OF PROJECTION

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyverified · printed

guard_rail_material

OAK ROD

Selected legible locator evidence; partial assembly-local extraction.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: OAK ROD

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1150-assemblyunreviewed · printed

remaining_ventilator_spec

[ventilator manufacture/finish note and shaft/hinge dimensions unresolved]

Uncertain locator reading; value withheld; full detail review outstanding.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: [ventilator manufacture/finish note and shaft/hinge dimensions unresolved]

Uncertain locator reading; value withheld; full detail review outstanding.

detail-w233-metal-ventilatormanual-source-review · printed

placement-instruction

VENTILATORS TO BE INSTALLED WHERE INDICATED - ABOVE AT TOP & BOTTOM OF LOOKOUT - 1'-0" O.C. EACH SIDE

Selected note transcription; exact opening application and per-side count require general-plan registration.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: VENTILATORS TO BE INSTALLED WHERE INDICATED - ABOVE AT TOP & BOTTOM OF LOOKOUT - 1'-0" O.C. EACH SIDE

Selected note transcription; exact opening application and per-side count require general-plan registration.

detail-w233-metal-ventilatormanual-source-review · printed

vertical-placement-spacing

1'-0" O.C.

12 in

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: 1'-0" O.C.

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

detail-w233-metal-ventilatorverified · printed

upper-louver-orientation

UPPER VENTILATORS TO BE INSTALLED AS CLOSE TO THE CEILING AS POSSIBLE & VENTILATING OPENING SHALL FACE DOWNWARD

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: UPPER VENTILATORS TO BE INSTALLED AS CLOSE TO THE CEILING AS POSSIBLE & VENTILATING OPENING SHALL FACE DOWNWARD

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

detail-w233-metal-ventilatorverified · printed

toilet-room-exclusion

NO VENTILATORS IN TOILET ROOM

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: NO VENTILATORS IN TOILET ROOM

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

detail-w233-firstfloor-shaft-ladderverified · printed

ladder-material

IRON LADDER

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: IRON LADDER

Depicted source-local component only; no installed quantity, room geometry or world placement inferred.

detail-w233-metal-ventilatorverified · printed

sheet-material

12 GAUGE SHEET STEEL

Material caption on ventilator face.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: 12 GAUGE SHEET STEEL

Material caption on ventilator face.

detail-w233-metal-ventilatorverified · printed

sheet-gauge

12 GAUGE

12 gauge

Original gauge designation only; no conversion to thickness.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: 12 GAUGE

Original gauge designation only; no conversion to thickness.

detail-w233-metal-ventilatorunresolved · printed

face-overall-width

Unresolved

Numeric value unresolved

Width notation includes an unresolved fraction; enlarged derivative does not justify numeric reading.

IMG_1150 · W-233 · Locate on drawing ↗

Width notation includes an unresolved fraction; enlarged derivative does not justify numeric reading.

parallel-img1150-assemblyverified · printed

shaft-door-application

DOOR TO P.O. WORK ROOM

P-P source caption beside door at first-floor shaft. P.O. is preserved; room number and installed opening instance are unlocated.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: DOOR TO P.O. WORK ROOM

P-P source caption beside door at first-floor shaft. P.O. is preserved; room number and installed opening instance are unlocated.

detail-w233-metal-ventilatorunreviewed · printed

ventilator-face-height-fraction

Unresolved

Numeric value unresolved

Right-side face vertical dimension has a small fraction not confidently resolved in bounded derivative inspection. Separate from already-null face width.

IMG_1150 · W-233 · Locate on drawing ↗

Right-side face vertical dimension has a small fraction not confidently resolved in bounded derivative inspection. Separate from already-null face width.

detail-w233-metal-ventilatorverified · printed

ventilator-face-width

1'-2½"

14.5 in

Printed face overall horizontal witness; neither opening-clear size nor installed quantity.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: 1'-2½"

Printed face overall horizontal witness; neither opening-clear size nor installed quantity.

detail-w233-metal-ventilatorverified · printed

ventilator-face-height

7¾"

7.75 in

Printed face overall vertical witness, fraction confirmed by supplementary rotated crop. No folded-profile/clear-opening acceptance.

IMG_1150 · W-233 · Locate on drawing ↗

Drawing notation: 7¾"

Printed face overall vertical witness, fraction confirmed by supplementary rotated crop. No folded-profile/clear-opening acceptance.
