Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local extraction.

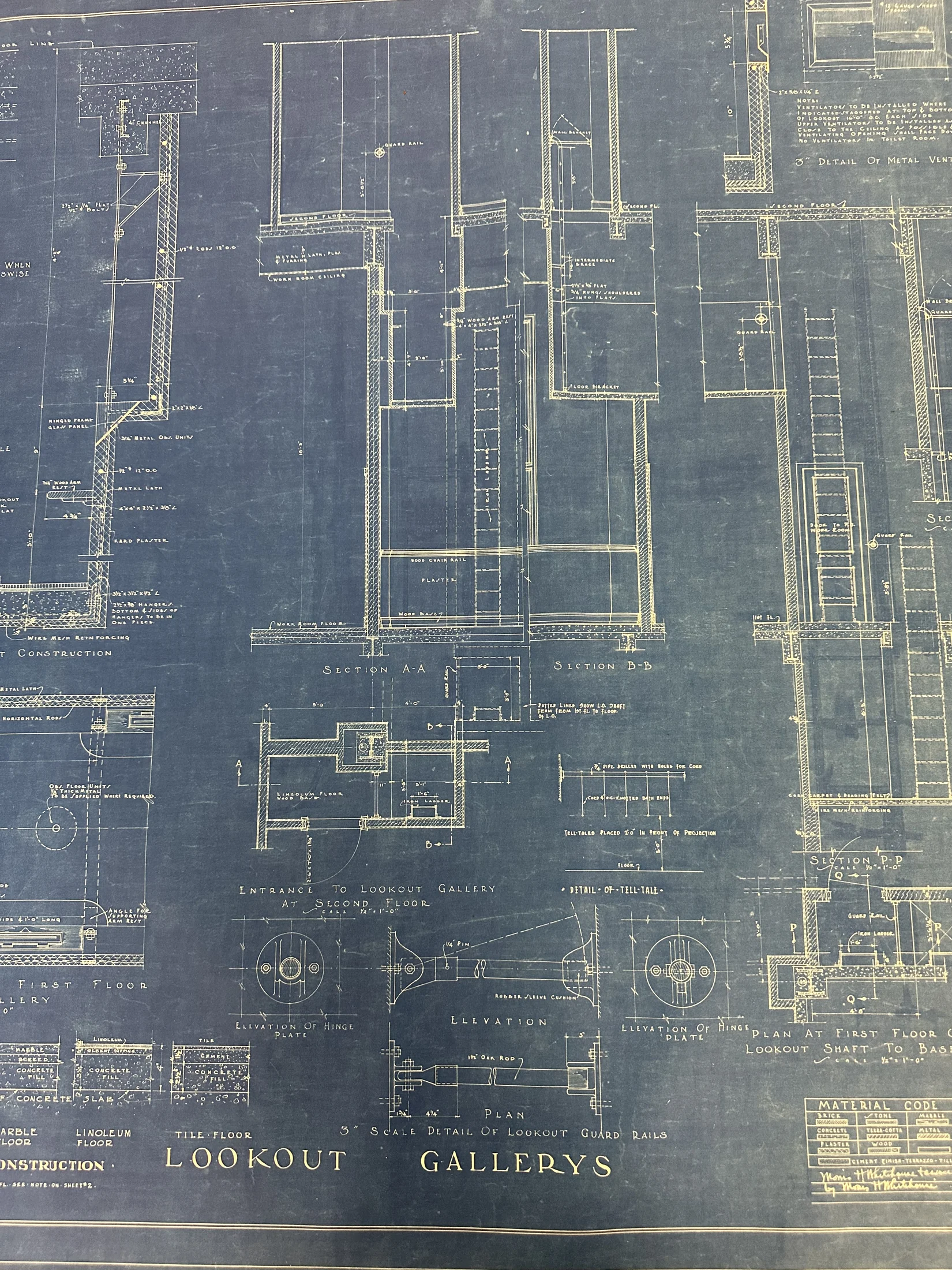

Drawing notation: SECTION A-A
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: SECTION B-B
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: ENTRANCE TO LOOKOUT GALLERY AT SECOND FLOOR
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: DETAIL OF TELL-TALE
Selected legible locator evidence; partial assembly-local extraction.
24 in
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: TELL-TALES PLACED 2'-0" IN FRONT OF PROJECTION
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: PIPE DRILLED WITH HOLES FOR CORD
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: OAK ROD
Selected legible locator evidence; partial assembly-local extraction.
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: RUBBER SLEEVE CUSHION
Selected legible locator evidence; partial assembly-local extraction.
3 in/ft
Selected legible locator evidence; partial assembly-local extraction.
Drawing notation: 3" SCALE DETAIL OF LOOKOUT GUARD RAILS
Selected legible locator evidence; partial assembly-local extraction.
Numeric value unresolved
Uncertain locator reading; value withheld; full detail review outstanding.
Drawing notation: [pipe/rod diameters, hinge pins, shaft dimensions and material notes unresolved]
Uncertain locator reading; value withheld; full detail review outstanding.
0.25 in
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: 1/4" PIN
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Numeric value unresolved
Oak rod diameter fraction cannot be securely distinguished at derivative resolution; material already recorded in prior package.
Oak rod diameter fraction cannot be securely distinguished at derivative resolution; material already recorded in prior package.
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: WOOD CHAIR RAIL
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: PLASTER
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
Drawing notation: WOOD BASE
Depicted source-local component only; no installed quantity, room geometry or world placement inferred.
1.5 in
Printed rod size in guard rail plan. Resolves earlier null reading; prior unresolved record retained.
Drawing notation: 1½" OAK ROD
Printed rod size in guard rail plan. Resolves earlier null reading; prior unresolved record retained.
1.75 in
Local horizontal chain from wall line to hinge pin axis, not installed rail span.
Drawing notation: 1¾"
Local horizontal chain from wall line to hinge pin axis, not installed rail span.
4.25 in
Local horizontal chain from hinge pin axis to rod socket shoulder.
Drawing notation: 4¼"
Local horizontal chain from hinge pin axis to rod socket shoulder.
3 in
Right-hand socket projection dimension; source-local hardware only.
Drawing notation: 3"
Right-hand socket projection dimension; source-local hardware only.
Source A-A work-room ceiling callout. Separate from wall PLASTER property; no room instance or finish thickness established.
Drawing notation: METAL LATH, PLAS FINISH
Source A-A work-room ceiling callout. Separate from wall PLASTER property; no room instance or finish thickness established.
2.5 in
Readable stock width only; thickness fraction withheld independently.
Drawing notation: 2½" × [fraction unresolved] FLAT
Readable stock width only; thickness fraction withheld independently.
Numeric value unresolved
Fraction cannot be securely distinguished in native crop. Do not infer it from neighboring drawings or nominal practice.
Drawing notation: 2½" × [fraction unresolved] FLAT
Fraction cannot be securely distinguished in native crop. Do not infer it from neighboring drawings or nominal practice.
0.75 in
Printed rung size; no explicit diameter sign is visible, so retains generic size rather than claiming circular section.
Drawing notation: ¾" RUNGS
Printed rung size; no explicit diameter sign is visible, so retains generic size rather than claiming circular section.
Fabrication relationship: ladder rungs are shouldered into side flats. No weld, rivet or bolt method inferred.
Drawing notation: RUNGS SHOULDERED INTO FLATS
Fabrication relationship: ladder rungs are shouldered into side flats. No weld, rivet or bolt method inferred.
36 in
Vertical witness from depicted SECOND FL. line to upper horizontal rail/bracket line in B-B; not accepted floor datum or railing compliance.
Drawing notation: 3′-0″
Vertical witness from depicted SECOND FL. line to upper horizontal rail/bracket line in B-B; not accepted floor datum or railing compliance.
36 in
Horizontal witness across local gallery void at the lower of two 3′-0″ dimensions in A-A; endpoint face classification and room envelope remain unaccepted.
Drawing notation: 3′-0″
Horizontal witness across local gallery void at the lower of two 3′-0″ dimensions in A-A; endpoint face classification and room envelope remain unaccepted.
0.75 in
Printed pipe size in tell-tale detail; nominal/actual outside diameter not established. No total pipe length or installed count.
Drawing notation: 3/4" PIPE DRILLED WITH HOLES FOR CORD
Printed pipe size in tell-tale detail; nominal/actual outside diameter not established. No total pipe length or installed count.
4 in
Printed cord center spacing in tell-tale detail, independently unit-marked. Drawn cord count is not an installed quantity.
Drawing notation: CORD 4" O.C. KNOTTED BOTH ENDS
Printed cord center spacing in tell-tale detail, independently unit-marked. Drawn cord count is not an installed quantity.
60 in
Printed vertical witness from the FLOOR line to lower hanging-cord level; not a global floor datum, pipe height or installation approval.
Drawing notation: 5'-0"
Printed vertical witness from the FLOOR line to lower hanging-cord level; not a global floor datum, pipe height or installation approval.
Printed knot requirement for cords in source tell-tale detail; material and installed count remain unspecified.
Drawing notation: CORD 4" O.C. KNOTTED BOTH ENDS
Printed knot requirement for cords in source tell-tale detail; material and installed count remain unspecified.
