The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

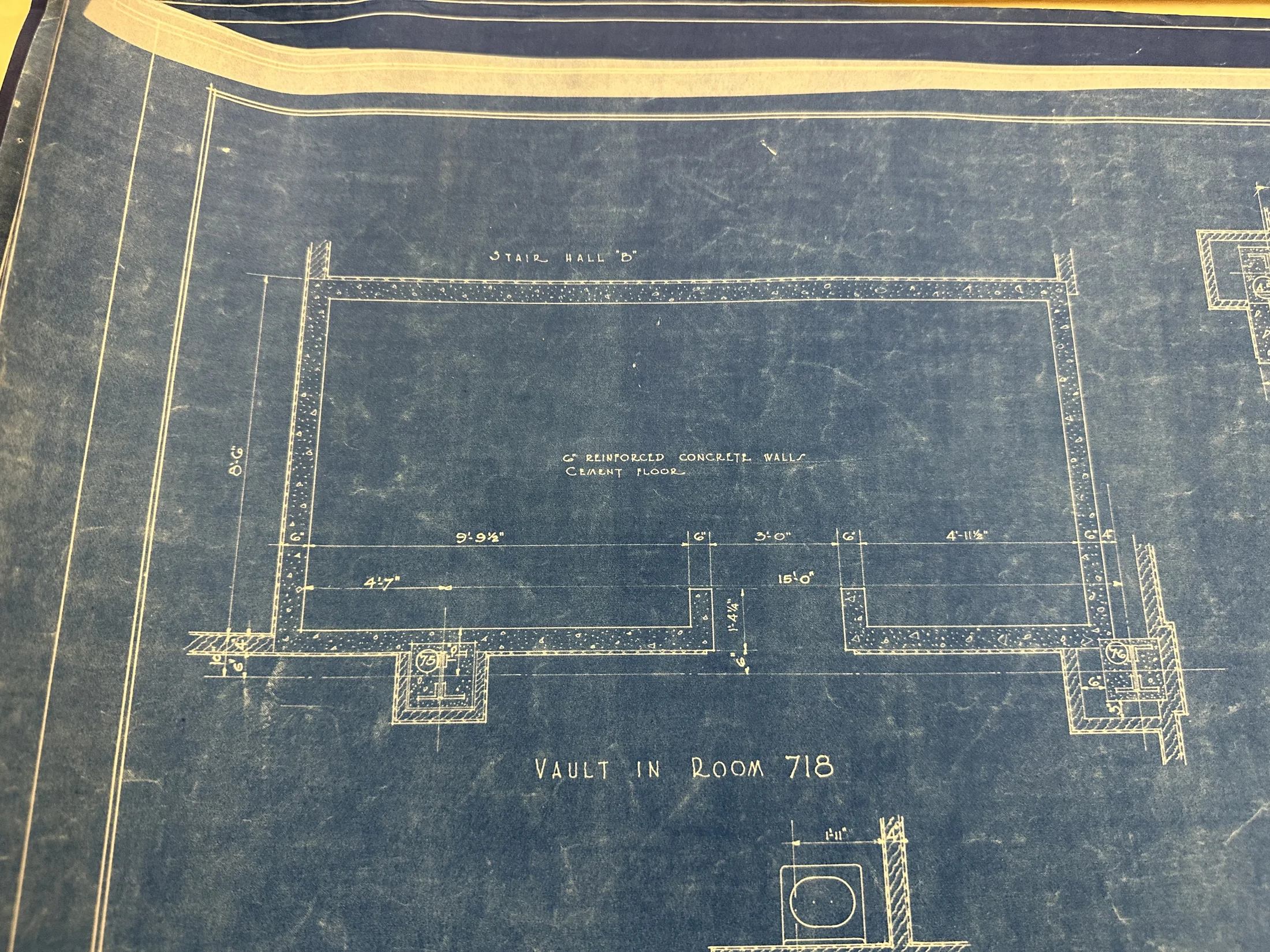

IMG_1147 · Folder 191

Vault In Room 78

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR using <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1147.webp. Lettering upright. Regions are original access-image normalized coordinates. Locating a region does not claim full review of its fine detail. No modeling. Partial timed visual review: Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry. Partial timed visual review: Normalized regions refer to unrotated derivative. Rotation records clockwise reading orientation; dimensions local to printed detail and do not establish installed world axes. Partial timed visual review: Canonical queue and OCR text reviewed; no image call or new extraction. Existing verified glyphs and closed questions reused. Partial timed visual review: Same-image verified left/right inner entry-chain fractions resolve the two prior fractional questions. Source geometry and installation remain unchecked.

Unresolved extraction work

complete review of each region and fine note
remaining dimensions, materials, schedules, callouts and revisions
floor/object registration and cropped companion evidence
Remaining fractions, dimension endpoints, reinforcement and small column offsets need targeted crops or cleaner companion review.
Register installed components and floor/room plan transforms; source detail does not establish accepted geometry.
All-region extraction and modeling acceptance remain incomplete.
Installed floor/room registration, governing revision, reinforcement schedule and remaining small column/jamb dimension endpoints unresolved.
Full-region extraction and model checking remain incomplete; no accepted room polygon inferred.
Full remaining dimensions, notes, profiles and companion details remain partly unreviewed.
Installed identities/quantities, governing issue and source-to-building registration remain unresolved.
Preview-only source evidence; no geometry authoring or architectural acceptance.
Same-image verified left/right inner entry-chain fractions resolve the two prior fractional questions. Source geometry and installation remain unchecked.
Installed instance count and source-to-building registration remain unresolved.
Governing issue/revision, companion details and complete region extraction remain unresolved.
No accepted geometry or architectural release.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

19 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1147-assemblyverified · printed

room_number

VAULT IN ROOM 718

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: VAULT IN ROOM 718

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

adjacency

STAIR HALL "B"

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: STAIR HALL "B"

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

wall_material

6" REINFORCED CONCRETE WALLS

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 6" REINFORCED CONCRETE WALLS

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

wall_thickness

6" REINFORCED CONCRETE WALLS

6 in

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 6" REINFORCED CONCRETE WALLS

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

floor_finish

CEMENT FLOOR

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: CEMENT FLOOR

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

vault_depth

6'-6"

78 in

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 6'-6"

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

vault_plan_length

15'-0"

180 in

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 15'-0"

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

door_width

3'-0"

36 in

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 3'-0"

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

lower_left_plan_dimension

4'-7"

55 in

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 4'-7"

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyunreviewed · printed

fractional_left_right_widths_unresolved

[left/right door-side plan fractions unresolved]

Numeric value unresolved

Uncertain locator reading; value withheld; full detail review outstanding.

IMG_1147 · Locate on drawing ↗

Drawing notation: [left/right door-side plan fractions unresolved]

Uncertain locator reading; value withheld; full detail review outstanding.

parallel-img1147-assemblyverified · printed

column_marks

75, 76

Selected legible locator evidence; partial assembly-local extraction.

IMG_1147 · Locate on drawing ↗

Drawing notation: 75, 76

Selected legible locator evidence; partial assembly-local extraction.

parallel-img1147-assemblyverified · printed

entry-left-inner-chain

9'-9 1/2"

117.5 in

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 9'-9 1/2"

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

Calculated from: parallel-img1147-m010

parallel-img1147-assemblyverified · printed

entry-right-inner-chain

4'-11 1/2"

59.5 in

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 4'-11 1/2"

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

Calculated from: parallel-img1147-m010

parallel-img1147-assemblyverified · printed

entry-return-depth

1'-4 1/4"

16.25 in

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 1'-4 1/4"

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

parallel-img1147-assemblyverified · printed

right-wall-backup-gap

4 in

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 4"

Additive source-local followup of remaining legible annotations after OCR, queue and prior packages. Coordinates refer to unrotated derivative; no accepted installed geometry.

parallel-img1147-assemblyverified · printed

column75-top-inset

6 in

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 6"

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

parallel-img1147-assemblyverified · printed

column76-left-inset

6 in

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 6"

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

parallel-img1147-assemblyverified · printed

column76-bottom-inset

5 in

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 5"

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

parallel-img1147-assemblyverified · printed

left-exterior-backup-chain

6 in

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.

IMG_1147 · W-232 · Locate on drawing ↗

Drawing notation: 6"

Printed source-local witness or object mark only. Column numerals are historical marks, not quantities; witnesses not converted to room geometry.
