IMG_1134 · Folder 191

S™M Floor Plan

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential 1000px JPEG quality65 locator review of public/archive/drawings/complete-upright/IMG_1134.webp after OCR/catalogue and report search. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. Locator coverage does not establish all-region extraction. Partial timed visual review: Source-local printed evidence only; endpoint finish classes, installed locations and accepted geometry remain unresolved. Partial timed visual review: Source-local detail only; no installed quantity, floor geometry or accepted model placement. Printed floor/room assignment preserved separately. Partial timed visual review: Prior text/register/inventory crosswalk only. All numeric/notation/review history remains in canonical source records; no newly verified property or floor/shaft geometry. Partial timed visual review: undefined Partial timed visual review: One bounded native crop. Property rectangles map back to the rotated full raw-master reading frame; EXIF was inspected separately, not applied automatically. No physical geometry accepted.

Unresolved extraction work
  • Locator inspection is partial; transcribe remaining dimensions/specifications using bounded crops or cleaner companions
  • Review small notes, structural/MEP references, schedules and revisions
  • Register drawing elements to installed instances and resolve geometry/quantities
  • Remaining fine dimension chains and fractions
  • Companion detail and revision reconciliation
  • Installed instance and world-coordinate registration
  • Remaining witness dimensions, fractions, hardware and material notes need targeted master/companion review
  • Floor/room instance registration, revisions, installed quantities and connection topology unresolved
  • All-region extraction and architectural acceptance remain incomplete
  • Text-reuse-only disposition: no source pixels opened or new visual coverage claimed in this follow-up
  • All exact values, historical nulls, conflicting station/revision layers and review states remain in their original registered properties
  • Remaining material specifications, hardware, geometry and installation questions require targeted evidence
  • Complete fine dimensions, profile/fastener/finish schedules and remaining notes require targeted review.
  • Installed identities, quantities, governing revisions, companion applicability and source-to-building registration remain unresolved.
  • Source findings are preview-only; no physical geometry or architectural acceptance.
  • Trap plate gauge, hinges, frame profile, fixing details and installed trap identity.
  • Unreviewed plan chains, structure/equipment envelopes, hatch identities and room/storey assignment.
  • Door leaf/frame materials, rough/clear versus nominal endpoints, sill and hardware.
  • Installed occurrence, governing revision, companion applicability and source-to-building registration remain unresolved.
  • Fine fractions, profiles, gauges, fixings, finish extents and every unreviewed region remain partial; no accepted physical geometry.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

23 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1134-detailverified · printed

elevator_mark

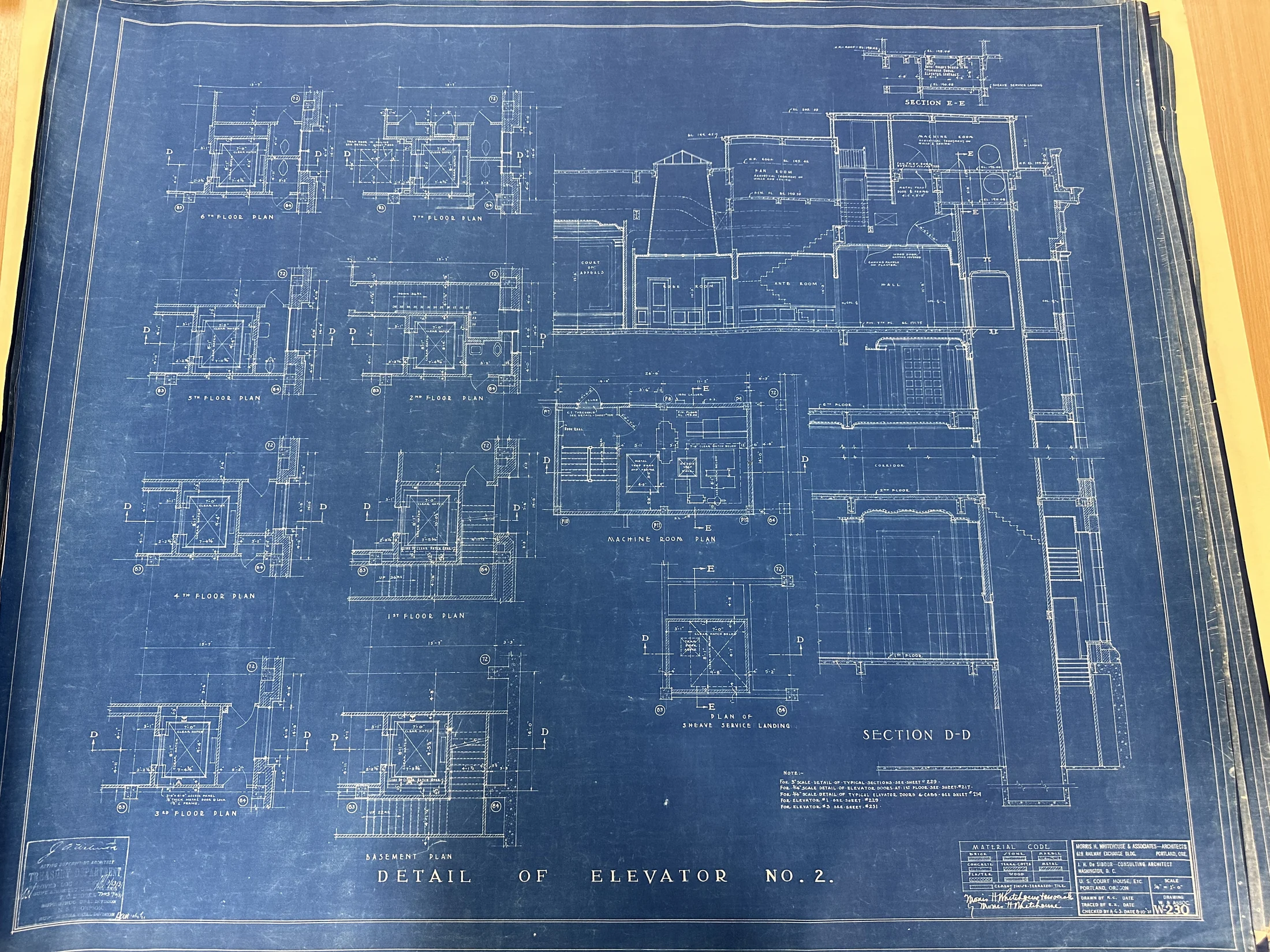

Detail of Elevator No.2

2 number

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: Detail of Elevator No.2

Partial source detail only; no world placement or complete geometry established.

parallel-img1134-detailverified · observed

floor_plan_views

Basement and 1st through 7th floor plans

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: Basement and 1st through 7th floor plans

Partial source detail only; no world placement or complete geometry established.

parallel-img1134-detailverified · printed

machine_room_view

MACHINE ROOM PLAN

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: MACHINE ROOM PLAN

Partial source detail only; no world placement or complete geometry established.

parallel-img1134-detailverified · printed

sheave_landing_view

PLAN OF SHEAVE SERVICE LANDING

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: PLAN OF SHEAVE SERVICE LANDING

Partial source detail only; no world placement or complete geometry established.

parallel-img1134-detailverified · printed

section_view

SECTION D-D

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: SECTION D-D

Partial source detail only; no world placement or complete geometry established.

parallel-img1134-detailneeds-review · printed

cab_detail_reference

Typical elevator doors & cabs — see sheet 219

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: Typical elevator doors & cabs — see sheet 219

Partial source detail only; no world placement or complete geometry established.

parallel-img1134-detailunreviewed · observed

fine_dimensions

Floor/shaft/machine-room dimensions and level chains too small

Numeric value unresolved

Partial source detail only; no world placement or complete geometry established.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: Floor/shaft/machine-room dimensions and level chains too small

Partial source detail only; no world placement or complete geometry established.

detail-1134-third-hatchverified · printed

clear_hatch_width_third

7'-0"

84 in

Elevator 2 third-floor plan; no propagated geometry.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 7'-0"

Elevator 2 third-floor plan; no propagated geometry.

detail-fittings-1134-referencesverified · printed

first-floor-door-reference

FOR 3/4" SCALE DETAIL OF ELEVATOR DOORS AT 1ST FLOOR SEE SHEET #217

Source-local detail only; no installed quantity, floor geometry or accepted model placement. Printed floor/room assignment preserved separately.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: FOR 3/4" SCALE DETAIL OF ELEVATOR DOORS AT 1ST FLOOR SEE SHEET #217

Source-local detail only; no installed quantity, floor geometry or accepted model placement. Printed floor/room assignment preserved separately.

detail-fittings-1134-referencesverified · printed

elevator-three-reference

FOR ELEVATOR #3 SEE SHEET #231

Source-local detail only; no installed quantity, floor geometry or accepted model placement. Printed floor/room assignment preserved separately.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: FOR ELEVATOR #3 SEE SHEET #231

Source-local detail only; no installed quantity, floor geometry or accepted model placement. Printed floor/room assignment preserved separately.

parallel-img1134-detailverified · printed

typical_elevator_door_cab_companion_reference

FOR ¾″ SCALE DETAIL OF TYPICAL ELEVATOR DOORS & CABS SEE SHEET #219

Same note and sheet219 reference as prior unresolved cab-detail question; scale retained as text, not physical geometry.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: FOR ¾″ SCALE DETAIL OF TYPICAL ELEVATOR DOORS & CABS SEE SHEET #219

Same note and sheet219 reference as prior unresolved cab-detail question; scale retained as text, not physical geometry.

detail-fittings-1134-referencesverified · printed

typical_section_companion_reference

FOR 3″ SCALE DETAIL OF TYPICAL SECTIONS SEE SHEET #229

Separate first note line; source companion reference only.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: FOR 3″ SCALE DETAIL OF TYPICAL SECTIONS SEE SHEET #229

Separate first note line; source companion reference only.

detail-fittings-1134-referencesverified · printed

elevator1_companion_reference

FOR ELEVATOR #1 SEE SHEET #229

Fourth note line; does not substitute Elevator1 geometry for Elevator2.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: FOR ELEVATOR #1 SEE SHEET #229

Fourth note line; does not substitute Elevator1 geometry for Elevator2.

stairs1014y-1134-trapverified · printed

trap_plan_horizontal_witness

4′-0″

48 in

Horizontal dimension across the larger rectangular metal trap in the machine-room plan. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 4′-0″

Horizontal dimension across the larger rectangular metal trap in the machine-room plan. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-trapverified · printed

trap_plan_vertical_witness

5′-0″

60 in

Vertical dimension within the larger rectangular metal trap; printed independently of width. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 5′-0″

Vertical dimension within the larger rectangular metal trap; printed independently of width. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-trapverified · printed

trap_and_frame_material

METAL TRAP DOOR AND FRAME

Material/type instruction inside the larger rectangular trap; metal alloy, gauge and frame profile not supplied. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: METAL TRAP DOOR AND FRAME

Material/type instruction inside the larger rectangular trap; metal alloy, gauge and frame profile not supplied. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-machineverified · printed

machine_plan_upper_overall_horizontal_witness

26′-0″

312 in

Upper overall machine-room plan witness; building axes and rough/finish faces not accepted. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 26′-0″

Upper overall machine-room plan witness; building axes and rough/finish faces not accepted. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-machineverified · printed

machine_plan_right_vertical_witness

14′-0″

168 in

Right-hand vertical machine-room plan dimension; distinct from neighboring frame and wall offsets. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 14′-0″

Right-hand vertical machine-room plan dimension; distinct from neighboring frame and wall offsets. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-machineverified · printed

machine_plan_ladder_material

IRON LADDER

Leader at top machine-room wall; rung count, anchorage and extent not established. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: IRON LADDER

Leader at top machine-room wall; rung count, anchorage and extent not established. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-entryverified · printed

entry_door_printed_size_width

3′-6″ × 7′-0″

42 in

First component of diagonal size note at machine-room entry swing; no installed clear opening inference. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 3′-6″ × 7′-0″

First component of diagonal size note at machine-room entry swing; no installed clear opening inference. Source-local only; no installed geometry or historical issue selected.

stairs1014y-1134-entryverified · printed

entry_door_printed_size_height

3′-6″ × 7′-0″

84 in

Second component of the same diagonal door size note; no installed clear opening inference. Source-local only; no installed geometry or historical issue selected.

IMG_1134 · W-230 · Locate on drawing ↗

Drawing notation: 3′-6″ × 7′-0″

Second component of the same diagonal door size note; no installed clear opening inference. Source-local only; no installed geometry or historical issue selected.
