The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

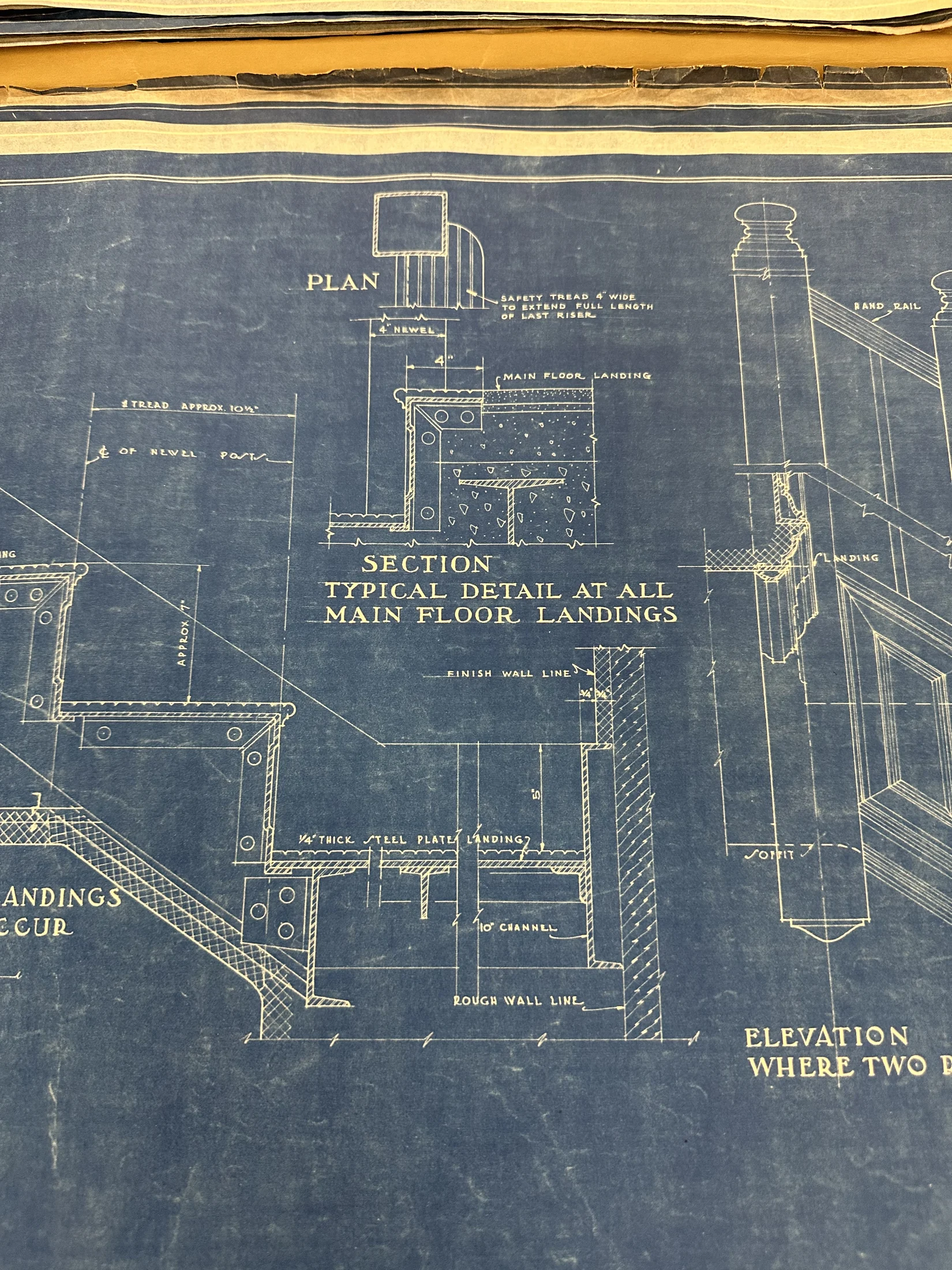

IMG_1125 · Folder 191

Main Floor Landing

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review: catalogue/OCR searched before sequential inspection of one <=1000px JPEG65 derivative from public/archive/drawings/complete-upright/IMG_1125.webp. Selected visible regions only, not full measured extraction. Coordinates normalized to unrotated access image; principal lettering upright. No modeling authorized. Partial timed visual review: OCR, queue and existing extraction packages searched first. One sequential upright WebP inspection; only additive selected properties recorded. Previously verified readings reused without duplication. No complete extraction or accepted geometry. Partial timed visual review: OCR and existing text packages searched before one sequential upright WebP inspection. Additive region review; existing verified properties reused, not copied. No accepted geometry or cross-floor connection. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Bounded source-local profile/material-note review; no installed instance assignment. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local detail/region evidence only. Printed type/floor applicability does not establish installed occurrences.

Unresolved extraction work
  • locator review only: remaining dimensions, fractions, notes and companion details need targeted extraction
  • material/finish specifications, installed quantities, revision authority and placement registration
  • complete image-region coverage and source-to-instance reconciliation
  • Complete fine dimension chains and classified rough/finish endpoints
  • Member profiles, fasteners, fabrication details and material-code reconciliation
  • Historical instance and floor-plan registration
  • Companion details, revision authority and independent physical connection checks
  • Fine fractions and full dimension chains remain partially unreviewed
  • Endpoint classification and companion detail reconciliation
  • Source-to-building instance registration and accepted connections
  • Text reuse only; pending source selector empty does not establish complete image extraction.
  • Complete fine dimensions, profiles, materials, finishes, gauges and fastener schedules remain partial.
  • Installed quantities, room/storey allocation, governing revision and companion applicability remain unresolved.
  • Source-to-building transforms, rough/finish endpoint classes, complete openings and independent physical checks remain outstanding; authoring is withheld.
  • Empty pending selector is not completion; clipping, physical wall-face transfer, profile and installation work remain.
  • Complete fine profiles, member sizes, fasteners, finish extents and endpoint classes remain partial.
  • Installed quantities, stair/storey/room assignment, closed openings, headroom, source-to-building registration and independent physical checks remain unresolved.
  • Governing original/revision and companion applicability remain unresolved; source reading does not approve geometry.
  • Complete cap/moulding/handrail/string/nosing profiles, materials, gauges, fastener sizes and exact endpoint classes remain partial.
  • Printed type/floor applicability does not establish installed quantities, storey assignment, source-to-building transforms or accepted physical geometry.
  • Full region, companion exposure, revision authority and independent installation/profile/height registration remain outstanding; no irrecoverable gap is asserted.
  • Remaining cap/moulding/handrail/string/nosing fractions, gauges, fastener material/size/anchorage, finish extents and source endpoint classes.
  • Installed storey/room quantities, closed openings and landing boundaries, rail clear width, headroom, source-to-building transforms and independent physical checks.
  • Companion/revision authority remains open; no source or floor completeness or irrecoverable gap asserted.
  • Remaining fine fractions, complete member profiles, fastener sizes/materials and finish extents require targeted source review.
  • Installed room/floor identity, exact rough/finish/cab/rail endpoints and companion registration remain unresolved.
  • Source-to-building transform, installed quantities, independent physical connections and architectural acceptance remain withheld.
  • Left two-riser section and right elevation are clipped; the general type is not a measured floor plan.
  • Complete member/profile dimensions, material/gauge/fastener schedules and exact endpoint classes
  • Installed stair/storey/room allocation, quantities, original/revision authority and companion applicability
  • Source-to-building registration, complete landing/shaft openings, independent physical checks and architectural acceptance

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

15 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1125-landingverified · printed

assignment

TYPICAL DETAIL AT ALL MAIN FLOOR LANDINGS

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: TYPICAL DETAIL AT ALL MAIN FLOOR LANDINGS

Selected visible source evidence; partial locator review, applies only to depicted assembly.

parallel-img1125-landingverified · printed

safety_tread_width

SAFETY TREAD 4" WIDE

4 in

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: SAFETY TREAD 4" WIDE

Selected visible source evidence; partial locator review, applies only to depicted assembly.

parallel-img1125-landingverified · printed

safety_tread_extent

TO EXTEND FULL LENGTH OF LAST RISER

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: TO EXTEND FULL LENGTH OF LAST RISER

Selected visible source evidence; partial locator review, applies only to depicted assembly.

parallel-img1125-landingverified · printed

newel_width

4" NEWEL

4 in

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: 4" NEWEL

Selected visible source evidence; partial locator review, applies only to depicted assembly.

parallel-img1125-landingverified · printed

approximate_tread_depth

1 TREAD APPROX. 10 1/2"

10.5 in

Printed approximate dimension, not an exact stair run.

IMG_1125 · Locate on drawing ↗

Drawing notation: 1 TREAD APPROX. 10 1/2"

Printed approximate dimension, not an exact stair run.

parallel-img1125-landingverified · printed

steel_plate_thickness

1/4" THICK STEEL PLATE LANDING

0.25 in

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: 1/4" THICK STEEL PLATE LANDING

Selected visible source evidence; partial locator review, applies only to depicted assembly.

parallel-img1125-landingverified · printed

support_channel_depth

10" CHANNEL

10 in

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: 10" CHANNEL

Selected visible source evidence; partial locator review, applies only to depicted assembly.

parallel-img1125-landingverified · printed

support_material

STEEL PLATE

Selected visible source evidence; partial locator review, applies only to depicted assembly.

IMG_1125 · Locate on drawing ↗

Drawing notation: STEEL PLATE

Selected visible source evidence; partial locator review, applies only to depicted assembly.

detail-img1125-two-riser-landing-baseverified · printed

left_wall_offset_fraction

¾

0.75 in

Left fraction of paired chain near finish-wall line; unit convention inches. Endpoint identity unresolved; preserve prior unresolved combined record.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: ¾

Left fraction of paired chain near finish-wall line; unit convention inches. Endpoint identity unresolved; preserve prior unresolved combined record.

detail-img1125-two-riser-landing-baseverified · printed

right_wall_offset_fraction

¾

0.75 in

Right fraction separately recorded. Do not sum into accepted wall thickness; exact witnesses still require master crop.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: ¾

Right fraction separately recorded. Do not sum into accepted wall thickness; exact witnesses still require master crop.

detail-img1125-two-riser-landing-baseverified · printed

base_height_above_landing

5"

5 in

Vertical dimension from landing plate top to top of projected wall string in local section; no storey assignment.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: 5"

Vertical dimension from landing plate top to top of projected wall string in local section; no storey assignment.

detail-img1125-two-riser-landing-baseverified · printed

approximate_riser_height

APPROX. 7"

7 in

Approximate upper-to-lower landing tread height in two-riser section; do not use as exact riser or Stair E reconciliation.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: APPROX. 7"

Approximate upper-to-lower landing tread height in two-riser section; do not use as exact riser or Stair E reconciliation.

detail-img1125-two-riser-landing-baseverified · observed

wall_string_landing_plate_underside_interface

[landing plate meets vertical wall string; rounded underside seating/fillet contour drawn at junction]

Upright view of raw-master crop shows drawn underside junction of landing plate and vertical wall string. No weld/bolt/rivet process, fastener count, radius, thickness or wall anchorage is specified by contour alone.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: [landing plate meets vertical wall string; rounded underside seating/fillet contour drawn at junction]

Upright view of raw-master crop shows drawn underside junction of landing plate and vertical wall string. No weld/bolt/rivet process, fastener count, radius, thickness or wall anchorage is specified by contour alone.

Calculated from: detail-20261011j-1125-m001, detail-20261011j-1125-m002, detail-cores-20261011c-1125-m001

parallel-img1125-landingverified · observed

approximate_tread_witness_endpoint_class

1 TREAD APPROX. 10½" / ℄ OF NEWEL POST

Approximate tread span uses two vertical newel-post reference lines, one explicitly labelled centreline. It does not establish an exact finished tread run or a room coordinate.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: 1 TREAD APPROX. 10½" / ℄ OF NEWEL POST

Approximate tread span uses two vertical newel-post reference lines, one explicitly labelled centreline. It does not establish an exact finished tread run or a room coordinate.

Calculated from: parallel-img1125-m005

detail-img1125-two-riser-landing-baseverified · observed

wall_string_finish_rough_reference_relationship

FINISH WALL LINE / ROUGH WALL LINE

Finish wall and rough wall are separately led to thin applied layer and hatched backing. The two¾-inch witnesses are retained as source-local offsets; no accepted wall thickness or material inferred.

IMG_1125 · W-228 · Locate on drawing ↗

Drawing notation: FINISH WALL LINE / ROUGH WALL LINE

Finish wall and rough wall are separately led to thin applied layer and hatched backing. The two¾-inch witnesses are retained as source-local offsets; no accepted wall thickness or material inferred.

Calculated from: detail-20261011j-1125-m001, detail-20261011j-1125-m002
