← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1123 · Folder 191

1St Floor To Zno Floor

Original sheet identity has not yet been reconciled.

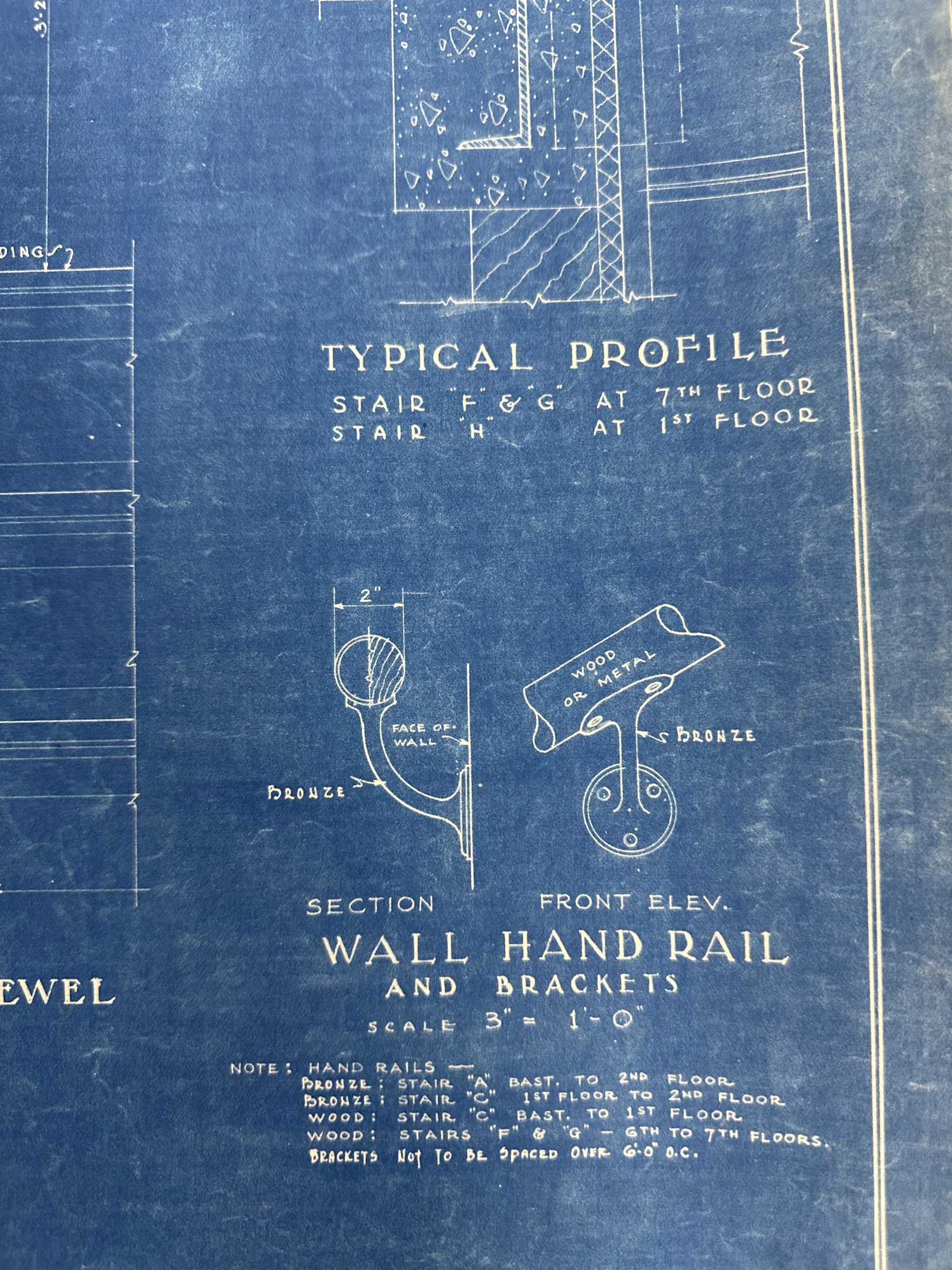

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review: catalogue/OCR searched before sequential inspection of one <=1000px JPEG65 derivative from public/archive/drawings/complete-upright/IMG_1123.webp. Selected visible regions only, not full measured extraction. Coordinates normalized to unrotated access image; principal lettering upright. No modeling authorized. Partial timed visual review: OCR, queue and existing extraction packages searched first. One sequential upright WebP inspection; only additive selected properties recorded. Previously verified readings reused without duplication. No complete extraction or accepted geometry. Partial timed visual review: OCR and existing text packages searched before one sequential upright WebP inspection. Additive region review; existing verified properties reused, not copied. No accepted geometry or cross-floor connection. Partial timed visual review: Existing verified handrail diameter, material rules, maximum bracket spacing, scale and fixing-symbol count reused without duplication. This photograph has no legible printed fastener-size callout in the inspected bracket region. Partial timed visual review: Existing F/G seventh-floor and H first-floor profile scope and handrail material schedule confirmed; upper profile dimensions remain clipped. Partial timed visual review: Selected construction and reference-face review only; source evidence does not authorize physical geometry. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Text reuse only; no new visual claim. Partial timed visual review: Text-only canonical/queue/OCR reuse; no new image inspection. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local detail/region evidence only. Printed type/floor applicability does not establish installed occurrences.
