The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

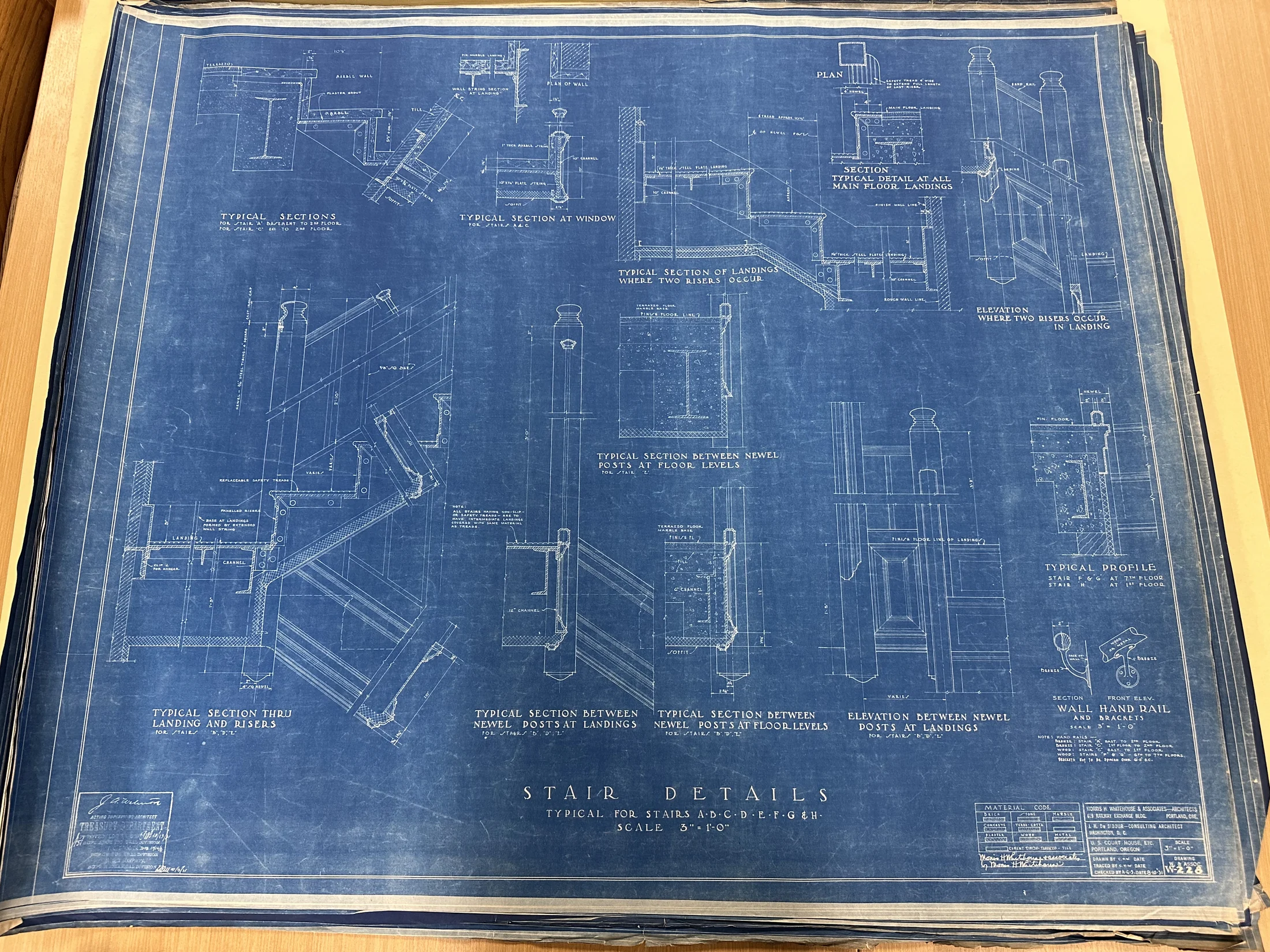

IMG_1122 · Folder 191

Stair Details — Typical for Stairs A, B, C, D, E, F, G and H

Sheet W228

Extraction: Reviewed · extraction partial. Separated rough/finish/stringer planes, B/D/E base and tread/riser construction labels. Fractional wall-face dimensions not securely read. Text-first review followed by one complete upright source and sequential crops from the same photograph. Reviewed the title block; typical landing/riser section applying to Stairs B, D and E; newel-post sections at landings and floor levels; the Stair E floor-level detail; safety-tread, panelled-riser, wall-string, channel and finish callouts; and the wall-handrail bracket note. Alternate photograph IMG_1265 and close-up photographs IMG_1123/IMG_1124 were identified but not opened. Reused the verified W228 Stair E-applicable typical details and explicit two-riser landing detail as a candidate analytical transition only. Stair E fourth-to-fifth physical flight/landing/shaft gate; no solid authorized. Partial timed visual review: OCR, queue and existing extraction packages searched first. One sequential upright WebP inspection; only additive selected properties recorded. Previously verified readings reused without duplication. No complete extraction or accepted geometry. Partial timed visual review: OCR and existing text packages searched before one sequential upright WebP inspection. Additive region review; existing verified properties reused, not copied. No accepted geometry or cross-floor connection. Partial timed visual review: Text-first additive targeted review. Upright access-image coordinates; crops retain upright orientation. Source-local components only; existing verified records reused, not copied. Full image extraction remains incomplete. Partial timed visual review: Selected B/D/E rail/newel vertical witnesses; standard handrail schedule reused. Partial timed visual review: Selected construction and reference-face review only; source evidence does not authorize physical geometry. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Selected fine closure only; not exhaustive source extraction. Partial timed visual review: Bounded source-local profile/material-note review; no installed instance assignment. Partial timed visual review: undefined Partial timed visual review: undefined

Unresolved extraction work
  • Fractional finish and base projection dimensions
  • Full steel/channel/newel/rail profile extraction
  • Material and surface thicknesses
  • General-to-specific wall-reference applicability
  • Certified transcription of every gauge, plate, bolt and weld callout
  • Complete material-code transcription
  • Exact newel tube wall thickness and cap profile
  • Safety-tread product/profile and fastening
  • Panelled-riser sheet thickness and joints
  • Wall-string and landing-channel connection details
  • Member lengths and storey-specific exceptions
  • W225/W226 source-to-building registration
  • Independent overlay and fabrication check
  • Storey assignment of the two-riser landing
  • Complete fabrication dimensions
  • Physical insertion transform
  • On W226 close-up IMG_1119 or IMG_1120, transcribe the full typical-plan dimension chain and classify flight, landing, rough-wall and finish-wall endpoints. On registered W6/IMG_1212 and W7/IMG_1213, repick the same physical edge classes and closed floor-opening contours at Stair E; solve the W226 plan-to-canonical transform from non-collinear correspondences and check held-out edges and the adjacent-floor join before authoring one fourth-to-fifth-floor segment.
  • Complete fine dimension chains and classified rough/finish endpoints
  • Member profiles, fasteners, fabrication details and material-code reconciliation
  • Historical instance and floor-plan registration
  • Companion details, revision authority and independent physical connection checks
  • Upper-left A/C marble profile, window section, B/D/E panels, newel profiles and material code still need independent close-up extraction.
  • Fine fractions and full dimension chains remain partially unreviewed
  • Endpoint classification and companion detail reconciliation
  • Source-to-building instance registration and accepted connections
  • Exact profile and thickness fractions
  • Fastener size, material and anchorage
  • Installed instance and floor registration
  • Companion revision authority and physical connection checks
  • Full fine dimension chains and witness endpoint classes
  • Source-to-building registration, slab openings and installed instances
  • Companion details, revision authority and independent physical checks
  • Accepted rail-to-rail clear width, closed landing/slab-opening boundaries and headroom
  • Complete material/gauge/fastener schedules, cap/moulding profiles and finish extents; remaining notes and revisions not fully reviewed
  • Checked source-to-building transforms, storey/installed instance applicability and independent physical checks
  • 38in elevation versus36in section authority/applicability unresolved; no2in correction established
  • F/G/H crop adds no complete cap/string/finish dimensions. Handrail/newel fine fractions, window flange, trim and all multi-image world-coordinate questions remain open.
  • Complete fine dimensions, profiles, materials, finishes, gauges and fastener schedules remain partial.
  • Installed quantities, room/storey allocation, governing revision and companion applicability remain unresolved.
  • Source-to-building transforms, rough/finish endpoint classes, complete openings and independent physical checks remain outstanding; authoring is withheld.
  • Recent native profile fractions and small flange readings remain unresolved; no repeated failed view; newel, wall and rail scopes stay separate.
  • Complete fine profiles, member sizes, fasteners, finish extents and endpoint classes remain partial.
  • Installed quantities, stair/storey/room assignment, closed openings, headroom, source-to-building registration and independent physical checks remain unresolved.
  • Governing original/revision and companion applicability remain unresolved; source reading does not approve geometry.
  • Accepted rail-to-rail clear width and complete rough/finish/rail face classifications
  • Closed landing/slab-opening boundaries, complete nosing/rail/string profiles, headroom and connections
  • Checked source-to-building registration, installed instance applicability and independent physical checks
  • Every unvisited note, material code, schedule, detail and revision remains not-reviewed; no irrecoverable gap asserted
  • Complete cap/moulding/handrail/string/nosing profiles, materials, gauges, fastener sizes and exact endpoint classes remain partial.
  • Printed type/floor applicability does not establish installed quantities, storey assignment, source-to-building transforms or accepted physical geometry.
  • Full region, companion exposure, revision authority and independent installation/profile/height registration remain outstanding; no irrecoverable gap is asserted.
  • Remaining cap/moulding/handrail/string/nosing fractions, gauges, fastener material/size/anchorage, finish extents and source endpoint classes.
  • Installed storey/room quantities, closed openings and landing boundaries, rail clear width, headroom, source-to-building transforms and independent physical checks.
  • Companion/revision authority remains open; no source or floor completeness or irrecoverable gap asserted.
  • Complete member/profile dimensions, material/gauge/fastener schedules and exact endpoint classes
  • Installed stair/storey/room allocation, quantities, original/revision authority and companion applicability
  • Source-to-building registration, complete landing/shaft openings, independent physical checks and architectural acceptance
  • Handrail section; upper right trim; lower outer-left/right trim; window lower flange fraction; complete F/G/H cap profile; material/gauge/finish mappings

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

99 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

stair-d-w224-typical-typeverified · printed

wall_face_distinction

FINISH WALL LINE / ROUGH WALL LINE
IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: FINISH WALL LINE / ROUGH WALL LINE

These are separately labeled planes in the generic two-riser landing detail; neither can be silently substituted for the other.

stair-d-w224-typical-typeillegible · printed

rough_wall_to_finish_wall_offset

Small fraction at paired wall-face dimensions: not securely read

Numeric value unresolved

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: [fraction unresolved]

The printed fraction may resemble ¾″, but its numerator and assignment cannot be certified in this image. No ¾-inch finish thickness is adopted.

stair-d-w224-typical-typeillegible · printed

wall_stringer_front_offset_from_finish_wall

Paired dimension: unresolved

Numeric value unresolved

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: [fraction unresolved]

Adjacent references distinguish finish wall and projecting metal wall-string/base. Do not assign the finish-layer dimension to the base projection.

stair-d-w224-typical-typeverified · printed

intermediate_landing_base_construction

BASE AT LANDINGS FORMED BY EXTENDED WALL STRING
IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: BASE AT LANDINGS FORMED BY EXTENDED WALL STRING

Detail explicitly titled for Stairs B, D, E.

stair-d-w224-typical-typeverified · printed

wall_string_base_height_above_landing

5″

5 in

Typical B/D/E intermediate-landing detail only; do not generalize to all room bases.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: 5″

Vertical dimension runs from landing top to top of projecting wall-string base, not to a room datum.

stair-d-w224-typical-typeverified · printed

tread_construction_label

REPLACEABLE SAFETY TREADS
IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: REPLACEABLE SAFETY TREADS

Typical section through landing and risers for Stairs B, D, E.

stair-d-w224-typical-typeverified · printed

intermediate_landing_covering_rule

Intermediate landings of stairs with non-slip or safety treads use the same material as the treads

Construction/finish relationship; precise product, thickness and composition remain unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: ALL STAIRS HAVING NON-SLIP OR SAFETY TREADS ARE TO HAVE INTERMEDIATE LANDINGS COVERED WITH SAME MATERIAL AS TREADS

f3-stair-dunreviewed · observed

signed_inner_type_boundary_offset_from_horizontal_witness

Unresolved

Numeric value unresolved

epsilonX = type right inner boundary X minus W224 1′4″ endpoint X; null is not zero.

IMG_1114 · sheet-W224 · Locate on drawing ↗

epsilonX = type right inner boundary X minus W224 1′4″ endpoint X; null is not zero.

IMG_1122 · sheet-W228 · Locate on drawing ↗

epsilonX = type right inner boundary X minus W224 1′4″ endpoint X; null is not zero.

f3-stair-dunreviewed · observed

signed_inner_type_boundary_offset_from_north_witness

Unresolved

Numeric value unresolved

epsilonZ = type lower inner boundary Z minus W224 9′0″ endpoint Z; null is not zero.

IMG_1114 · sheet-W224 · Locate on drawing ↗

epsilonZ = type lower inner boundary Z minus W224 9′0″ endpoint Z; null is not zero.

IMG_1122 · sheet-W228 · Locate on drawing ↗

epsilonZ = type lower inner boundary Z minus W224 9′0″ endpoint Z; null is not zero.

stair-w228-typical-detail-registerverified · printed

Drawing identity

W228 · STAIR DETAILS · TYPICAL FOR STAIRS A, B, C, D, E, F, G & H

Title, applicability and drawing number read from IMG_1122.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-typical-detail-registerverified · printed

General drawing scale

3" = 1'-0"

3 in-per-ft

Printed below the sheet title; local details may contain their own scales.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-bde-landing-riser-sectionverified · printed

Detail applicability

FOR STAIRS B, D, E

Caption under the typical landing-and-riser section explicitly includes Stair E.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-stair-e-floor-newel-sectionverified · printed

Detail applicability

FOR STAIR E

Caption under the floor-level newel-post section.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-bde-landing-newel-sectionverified · printed

Landing channel nominal depth

12" CHANNEL

12 in

Printed beside the channel in the B/D/E landing newel section; member length and weight remain unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-bde-floor-newel-sectionverified · printed

Floor-level channel nominal depth

6" CHANNEL

6 in

Printed beside the floor-level channel in the B/D/E newel section; member length and weight remain unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-two-riser-landing-conditionverified · printed

Landing topology

TWO RISERS OCCUR IN LANDING

2 riser-count

Section and elevation captions explicitly establish two risers within the landing. W228 does not identify the Stair E storey to which this condition applies.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-two-riser-landing-conditionverified · printed

Landing tread going

1 TREAD APPROX. 10"

10 in

Printed horizontal witness in the two-riser landing section; approximate by notation and not used as an exact insertion dimension.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-two-riser-landing-conditionverified · printed

Landing plate thickness

1/4" THICK STEEL PLATE LANDING

0.25 in

Printed construction callout in the two-riser landing section; plate extents and connections remain unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-two-riser-landing-conditionverified · printed

Landing channel nominal depth

10" CHANNEL

10 in

Printed beside the channel in the two-riser landing section; member length and weight remain unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-two-riser-landing-conditionunreviewed · inferred

W226 sixth-to-seventh reconciliation status

Candidate only: 20 ordinary risers + 2 landing risers may explain 22 total

Architectural inference from W226's 20-up/22-down readings and W228's explicit two-riser landing detail. No callout or checked geometry yet proves that this W228 condition applies to the level-6/7 Stair E connection.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-replaceable-safety-treadverified · printed

Tread construction

REPLACEABLE SAFETY TREADS

Construction class only; exact product/profile unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-panelled-riserverified · printed

Riser construction

PANELLED RISERS

Construction class only.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-extended-wall-string-baseverified · printed

Landing/string relationship

BASE AT LANDINGS FORMED BY EXTENDED WALL STRING

Relationship is explicit; profiles, lengths and connections unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-bde-landing-riser-sectionverified · printed

Intermediate landing finish rule

NON-SLIP OR SAFETY-TREAD STAIRS: INTERMEDIATE LANDINGS COVERED WITH SAME MATERIAL AS TREADS

Printed note beside the B/D/E section; exact Stair E material assignment remains unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-bde-floor-newel-sectionverified · printed

Floor-level finish system

TERRAZZO FLOOR / MARBLE BASE / SOFFIT

Three printed callouts in the B/D/E floor-level section; thicknesses and extents unresolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-wall-handrail-bracketverified · printed

Maximum bracket spacing

BRACKETS NOT TO BE SPACED OVER 6'-0" O.C.

6 ft-oc-max

Generic W228 handrail note; Stair E rail material and actual bracket stations require storey-specific reconciliation.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-w228-typical-detail-registerverified · observed

Stair E physical component geometry accepted

No

W228 establishes component classes and selected nominal channel depths, but complete profiles, lengths, connections, storey exceptions and W225/W226 insertion geometry are not yet resolved.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: STAIR DETAILS / TYPICAL FOR STAIRS A·B·C·D·E·F·G & H / W228

One complete source and sequential crops from the same photograph were inspected. Pixel distances were not used as architectural dimensions.

stair-e-upper-diagnostic-envelopeunreviewed · calculated

Calculated ordinary tread going

10 1/2 in (7'-10 1/2" / 9 treads)

0.875 ft

The typical plan numbers ten risers per flight; nine tread goings close the printed 7-foot-10.5-inch run exactly. This supports diagnostic stations only, not fabrication geometry.

IMG_1118 · sheet-W226 · Locate on drawing ↗

Drawing notation: 2ND, 3RD, 4TH, 5TH & 6TH FLOOR PLANS / 7TH FLOOR PLAN / 7'-10 1/2" / DOWN 20 RISERS / UP 20 RISERS / DOWN 22 RISERS / UP 20 RISERS

Upper-story plan and datum controls; no metric X/Z transform is accepted.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: TYPICAL SECTION OF LANDINGS WHERE TWO RISERS OCCUR / ELEVATION WHERE TWO RISERS OCCUR IN LANDING

Candidate two-riser landing construction only; storey applicability is not printed.

Calculated from: w226-typical-run-dimension, w226-typical-up-riser-count

f6-f7-stair-e-upper-diagnostic-placementverified · calculated

W226 Stair E sixth-floor local datum

67.0 ft local (160.25 - 93.25)

67 ft

W226 regional Stair E datum converted to the project first-floor local datum.

IMG_1118 · sheet-W226 · Locate on drawing ↗

Drawing notation: 2ND, 3RD, 4TH, 5TH & 6TH FLOOR PLANS / 7TH FLOOR PLAN / 7'-10 1/2" / DOWN 20 RISERS / UP 20 RISERS / DOWN 22 RISERS / UP 20 RISERS

Upper-story plan and datum controls; no metric X/Z transform is accepted.

IMG_1122 · sheet-W228 · Locate on drawing ↗

Drawing notation: TYPICAL SECTION OF LANDINGS WHERE TWO RISERS OCCUR / ELEVATION WHERE TWO RISERS OCCUR IN LANDING

Candidate two-riser landing construction only; storey applicability is not printed.

Calculated from: w226-sixth-floor-finish-elevation, w226-first-floor-finish-elevation

View all source photographs →
