Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

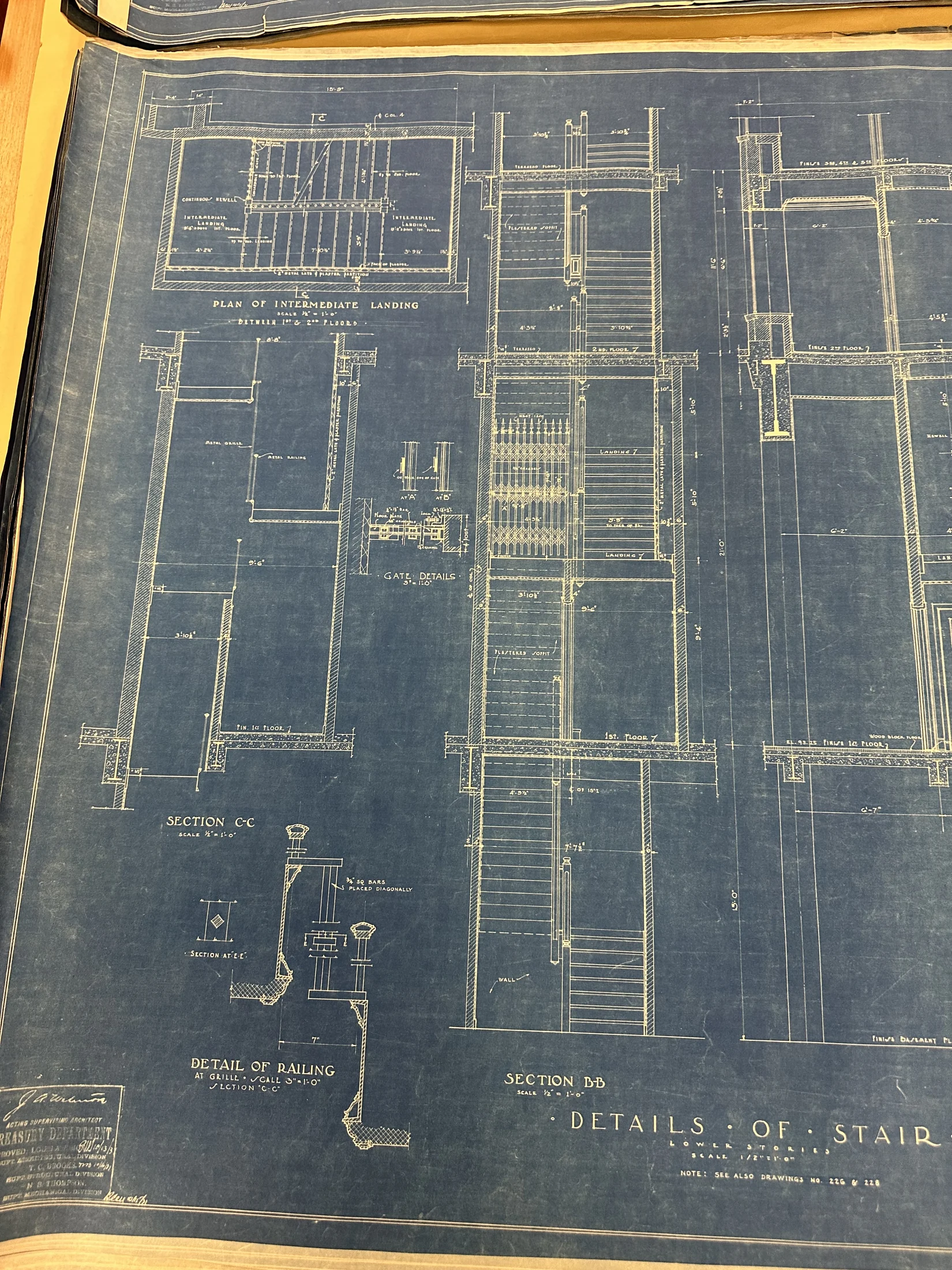

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR of <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1117.webp. Primary lettering upright; no complete region review claim. Access-image normalized regions. No model geometry inferred. Partial timed visual review: Source-local printed evidence only; no accepted building transform, installed quantity, or reconstructed geometry. Prior verified measurements omitted; unresolved endpoints and companions retained. Partial timed visual review: Text/OCR, review-queue and prior-package audit; prior verified readings reused without duplication. No accepted geometry or building connections. Sequential upright WebP inspection; additive selected evidence only. Partial timed visual review: Additive selected-region review. Prior verified records reused without duplication; no accepted geometry. Partial timed visual review: Text reuse only; existing intermediate-landing, gate and grille-bar details preserved. Partial timed visual review: Selected fine closure only; not exhaustive source extraction. Partial timed visual review: Selected landing-plan witnesses and face-of-plaster note read; exact landing polygons, both landing height labels and all gate/profile dimensions remain incomplete. Partial timed visual review: Text-only canonical/queue/OCR reuse; no new image inspection. Partial timed visual review: undefined Partial timed visual review: Bounded original printed witness review; no governing issue selected.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: PLAN OF INTERMEDIATE LANDING
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: GATE DETAILS
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION C-C
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION B-B
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: DETAIL OF RAILING AT GRILLE
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
3 in/ft
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 3" = 1'-0"
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION AT L-L
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
7 in
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 7"
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: WALL
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Numeric value unresolved
Unresolved locator reading; numeric value withheld.
Drawing notation: [fine gate-section/bar sizes and landing/riser dimensions unresolved]
Unresolved locator reading; numeric value withheld.
80 in
Upper Section C-C horizontal witness across walls; rough versus finish face remains unclassified.
Drawing notation: 6'-8"
Upper Section C-C horizontal witness across walls; rough versus finish face remains unclassified.
114 in
Lower Section C-C horizontal witness; opening interface classification and tie to plan missing.
Drawing notation: 9'-6"
Lower Section C-C horizontal witness; opening interface classification and tie to plan missing.
Separate printed leaders distinguish grille from railing in Section C-C; no numeric section or attachment transferred from generic detail.
Drawing notation: METAL GRILLE / METAL RAILING
Separate printed leaders distinguish grille from railing in Section C-C; no numeric section or attachment transferred from generic detail.
0.75 in
Printed side of square bars at grille detail; no accepted railing placement.
Drawing notation: ¾″ SQ BARS
Printed side of square bars at grille detail; no accepted railing placement.
Printed orientation instruction; do not infer numeric angle or bar spacing.
Drawing notation: PLACED DIAGONALLY
Printed orientation instruction; do not infer numeric angle or bar spacing.
Printed leader in AT A/AT B details identifies outer-side placement of depicted lock fitting.
Drawing notation: ON OUTER SIDE OF GATE
Printed leader in AT A/AT B details identifies outer-side placement of depicted lock fitting.
Printed plan lock leader; lock type, size, handedness and attachment not established.
Drawing notation: LOCK
Printed plan lock leader; lock type, size, handedness and attachment not established.
Numeric value unresolved
Second gate detail exposure contains fractional bar callout; numerator withheld instead of transferring Stair A dimensions.
Drawing notation: [fraction] x 1 1/2" BAR
Second gate detail exposure contains fractional bar callout; numerator withheld instead of transferring Stair A dimensions.
2 in
Printed thickness in intermediate landing plan; construction layers, extent and host face are unresolved.
Drawing notation: 2" METAL LATH & PLASTER PARTITION
Printed thickness in intermediate landing plan; construction layers, extent and host face are unresolved.
189 in
Upper plan chain segment between printed witness lines; endpoints not classified as finish/rough faces and no accepted footprint inferred.
Drawing notation: 15'-9"
Upper plan chain segment between printed witness lines; endpoints not classified as finish/rough faces and no accepted footprint inferred.
7 in
Section C-C horizontal witness between two adjacent cast/profile faces. Endpoint class and installed railing location remain unresolved.
Drawing notation: 7"
Section C-C horizontal witness between two adjacent cast/profile faces. Endpoint class and installed railing location remain unresolved.
Alternate upright locator supports source layout; numerical glyph closure relies on high-resolution IMG1262 crop, not this locator.
Drawing notation: INTERMEDIATE LANDING / ABOVE1ST FLOOR [same left/right labeled arrangement as IMG1262]
Alternate upright locator supports source layout; numerical glyph closure relies on high-resolution IMG1262 crop, not this locator.
45 in
Intermediate-landing plan lower flight transverse witness only; rail intrusion and physical clear width remain unaccepted. Source-local only; no accepted installed geometry.
Drawing notation: 3′9″
Intermediate-landing plan lower flight transverse witness only; rail intrusion and physical clear width remain unaccepted. Source-local only; no accepted installed geometry.
94.5 in
Intermediate-landing plan horizontal flight witness; printed run only, not reconstructed nosing geometry. Source-local only; no accepted installed geometry.
Drawing notation: 7′10½″
Intermediate-landing plan horizontal flight witness; printed run only, not reconstructed nosing geometry. Source-local only; no accepted installed geometry.
Intermediate-landing plan leader to left central newel; vertical continuation instruction only. Source-local only; no accepted installed geometry.
Drawing notation: CONTINUOUS NEWELL
Intermediate-landing plan leader to left central newel; vertical continuation instruction only. Source-local only; no accepted installed geometry.
Intermediate-landing plan local note at lower central/right witness near metal-lath-and-plaster partition; does not classify every wall or opening endpoint. Source-local only; no accepted installed geometry.
Drawing notation: FACE OF PLASTER
Intermediate-landing plan local note at lower central/right witness near metal-lath-and-plaster partition; does not classify every wall or opening endpoint. Source-local only; no accepted installed geometry.
0.25 in
Original white printed drawing layer. Same gate-plan bar leader as prior fraction-null question. Source-local bar section, not Stair A transfer or installed quantity.
Drawing notation: ¼″ × 1½″ BAR
Original white printed drawing layer. Same gate-plan bar leader as prior fraction-null question. Source-local bar section, not Stair A transfer or installed quantity.
1.5 in
Original white printed drawing layer. Second dimension of same gate-plan bar section; actual fabricated length and profile stations unknown.
Drawing notation: ¼″ × 1½″ BAR
Original white printed drawing layer. Second dimension of same gate-plan bar section; actual fabricated length and profile stations unknown.
1.25 in
Original white printed drawing layer. Leader to gate-plan frame section at lock-side fitting; nominal designation only, not outside dimensions/steel weight.
Drawing notation: 1¼″ CHANNEL
Original white printed drawing layer. Leader to gate-plan frame section at lock-side fitting; nominal designation only, not outside dimensions/steel weight.
112 in
Left landing local height above named first floor; not absolute building EL. Source-local only; no accepted physical geometry.
Drawing notation: INTERMEDIATE LANDING 9′4″ ABOVE 1ST FLOOR
Left landing local height above named first floor; not absolute building EL. Source-local only; no accepted physical geometry.
182 in
Right landing local height above named first floor read directly; no calculation from left landing or companion. Source-local only; no accepted physical geometry.
Drawing notation: INTERMEDIATE LANDING 15′2″ ABOVE 1ST FLOOR
Right landing local height above named first floor read directly; no calculation from left landing or companion. Source-local only; no accepted physical geometry.
50 in
Bottom horizontal witness across left landing; complete landing polygon and finish/rail endpoint classes remain open. Source-local only; no accepted physical geometry.
Drawing notation: 4′2″
Bottom horizontal witness across left landing; complete landing polygon and finish/rail endpoint classes remain open. Source-local only; no accepted physical geometry.
45.25 in
Bottom horizontal witness across right landing; separate from 3′9″ transverse flight witness. Source-local only; no accepted physical geometry.
Drawing notation: 3′9¼″
Bottom horizontal witness across right landing; separate from 3′9″ transverse flight witness. Source-local only; no accepted physical geometry.
