Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR of <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1116.webp. Primary lettering upright; no complete region review claim. Access-image normalized regions. No model geometry inferred. Partial timed visual review: Source-local printed evidence only; no accepted building transform, installed quantity, or reconstructed geometry. Prior verified measurements omitted; unresolved endpoints and companions retained. Partial timed visual review: Text/OCR, review-queue and prior-package audit; prior verified readings reused without duplication. No accepted geometry or building connections. Partial timed visual review: Additive selected-region review. Prior verified records reused without duplication; no accepted geometry. Partial timed visual review: Section A-A basement flights targeted; drawn tread counts are candidates, with calculated going withheld from physical authoring. Partial timed visual review: Selected fine closure only; not exhaustive source extraction. Partial timed visual review: Targeted basement-finish-label crop again contains no separately printed absolute elevation beside the label. Retain null; do not calculate 93.25 minus 15 as printed authority. Partial timed visual review: Text-only canonical/queue/OCR reuse; no new image inspection. Partial timed visual review: undefined Partial timed visual review: Prior evidence reused as text only; no new pixel evidence or exhaustive coverage.
Loading the selected drawing…

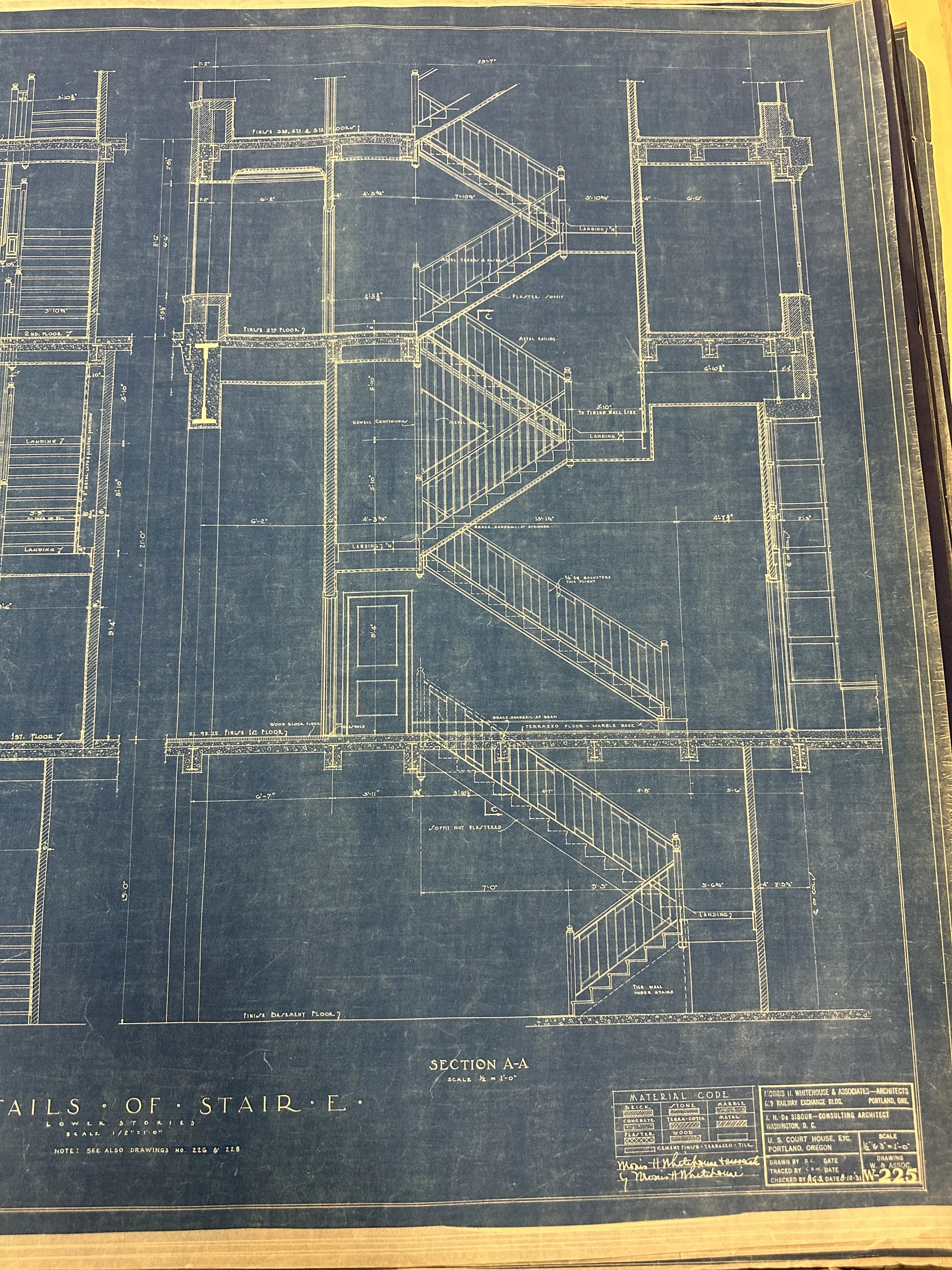

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION A-A
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: FINISH 1ST FLOOR
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: FINISH BASEMENT FLOOR
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: FINISH 2ND FLOOR
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: IRON
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: PLASTER SOFFIT
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: PLASTER WALL
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: NOTE: SEE ALSO DRAWINGS NO. 226 & 228
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Numeric value unresolved
Unresolved locator reading; numeric value withheld.
Drawing notation: [floor heights, run lengths, steps, structural sizes and remaining finish notes unresolved]
Unresolved locator reading; numeric value withheld.
Numeric value unresolved
Printed THIS FLIGHT limits scope to long flight above first floor; numeric fraction remains unresolved. Do not generalize grille's 3/4-inch bars.
Drawing notation: [fraction] SQ BALUSTERS THIS FLIGHT
Printed THIS FLIGHT limits scope to long flight above first floor; numeric fraction remains unresolved. Do not generalize grille's 3/4-inch bars.
Local leader identifies exception at long rising flight; does not establish installed quantity or size.
Drawing notation: THIS FLIGHT
Local leader identifies exception at long rising flight; does not establish installed quantity or size.
84 in
Basement section horizontal chain segment; witness faces unresolved and no accepted stair run is inferred.
Drawing notation: 7'-0"
Basement section horizontal chain segment; witness faces unresolved and no accepted stair run is inferred.
0.75 in
Targeted crop resolves prior null detail-20261011j-1116-m001 from this leader independently of W225 grille bars. Applies only to indicated long flight; quantity and spacing not inferred.
Drawing notation: 3/4" SQ BALUSTERS THIS FLIGHT
Targeted crop resolves prior null detail-20261011j-1116-m001 from this leader independently of W225 grille bars. Applies only to indicated long flight; quantity and spacing not inferred.
63 in
Dimension between witness stations under overlapping flights; likely lower-flight projection, but endpoints must be checked before geometry authoring.
Drawing notation: 5'-3"
Dimension between witness stations under overlapping flights; likely lower-flight projection, but endpoints must be checked before geometry authoring.
6 count
Manual stair-line count, not a printed flight-specific quantity. Seven rises appears consistent; independent source recount remains required.
Drawing notation: [six drawn tread horizontals between basement and intermediate landing]
Manual stair-line count, not a printed flight-specific quantity. Seven rises appears consistent; independent source recount remains required.
14 count
Manual count including dashed continuation near first-floor slab; independent recount required. No pixel distances used as dimensions.
Drawing notation: [fourteen drawn tread horizontals from intermediate landing to first floor]
Manual count including dashed continuation near first-floor slab; independent recount required. No pixel distances used as dimensions.
7 count
Candidate subdivision only; not certified historical per-flight count. Candidate calculation only; its parents are not accepted physical controls.
Drawing notation: 6 drawn treads + 1 terminal rise
Candidate subdivision only; not certified historical per-flight count. Candidate calculation only; its parents are not accepted physical controls.
Calculated from: stair-closeout1013a-img_1116-m011
15 count
Candidate subdivision only; 7+15 matches existing total22 but agreement alone does not certify it. Candidate calculation only; its parents are not accepted physical controls.
Drawing notation: 14 drawn treads + 1 terminal rise
Candidate subdivision only; 7+15 matches existing total22 but agreement alone does not certify it. Candidate calculation only; its parents are not accepted physical controls.
Calculated from: stair-closeout1013a-img_1116-m012
10.5 in
Depends on candidate six treads and unresolved horizontal witness assignment; do not promote to accepted going. Candidate calculation only; its parents are not accepted physical controls.
Drawing notation: 5'-3" / 6 drawn tread intervals
Depends on candidate six treads and unresolved horizontal witness assignment; do not promote to accepted going. Candidate calculation only; its parents are not accepted physical controls.
Calculated from: stair-closeout1013a-img_1116-m010, stair-closeout1013a-img_1116-m011
147 in
Sum of horizontal witnesses, using existing detail-20261011j-1116-m003 for7'-0". The shared break and endpoint classes require confirmation. Candidate calculation only; its parents are not accepted physical controls.
Drawing notation: 7'-0" + 5'-3"
Sum of horizontal witnesses, using existing detail-20261011j-1116-m003 for7'-0". The shared break and endpoint classes require confirmation. Candidate calculation only; its parents are not accepted physical controls.
Calculated from: detail-20261011j-1116-m003, stair-closeout1013a-img_1116-m010
Alternate Section A-A visibly corroborates retained W22515ft interval;13ft generic/C region cannot replace it. No independent E basement absolute datum is read. Conflict remains unresolved; prior exact15ft property reused.
Drawing notation: 15′0″ between FINISH BASEMENT FLOOR and EL93.25 FINISH1ST FLOOR
Alternate Section A-A visibly corroborates retained W22515ft interval;13ft generic/C region cannot replace it. No independent E basement absolute datum is read. Conflict remains unresolved; prior exact15ft property reused.
Calculated from: w225-basement-f1-vertical-interval, w225-first-floor-finish-elevation
Numeric value unresolved
This crop does not establish an independently printed absolute basement datum. A93.25−15 calculation would remain calculated and would not resolve cross-source regional authority.
Drawing notation: [E basement absolute elevation absent from reviewed finished-floor label]
This crop does not establish an independently printed absolute basement datum. A93.25−15 calculation would remain calculated and would not resolve cross-source regional authority.
Original white printed drawing layer. Printed leader at upper return/flight intersection in A-A; exact bracket/brace shape and fastener dimensions unresolved.
Drawing notation: BRACE HANDRAIL AT STRINGER
Original white printed drawing layer. Printed leader at upper return/flight intersection in A-A; exact bracket/brace shape and fastener dimensions unresolved.
Original white printed drawing layer. Separate leader at first-floor beam/slab region; not interchangeable with stringer brace and not a bracket-spacing rule.
Drawing notation: BRACE HANDRAIL AT BEAM
Original white printed drawing layer. Separate leader at first-floor beam/slab region; not interchangeable with stringer brace and not a bracket-spacing rule.
Original white printed drawing layer. Leader to lower inclined stair underside. Remains separate from PLASTER SOFFIT recorded at another source region; no numeric withdrawal or universal finish assignment.
Drawing notation: SOFFIT NOT PLASTERED
Original white printed drawing layer. Leader to lower inclined stair underside. Remains separate from PLASTER SOFFIT recorded at another source region; no numeric withdrawal or universal finish assignment.
Original white printed drawing layer. Separate first-floor floor/base clause above slab. Floor finish material only, no thickness or total extent.
Drawing notation: TERRAZZO FLOOR — MARBLE BASE
Original white printed drawing layer. Separate first-floor floor/base clause above slab. Floor finish material only, no thickness or total extent.
Original white printed drawing layer. Base material in same first-floor clause; does not classify walls, rail or soffit.
Drawing notation: TERRAZZO FLOOR — MARBLE BASE
Original white printed drawing layer. Base material in same first-floor clause; does not classify walls, rail or soffit.
63 in
Original white printed drawing layer. Same printed horizontal witness previously stored as63in candidate. Literal glyph confirmed; lower-flight projection ownership, shared break and finish/nosing endpoint classes remain unresolved.
Drawing notation: 5′3″
Original white printed drawing layer. Same printed horizontal witness previously stored as63in candidate. Literal glyph confirmed; lower-flight projection ownership, shared break and finish/nosing endpoint classes remain unresolved.
