Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR of <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1113.webp. Primary lettering upright; no complete region review claim. Access-image normalized regions. No model geometry inferred. Partial timed visual review: Source-local printed evidence only; no accepted building transform, installed quantity, or reconstructed geometry. Prior verified measurements omitted; unresolved endpoints and companions retained. Partial timed visual review: Text/OCR, review-queue and prior-package audit; prior verified readings reused without duplication. No accepted geometry or building connections. Sequential upright WebP inspection; additive selected evidence only. Partial timed visual review: Additive selected-region review. Prior verified records reused without duplication; no accepted geometry. Partial timed visual review: Lower Stair C plan topology and selected printed tread notation; first-floor selected chain. One off-target rotated crop supplied no additional property. Partial timed visual review: Selected fine closure only; not exhaustive source extraction. Partial timed visual review: Section B-B elevation labels are decimal glyphs without an independently printed unit; no feet datum conversion. Basement-plan landing count and rough/finish/rail-plane equivalence remain open. Partial timed visual review: undefined Partial timed visual review: Prior evidence reused as text only; no new pixel evidence or exhaustive coverage.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.

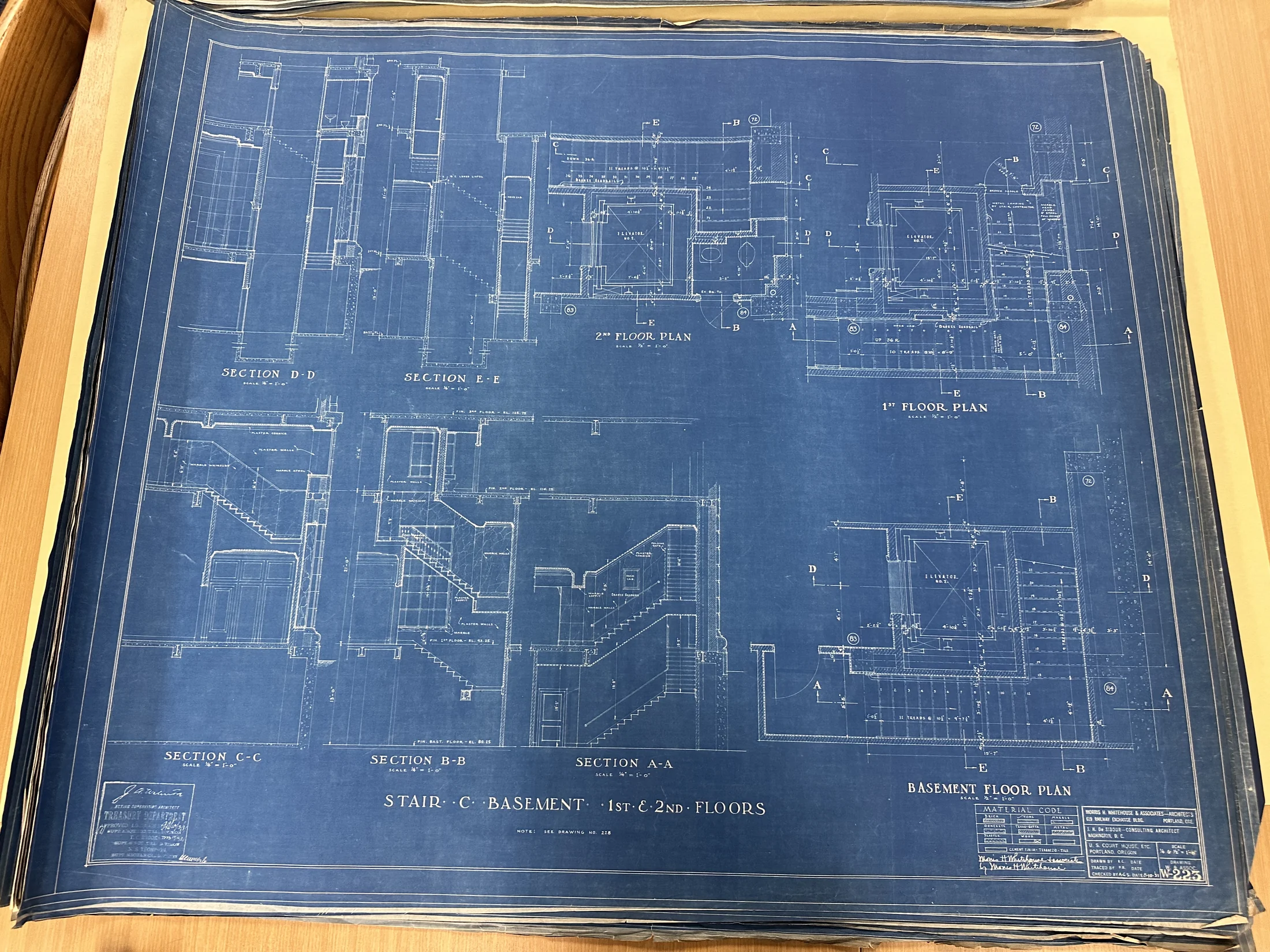

Drawing notation: STAIR C BASEMENT 1ST & 2ND FLOORS
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 2ND FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 1ST FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: BASEMENT FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION A-A
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION B-B
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION C-C
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION D-D
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION E-E
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: ELEVATOR
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Numeric value unresolved
Unresolved locator reading; numeric value withheld.
Drawing notation: [stair run/rise, elevator clear dimensions and material notes unresolved]
Unresolved locator reading; numeric value withheld.
2 mark
Printed equipment number in basement plan, preserved as mark rather than quantity.
Drawing notation: ELEVATOR NO.2
Printed equipment number in basement plan, preserved as mark rather than quantity.
Observed source-local elevator/stair relationship; no dimensions or common wall faces accepted.
Drawing notation: ELEVATOR NO.2 [drawn within wrapping Stair C plans]
Observed source-local elevator/stair relationship; no dimensions or common wall faces accepted.
Window stool material; exact opening instance, elevation, profile and attachment remain missing.
Drawing notation: MARBLE STOOL
Window stool material; exact opening instance, elevation, profile and attachment remain missing.
Visible marble wall leader in Section A-A and B-B; exact extent and thickness unresolved.
Drawing notation: MARBLE WALLS
Visible marble wall leader in Section A-A and B-B; exact extent and thickness unresolved.
Section B-B plaster wall above and below the marble interval; extent unresolved.
Drawing notation: PLASTER WALLS
Section B-B plaster wall above and below the marble interval; extent unresolved.
Section B-B label below second-floor landing; material only.
Drawing notation: MARBLE WAINSCOT
Section B-B label below second-floor landing; material only.
Section A-A/B-B printed leader; no solid thickness or finish extent.
Drawing notation: PLASTER SOFFIT
Section A-A/B-B printed leader; no solid thickness or finish extent.
Section A-A handrail leader; section and connections unresolved.
Drawing notation: BRONZE HANDRAIL
Section A-A handrail leader; section and connections unresolved.
Section A-A depicted cabinet; size, recess, door construction and room assignment remain missing.
Drawing notation: HOSE CAB.
Section A-A depicted cabinet; size, recess, door construction and room assignment remain missing.
Section A-A upper diagonal leader; profile and extent missing.
Drawing notation: PLASTER CORNICE
Section A-A upper diagonal leader; profile and extent missing.
2 count
Plan topology only; no traced length, accepted polygon or building transform.
Drawing notation: [basement plan has two perpendicular flight strips around Elevator No.2]
Plan topology only; no traced length, accepted polygon or building transform.
1 count
Turning landing visible; landing boundaries and exact elevation unresolved.
Drawing notation: [turning landing between the two basement plan flight strips]
Turning landing visible; landing boundaries and exact elevation unresolved.
11 count
Bottom horizontal flight in basement plan; printed count excludes the floor landing.
Drawing notation: 11 TREADS @ 10½" = 9'-7½"
Bottom horizontal flight in basement plan; printed count excludes the floor landing.
10.5 in
Printed going for bottom horizontal basement flight; tread profile/nosing and installed geometry unresolved.
Drawing notation: 11 TREADS @ 10½" = 9'-7½"
Printed going for bottom horizontal basement flight; tread profile/nosing and installed geometry unresolved.
115.5 in
Printed product/run between flight witnesses; exact finish versus nosing endpoints need classified review.
Drawing notation: 11 TREADS @ 10½" = 9'-7½"
Printed product/run between flight witnesses; exact finish versus nosing endpoints need classified review.
12 count
Conventional tread-plus-one interpretation, not a printed flight-specific riser total. Reconcile against all numbered risers. Candidate calculation only; its parents are not accepted physical controls.
Drawing notation: 11 printed treads + terminal landing rise = 12 candidate risers
Conventional tread-plus-one interpretation, not a printed flight-specific riser total. Reconcile against all numbered risers. Candidate calculation only; its parents are not accepted physical controls.
Calculated from: stair-closeout1013a-img_1113-m003
Numeric value unresolved
Candidate reading withheld; off-target 90-degree crop did not resolve this chain. Do not complete the 22-riser total by assumption.
Drawing notation: [rotated fine tread chain not certified]
Candidate reading withheld; off-target 90-degree crop did not resolve this chain. Do not complete the 22-riser total by assumption.
10 count
First-floor bottom horizontal up-flight only; 36 total risers from existing directional record retained separately.
Drawing notation: 10 TREADS @ 10½" = 8'-9"
First-floor bottom horizontal up-flight only; 36 total risers from existing directional record retained separately.
10.5 in
Scope is first-floor lower flight; full adjoining vertical chain and second-floor return flight still need targeted certification.
Drawing notation: 10 TREADS @ 10½" = 8'-9"
Scope is first-floor lower flight; full adjoining vertical chain and second-floor return flight still need targeted certification.
Section B-B21ft chain is between finish-floor surface references, not soffit/rough-slab-bottom or rail-top planes. Prior exact floor interval reused; no new building coordinate.
Drawing notation: FIN. 1ST FLOOR / FIN. 2ND FLOOR [vertical witness terminates at finished walking surface/slab-top reference]
Section B-B21ft chain is between finish-floor surface references, not soffit/rough-slab-bottom or rail-top planes. Prior exact floor interval reused; no new building coordinate.
C section B-B keeps its13ft basement region separate from E15ft; existing floor values retained. Crop does not classify every wall/rail line.
Drawing notation: FIN. BAST. FLOOR / FIN. 1ST FLOOR [vertical witness meets finish-floor surface references]
C section B-B keeps its13ft basement region separate from E15ft; existing floor values retained. Crop does not classify every wall/rail line.
Numeric value unresolved
Wall finish build-up, rough structural reference and rail intrusion offsets remain unmeasured; section appearance cannot supply physical clear width.
Drawing notation: [finished floor lines, hatched structural support and rail lines shown separately]
Wall finish build-up, rough structural reference and rail intrusion offsets remain unmeasured; section appearance cannot supply physical clear width.
80.25 number
Section B-B basement elevation decimal; numeric glyph only, unit/datum authority not established. Source-local only; no accepted installed geometry.
Drawing notation: FIN. BAST. FLOOR — EL. 80.25
Section B-B basement elevation decimal; numeric glyph only, unit/datum authority not established. Source-local only; no accepted installed geometry.
93.25 number
Section B-B first-floor elevation decimal; numeric glyph only, unit/datum authority not established. Source-local only; no accepted installed geometry.
Drawing notation: FIN. 1ST FLOOR — EL. 93.25
Section B-B first-floor elevation decimal; numeric glyph only, unit/datum authority not established. Source-local only; no accepted installed geometry.
114.25 number
Section B-B second-floor elevation decimal; numeric glyph only, unit/datum authority not established. Source-local only; no accepted installed geometry.
Drawing notation: FIN. 2ND FLOOR — EL. 114.25
Section B-B second-floor elevation decimal; numeric glyph only, unit/datum authority not established. Source-local only; no accepted installed geometry.
120 in
Section A-A local lower-flight vertical witness at handrail/wall area; not a measured headroom clearance or storey height. Source-local only; no accepted installed geometry.
Drawing notation: 10′0″
Section A-A local lower-flight vertical witness at handrail/wall area; not a measured headroom clearance or storey height. Source-local only; no accepted installed geometry.
9 count
Original white printed drawing layer. Rotated vertical tread chain for upper perpendicular basement flight adjacent numbered risers 13–21. Printed tread quantity only; riser allocation and turning-landing boundaries remain separate.
Drawing notation: 9 TREADS @ 10½″ = 7′10½″
Original white printed drawing layer. Rotated vertical tread chain for upper perpendicular basement flight adjacent numbered risers 13–21. Printed tread quantity only; riser allocation and turning-landing boundaries remain separate.
10.5 in
Original white printed drawing layer. Same upper perpendicular flight chain. No nosing/profile or accepted physical going.
Drawing notation: 9 TREADS @ 10½″ = 7′10½″
Original white printed drawing layer. Same upper perpendicular flight chain. No nosing/profile or accepted physical going.
94.5 in
Original white printed drawing layer. Printed chain product, not arithmetic completing total risers; witness face classification and installed span remain unresolved.
Drawing notation: 9 TREADS @ 10½″ = 7′10½″
Original white printed drawing layer. Printed chain product, not arithmetic completing total risers; witness face classification and installed span remain unresolved.
