Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR of <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1112.webp. Primary lettering upright; no complete region review claim. Access-image normalized regions. No model geometry inferred. Partial timed visual review: Source-local printed evidence only; no accepted building transform, installed quantity, or reconstructed geometry. Prior verified measurements omitted; unresolved endpoints and companions retained. Partial timed visual review: Text/OCR, review-queue and prior-package audit; prior verified readings reused without duplication. No accepted geometry or building connections. Sequential upright WebP inspection; additive selected evidence only. Partial timed visual review: Additive selected-region review. Prior verified records reused without duplication; no accepted geometry. Partial timed visual review: Text reuse only; typical/upper rise and partial horizontal chain preserved in prior packages. Partial timed visual review: Selected construction and reference-face review only; source evidence does not authorize physical geometry. Partial timed visual review: Lower section/plan chain is distinct from upper 3′11 [fraction]″ witness; both upper-fraction nulls remain unresolved without another identical crop retry. Partial timed visual review: undefined Partial timed visual review: Prior evidence reused as text only; no new pixel evidence or exhaustive coverage.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.

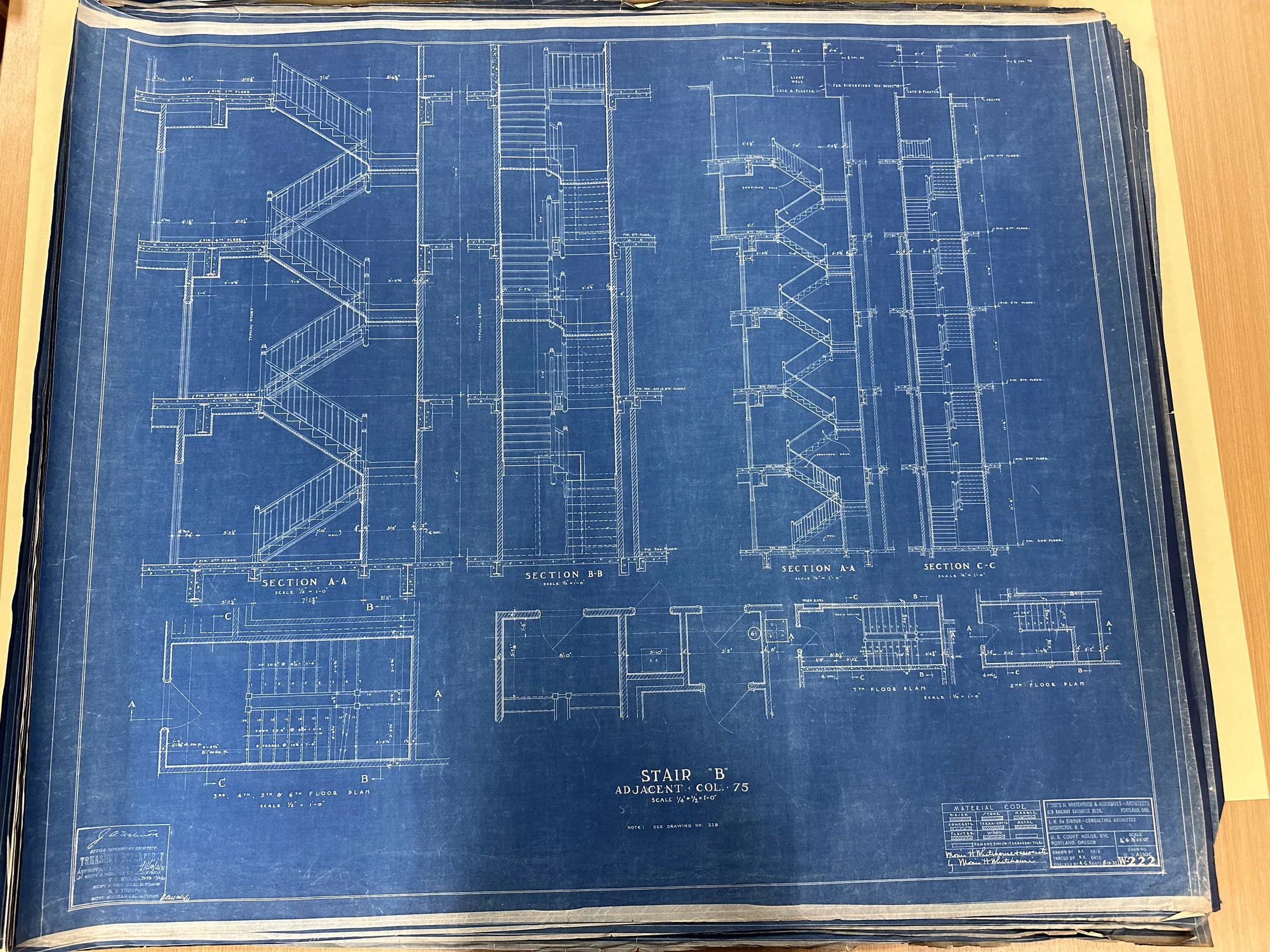

Drawing notation: STAIR B ADJACENT COL. 75
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
75 mark
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 75
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION A-A
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION B-B
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: SECTION C-C
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 1ST FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 2ND FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 3RD, 4TH, 5TH & 6TH FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: NOTE: SEE DRAWING NO. 228
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Numeric value unresolved
Unresolved locator reading; numeric value withheld.
Drawing notation: [four stair sections, floor heights and flight/landing chains unresolved]
Unresolved locator reading; numeric value withheld.
156 in
W222 left A-A/B-B typical-story dimension only; duplicated floor captions indicate grouped condition, no per-flight riser count.
Drawing notation: 13'-0"
W222 left A-A/B-B typical-story dimension only; duplicated floor captions indicate grouped condition, no per-flight riser count.
138 in
Upper B-B dimension between FIN. 6TH FLOOR and FIN. 7TH FLOOR; floor datum mapping and headroom unresolved.
Drawing notation: 11'-6"
Upper B-B dimension between FIN. 6TH FLOOR and FIN. 7TH FLOOR; floor datum mapping and headroom unresolved.
84 in
Upper A-A horizontal witness over flight; tread/nosing endpoints not classified. Do not equate this to net physical run.
Drawing notation: 7'-0"
Upper A-A horizontal witness over flight; tread/nosing endpoints not classified. Do not equate this to net physical run.
Printed TILE leader at left upper A-A wall; thickness and extent unresolved.
Drawing notation: TILE
Printed TILE leader at left upper A-A wall; thickness and extent unresolved.
57 in
Upper A-A left chain segment; surrounding fractions and witness face classification remain unresolved.
Drawing notation: 4'-9"
Upper A-A left chain segment; surrounding fractions and witness face classification remain unresolved.
Numeric value unresolved
Adjacent fractional chain glyph cannot be verified in access crop. Null preserved; no chain closure calculation.
Drawing notation: 3'-11 [fraction]"
Adjacent fractional chain glyph cannot be verified in access crop. Null preserved; no chain closure calculation.
Master crop distinguishes newel-side and wall/tile-reference stations; existing 57in and84in spans retained. Beam-centre and finish-face exact equivalence not accepted; this is an observed dimension-chain inventory.
Drawing notation: [seventh-floor chain passes wall/tile reference, beam station, newel side and return wall reference]
Master crop distinguishes newel-side and wall/tile-reference stations; existing 57in and84in spans retained. Beam-centre and finish-face exact equivalence not accepted; this is an observed dimension-chain inventory.
Calculated from: stairs1012a-1112-m001, detail-20261011j-1112-m003
Numeric value unresolved
Native crop still does not securely distinguish the fine fractional suffix. Existing null retained; no difference or chain closure used.
Drawing notation: 3′11 [fraction]″
Native crop still does not securely distinguish the fine fractional suffix. Existing null retained; no difference or chain closure used.
Calculated from: stairs1012a-1112-m002
47.25 in
Left horizontal witness above lower plan visible below SECTION A-A; distinct from unresolved upper-section fractional witness. Plan applicability label outside this crop remains unassigned. Source-local only; no accepted installed geometry.
Drawing notation: 3′11¼″
Left horizontal witness above lower plan visible below SECTION A-A; distinct from unresolved upper-section fractional witness. Plan applicability label outside this crop remains unassigned. Source-local only; no accepted installed geometry.
85.75 in
Middle horizontal witness above lower plan below SECTION A-A; no accepted wall/rail endpoint equivalence. Source-local only; no accepted installed geometry.
Drawing notation: 7′1¾″
Middle horizontal witness above lower plan below SECTION A-A; no accepted wall/rail endpoint equivalence. Source-local only; no accepted installed geometry.
35 in
Right horizontal witness above lower plan below SECTION A-A; endpoint class remains source-local. Source-local only; no accepted installed geometry.
Drawing notation: 2′11″
Right horizontal witness above lower plan below SECTION A-A; endpoint class remains source-local. Source-local only; no accepted installed geometry.
38 in
Section A-A horizontal landing-side witness to right of 7′0″ WALL instruction. Source-local only; no accepted installed geometry.
Drawing notation: 3′2″
Section A-A horizontal landing-side witness to right of 7′0″ WALL instruction. Source-local only; no accepted installed geometry.
Original white printed drawing layer. Observed A-A upper-flight guard arrangement only; rail section, newel dimensions, installation and precise terminal-floor relation remain unresolved.
Drawing notation: [sloped rail with vertical infill connects elevated end newels above stair flight]
Original white printed drawing layer. Observed A-A upper-flight guard arrangement only; rail section, newel dimensions, installation and precise terminal-floor relation remain unresolved.
