Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial locator review after catalogue/OCR of <=1000px JPEG65 derivative of public/archive/drawings/complete-upright/IMG_1109.webp. Primary lettering upright; no complete region review claim. Access-image normalized regions. No model geometry inferred. Partial timed visual review: Source-local printed evidence only; no accepted building transform, installed quantity, or reconstructed geometry. Prior verified measurements omitted; unresolved endpoints and companions retained. Partial timed visual review: Additive selected-region review. Prior verified records reused without duplication; no accepted geometry. Partial timed visual review: undefined Partial timed visual review: Bounded original printed witness review; no governing issue selected. Partial timed visual review: Bounded upright native crop; regions mapped back to normalized full reading frame corresponding to access image. Original master EXIF is stored independently and was not applied as an automatic transform.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.

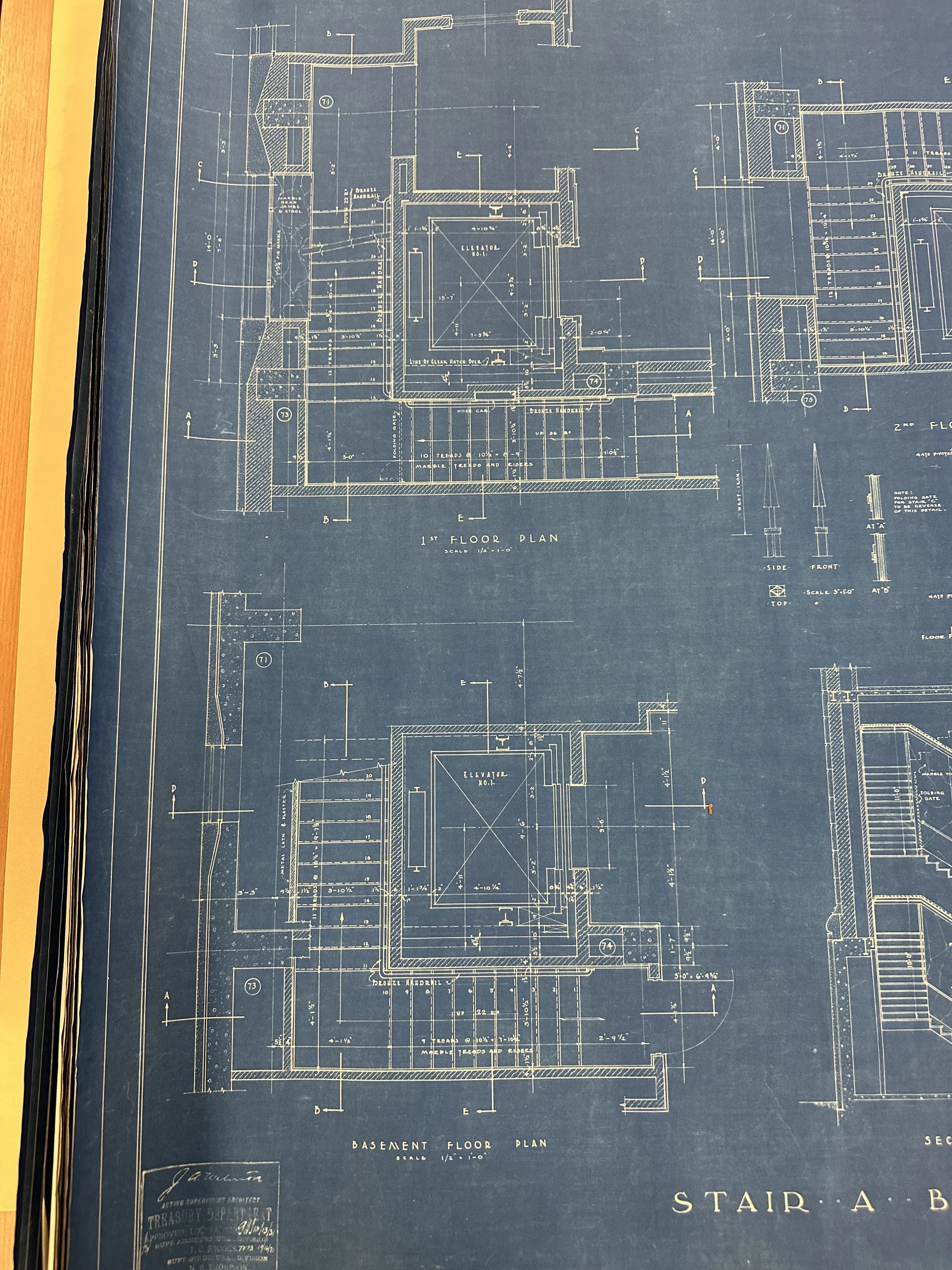

Drawing notation: STAIR A
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 1ST FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: BASEMENT FLOOR PLAN
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: ELEVATOR
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: ELEVATOR
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: 71, 73, 74
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Numeric value unresolved
Unresolved locator reading; numeric value withheld.
Drawing notation: [car/shaft plan width-depth and stair-flight dimensions too small to verify]
Unresolved locator reading; numeric value withheld.
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Drawing notation: Second floor plan and sections cut off along right photograph edge
Selected legible locator evidence; partial assembly-local scope; no complete dimension chain or model assignment.
Printed overhead hatch line in first-floor plan; hatch polygon, elevation and construction are unclassified.
Drawing notation: LINE OF CLEAR HATCH OVER
Printed overhead hatch line in first-floor plan; hatch polygon, elevation and construction are unclassified.
Additional source-local plan placement under south elevator wall; no recess depth or world placement.
Drawing notation: HOSE CAB.
Additional source-local plan placement under south elevator wall; no recess depth or world placement.
10 count
Count in first-floor lower horizontal flight equality. Source-local only; no accepted physical geometry.
Drawing notation: 10 TREADS @ 10½″ = 8′9″
Count in first-floor lower horizontal flight equality. Source-local only; no accepted physical geometry.
10.5 in
Going in same local printed equality. Source-local only; no accepted physical geometry.
Drawing notation: 10 TREADS @ 10½″ = 8′9″
Going in same local printed equality. Source-local only; no accepted physical geometry.
105 in
Printed equality result; not calculation or accepted run geometry. Source-local only; no accepted physical geometry.
Drawing notation: 10 TREADS @ 10½″ = 8′9″
Printed equality result; not calculation or accepted run geometry. Source-local only; no accepted physical geometry.
36 count
Plan ascent instruction beside lower flight; not count of just the ten-tread flight or whole building. Source-local only; no accepted physical geometry.
Drawing notation: UP 36 RIS
Plan ascent instruction beside lower flight; not count of just the ten-tread flight or whole building. Source-local only; no accepted physical geometry.
46.5 in
Transverse witness through lower plan flight; rail-to-rail clear width unclassified. Source-local only; no accepted physical geometry.
Drawing notation: 3′10½″
Transverse witness through lower plan flight; rail-to-rail clear width unclassified. Source-local only; no accepted physical geometry.
Lower flight printed material note. Source-local only; no accepted physical geometry.
Drawing notation: MARBLE TREADS AND RISERS
Lower flight printed material note. Source-local only; no accepted physical geometry.
Leader to lower horizontal plan handrail; profile remains open. Source-local only; no accepted physical geometry.
Drawing notation: BRONZE HANDRAIL
Leader to lower horizontal plan handrail; profile remains open. Source-local only; no accepted physical geometry.
12 count
Vertical left-flight equality, separate from basement lower/left records. Source-local only; no accepted physical geometry.
Drawing notation: 12 TREADS @ 10½″ = 10′6″
Vertical left-flight equality, separate from basement lower/left records. Source-local only; no accepted physical geometry.
10.5 in
Printed left-flight spacing. Source-local only; no accepted physical geometry.
Drawing notation: 12 TREADS @ 10½″ = 10′6″
Printed left-flight spacing. Source-local only; no accepted physical geometry.
126 in
Printed equality result; no derived riser allocation. Source-local only; no accepted physical geometry.
Drawing notation: 12 TREADS @ 10½″ = 10′6″
Printed equality result; no derived riser allocation. Source-local only; no accepted physical geometry.
22 count
Down instruction at top of left descending flight; not a count of only the twelve-tread segment. Source-local only; no accepted physical geometry.
Drawing notation: DOWN 22 RIS
Down instruction at top of left descending flight; not a count of only the twelve-tread segment. Source-local only; no accepted physical geometry.
46.5 in
Left flight transverse witness; rough/finish and rail intrusion unresolved. Source-local only; no accepted physical geometry.
Drawing notation: 3′10½″
Left flight transverse witness; rough/finish and rail intrusion unresolved. Source-local only; no accepted physical geometry.
Local note at adjacent left opening; not global stair finish assignment. Source-local only; no accepted physical geometry.
Drawing notation: MARBLE HEAD JAMB & STOOL
Local note at adjacent left opening; not global stair finish assignment. Source-local only; no accepted physical geometry.
60 in
Horizontal turn-area witness between left wall reference and lower flight start; endpoint class unaccepted. Source-local only; no accepted physical geometry.
Drawing notation: 5′0″
Horizontal turn-area witness between left wall reference and lower flight start; endpoint class unaccepted. Source-local only; no accepted physical geometry.
Printed designation of first-floor enclosed elevator rectangle. Source-local only; no accepted physical geometry.
Drawing notation: ELEVATOR NO. 1
Printed designation of first-floor enclosed elevator rectangle. Source-local only; no accepted physical geometry.
58.25 in
Upper horizontal witness across drawn elevator interior; no accepted cab/shaft boundary equivalence. Source-local only; no accepted physical geometry.
Drawing notation: 4′10¼″
Upper horizontal witness across drawn elevator interior; no accepted cab/shaft boundary equivalence. Source-local only; no accepted physical geometry.
22 count
Basement-plan ascent instruction; no assertion of total building risers. Source-local only; not accepted installed geometry.
Drawing notation: UP 22 RIS
Basement-plan ascent instruction; no assertion of total building risers. Source-local only; not accepted installed geometry.
9 count
Printed lower horizontal flight tread count. Source-local only; not accepted installed geometry.
Drawing notation: 9 TREADS @ 10½″ = 7′-10½″
Printed lower horizontal flight tread count. Source-local only; not accepted installed geometry.
10.5 in
Printed lower flight tread spacing. Source-local only; not accepted installed geometry.
Drawing notation: 9 TREADS @ 10½″ = 7′-10½″
Printed lower flight tread spacing. Source-local only; not accepted installed geometry.
94.5 in
Printed lower flight run; independent of calculation. Source-local only; not accepted installed geometry.
Drawing notation: 9 TREADS @ 10½″ = 7′-10½″
Printed lower flight run; independent of calculation. Source-local only; not accepted installed geometry.
11 count
Rotated plan note along left flight. Source-local only; not accepted installed geometry.
Drawing notation: 11 TREADS @ 10½″ = 9′-7½″
Rotated plan note along left flight. Source-local only; not accepted installed geometry.
10.5 in
Printed left-flight tread spacing. Source-local only; not accepted installed geometry.
Drawing notation: 11 TREADS @ 10½″ = 9′-7½″
Printed left-flight tread spacing. Source-local only; not accepted installed geometry.
115.5 in
Printed left-flight run, no inferred riser height. Source-local only; not accepted installed geometry.
Drawing notation: 11 TREADS @ 10½″ = 9′-7½″
Printed left-flight run, no inferred riser height. Source-local only; not accepted installed geometry.
46.5 in
Witness across left flight; clear width and handrail intrusion unaccepted. Source-local only; not accepted installed geometry.
Drawing notation: 3′-10½″
Witness across left flight; clear width and handrail intrusion unaccepted. Source-local only; not accepted installed geometry.
58.25 in
Witness across drawn elevator interior rectangle; frame/lining and installed cab identity remain unregistered. Source-local only; not accepted installed geometry.
Drawing notation: 4′-10¼″
Witness across drawn elevator interior rectangle; frame/lining and installed cab identity remain unregistered. Source-local only; not accepted installed geometry.
114 in
Long vertical witness alongside elevator plan; classification of shaft/wall surfaces remains unresolved. Source-local only; not accepted installed geometry.
Drawing notation: 9′-6″
Long vertical witness alongside elevator plan; classification of shaft/wall surfaces remains unresolved. Source-local only; not accepted installed geometry.
Plan material instruction for depicted stair. Source-local only; not accepted installed geometry.
Drawing notation: MARBLE TREADS AND RISERS
Plan material instruction for depicted stair. Source-local only; not accepted installed geometry.
Handrail leader at stair turn; no rail profile/height acceptance. Source-local only; not accepted installed geometry.
Drawing notation: BRONZE HANDRAIL
Handrail leader at stair turn; no rail profile/height acceptance. Source-local only; not accepted installed geometry.
