Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential review of public/archive/drawings/complete-upright/IMG_1108.webp through 1000px maximum JPEG quality65 locator after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. Fine blurry readings remain null; no modeling. Partial timed visual review: Source-local printed evidence only; no accepted building transform, installed quantity, or reconstructed geometry. Prior verified measurements omitted; unresolved endpoints and companions retained. Partial timed visual review: Additive selected-region review. Prior verified records reused without duplication; no accepted geometry. Partial timed visual review: undefined Partial timed visual review: Prior evidence reused as text only; no new pixel evidence or exhaustive coverage. Partial timed visual review: Bounded upright native crop; regions mapped back to normalized full reading frame corresponding to access image. Original master EXIF is stored independently and was not applied as an automatic transform.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Partial detail-level evidence; installed quantities and geometry not established.

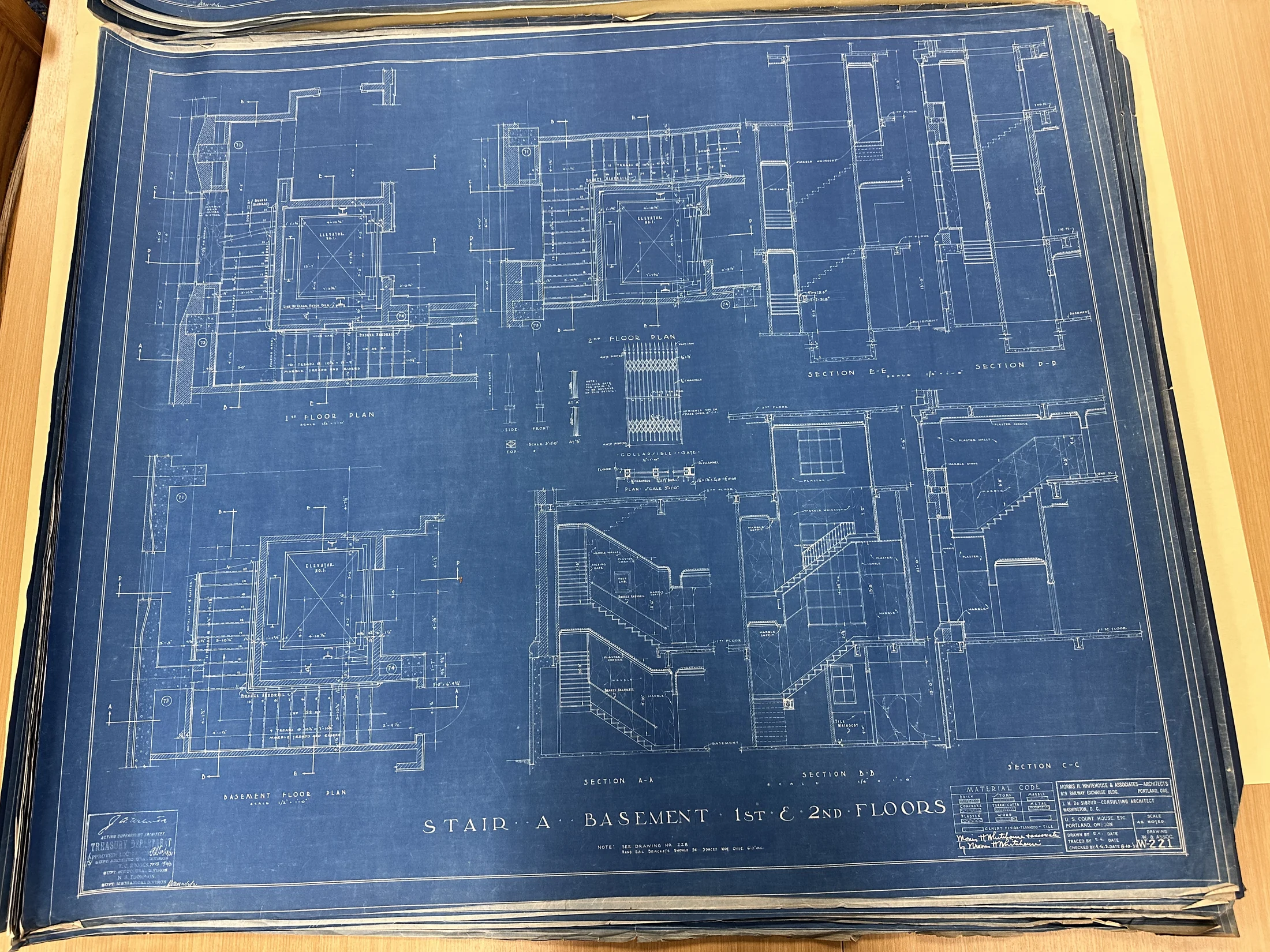

Drawing notation: Stair A — Basement — 1st & 2nd Floors
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: BASEMENT FLOOR PLAN
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: 1ST FLOOR PLAN
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: 2ND FLOOR PLAN
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: Sections A-A, B-B, C-C, D-D, E-E; baluster/rail details
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: ELEVATOR [drawn adjacent to Stair A plans]
Partial detail-level evidence; installed quantities and geometry not established.
Numeric value unresolved
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: Riser/tread counts, widths, landings, floor heights and rail sizes unreadable in locator
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: [note on spacing/bridging too small to transcribe]
Partial detail-level evidence; installed quantities and geometry not established.
6 ft
Original white printed drawing layer. Same bottom note previously described as spacing/bridging. Maximum bracket interval, not guard post spacing or installed station count.
Drawing notation: HAND RAIL BRACKETS SHOULD BE SPACED NOT OVER 6′0″ O.C.
Original white printed drawing layer. Same bottom note previously described as spacing/bridging. Maximum bracket interval, not guard post spacing or installed station count.
Original white printed drawing layer. First line of the same bottom note; retains companion applicability work.
Drawing notation: NOTE: SEE DRAWING NO. 228
Original white printed drawing layer. First line of the same bottom note; retains companion applicability work.
13 ft
Section E-E printed span between BASEMENT and 1ST FLOOR lines; datum and assembly face conventions remain open. Source-local only; not accepted installed geometry.
Drawing notation: 13′-0″
Section E-E printed span between BASEMENT and 1ST FLOOR lines; datum and assembly face conventions remain open. Source-local only; not accepted installed geometry.
21 ft
Section E-E printed span between 1ST and 2ND FLOOR lines; no building datum acceptance. Source-local only; not accepted installed geometry.
Drawing notation: 21′-0″
Section E-E printed span between 1ST and 2ND FLOOR lines; no building datum acceptance. Source-local only; not accepted installed geometry.
11 count
Count explicitly in second-floor upper horizontal flight note; not a whole-stair installed count. Source-local only; not accepted installed geometry.
Drawing notation: 11 TREADS @ 10½″ = 9′-7½″
Count explicitly in second-floor upper horizontal flight note; not a whole-stair installed count. Source-local only; not accepted installed geometry.
10.5 in
Printed tread-spacing portion of same note. Source-local only; not accepted installed geometry.
Drawing notation: 11 TREADS @ 10½″ = 9′-7½″
Printed tread-spacing portion of same note. Source-local only; not accepted installed geometry.
115.5 in
Printed equality run retained independently; not an arithmetic-derived dimension. Source-local only; not accepted installed geometry.
Drawing notation: 11 TREADS @ 10½″ = 9′-7½″
Printed equality run retained independently; not an arithmetic-derived dimension. Source-local only; not accepted installed geometry.
Material leader to Section E stair wall finish. Source-local only; not accepted installed geometry.
Drawing notation: MARBLE WAINSCOT
Material leader to Section E stair wall finish. Source-local only; not accepted installed geometry.
