Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential review of public/archive/drawings/complete-upright/IMG_1105.webp through 1000px maximum JPEG quality65 locator after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. Fine blurry readings remain null; no modeling. Partial timed visual review: Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement. Partial timed visual review: Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Partial timed visual review: Dutch-door stop, wood infill and lower screen wire fractions Partial timed visual review: Bounded upright native crop; regions mapped back to normalized full reading frame corresponding to access image. Original master EXIF is stored independently and was not applied as an automatic transform.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Partial detail-level evidence; installed quantities and geometry not established.

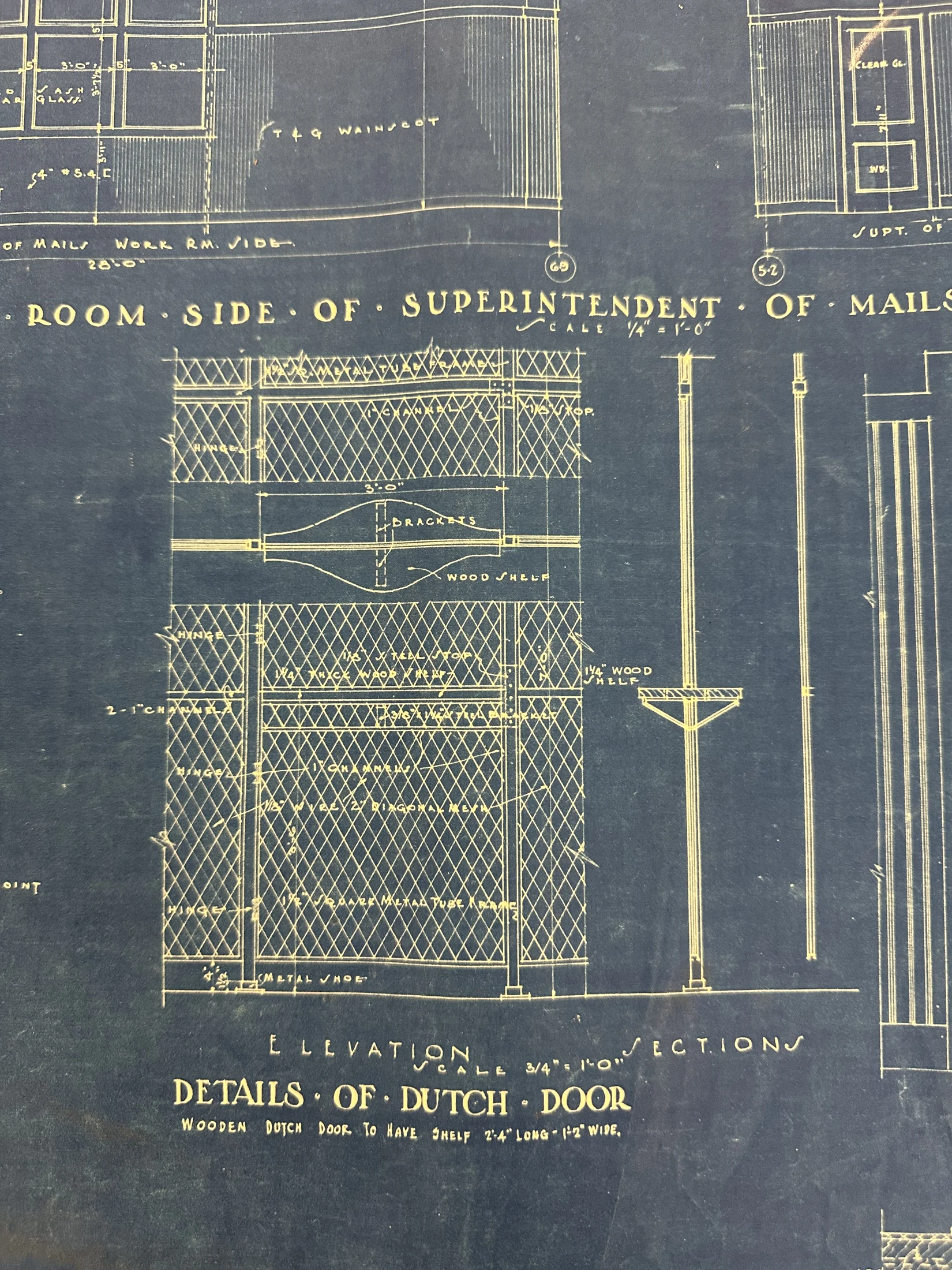

Drawing notation: DETAILS OF DUTCH DOOR
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: WOODEN DUTCH DOOR
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: WOOD SHELF
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: BRACKETS
Partial detail-level evidence; installed quantities and geometry not established.
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: METAL SHOE
Partial detail-level evidence; installed quantities and geometry not established.
28 in
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: 2'-4" LONG
Partial detail-level evidence; installed quantities and geometry not established.
14 in
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: 1'-2" WIDE
Partial detail-level evidence; installed quantities and geometry not established.
36 in
Drawn elevation witness; separate from shelf-length specification and not relabeled shelf length.
Drawing notation: 3'-0"
Drawn elevation witness; separate from shelf-length specification and not relabeled shelf length.
1.25 in
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: 1 1/4" WOOD SHELF
Partial detail-level evidence; installed quantities and geometry not established.
Numeric value unresolved
Partial detail-level evidence; installed quantities and geometry not established.
Drawing notation: Mesh sizes, tube-frame sizes and clear height require crop review
Partial detail-level evidence; installed quantities and geometry not established.
0.25 in
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
Drawing notation: ¼″ THICK WOOD SHEET
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
0.125 in
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement. Review correction review-correction-20261013q-detail-20261011i-img1105-2: Same original lower-screen glyph in IMG1105 upright raw crop reads 1/16, not 1/8. This is a same-note fraction transcription correction; distinct middle wire note and installed assembly are not selected or reconciled.
Drawing notation: ⅛″ WIRE
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
2 in
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
Drawing notation: 2″ DIAGONAL MESH
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
1.5 in
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
Drawing notation: 1½″ SQUARE METAL TUBE FRAME
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
2 in
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
Drawing notation: 2″ CHANNEL
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
Drawing notation: HINGE
Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.
1 in
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Printed angle nominal size in screen elevation; leg thickness not specified here.
Drawing notation: 1″ ANGLE
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Printed angle nominal size in screen elevation; leg thickness not specified here.
Numeric value unresolved
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Master crop does not support prior confident ¼″ reading; preserve old record and leave corrected thickness unresolved.
Drawing notation: [fraction unresolved] THICK WOOD SHEET
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Master crop does not support prior confident ¼″ reading; preserve old record and leave corrected thickness unresolved.
Numeric value unresolved
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Master crop fine wire fraction appears different from prior ⅛″; no replacement numeric accepted. Verified 2″ mesh reused.
Drawing notation: [fine fraction unresolved] WIRE / 2″ DIAGONAL MESH
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Master crop fine wire fraction appears different from prior ⅛″; no replacement numeric accepted. Verified 2″ mesh reused.
Numeric value unresolved
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Separate steel stop note; fraction awaits further crop/companion check.
Drawing notation: [fine fraction unresolved] STEEL STOP
Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Separate steel stop note; fraction awaits further crop/companion check.
0.125 in
Leader identifies the steel stop at the lower panel; fraction now legible in upright raw crop. Source-local evidence only; no installed count, accepted geometry, world transform or governing revision.
Drawing notation: 1/8" STEEL STOP
Leader identifies the steel stop at the lower panel; fraction now legible in upright raw crop. Source-local evidence only; no installed count, accepted geometry, world transform or governing revision.
0.25 in
Same lower infill note as the prior thickness recheck; wood material and thickness only. Source-local evidence only; no installed count, accepted geometry, world transform or governing revision.
Drawing notation: 1/4" THICK WOOD SHEET
Same lower infill note as the prior thickness recheck; wood material and thickness only. Source-local evidence only; no installed count, accepted geometry, world transform or governing revision.
0.0625 in
Lower screen leader fraction reads 1/16; the separate middle small-wire note is not assigned this value. Source-local evidence only; no installed count, accepted geometry, world transform or governing revision.
Drawing notation: 1/16" WIRE 2" DIAGONAL MESH
Lower screen leader fraction reads 1/16; the separate middle small-wire note is not assigned this value. Source-local evidence only; no installed count, accepted geometry, world transform or governing revision.
1 in
Channel leader above the shelf zone; distinct from existing lower 2-inch channel. Source-local only; not accepted installed geometry.
Drawing notation: 1″ CHANNEL
Channel leader above the shelf zone; distinct from existing lower 2-inch channel. Source-local only; not accepted installed geometry.
24 in
Right vertical witness across the middle panel region. Do not relabel whole-door clear height. Source-local only; not accepted installed geometry.
Drawing notation: 2′-0″
Right vertical witness across the middle panel region. Do not relabel whole-door clear height. Source-local only; not accepted installed geometry.
Numeric value unresolved
Separate middle small-wire note; full fraction/mesh clause remains unresolved. Not the lower 1/16-inch wire note. Source-local only; not accepted installed geometry.
Drawing notation: [appears 3/16″ WIRE ... DIAGONAL; intervening mesh token unresolved]
Separate middle small-wire note; full fraction/mesh clause remains unresolved. Not the lower 1/16-inch wire note. Source-local only; not accepted installed geometry.
