The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1104 · Folder 191

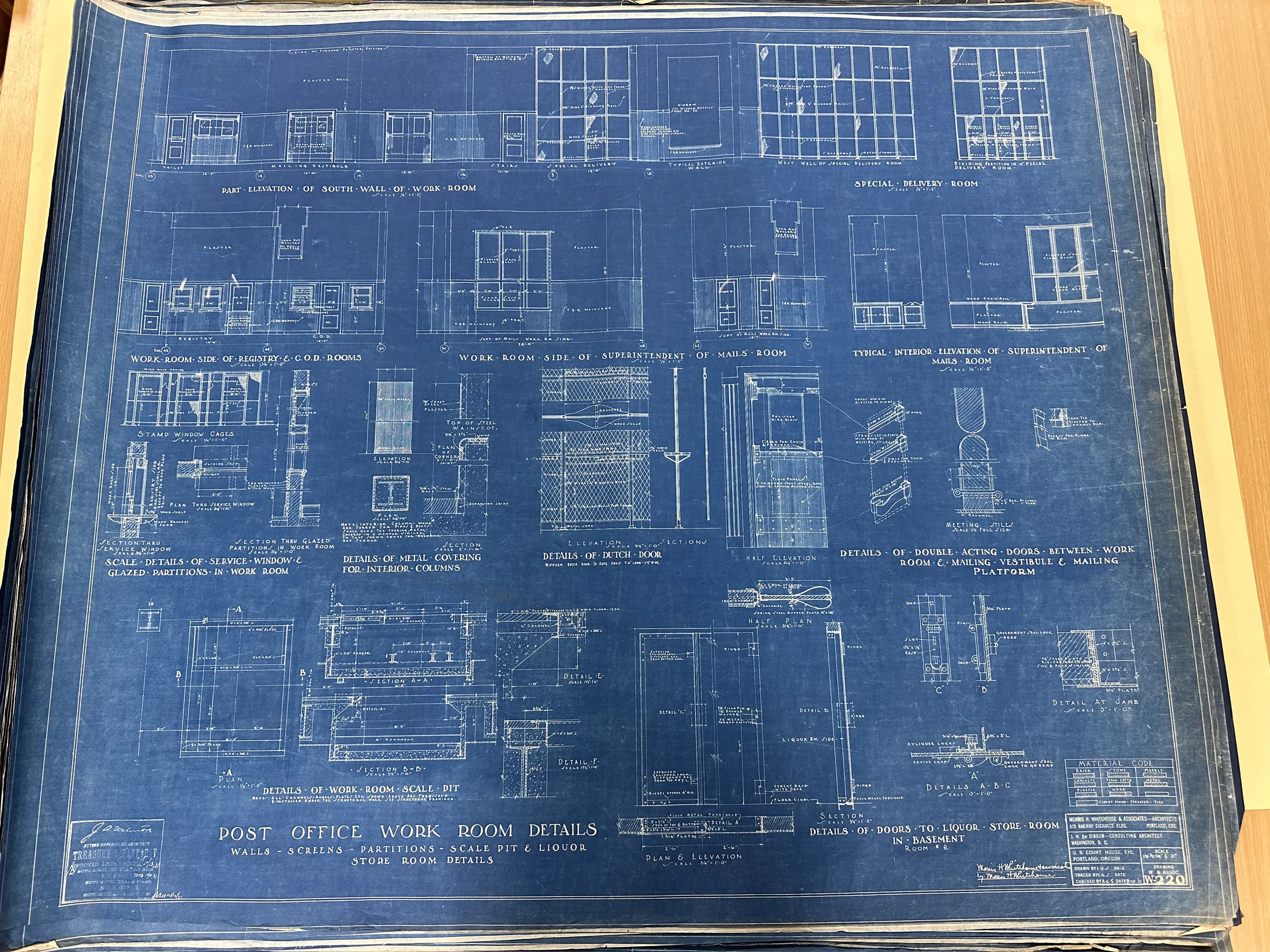

Post Office Work Room Details

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential review of public/archive/drawings/complete-upright/IMG_1104.webp through 1000px maximum JPEG quality65 locator after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. Fine blurry readings remain null; no modeling. Partial timed visual review: Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement. Partial timed visual review: Workroom and superintendent wall-finish callouts Partial timed visual review: Bounded upright native crop; regions mapped back to normalized full reading frame corresponding to access image. Original master EXIF is stored independently and was not applied as an automatic transform.

Unresolved extraction work

Review fine dimensions and note text with bounded targeted crops or cleaner companion capture
Reconcile companion sheets, marks and revisions
Assign installed instance IDs and quantities; no traced geometry from locator image
Fine fractions, witness endpoint classification, and remaining note transcription require targeted crop review
Companion/revision authority and installed room/floor registration remain outstanding
Modeling and whole-building acceptance checks not performed
Installed instance quantity, floor/room registration, physical transforms and as-built correspondence remain unresolved.
All uninspected regions, remaining notes/fractions/profiles, companion details and historical revision authority remain open.
Whole-building architectural acceptance has not been performed.
Remaining opening sizes, fasteners, full hardware/section details and installed room registration.
Installed instance allocation and physical building registration remain unresolved.
Source-local extraction only; no geometry authoring, modeling check or whole-building acceptance.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

13 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1104-detailverified · printed

drawing_title

Post Office Work Room Details — Walls — Screens — Partitions — Scale Pit & Liquor Store Room Details
