IMG_1100 · Folder 191

Typical Floor Elevator Doors

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential review of public/archive/drawings/complete-upright/IMG_1100.webp through 1000px maximum JPEG quality65 locator after OCR/catalogue and existing reports. Actual clockwise reading rotation 0 degrees. Coordinates normalized access-image before rotation. Fine blurry readings remain null; no modeling. Partial timed visual review: Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement. Partial timed visual review: Prior full-sheet and finish notes reused; no broad reinspection of this multi-detail sheet. Partial timed visual review: Bounded upright native crop; regions mapped back to normalized full reading frame corresponding to access image. Original master EXIF is stored independently and was not applied as an automatic transform.

Unresolved extraction work

Review fine dimensions and note text with bounded targeted crops or cleaner companion capture
Reconcile companion sheets, marks and revisions
Assign installed instance IDs and quantities; no traced geometry from locator image
Fine fractions, witness endpoint classification, and remaining note transcription require targeted crop review
Companion/revision authority and installed room/floor registration remain outstanding
Modeling and whole-building acceptance checks not performed
Installed instance quantity, floor/room registration, physical transforms and as-built correspondence remain unresolved.
All uninspected regions, remaining notes/fractions/profiles, companion details and historical revision authority remain open.
Whole-building architectural acceptance has not been performed.
Remaining cab, foyer, door and entrance fine witnesses; historical governing issue and installed assignment.
Installed instance allocation and physical building registration remain unresolved.
Source-local extraction only; no geometry authoring, modeling check or whole-building acceptance.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

11 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1100-detailverified · printed

drawing_title

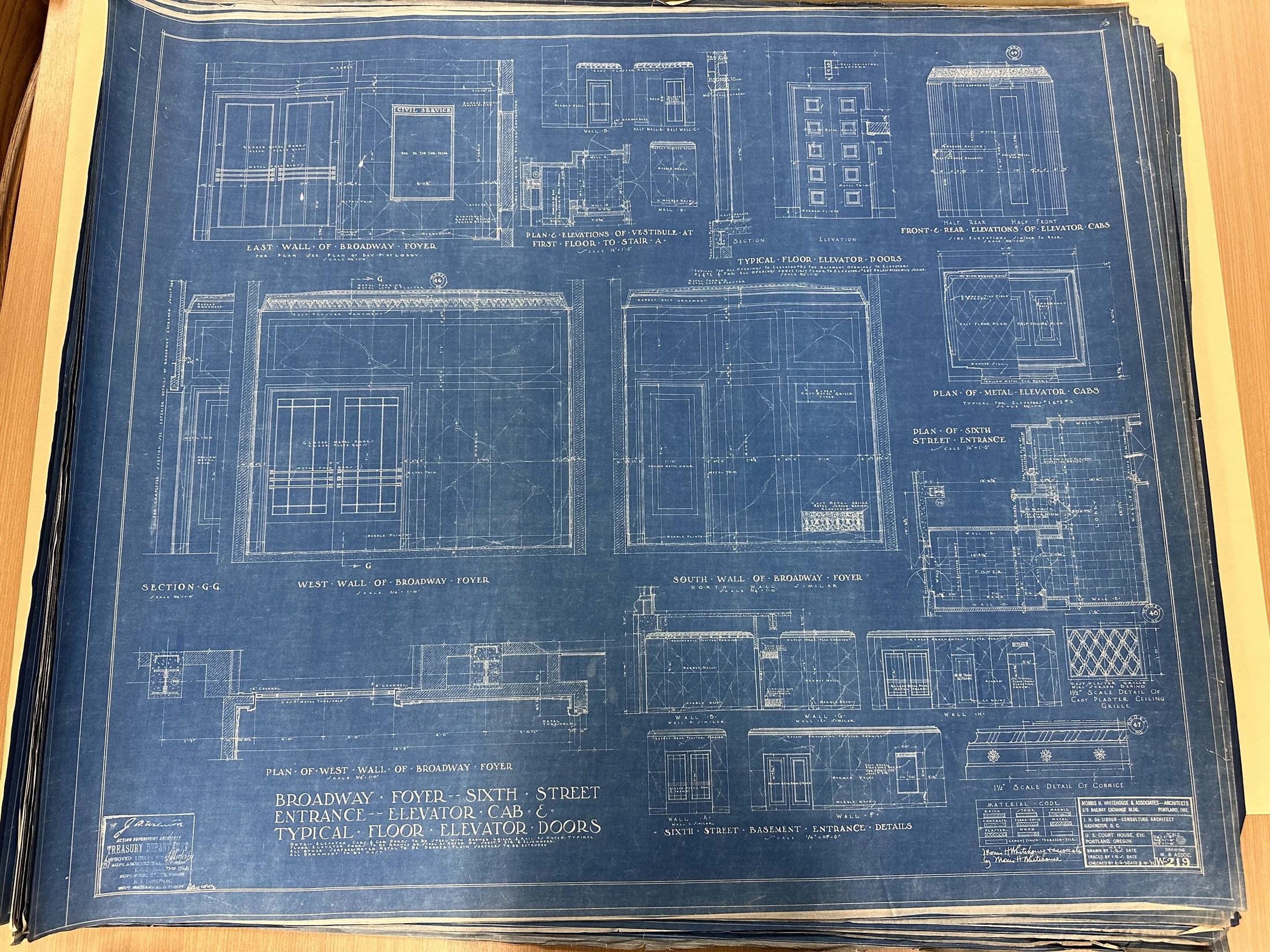

Broadway Foyer — Sixth Street Entrance — Elevator Cab E — Typical Floor Elevator Doors

Partial detail-level evidence; installed quantities and geometry not established.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: Broadway Foyer — Sixth Street Entrance — Elevator Cab E — Typical Floor Elevator Doors

Partial detail-level evidence; installed quantities and geometry not established.

parallel-img1100-detailverified · observed

drawing_views

East/west/south foyer walls, vestibule to Stair A, landing-door details, cab elevations/plan, entrance plans, basement entrance walls and cornice/grille details

Partial detail-level evidence; installed quantities and geometry not established.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: East/west/south foyer walls, vestibule to Stair A, landing-door details, cab elevations/plan, entrance plans, basement entrance walls and cornice/grille details

Partial detail-level evidence; installed quantities and geometry not established.

parallel-img1100-detailverified · printed

cab_plan_construction

Plan of metal elevator cabs

Partial detail-level evidence; installed quantities and geometry not established.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: Plan of metal elevator cabs

Partial detail-level evidence; installed quantities and geometry not established.

parallel-img1100-detailverified · printed

cab_type_mark

Elevator Cab E

Partial detail-level evidence; installed quantities and geometry not established.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: Elevator Cab E

Partial detail-level evidence; installed quantities and geometry not established.

parallel-img1100-detailunreviewed · observed

fine_dimensions

Locator too small to establish fine witnesses; existing W219 package uses cleaner IMG_1307

Numeric value unresolved

Existing elevator-w214-typical-cab-first.md establishes W219 identity and preserves applicability; no new numeric transfer from companion images.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: Locator too small to establish fine witnesses; existing W219 package uses cleaner IMG_1307

Existing elevator-w214-typical-cab-first.md establishes W219 identity and preserves applicability; no new numeric transfer from companion images.

parallel-img1100-detailverified · printed

global-finish-note

ALL ORNAMENT TO BE CAST

Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: ALL ORNAMENT TO BE CAST

Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.

parallel-img1100-detailverified · printed

west-wall-cornice-material

CAST PLASTER ORNAMENT

Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: CAST PLASTER ORNAMENT

Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.

parallel-img1100-detailverified · printed

west-wall-door-material

GLAZED METAL DOORS / CLEAR PLATE GLASS

Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: GLAZED METAL DOORS / CLEAR PLATE GLASS

Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement.

parallel-img1100-detailverified · printed

cab_plan_outer_horizontal_witness

6′-6″

78 in

Outermost top horizontal cab-plan witness; physical faces and installed applicability remain unresolved. Source-local only; not accepted installed geometry.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: 6′-6″

Outermost top horizontal cab-plan witness; physical faces and installed applicability remain unresolved. Source-local only; not accepted installed geometry.

parallel-img1100-detailverified · printed

cab_plan_sill_material

BRONZE SILL

Cab-plan sill leader only. Source-local only; not accepted installed geometry.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: BRONZE SILL

Cab-plan sill leader only. Source-local only; not accepted installed geometry.

parallel-img1100-detailverified · printed

cab_plan_door_construction

HOLLOW METAL CAB DOORS

Cab-plan door leader only. Source-local only; not accepted installed geometry.

IMG_1100 · W-219 · Locate on drawing ↗

Drawing notation: HOLLOW METAL CAB DOORS

Cab-plan door leader only. Source-local only; not accepted installed geometry.
