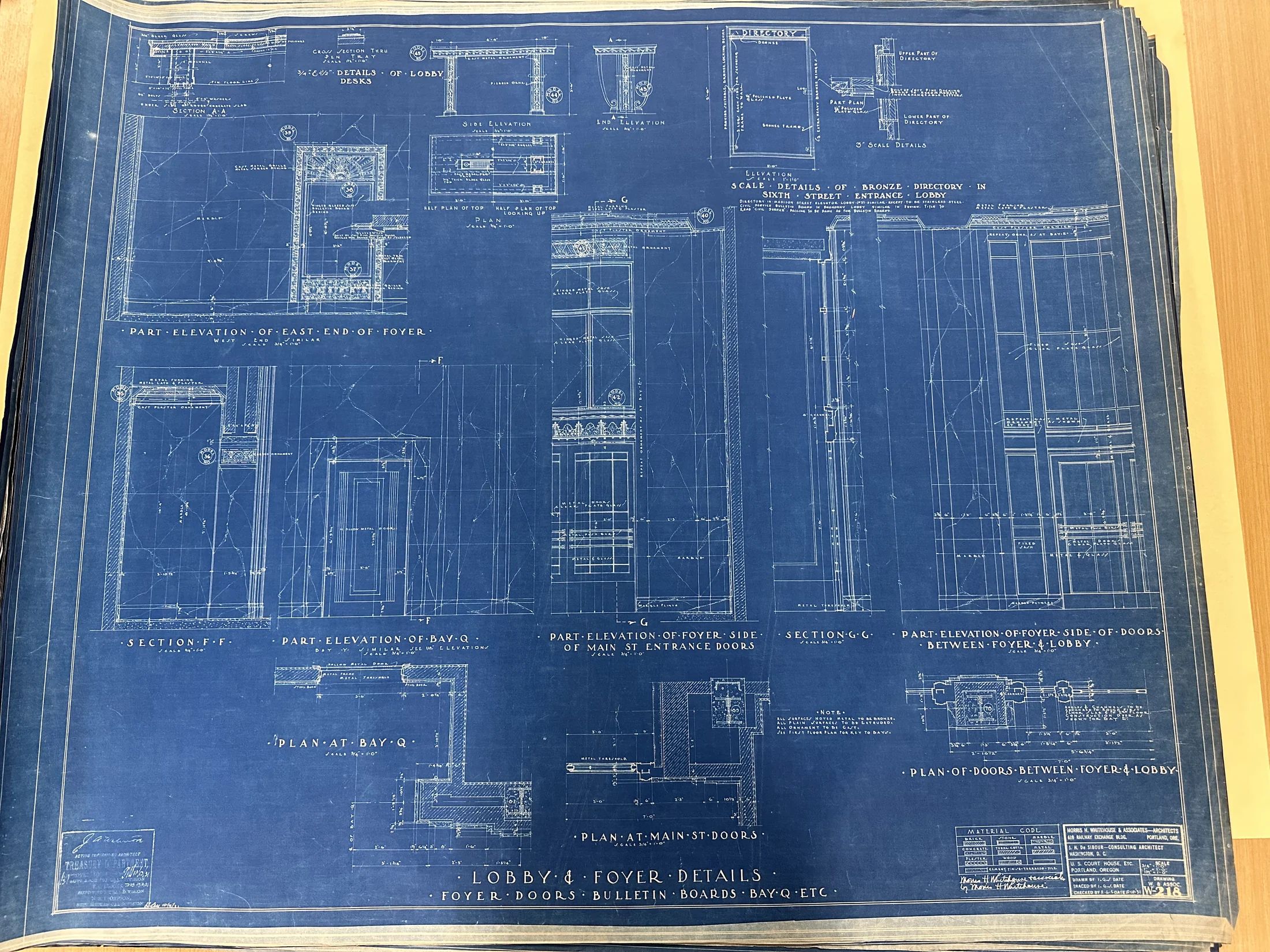

IMG_1099 · Folder 191

Lobby & Foyer Details — Foyer Doors, Bulletin Boards, Bay Q, Etc.

Sheet W-218

Extraction: Reviewed · extraction partial. The W-218 lobby-writing-desk region was reviewed text-first, then as one full upright WebP and sequential focused crops. Side/end elevations, half top plan, half underside plan, Section A-A and pen-tray section were inspected. The remainder of W-218 is outside this bounded extraction. The desk profile/detail regions named in this package were reviewed. Unreadable and unspecified properties remain explicit; the rest of W-218 is outside scope. Reused lobby-writing-desk-first.json; no source image reopened. Reused the verified W218 lobby-writing-desk envelope and support-layout extraction; no drawing reopened. Bounded W218 plate type and W3 plan-candidate gate; not an installed desk placement. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family. Normalized from an existing text re-audit; this import did not reopen the source image. W3 Main foyer/public lobby screen physical-polygon gate; source group review remains partial. W217/W218 T/U/V screen vertical/depth gate; targeted regions only. W217/W218 T/U/V screen vertical/depth gate; targeted regions only. W217/W218 T/U/V screen vertical/depth gate; targeted regions only. W217/W218 T/U/V screen vertical/depth gate; targeted regions only. W217/W218 T/U/V screen vertical/depth gate; targeted regions only. W217/W218 T/U/V screen vertical/depth gate; targeted regions only. Main/foyer-lobby Bay U screen physical-segment gate; no finite solid authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Partial timed visual review: Source-local additive printed detail evidence; no installed quantity, operating clear dimensions, room geometry or accepted placement. Partial timed visual review: Source-local printed detail or selected note only. No installed quantity, clear opening, building placement or accepted geometry established. Partial timed visual review: undefined Partial timed visual review: Desk Section A-A / pen tray and adjacent directory model marks

Unresolved extraction work
  • Several small Section A-A substrate, channel, washer/bolt and attachment notes remain illegible.
  • The small pen-tray dimension was not promoted and remains null.
  • Leg/core sections, scroll curvature/section and ornament contours are not dimensioned in the reviewed legible callouts.
  • Metal alloy and finish are not established by the desk callouts.
  • Installed desk quantity, exact positions, orientations and as-built survival remain unverified.
  • No source-relative vector trace, photograph registration or pixel-to-inch conversion was performed.
  • w218-desk-missing-top-edge-profile: Small Section A-A notes remain partly illegible; pixel scaling is prohibited.
  • w218-desk-missing-top-edge-minor-note: Only the beginning appears to read PRESS...; it was not promoted.
  • w218-desk-missing-screw-specification: SCREWS is legible; the adjoining specification is not.
  • w218-desk-missing-angle-material: The size and ANGLE designation are printed, but the material is not legible.
  • w218-desk-missing-channel-weight: Only 4-inch channel is legible.
  • w218-desk-missing-shell-section: The shell is visible around the channel; its small fraction cannot be read reliably.
  • w218-desk-missing-pierced-trace: Elevation linework supports only a qualitative narrow vertical field.
  • w218-desk-missing-apron-trace: No source-relative trace was made and no dimensions are printed.
  • w218-desk-missing-scroll-profile: End elevation establishes topology and symmetry only.
  • w218-desk-missing-pen-tray-depth: The 3 1/4-inch cross-section width is legible; no depth dimension is.
  • w218-desk-missing-pen-tray-details: These are visible but not dimensioned.
  • w218-desk-missing-washer-thickness: Only the 4 x 4 inch plan size is printed.
  • w218-desk-missing-slab-depth: The section labels the slab underside but supplies no reliable depth.
  • w218-desk-missing-metal-alloy-finish: Desk-specific callouts say cast metal, pierced ornament and steel plate; they do not identify the ornamental alloy or finish.
  • W-218 has no installed quantity, plan coordinates, rotation or keyed W3 symbol in the reviewed desk detail.
  • As-built correspondence remains unresolved.
  • Leg sections, scroll curvature, ornament profile and relief, frame/apron profiles, pen tray, alloy and finish remain unresolved.
  • W218 does not print installed coordinates or a W3 detail key.
  • 10-inch plate axis relative to desk length
  • plate-center position relative to support centerline
  • base-plate hole positions and diameters
  • steel grade and finish
  • accepted W3-to-W218 physical type/instance mapping and as-built transforms
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • segment-by-segment material and face classes
  • accepted W3-to-detail endpoint/face registration with independent held-out check
  • world XZ footprints and depths for each pier/screen segment
  • six finished jamb X limits on each side plus rough openings and reveals
  • door/head and transom limits
  • checked threshold bottom and finished screen/pier top elevations
  • resolution of the lobby ceiling reading conflict and scope
  • securely dimensioned and registered threshold bottom/top
  • door head and upper glazing bottom/top with clear dimension endpoints
  • finished screen/pier top on both room sides
  • front/back finished face assignments and segment-specific transverse depths
  • accepted W3-to-W217/W218 face/endpoint registration with held-out check
  • physical XZ segment and six finished door-gap polygons
  • classified north/south finished face or axis and world Z control
  • segment-by-segment thickness and joins
  • accepted west/east pier or bay-division edge class
  • finished jamb limits on both faces
  • threshold bottom/top and door head in local Y
  • finished upper screen and pier bounds
  • independent held-out metric registration
  • Two classified finished host-wall face stations and a closed host segment
  • Frame outer/inner face depths, actual section thickness and reveal return
  • Accepted left/right finished frame jamb stations and rough opening limits
  • Frame sill/threshold top and underside tied to the exterior landing and first-floor finish
  • Frame head elevation and vertical transom/glazing limits
  • Material/profile build-up for bronze frame and glass
  • Accepted opening cut through the host wall and as-built correspondence
  • Fine fractions, witness endpoint classification, and remaining note transcription require targeted crop review
  • Companion/revision authority and installed room/floor registration remain outstanding
  • Modeling and whole-building acceptance checks not performed
  • Uninspected regions and fine fractions remain outstanding
  • Source-to-installed-object mapping and revision authority unresolved
  • Whole-building acceptance not performed
  • Section A-A small substrate, edge, screw and shell-fraction notes remain unreadable; no angle alloy or scroll material is established; pen-tray depth is not dimensioned in inspected section.
  • Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.
  • Installed instance quantity, floor/room registration, physical transforms and as-built correspondence remain unresolved.
  • All uninspected regions, remaining notes/fractions/profiles, companion details and historical revision authority remain open.
  • Whole-building architectural acceptance has not been performed.
  • Section A-A small substrate/edge/screw/shell notes remain insufficiently legible; no exact profile or screw specification promoted.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

104 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

furniture-w218-lobby-writing-desk-detail-01verified · printed

plan_elevation_paper_scale

3/4" = 1'-0"

0.75 paper-inches-per-building-foot

Paper scale only; not a pixel calibration or component dimension.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: SCALE 3/4" = 1'-0"

furniture-w218-lobby-writing-desk-detail-01-top-assemblyverified · printed

enlarged_section_paper_scale

1 1/2" = 1'-0"

1.5 paper-inches-per-building-foot

Applies to Section A-A and the pen-tray cross section; paper scale only.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: 3/4" & 1 1/2" DETAILS OF LOBBY DESKS; SCALE 1 1/2" = 1'-0"

furniture-w218-lobby-writing-desk-detail-01-top-assemblyverified · printed

overall_length

6'-0"

72 in

The half-plan gives two 3-foot halves; the side elevation independently closes to 72 inches.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: 3'-0"; 3'-0"; 10"; 4'-4"; 10"

furniture-w218-lobby-writing-desk-detail-01-ornament-assemblyverified · printed

apron_ornament_material_description

Cast metal ornament

No alloy or finish is supplied by this callout; do not promote metal to bronze solely from appearance or later photographs.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT

furniture-w218-lobby-writing-desk-detail-01-leg-prototypeverified · observed

support_count_in_type_detail

2

2 count

Two support assemblies are drawn in side elevation; this is not a printed quantity schedule.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: SIDE ELEVATION

furniture-w218-lobby-writing-desk-detail-01-end-scroll-bracket-prototypeverified · observed

curved_scroll_members_per_support

2 observed

2 count

End elevation shows one curved member on each side of the central decorated leg core; exact curve and section are unmeasured.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: END ELEVATION

furniture-w218-lobby-writing-desk-detail-01-pen-trayillegible · printed

pen_tray_width

Unresolved

Numeric value unresolved

A small dimension appears above the pen-tray cross section but is not reliable enough to transcribe.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: CROSS SECTION THRU PEN TRAY; [dimension illegible]

furniture-w218-lobby-writing-desk-detail-01-ornament-assemblyunreviewed · observed

ornament_relief_depth

Unresolved

Numeric value unresolved

Elevation linework establishes location and general motif density, not relief depth.

IMG_1099 · sheet-W-218 · Locate on drawing ↗
furniture-w218-lobby-writing-desk-detail-01unreviewed · observed

installed_quantity

Unresolved

Numeric value unresolved

The type detail does not schedule a building quantity.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: DETAILS OF LOBBY DESKS

furniture-w218-lobby-writing-desk-detail-01-top-edge-frame-profileunreviewed · observed

exact_edge_profile

Unresolved

Numeric value unresolved

Section A-A shows a layered edge, but no reliable stock/profile dimensions were recovered and photographed-paper curvature was not treated as object geometry. Source audit state: unresolved.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: [small profile notes partly illegible]

Calculated from: w218-desk-profile-top-layering

furniture-w218-lobby-writing-desk-detail-01-apron-ornament-bandverified · observed

motif_repeat_form

Dense repeated alternating pointed/leaf-like units bounded by horizontal rails

Descriptive only; no historical motif identity or vector trace is asserted. Source audit state: verified-qualitative.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT

Calculated from: w218-desk-profile-apron-continuity

furniture-w218-lobby-writing-desk-detail-01-top-edge-frame-profileverified · printed

screws_specified

Screws are called out; size, type, count and exact engagement are unreadable

Source audit state: verified-presence-only.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: SCREWS; [adjacent text illegible]

furniture-w218-lobby-writing-desk-detail-01-leg-core-prototypeverified · printed

nominal_channel_size

4-inch channel

4 in

Nominal channel size only; weight, flange/web thickness, orientation and steel grade are not specified in the legible callout. Source audit state: verified.

IMG_1099 · sheet-W-218 · Locate on drawing ↗

Drawing notation: 4" CHANNEL
