← Back to the building1933 reconstruction · research preview

The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

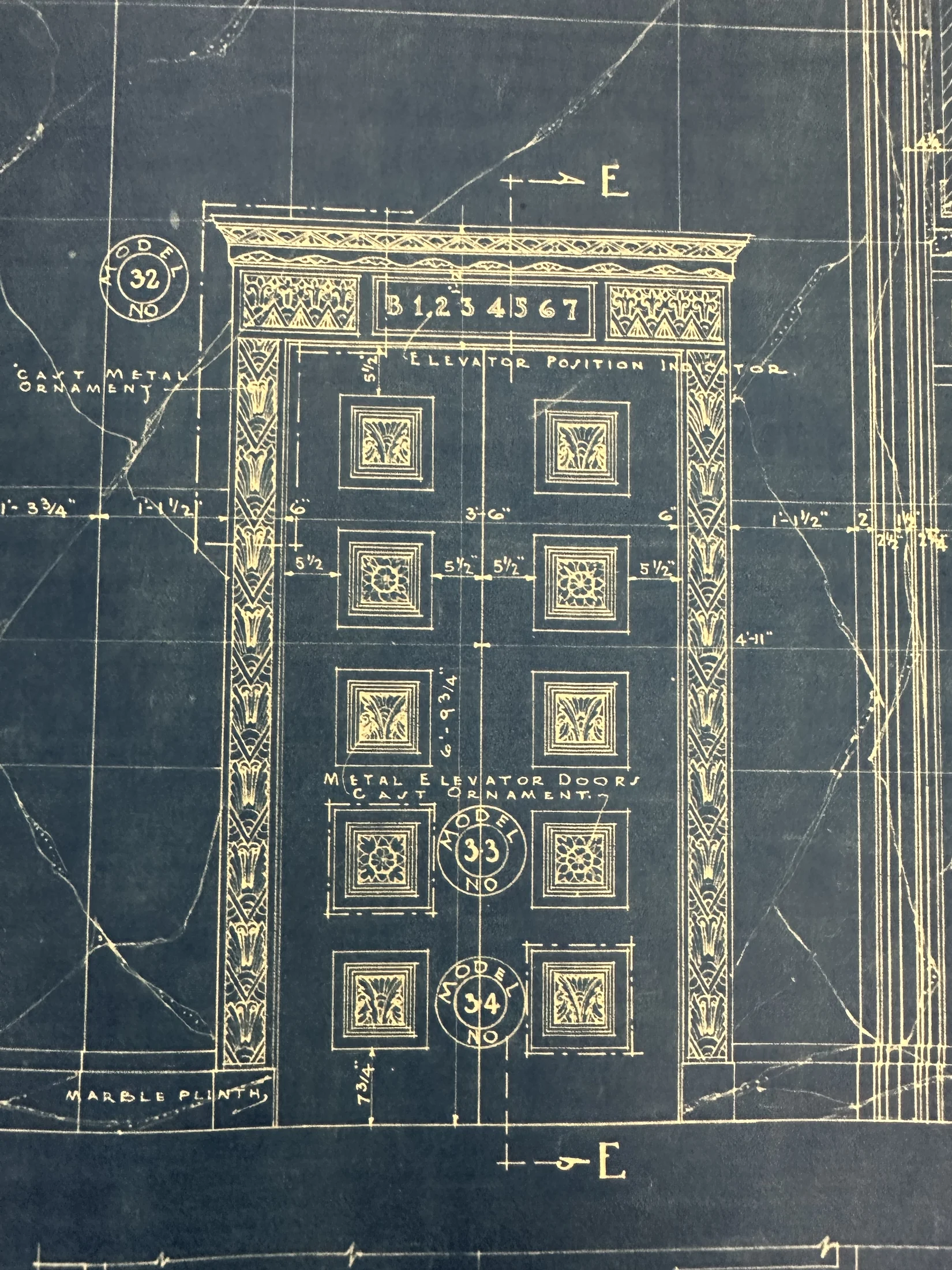

IMG_1097 · Folder 191

First-floor elevator door elevation close-up

Sheet W217

Extraction: Reviewed · extraction partial. Bounded first-floor elevator audit: First-floor elevator door elevation close-up. Bounded W217 confirmation: Printed entrance dimensions and their extension-line endpoints. This photograph is a crop and contains no title block. Bounded source-first extraction of printed jamb widths, door-panel controls, position-indicator identity, model-number tags and named materials in the W217 entrance elevation, beyond the previously accepted 3'-6" by 6'-9 3/4" finished entrance envelope. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays. Normalized from an existing text re-audit; this import did not reopen the source image. Elevator-front bounded gate: Finished entrance and ornamental jamb face-width chains, panel offsets and material labels. Elevator No. 1 first-floor cross-sheet physical placement gate; one-axis controls only. Elevator No. 1 first-floor cross-sheet physical placement gate; one-axis controls only. Partial timed visual review: Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established. Partial timed visual review: undefined

Unresolved extraction work
  • Accepted world wall faces and exact shaft polygons for all three elevators
  • Registered relationship between W229/W230/W231 detail coordinates and W3 world coordinates
  • Rough-versus-finished enclosure wall planes and wall thicknesses
  • W217 title-block confirmation and exact endpoint interpretation for the 3'-6" and 6'-9 3/4" door readings
  • Exact first-floor Elevator 3 door width, height, jamb/head/sill and rough opening
  • Readable Elevator 3 vertical hatch/shaft witness
  • Car/cab/platform sizes, rail/counterweight coordinates, pit depths and overhead clearances
  • Accepted ramp length, slope and threshold build-up at Elevator 3
  • Architecturally accepted reconciliation of all floor traces, especially the fourth-floor mechanical underlay
  • Operating clear width and height after door travel
  • Rough opening width and height
  • Sill, threshold and head sections/build-up
  • Individual leaf widths, thicknesses, overlap and travel
  • Outer ornamental-surround dimensions
  • Wall-face assignment and wall thickness
  • Registered world position and orientation
  • w217-entrance-missing-leaf-mechanics: The elevation shows two graphic door-face fields and a centerline but no equipment-side mechanics or travel diagram.
  • w217-entrance-missing-jamb-depth: The 6-inch values are elevation face widths only; Section E is not present in the reviewed close-up as readable construction geometry.
  • w217-entrance-missing-head-depth: No readable section dimensions establish depth.
  • w217-entrance-missing-ornament-geometry: The elevation and material callouts establish visible ornament and generic cast construction, not exact three-dimensional ornament.
  • w217-entrance-missing-panel-sizes: Only selected offsets are printed. Panel sizes may not be derived from pixels or by subtracting visually symmetric gaps from the finished envelope.
  • w217-entrance-missing-indicator-geometry: Only the printed identity and B/1-7 legend are secure.
  • w217-entrance-missing-model-32-scope: The number is clear but no unambiguous leader fixes its scope.
  • w217-entrance-missing-model-tag-propagation: Visual pattern matching alone does not establish printed model-number applicability.
  • w217-entrance-missing-plinth-geometry: MARBLE PLINTH is legible, but no securely assigned plinth dimension is printed in the reviewed region.
  • w217-entrance-missing-rough-opening: The accepted 3'-6" by 6'-9 3/4" envelope is bounded by finished entrance faces, not rough construction.
  • w217-entrance-missing-placement: No side-chain token was promoted to placement, and no detail-to-plan registration was performed in this package.
  • w217-entrance-unassigned-left-side-chain: These segments extend left of the ornamental jamb into adjacent Bay P work; their complete endpoints and component assignments are outside the close-up. They are not entrance placement controls.
  • w217-entrance-unassigned-right-side-chain: These segments run from the right ornamental jamb into adjacent vertical profile work. The close-up does not securely assign them to entrance components or placement datums.
  • w217-entrance-unassigned-right-witness: The token is legible, but its extension line and endpoints do not securely identify an entrance component or axis. It is retained as a witness, not a physical property.
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • A readable first-floor W217 Section E or applicable companion section with front and back faces and exact profile/depth dimensions for one named component, plus complete width and height endpoints for that same component.
  • Printed or independently checked panel extents before any ornament panels are given physical sizes; retain panel instances without fabricated dimensions until then.
  • Classified first-floor host wall face, thickness and jamb/reveal/sill/head interfaces tied to named W229 or W230 controls and the corresponding W3 wall or Bay P station.
  • An independent corresponding-face or endpoint residual within a stated tolerance for the chosen physical front, preserving conflicts and W3 trace uncertainty separately.
  • Fine fractions and complete witness endpoints require targeted high-resolution crops
  • Companion captures, material code and revision authority require reconciliation
  • Installed floor/room registration, exact depths and modeling checks outstanding
  • Complete adjoining chain, outer endpoints, component classification and physical registration remain unassigned; fine far-right fractions are still ambiguous.
  • Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

115 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-door-elevator-1unreviewed · printed

first_floor_door_dimension_width_candidate

3'-6"

3.5 ft

Authoring eligibility: none. Placement eligibility: none. Dependency: Confirm W217 title block and whether dimension endpoints describe clear opening or door panels. Source audit state: conditional.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

IMG_1129 · sheet-W229 · Locate on drawing ↗

Drawing notation: For typical elevator doors and cab details see Sh. 214. For detail of elevators No. 1 and 2 at first floor see Sh. 217. For detail of elevator No. 2 see Sh. 230. For detail of elevator No. 3 see Sh. 231.

f1-door-elevator-1unreviewed · printed

first_floor_door_dimension_height_candidate

6'-9 3/4"

6.8125 ft

Authoring eligibility: none. Placement eligibility: none. Dependency: Confirm W217 title block and vertical endpoints. Source audit state: conditional.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

IMG_1129 · sheet-W229 · Locate on drawing ↗

Drawing notation: For typical elevator doors and cab details see Sh. 214. For detail of elevators No. 1 and 2 at first floor see Sh. 217. For detail of elevator No. 2 see Sh. 230. For detail of elevator No. 3 see Sh. 231.

f1-door-elevator-2unreviewed · printed

first_floor_door_dimension_width_candidate

3'-6"

3.5 ft

Authoring eligibility: none. Placement eligibility: none. Dependency: Confirm W217 title block and whether dimension endpoints describe clear opening or door panels. Source audit state: conditional.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

IMG_1129 · sheet-W229 · Locate on drawing ↗

Drawing notation: For typical elevator doors and cab details see Sh. 214. For detail of elevators No. 1 and 2 at first floor see Sh. 217. For detail of elevator No. 2 see Sh. 230. For detail of elevator No. 3 see Sh. 231.

f1-door-elevator-2unreviewed · printed

first_floor_door_dimension_height_candidate

6'-9 3/4"

6.8125 ft

Authoring eligibility: none. Placement eligibility: none. Dependency: Confirm W217 title block and vertical endpoints. Source audit state: conditional.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

IMG_1129 · sheet-W229 · Locate on drawing ↗

Drawing notation: For typical elevator doors and cab details see Sh. 214. For detail of elevators No. 1 and 2 at first floor see Sh. 217. For detail of elevator No. 2 see Sh. 230. For detail of elevator No. 3 see Sh. 231.

f1-elevator-doors-1-2-w217-detail-candidateunreviewed · printed

door_material_and_ornament

METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

Authoring eligibility: descriptive-only. Placement eligibility: none. Dependency: Confirm W217 title block. Source audit state: conditional.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

IMG_1129 · sheet-W229 · Locate on drawing ↗

Drawing notation: For typical elevator doors and cab details see Sh. 214. For detail of elevators No. 1 and 2 at first floor see Sh. 217. For detail of elevator No. 2 see Sh. 230. For detail of elevator No. 3 see Sh. 231.

f1-elevator-doors-1-2-w217-detail-candidateunreviewed · printed

position_indicator_marks

B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR

Authoring eligibility: descriptive-only. Placement eligibility: none. Dependency: Confirm W217 title block. Source audit state: conditional.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

IMG_1129 · sheet-W229 · Locate on drawing ↗

Drawing notation: For typical elevator doors and cab details see Sh. 214. For detail of elevators No. 1 and 2 at first floor see Sh. 217. For detail of elevator No. 2 see Sh. 230. For detail of elevator No. 3 see Sh. 231.

f1-elevator-1verified · printed

designed_levels_served

Basement, 1st, 2nd, 3rd, 4th, 5th, 6th and 7th floor plans; B 1 2 3 4 5 6 7 indicator

Authoring eligibility: route-inventory-only. Placement eligibility: no-common-shaft-yet. Source audit state: verified.

IMG_1126 · sheet-W229 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN; 7'-0" CLEAR HATCH; 10'-0" CLEAR HATCH; 7'-5 3/4"; 2'-0 1/4"; column marks 71, 73, 74

The drawing was read from raw landscape pixels; camera EXIF orientation 6 was ignored for this region.

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

f1-elevator-2verified · printed

designed_levels_served

Basement through 7th floor plans on W230; B 1 2 3 4 5 6 7 indicator

Authoring eligibility: route-inventory-only. Placement eligibility: no-common-shaft-yet. Source audit state: verified.

IMG_1267 · sheet-W230 · Locate on drawing ↗

Drawing notation: 1ST FLOOR PLAN; 7'-0" CLEAR HATCH; 10'-0" CLEAR HATCH; 7'-5 3/4"; 3'-1"; 2'-0 1/4"; column marks 72, 83, 84

IMG_1097 · sheet-W217-candidate · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR; 3'-6"; 6'-9 3/4"; METAL ELEVATOR DOORS; CAST ORNAMENT; MARBLE PLINTH

W229 directs the first-floor Elevators 1 and 2 detail to W217, and the photographed elevation matches that subject, but this close-up does not include a readable title block. Numeric door records remain conditional until the W217 sheet identity and dimension endpoints are checked. Circled MODEL NO. 32/33/34 marks are detail-part model numbers, not elevator identities.

f1-elevator-doors-1-2-w217-detailverified · observed

source_sheet_identity

sheet-W217

IMG_1095 prints W217 in its title block. Its Bay P elevator elevation and IMG_1097 share the same indicator legend B 1 2 3 4 5 6 7, MODEL NO. 32/33/34 marks, ornamental jambs, panel layout, dimension chains and section-E markers. IMG_1097 is therefore a detail photograph of W217, not merely a subject match. Authoring eligibility: eligible-source-attribution.

IMG_1095 · sheet-W217 · Locate on drawing ↗

Drawing notation: W217; SCREEN DETAILS IN LOBBY; DOORS & END WALLS

IMG_1095 · sheet-W217 · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; METAL ELEVATOR DOORS; 3'-6"; 6'-9 3/4"

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; METAL ELEVATOR DOORS; 3'-6"; 6'-9 3/4"

f1-elevator-doors-1-2-w217-detailverified · observed

printed_width_dimension_endpoints

inside face of left 6-inch ornamental jamb to inside face of right 6-inch ornamental jamb

The 3'-6" segment is the middle segment of a horizontal chain. Its extension lines align with the two inner jamb faces. The adjacent 6-inch segments measure the ornamental jambs. The 3'-6" value is not an outer-frame, outer-ornament, rough-opening, or individual-leaf dimension. Authoring eligibility: eligible-endpoint-interpretation. Missing: Whether the fully opened elevator equipment preserves the entire finished-jamb width as operating clear width.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 6"; 3'-6"; 6"

f1-elevator-doors-1-2-w217-detailverified · observed

printed_height_dimension_endpoints

finished floor/sill baseline to underside of door head at the bottom of the position-indicator band

The vertical chain is drawn on the entrance centerline. Its lower endpoint is the finished floor/sill baseline and its upper endpoint is the horizontal head line immediately below the ELEVATOR POSITION INDICATOR band. It does not run to the top of the ornamental surround. Authoring eligibility: eligible-endpoint-interpretation. Missing: Sill and head section needed to classify the dimension as operating clear height rather than finished entrance-envelope height.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 6'-9 3/4"

f1-elevator-doors-1-2-w217-jamb-leftverified · printed

elevation_face_width

6 inches

6 in

outer face to inner face of the left ornamental jamb in elevation Authoring eligibility: eligible-local-elevation-face-only.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 6" | 3'-6" | 6"

f1-elevator-doors-1-2-w217-jamb-rightverified · printed

elevation_face_width

6 inches

6 in

inner face to outer face of the right ornamental jamb in elevation Authoring eligibility: eligible-local-elevation-face-only.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 6" | 3'-6" | 6"

f1-elevator-doors-1-2-w217-panel-r1-leftverified · printed

top_offset_below_head

5 1/2 inches

5.5 in

underside of the position-indicator/head band to the top edge of the row-1 left panel outer frame Authoring eligibility: eligible-local-left-panel-offset-only.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 5 1/2"

f1-elevator-doors-1-2-w217-panel-r2-leftverified · printed

left_margin_from_inner_jamb_face

5 1/2 inches

5.5 in

left inner jamb face to left edge of the row-2 left panel outer frame Authoring eligibility: eligible-local-panel-margin.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 5 1/2"

f1-elevator-doors-1-2-w217-panel-r2-leftverified · printed

right_margin_to_centerline

5 1/2 inches

5.5 in

right edge of the row-2 left panel outer frame to the drawn entrance centerline Authoring eligibility: eligible-local-panel-margin.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 5 1/2"

f1-elevator-doors-1-2-w217-panel-r2-rightverified · printed

left_margin_from_centerline

5 1/2 inches

5.5 in

drawn entrance centerline to the left edge of the row-2 right panel outer frame Authoring eligibility: eligible-local-panel-margin.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 5 1/2"

f1-elevator-doors-1-2-w217-panel-r2-rightverified · printed

right_margin_to_inner_jamb_face

5 1/2 inches

5.5 in

right edge of the row-2 right panel outer frame to the right inner jamb face Authoring eligibility: eligible-local-panel-margin.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 5 1/2"

f1-elevator-doors-1-2-w217-panel-r5-leftverified · printed

bottom_offset_above_finished_floor_sill

7 3/4 inches

7.75 in

finished floor/sill baseline to the bottom edge of the row-5 left panel outer frame Authoring eligibility: eligible-local-left-panel-offset-only.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: 7 3/4"

f1-elevator-doors-1-2-w217-position-indicatorverified · printed

printed_identity_and_legend

{"label":"ELEVATOR POSITION INDICATOR","legend":["B","1","2","3","4","5","6","7"]}

The face identity and legend are accepted. Indicator face size, case depth, material, illumination, pointer/display mechanism and operating logic are not printed here.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: B 1 2 3 4 5 6 7; ELEVATOR POSITION INDICATOR

f1-elevator-doors-1-2-w217-head-surround-ornamentverified · printed

material_description

cast metal ornament

The leader enters the left head/jamb surround region. Alloy, finish, exact extent, thickness, relief and fabrication profile remain unspecified.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT

f1-elevator-doors-1-2-w217-detailverified · printed

door_material_description

metal elevator doors with cast ornament

Metal is generic; the sheet does not name an alloy, gauge, finish, backing construction or leaf thickness.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: METAL ELEVATOR DOORS; CAST ORNAMENT.

f1-elevator-doors-1-2-w217-marble-plinthverified · printed

material_description

marble

The callout establishes material and plinth identity only. Marble type, finish, height, face width, depth, returns and attachment remain unresolved.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: MARBLE PLINTH

f1-elevator-doors-1-2-w217-detailverified · observed

observed_door_face_panel_layout

{"rows":5,"panelsPerRow":2,"observedTotal":10,"patternClassSequenceTopToBottom":["A","B","A","B","A"]}

Five aligned pairs of square outer panel frames are visible. Pattern classes A and B are neutral visual groupings, not historical motif identifications. Count and alignment do not establish individual leaf construction or panel dimensions.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: [five observed pairs of framed cast-ornament panels]

f1-elevator-doors-1-2-w217-model-tag-32verified · printed

printed_model_number

32

The tag is printed beside the head/surround region. No unambiguous tag leader proves whether it names the whole surround, the head ornament, a grille, the indicator case or another subcomponent.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: MODEL NO. 32

f1-elevator-doors-1-2-w217-model-tag-33verified · observed

printed_model_number

33

The tag is centered between the row-4 pattern-B panel pair. That local pair association is accepted; application to visually similar row-2 panels is not printed and remains unproved.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: MODEL NO. 33

f1-elevator-doors-1-2-w217-model-tag-34verified · observed

printed_model_number

34

The tag is centered between the row-5 pattern-A panel pair. That local pair association is accepted; application to visually similar row-1 and row-3 panels is not printed and remains unproved.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: MODEL NO. 34

f1-elevator-doors-1-2-w217-detailunreviewed · observed

leaf count, operating type, direction, travel, overlap, guides and clear-open condition

Unresolved

The elevation shows two graphic door-face fields and a centerline but no equipment-side mechanics or travel diagram.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-detailunreviewed · observed

jamb depth, return, projection and section profile

Unresolved

The 6-inch values are elevation face widths only; Section E is not present in the reviewed close-up as readable construction geometry.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-head-surround-ornamentunreviewed · observed

head/transom depth, projection, profile layers and attachment

Unresolved

No readable section dimensions establish depth.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-detailunreviewed · observed

ornament vector trace, motif identity, thickness, relief depth, repeat pitch and fabrication geometry

Unresolved

The elevation and material callouts establish visible ornament and generic cast construction, not exact three-dimensional ornament.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-detailunreviewed · observed

individual panel width, height, frame-layer widths and depth

Unresolved

Only selected offsets are printed. Panel sizes may not be derived from pixels or by subtracting visually symmetric gaps from the finished envelope.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-position-indicatorunreviewed · observed

face width, face height, case depth, material, illumination and display mechanism

Unresolved

Only the printed identity and B/1-7 legend are secure.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-model-tag-32unreviewed · observed

exact tagged component and manufacturer/catalog identity

Unresolved

The number is clear but no unambiguous leader fixes its scope.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-detailunreviewed · observed

application of model 33 or 34 to earlier visually matching panel rows

Unresolved

Visual pattern matching alone does not establish printed model-number applicability.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

f1-elevator-doors-1-2-w217-marble-plinthunreviewed · observed

plinth height, width, depth, return geometry, marble type, finish and attachment

Unresolved

MARBLE PLINTH is legible, but no securely assigned plinth dimension is printed in the reviewed region.

IMG_1097 · sheet-W217 · Locate on drawing ↗

Drawing notation: CAST METAL ORNAMENT; ELEVATOR POSITION INDICATOR; B 1 2 3 4 5 6 7; 6"; 3'-6"; 6"; 5 1/2"; METAL ELEVATOR DOORS; CAST ORNAMENT.; MODEL NO. 32; MODEL NO. 33; MODEL NO. 34; 7 3/4"; MARBLE PLINTH

View all source photographs →
