The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

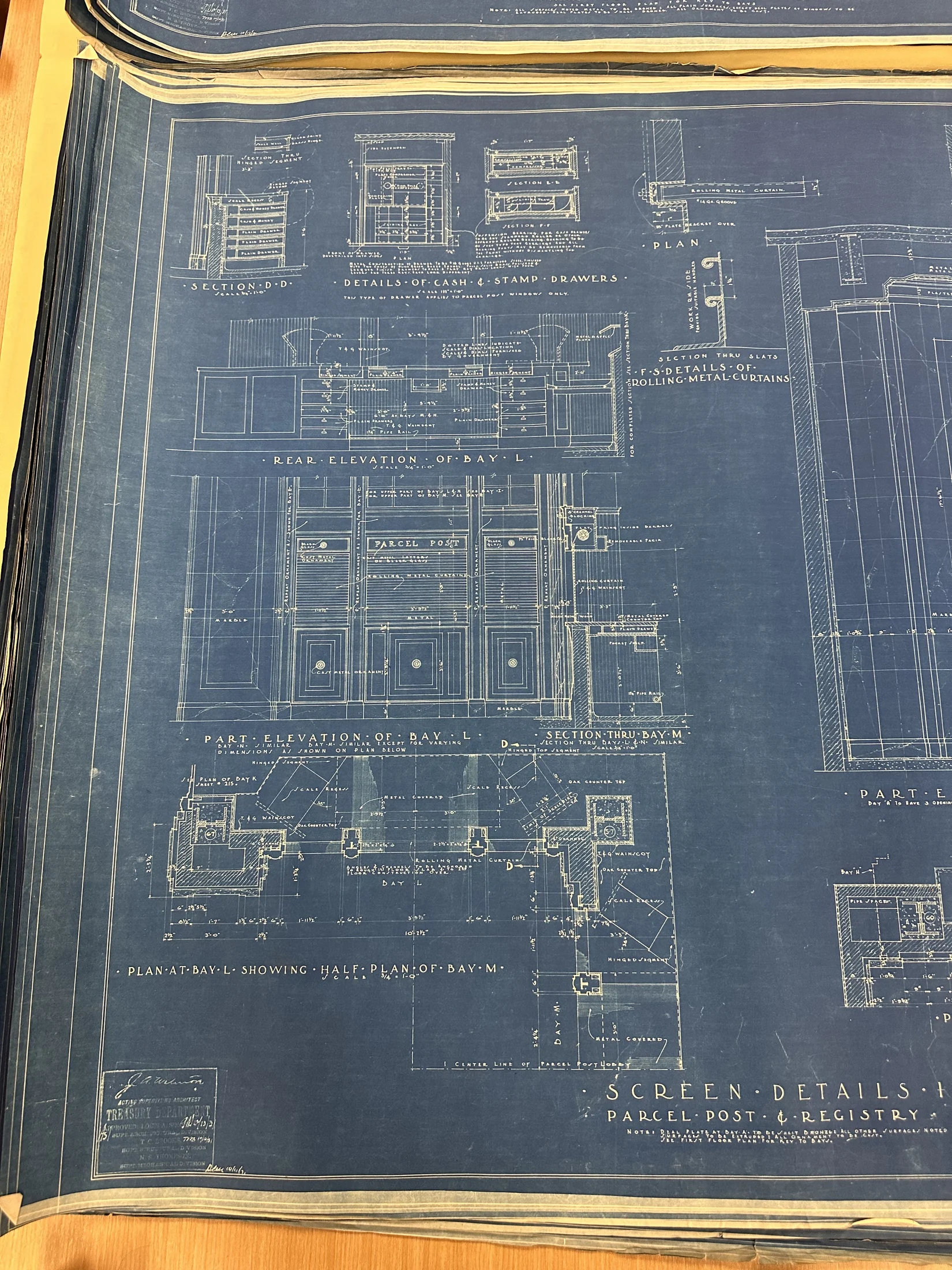

IMG_1094 · Folder 191

Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

Sheet W-216

Extraction: Reviewed · extraction partial. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign. Normalized from an existing text re-audit; this import did not reopen the source image. Partial timed visual review: Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established. Partial timed visual review: undefined Partial timed visual review: Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

Unresolved extraction work
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • Fine fractions and complete witness endpoints require targeted high-resolution crops
  • Companion captures, material code and revision authority require reconciliation
  • Installed floor/room registration, exact depths and modeling checks outstanding
  • Slide dimensions, profile, installed quantity and exact handle form.
  • Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.
  • Remaining fine specification text
  • Full dimensional endpoints and companion details
  • Accepted physical registration and revision reconciliation

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

12 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-public-lobby-postal-wall-systemunreviewed · observed

typical_service_module_width

customer counter modules repeatedly read about 7 feet 6 inches

The report describes a repeated approximate reading without accepted station assignments.

IMG_1202 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package; image not reopened. Named PUBLIC LOBBY and printed ceiling-height reading

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

IMG_1089 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1302 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1289 · sheet-WLF-246 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package plus re-audit report; image not reopened. P-5 Public Lobby and P-6 Registry/Box/Parcel Post alcove fixture types

material-postal-screen-bronzeunreviewed · printed

Applications and finish

screen frames and mullions; grilles and ornamental belts; lockbox faces and borders; sign and directory frames; door hardware and coordinated metal fittings

printed material identification in W-215/W-216 re-audits; dark metal appearance corroborated in 1983 photographs. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

material-postal-screen-plate-glassunreviewed · printed

Applications and finish

tall postal-screen upper fields; registry/service openings; paired lobby doors and fixed panels; directory access glazing · clear where explicitly described; otherwise unresolved

printed material identification transcribed in re-audits. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

parallel-img1094-drawerverified · printed

applicability

THIS TYPE OF DRAWER APPLIES TO PARCEL POST WINDOWS ONLY

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: THIS TYPE OF DRAWER APPLIES TO PARCEL POST WINDOWS ONLY

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1094-lverified · printed

swinging-partition

HINGED VAGMENT

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: HINGED VAGMENT

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1094-lverified · printed

counter-corner-equipment

SCALE RECESS

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: SCALE RECESS

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1094-curtainunreviewed · printed

slat-material

WRO'T. BRASS SLIDE [remainder unresolved]

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: WRO'T. BRASS SLIDE [remainder unresolved]

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1094-lverified · printed

working-counter-material

OAK COUNTER TOP

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: OAK COUNTER TOP

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1094-curtainverified · printed

slide_material_designation

WROT BR SLIDE

Vertical caption immediately left of Section Thru Slats. WROT BR is the literal abbreviation for the slide; this does not assign all curtain slats a material. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: WROT BR SLIDE

Vertical caption immediately left of Section Thru Slats. WROT BR is the literal abbreviation for the slide; this does not assign all curtain slats a material. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

parallel-img1094-curtainverified · printed

slide_handle_requirement

PROVIDE SUITABLE HANDLE

Continuation of the same vertical slide caption, without a separate handle material or size. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: PROVIDE SUITABLE HANDLE

Continuation of the same vertical slide caption, without a separate handle material or size. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

parallel-img1094-curtainverified · printed

curtain_groove_gauge

14 GA. GROOVE

14 gauge

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: 14 GA. GROOVE

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

parallel-img1094-curtainverified · printed

curtain_handle_material

HEAVY BRASS HANDLE

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

IMG_1094 · W-216 · Locate on drawing ↗

Drawing notation: HEAVY BRASS HANDLE

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

View all source photographs →
