The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

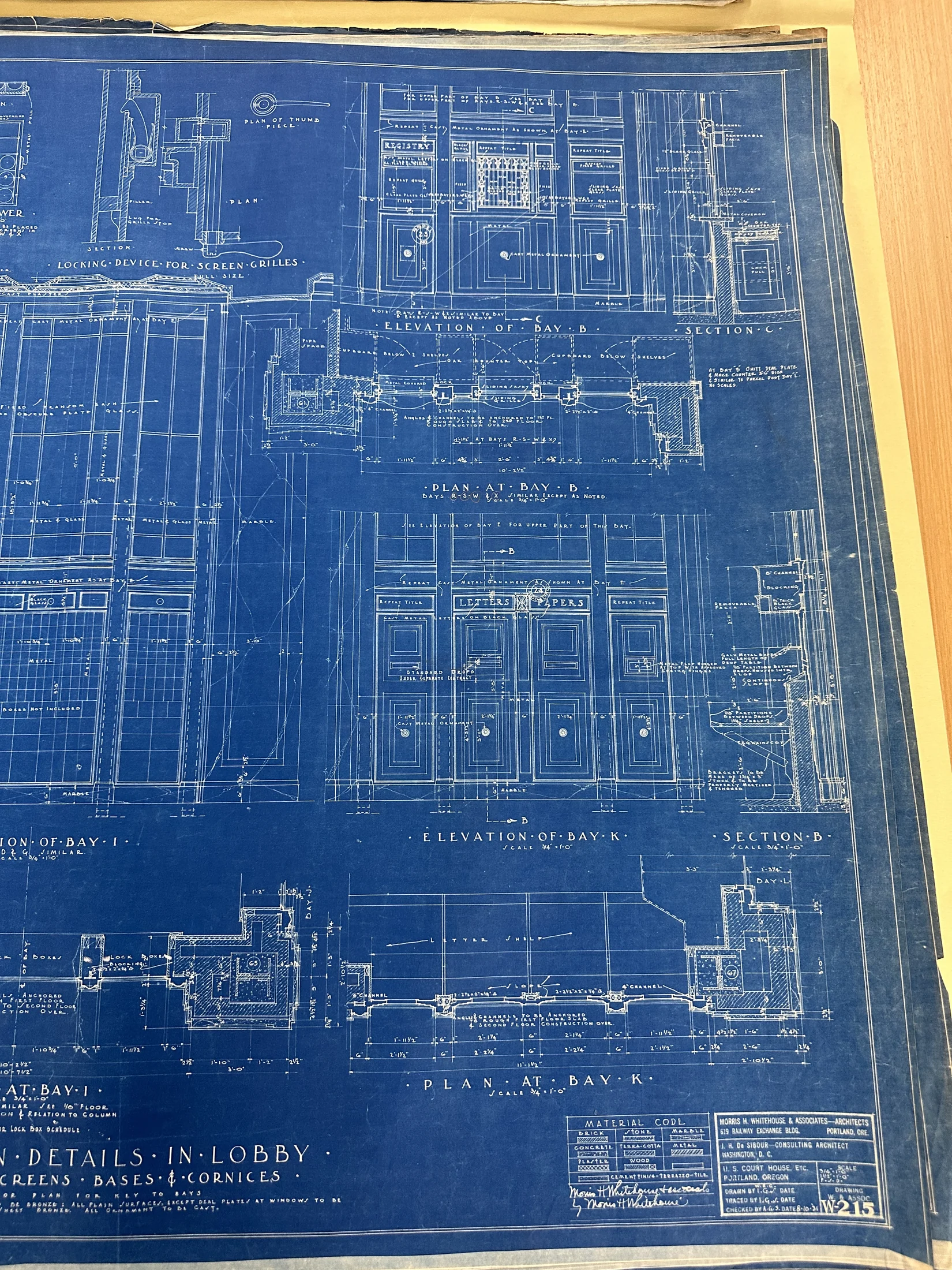

IMG_1091 · Folder 191

Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

Sheet W-215

Extraction: Reviewed · extraction partial. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks. Normalized from an existing text re-audit; this import did not reopen the source image. Partial timed visual review: Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established. Partial timed visual review: undefined Partial timed visual review: Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

Unresolved extraction work
  • Complete drawing-note transcription
  • Every dimension and bay placement
  • Detailed hardware/fastener schedule
  • Exact cross-sheet bay correspondence
  • Cross-photo physical deduplication
  • Complete surviving-object inventory
  • Exact dimensions
  • Construction/alteration chronology
  • Condition assessment
  • P-6 component extraction
  • Installed fixture schedule and positions
  • As-built correspondence
  • Fixture finish and glass color
  • Fine fractions and complete witness endpoints require targeted high-resolution crops
  • Companion captures, material code and revision authority require reconciliation
  • Installed floor/room registration, exact depths and modeling checks outstanding
  • Stock size in bracket note; partition-note full wording and material assignment; no inferred back/hinge specification.
  • Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.
  • Remaining fine specification text
  • Full dimensional endpoints and companion details
  • Accepted physical registration and revision reconciliation

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

12 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

f1-public-lobby-postal-wall-systemunreviewed · observed

typical_service_module_width

customer counter modules repeatedly read about 7 feet 6 inches

The report describes a repeated approximate reading without accepted station assignments.

IMG_1202 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package; image not reopened. Named PUBLIC LOBBY and printed ceiling-height reading

IMG_1204 · sheet-W3 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only; image not reopened. First-floor public-lobby plan, reported 18'-3" ceiling-height reading and repeated 14'/15' structural dimensions

IMG_1089 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1302 · sheet-W214 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Lobby overview, floor/ceiling bay grid, Panels A-D and service-wall sequence

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1289 · sheet-WLF-246 · View drawing ↗

Drawing notation: customer counter modules repeatedly read about 7 feet 6 inches

Existing verified package plus re-audit report; image not reopened. P-5 Public Lobby and P-6 Registry/Box/Parcel Post alcove fixture types

material-postal-screen-bronzeunreviewed · printed

Applications and finish

screen frames and mullions; grilles and ornamental belts; lockbox faces and borders; sign and directory frames; door hardware and coordinated metal fittings

printed material identification in W-215/W-216 re-audits; dark metal appearance corroborated in 1983 photographs. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: Exposed bronze postal-screen metal

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

material-postal-screen-plate-glassunreviewed · printed

Applications and finish

tall postal-screen upper fields; registry/service openings; paired lobby doors and fixed panels; directory access glazing · clear where explicitly described; otherwise unresolved

printed material identification transcribed in re-audits. Report transcription; physical thickness, joint layout and finish samples remain unresolved.

IMG_1090 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1091 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1092 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1303 · sheet-W215 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Bays E, I, K and B; bronze/glass screens, Letters/Packages, Registry, counters, money drawer and locks

IMG_1093 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1094 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1304 · sheet-W216 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit only. Parcel Post/Registry windows, roll-down curtains, staff-side casework and illuminated STAMPS sign

IMG_1095 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1097 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1098 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1305 · sheet-W217 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing verified elevator package; images not reopened. Bay P directory, paired door, Elevator No. 2 entrance, clock and other glazed door/screen bays

IMG_1099 · sheet-W-218 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

IMG_1306 · sheet-W-218 · View drawing ↗

Drawing notation: Plate glass in postal and door-screen assemblies

Existing text re-audit and existing writing-desk packages; images not reopened. Main Street foyer/lobby door-screen line, bulletin cases, bronze directory and lobby furniture family

parallel-img1091-kverified · printed

structural-blocking

BLACKENED STEEL [BRACKET]

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: BLACKENED STEEL [BRACKET]

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1091-kverified · printed

chute-lining

GALVANIZED IRON

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: GALVANIZED IRON

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1091-kunreviewed · printed

access-back-note

BACKS TO BE MADE OF HINGED [remainder unresolved]

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: BACKS TO BE MADE OF HINGED [remainder unresolved]

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1091-kverified · printed

chute-label

LETTER SHUTE

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: LETTER SHUTE

Source-local drawing evidence only; installed quantity, accepted world placement and physical geometry not established.

parallel-img1091-kverified · printed

lower_section_bracket_note_subject

BRACKETS TO BE

Lower Section D leader points to supporting bracket. This noun supersedes no prior record; it cautions that earlier BACKS/HINGED wording misidentifies this locus. Stock size remains unresolved. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: BRACKETS TO BE

Lower Section D leader points to supporting bracket. This noun supersedes no prior record; it cautions that earlier BACKS/HINGED wording misidentifies this locus. Stock size remains unresolved. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

parallel-img1091-kverified · printed

bracket_joinery_requirement

STOCK & TO BE / PROPERLY MORTISED / & TENONED

Same lower Section D bracket-stock note. Only securely readable joinery clause retained; the intervening stock dimensions are unresolved. No full-note closure proposed for old access-back questions. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: STOCK & TO BE / PROPERLY MORTISED / & TENONED

Same lower Section D bracket-stock note. Only securely readable joinery clause retained; the intervening stock dimensions are unresolved. No full-note closure proposed for old access-back questions. Installed instance mapping, world placement, companion/revision authority and whole-building acceptance remain unresolved.

parallel-img1091-kverified · printed

top_table_sheet_material

GALV. METAL FULL LENGTH OF TOP TABLE

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: GALV. METAL FULL LENGTH OF TOP TABLE

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

parallel-img1091-kunreviewed · printed

table_partition_material

GALV. IRON PARTITIONS BETWEEN DOORS ... INTO

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: GALV. IRON PARTITIONS BETWEEN DOORS ... INTO

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

parallel-img1091-kunreviewed · printed

access_back_hardware_requirement

BACKS TO BE MADE OF HINGED ... STOCK TO TAKE PROPERLY ... CATCHES & HINGES

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

IMG_1091 · W-215 · Locate on drawing ↗

Drawing notation: BACKS TO BE MADE OF HINGED ... STOCK TO TAKE PROPERLY ... CATCHES & HINGES

Source-local specification only; installed placement, quantity and physical geometry remain unestablished.

View all source photographs →
