Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Sheet W-213

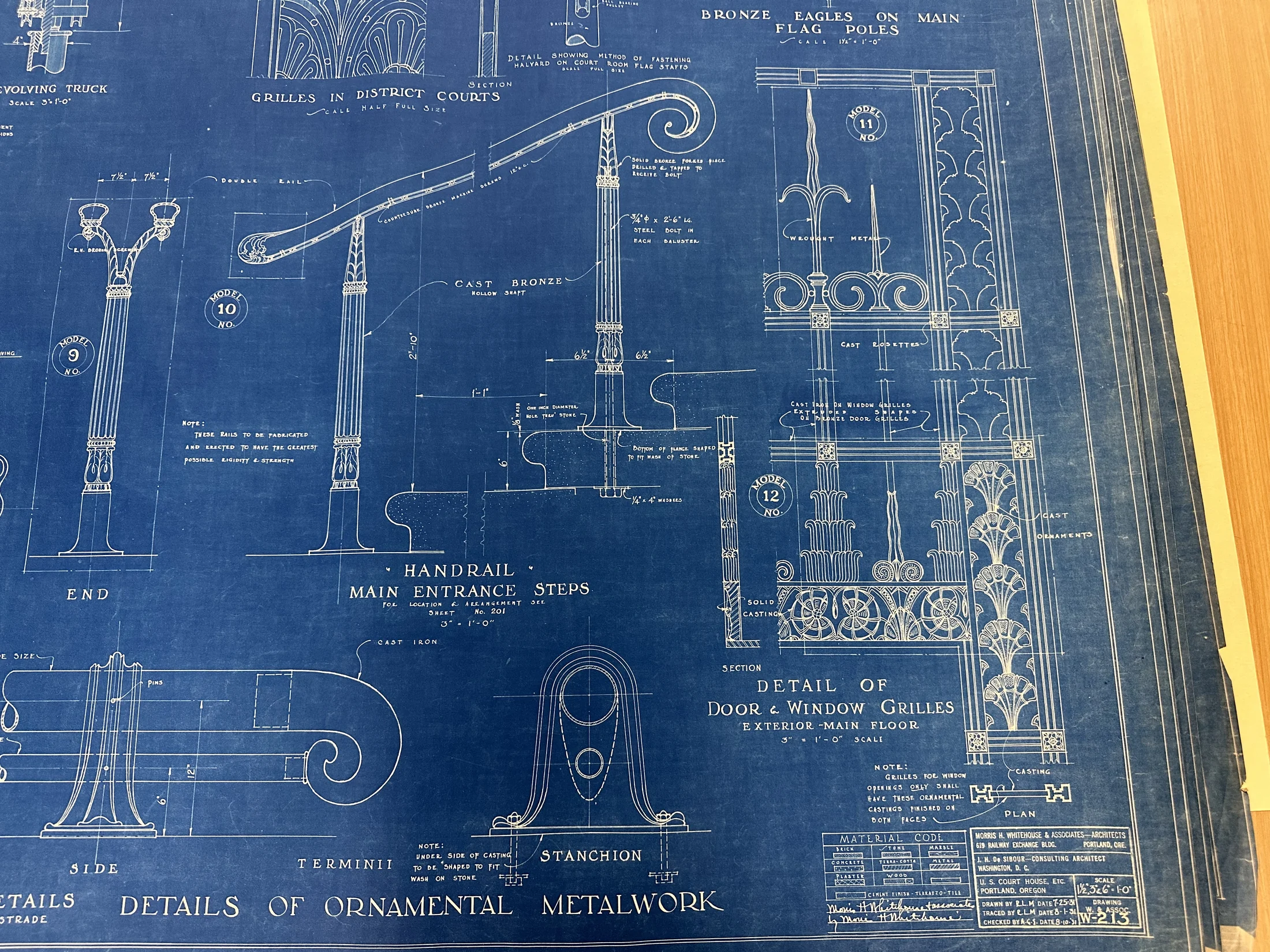

Extraction: Reviewed · extraction partial. W-213 title block; Main entrance handrail elevation; Main entrance baluster/post and anchorage; Main entrance title and Sheet 201 cross-reference Reused verified 2-foot-10-inch rail height and Model No. 10 fabrication identity. Partial timed visual review: Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Partial timed visual review: Source-local grille specimen detail; installed quantities and cast alloy not inferred from neighboring handrail. Partial timed visual review: Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Partial timed visual review: END/post native crop rechecked. Paired 7½-inch axis controls and ornamental model marks do not establish member/shaft outside width. Partial timed visual review: Main rail END/fork/side/support detail; source-local member/support geometry only. District Court and exterior grilles/property-line rails are separate regions. Partial timed visual review: undefined Partial timed visual review: Single upright targeted Main rail crop; prior 15-inch double-member axis pitch and bottom pole diameters reused without reopening their sources. No pixel widths promoted as measured profiles.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Recorded text value: W-213.
Drawing notation: W-213
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Recorded text value: 201.
Drawing notation: FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Recorded text value: 10.
Drawing notation: MODEL NO. 10
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
2 count
Drawing notation: DOUBLE RAIL
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
The sheet distinguishes cast-bronze hollow shafts, solid-bronze forked pieces, and bronze machine screws. It does not establish every rail segment as the same casting process. Recorded text value: bronze.
Drawing notation: CAST BRONZE / HOLLOW SHAFT; SOLID BRONZE FORKED PIECE; COUNTERSUNK BRONZE MACHINE SCREWS
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
2.833333 ft
Drawing notation: 2'-10"
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
12 in
Drawing notation: COUNTERSUNK BRONZE MACHINE SCREWS 12" O.C.
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Recorded text value: fabricate and erect for greatest possible rigidity and strength.
Drawing notation: THESE RAILS TO BE FABRICATED AND ERECTED TO HAVE THE GREATEST POSSIBLE RIGIDITY & STRENGTH
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Recorded text value: cast bronze, hollow shaft.
Drawing notation: CAST BRONZE / HOLLOW SHAFT
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Recorded text value: solid bronze; drilled and tapped to receive bolt.
Drawing notation: SOLID BRONZE FORKED PIECE DRILLED & TAPPED TO RECEIVE BOLT
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
0.75 in
Drawing notation: 3/4" DIA. x 2'-6" LG. STEEL BOLT IN EACH BALUSTER
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
30 in
Drawing notation: 3/4" DIA. x 2'-6" LG. STEEL BOLT IN EACH BALUSTER
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
6.5 in
Dimension from baluster centerline to the page-left base/stone reference.
Drawing notation: 6 1/2"
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
6.5 in
Dimension from baluster centerline to the page-right base/stone reference.
Drawing notation: 6 1/2"
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
13 in
Calculated reference width about the baluster centerline; do not substitute for an unprinted flange outline or bolt-edge-distance dimension.
Drawing notation: 6 1/2"; 6 1/2"
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Calculated from: main-north-w213-post-base-half-width-left, main-north-w213-post-base-half-width-right
1 in
Drawing notation: ONE INCH DIAMETER HOLE THRU STONE
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
0.125 in
Drawing notation: 1/8" WASH
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
6 in
Vertical dimension on the stone support beneath the rail base. It is not labeled as stair riser height or tread thickness and is ineligible for those properties.
Drawing notation: 6"
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
0.25 in
Drawing notation: 1/4" x 4" WASHERS
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
4 in
The second washer dimension is 4 inches. Plan shape and the orthogonal dimension are not separately stated.
Drawing notation: 1/4" x 4" WASHERS
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
Recorded text value: bottom of flange shaped to fit wash of stone.
Drawing notation: BOTTOM OF FLANGE SHAPED TO FIT WASH OF STONE
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
W-213 is a fabrication detail and sends location/arrangement to Sheet 201. The drawn scroll/rail length is not scaled from pixels.
Drawing notation: FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
The detail depicts representative posts; location and arrangement belong to Sheet 201, so graphic instances are not promoted to a project count.
Drawing notation: FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
No project post spacing is printed in the bounded detail. The 12-inch-on-center value applies to bronze machine screws, not posts.
Drawing notation: COUNTERSUNK BRONZE MACHINE SCREWS 12" O.C.; FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
13 in
Printed beside the support/anchorage profile, but overlapping extension/reference lines prevent secure assignment to a specific edge distance, flange width or stone projection. Authoring eligibility: ineligible.
Drawing notation: 1'-1"
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
The stone support under the rail base has a rounded profile, but W-213 does not label it as the step nosing or print a nosing projection/radius.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
The printed 6-inch support depth is not labeled as a riser and must not be substituted for the still-unresolved Main entrance riser height.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
W-213 does not print a Main entrance tread-section dimension. Existing 1'-1" tread going remains sourced to IMG_1244, not W-213.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; FOR LOCATION & ARRANGEMENT SEE SHEET NO. 201
W-213 local fabrication evidence only; no project rail layout or world insertion is established.
-7 ft
The pair is symmetric; negative-X is a canonical-coordinate label, not a historical east/west mark.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w201-rail-half-offset, main-north-w3-run-axis-x, main-north-w3-run-axis-z
-7.202762 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
2.823333 ft
W213 rail height added to the 93.24 exterior landing; not a member top/bottom or physical section.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-upper-elevation, frame-first-floor-finish, main-north-w213-rail-height
84.64132 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
-7.234656 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
-7.156667 ft
W213 rail height added to the 83.26 lower surface; not a physical endpoint extension.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-lower-elevation, frame-first-floor-finish, main-north-w213-rail-height
109.557966 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
7 ft
The pair is symmetric; positive-X is a canonical-coordinate label, not a historical east/west mark.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w201-rail-half-offset, main-north-w3-run-axis-x, main-north-w3-run-axis-z
6.797226 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
2.823333 ft
W213 rail height added to the 93.24 exterior landing; not a member top/bottom or physical section.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-steps-upper-elevation, frame-first-floor-finish, main-north-w213-rail-height
84.65924 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-top-center-world-x, main-north-w3-top-center-world-z, main-north-w201-rail-half-offset
6.765332 ft
Analytical axis endpoint only.
Drawing notation: CENTER LINE OF ENTRANCE; Main entrance stair plan
Supplies the provisional canonical stair centerline, run axis, and endpoint registration.
Drawing notation: HALF PLAN; CENTER LINE OF ENTRANCE; 7'-0"; BRONZE RAIL; SEE DETAIL SH. 213
Supplies two mirrored rail axes, each 7 feet from the entrance centerline, and the stair-following relationship.
Drawing notation: HANDRAIL / MAIN ENTRANCE STEPS; DOUBLE RAIL; MODEL NO. 10; 2'-10"
Supplies the printed rail height and local fabrication identity; it does not supply the project path.
Calculated from: main-north-w3-bottom-center-world-x, main-north-w3-bottom-center-world-z, main-north-w201-rail-half-offset
