Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review from catalogue/OCR then one 1000px JPEG locator derivative of public/archive/drawings/complete-upright/IMG_1084.webp. Regions normalized in unrotated access image; actual principal text is upright (0 degrees). Small blurry values remain unresolved; no modeling authorized. Partial timed visual review: Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Partial timed visual review: Source-local Construction No.14 expansion-joint fabrication; dimensions not transferred to roof geometry. Partial timed visual review: Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Partial timed visual review: Previously verified rod fractions reused. This crop does not independently supply inch marks for rod designations; no numeric-unit closure. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible evidence only; partial review. Applies to this depicted assembly.

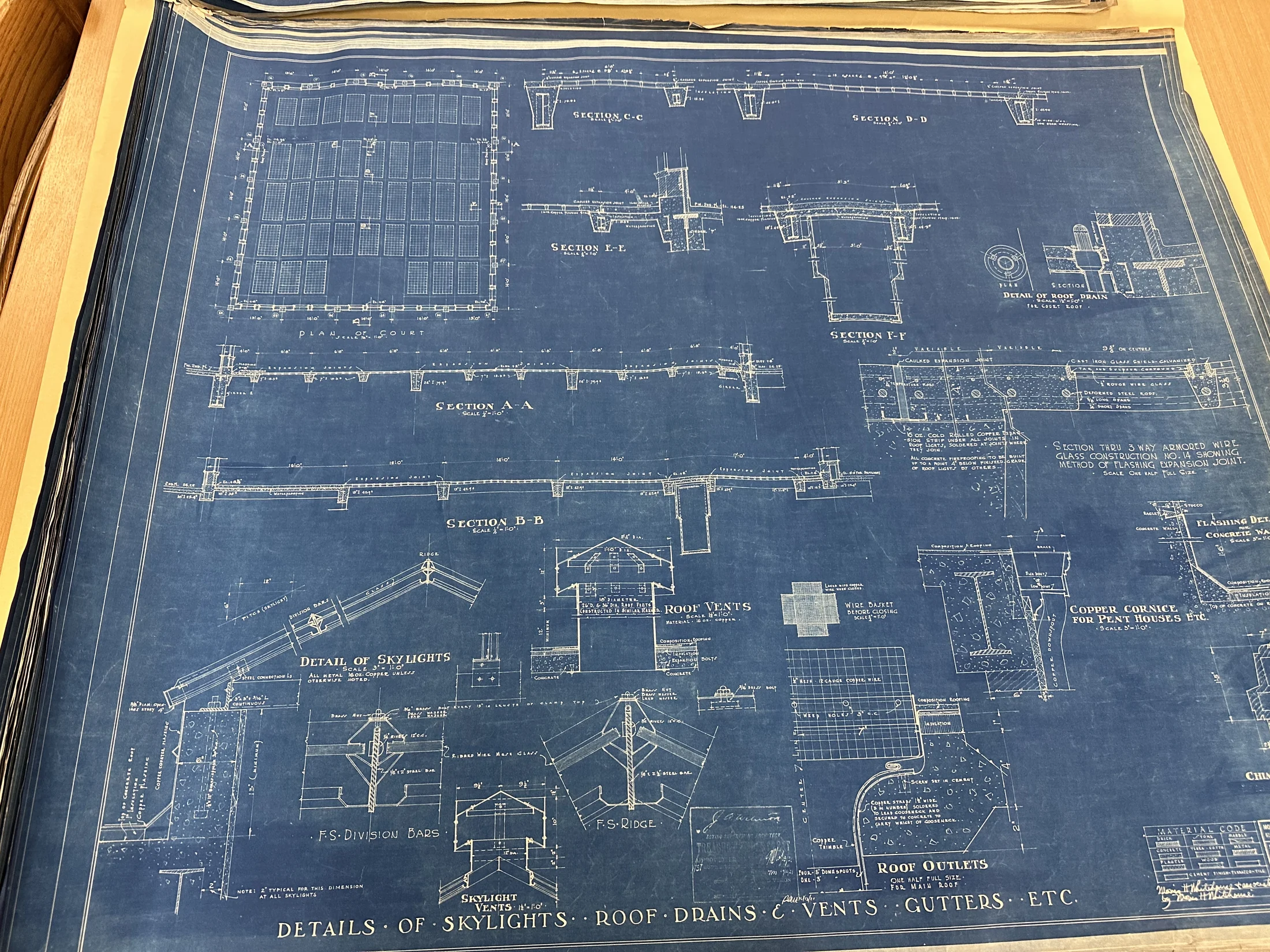

Drawing notation: DETAIL OF SKYLIGHTS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: F.S. DIVISION BARS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: F.S. RIDGE
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ARMORED WIRE GLASS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: SECTION THRU 3 WAY ARMORED WIRE GLASS CONSTRUCTION NO.14 SHOWING METHOD OF FLASHING EXPANSION JOINT
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ONE HALF FULL SIZE
Selected visible evidence only; partial review. Applies to this depicted assembly.
Numeric value unresolved
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: DETAIL OF ROOF DRAIN
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ROOF VENTS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: COPPER CORNICE FOR PENT HOUSES ETC.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ROOF OUTLETS
Selected visible evidence only; partial review. Applies to this depicted assembly.
16 oz
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: ALL METAL 16 OZ. COPPER UNLESS OTHERWISE NOTED
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
0.5 in
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: 1/2″ MESH 12 GAUGE COPPER WIRE
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
12 gauge
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: 12 GAUGE COPPER WIRE
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
0.5 in
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: COPPER STRAP 1/2″ WIDE TO BE TINNED SOLDERED TO LEAD GOOSENECK AND SCREWED TO CONCRETE; CARRY WEIGHT OF GOOSENECK
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
2 in
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: NOTE: 2″ TYPICAL FOR THIS DIMENSION AT ALL SKYLIGHTS
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Arrow at upper right of Construction No.14 detail; alloy and coating thickness unresolved.
Drawing notation: CAST IRON GLASS SHIELD-GALVANIZED
Arrow at upper right of Construction No.14 detail; alloy and coating thickness unresolved.
Printed compound callout retained literally; no modern composition inferred. Review correction review-correction-20261013p-metal1012h-img1084-joint-compound: Same original Construction No.14 compound leader reads TAR AND SULPHUR COMPOUND. The source glyphs SULPHUR are visible in the targeted raw crop; VOLATILE is a prior transcription error, not a historical alternate or revision.
Drawing notation: TAR AND VOLATILE COMPOUND
Printed compound callout retained literally; no modern composition inferred.
Upper-right crop directly reads fabrication note. OZ designation kept as printed specification; thickness and mass-per-area basis not converted.
Drawing notation: 16 OZ. COLD ROLLED COPPER STRIP. BOND STRIP UNDER ALL JOINTS IN ROOF LIGHTS, SOLDERED AT JOINT WHERE THEY JOIN.
Upper-right crop directly reads fabrication note. OZ designation kept as printed specification; thickness and mass-per-area basis not converted.
16 oz
Specification designation only; area basis, gauge and physical thickness unresolved.
Drawing notation: 16 OZ.
Specification designation only; area basis, gauge and physical thickness unresolved.
Numeric value unresolved
Rod material label readable; fractional rod diameter and separate span applicability remain uncertain. No numerical rod size promoted.
Drawing notation: DEFORMED STEEL RODS [small size/span tokens unresolved]
Rod material label readable; fractional rod diameter and separate span applicability remain uncertain. No numerical rod size promoted.
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Same original Construction No.14 glass-shield compound leader; enlarged raw crop reads SULPHUR.
Drawing notation: TAR AND SULPHUR COMPOUND
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Same original Construction No.14 glass-shield compound leader; enlarged raw crop reads SULPHUR.
0.375 fractional-size-designation
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Printed deformed steel rod-size designation for long spans; no explicit inch/diameter marker established in this crop.
Drawing notation: ⅜ LONG SPANS
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Printed deformed steel rod-size designation for long spans; no explicit inch/diameter marker established in this crop.
0.25 fractional-size-designation
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate short-span rod-size designation, not actual diameter or installed reinforcement.
Drawing notation: ¼ SHORT SPANS
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate short-span rod-size designation, not actual diameter or installed reinforcement.
9.625 unlabeled-dimension-token
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Printed spacing token between shield center witness lines; inch unit not explicitly verified, so no converted physical length.
Drawing notation: 9⅝ ON CENTRES
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Printed spacing token between shield center witness lines; inch unit not explicitly verified, so no converted physical length.
3.375 unlabeled-dimension-token
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate right-side vertical construction token. Units/precise concrete face class remain unconfirmed.
Drawing notation: 3⅜
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate right-side vertical construction token. Units/precise concrete face class remain unconfirmed.
48 in
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Horizontal span between E-E upper reference lines; concrete/rooflight face endpoint class unresolved.
Drawing notation: 4′-0″
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Horizontal span between E-E upper reference lines; concrete/rooflight face endpoint class unresolved.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. E-E joint leader; caulking formulation and joint width not determined.
Drawing notation: CAULKED EXPANSION JOINT
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. E-E joint leader; caulking formulation and joint width not determined.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. E-E beneath roof build-up; material/thickness unresolved.
Drawing notation: WATERPROOFING
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. E-E beneath roof build-up; material/thickness unresolved.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. E-E roof layer note; no thickness or composition inferred.
Drawing notation: INSULATION
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. E-E roof layer note; no thickness or composition inferred.
