Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review from catalogue/OCR then one 1000px JPEG locator derivative of public/archive/drawings/complete-upright/IMG_1083.webp. Regions normalized in unrotated access image; actual principal text is upright (0 degrees). Small blurry values remain unresolved; no modeling authorized. Partial timed visual review: Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Partial timed visual review: Prior-report reuse only; not reopened or assumed identical to IMG_1084. Partial timed visual review: Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Partial timed visual review: Pitch triangle and curb local dimensions read. Roof vent partly enters crop but is not assigned to skylight. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible evidence only; partial review. Applies to this depicted assembly.

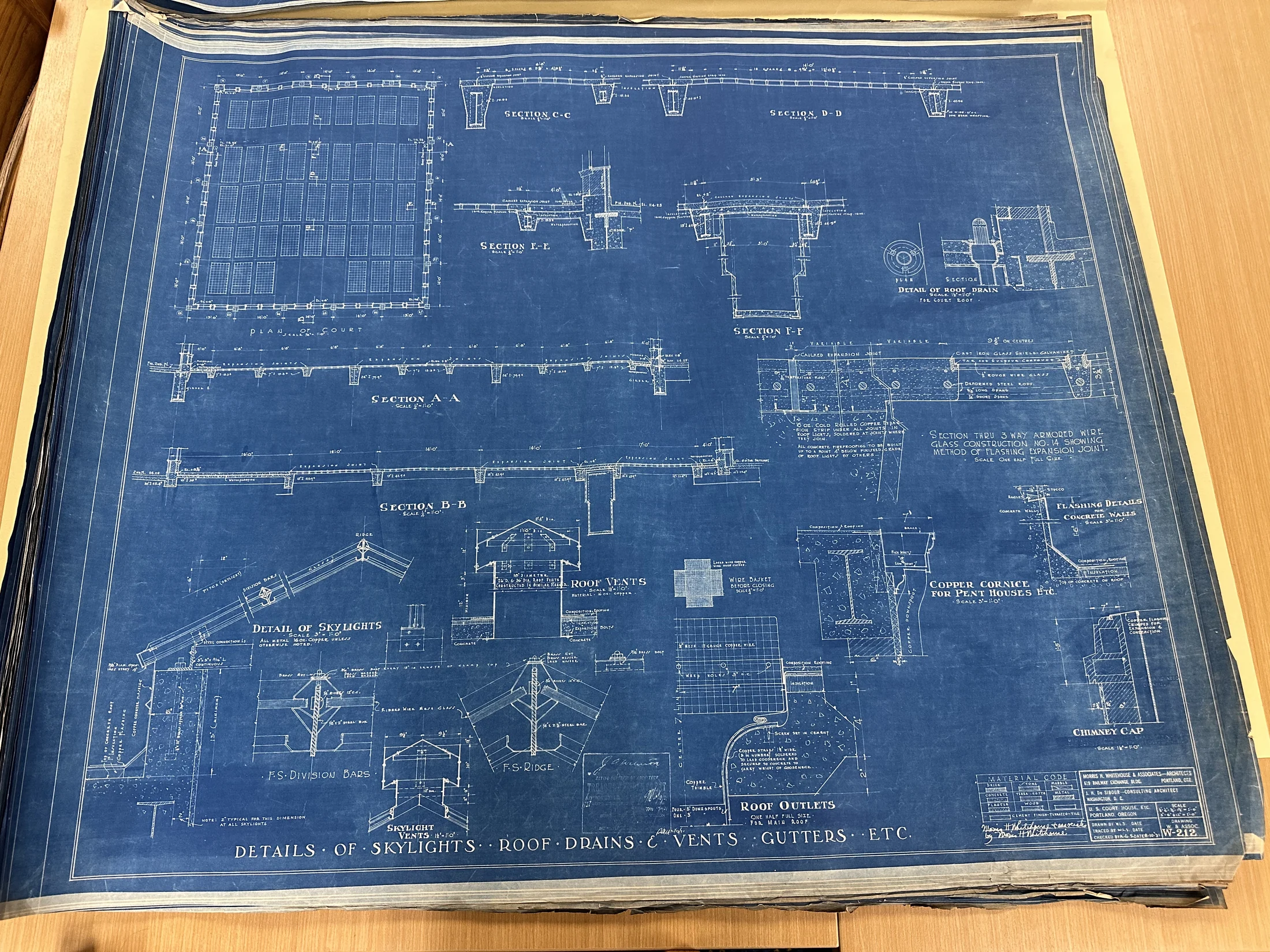

Drawing notation: DETAIL OF SKYLIGHTS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: F.S. DIVISION BARS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: F.S. RIDGE
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ARMORED WIRE GLASS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: SECTION THRU 3 WAY ARMORED WIRE GLASS CONSTRUCTION NO.14 SHOWING METHOD OF FLASHING EXPANSION JOINT
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ONE HALF FULL SIZE
Selected visible evidence only; partial review. Applies to this depicted assembly.
Numeric value unresolved
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: DETAIL OF ROOF DRAIN
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ROOF VENTS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: COPPER CORNICE FOR PENT HOUSES ETC.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ROOF OUTLETS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: CHIMNEY CAP
Selected visible evidence only; partial review. Applies to this depicted assembly.
16 oz
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: ALL METAL 16 OZ. COPPER UNLESS OTHERWISE NOTED
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
4 in
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: ALL CONCRETE FIREPROOFING TO BE BUILT UP TO A POINT 4″ BELOW FINISHED GRADE OF ROOF LIGHTS BY OTHERS
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
16 oz
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: MATERIAL 16 OZ. COPPER
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
3 in
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: WEEP HOLES 3″ O.C.
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Source-local roof-drain type assignment; no drain diameter, installed station or count.
Drawing notation: DETAIL OF ROOF DRAIN / FOR COURT ROOF
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Source-local roof-drain type assignment; no drain diameter, installed station or count.
6 in
Rise witness in PITCH (SKYLIGHT) triangle; actual opening height is not established. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 6″
Rise witness in PITCH (SKYLIGHT) triangle; actual opening height is not established. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
12 in
Horizontal run witness of same PITCH (SKYLIGHT) triangle; slope diagram only. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 12″
Horizontal run witness of same PITCH (SKYLIGHT) triangle; slope diagram only. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
6 in
Horizontal dimension across concrete curb at left skylight support, not skylight opening span. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 6″
Horizontal dimension across concrete curb at left skylight support, not skylight opening span. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
13 in
Vertical minimum control alongside curb between drawn lower and upper extension levels. Preserve MINIMUM; exact installed height or roof datum unresolved. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 13″ (MINIMUM)
Vertical minimum control alongside curb between drawn lower and upper extension levels. Preserve MINIMUM; exact installed height or roof datum unresolved. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Printed instruction beside unfolded wire-basket diagram.
Drawing notation: LACE WITH COPPER WIRE WHEN CLOSED
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Printed instruction beside unfolded wire-basket diagram.
0.5 in
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Mesh aperture designation; no manufactured tolerance.
Drawing notation: ½″ MESH
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Mesh aperture designation; no manufactured tolerance.
12 gauge
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Gauge designation only; gauge system and wire diameter not inferred.
Drawing notation: 12 GAUGE COPPER WIRE
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Gauge designation only; gauge system and wire diameter not inferred.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Leader addresses gooseneck attachment screw; screw size unresolved.
Drawing notation: SCREW SET IN CEMENT
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Leader addresses gooseneck attachment screw; screw size unresolved.
3 count
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Source-note quantity for depicted gooseneck strap assembly; not an installed-building count.
Drawing notation: (3 IN NUMBER)
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Source-note quantity for depicted gooseneck strap assembly; not an installed-building count.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Strap-width glyph not adopted. Load-support relationship is printed, not a capacity calculation.
Drawing notation: SOLDERED TO LEAD GOOSENECK AND SCREWED TO CONCRETE TO CARRY WEIGHT OF GOOSENECK
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Strap-width glyph not adopted. Load-support relationship is printed, not a capacity calculation.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Material from the strap clause; no thickness or pipe dimension established.
Drawing notation: LEAD GOOSENECK
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Material from the strap clause; no thickness or pipe dimension established.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Leader at lower pipe sleeve.
Drawing notation: COPPER THIMBLE
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Leader at lower pipe sleeve.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Title scope only; physical outlet instances remain unregistered.
Drawing notation: FOR MAIN ROOF
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Title scope only; physical outlet instances remain unregistered.
