Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review from catalogue/OCR then one 1000px JPEG locator derivative of public/archive/drawings/complete-upright/IMG_1082.webp. Regions normalized in unrotated access image; actual principal text is upright (0 degrees). Small blurry values remain unresolved; no modeling authorized. Partial timed visual review: Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Partial timed visual review: Prior-report reuse only; not reopened in this bounded worker. Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized. Partial timed visual review: Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Partial timed visual review: Selected lower elevation applicability ranges transcribed. Slash/hyphen marks are printed window identifiers, never lengths. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible evidence only; partial review. Applies to this depicted assembly.

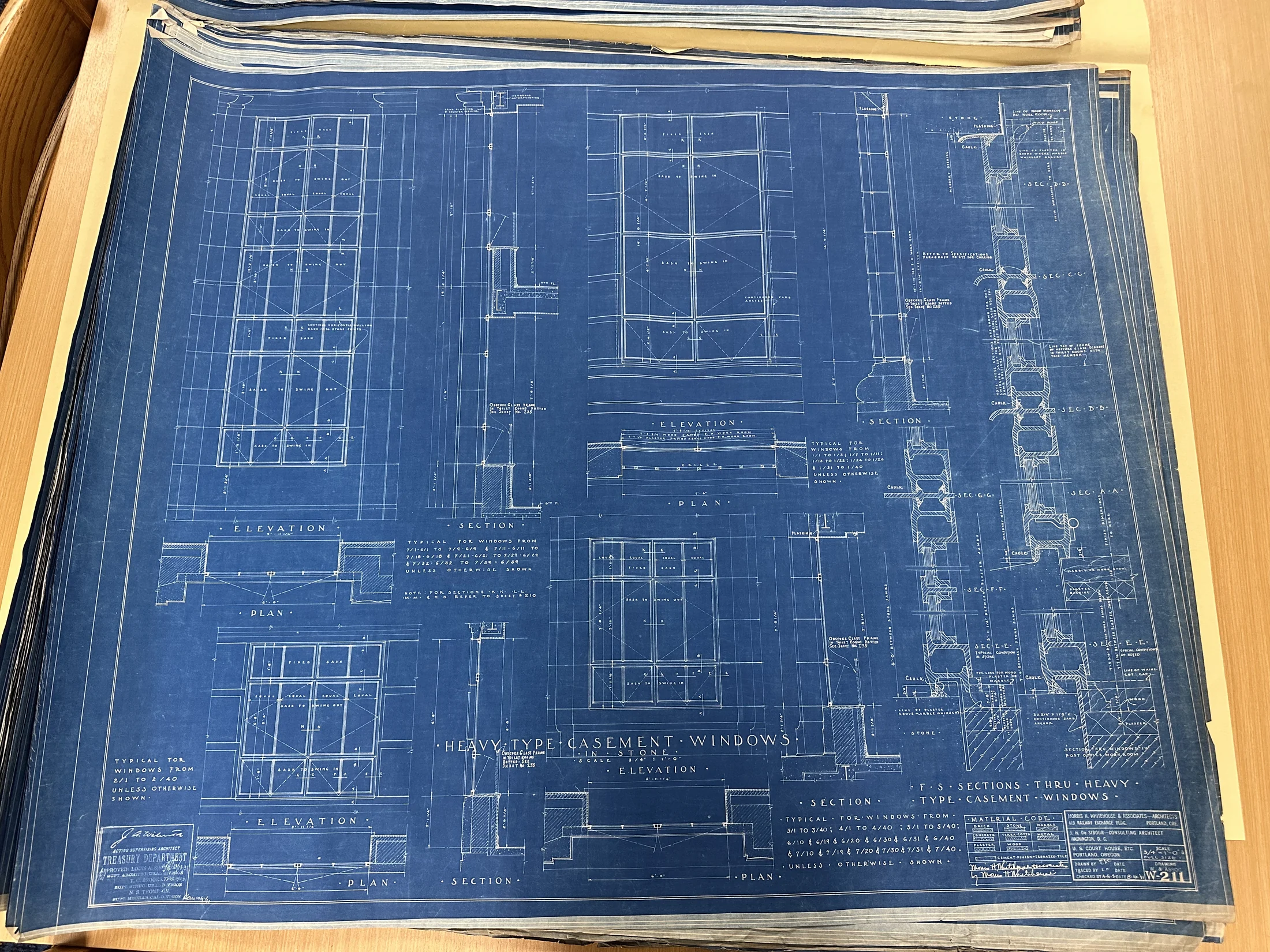

Drawing notation: HEAVY TYPE CASEMENT WINDOWS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: Multiple full-size jamb, head and sill sections; companion elevations and plans
Selected visible evidence only; partial review. Applies to this depicted assembly.
Numeric value unresolved
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: Printed window marks and typical ranges remain too small to transcribe reliably
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: F.S. SECTIONS THRU HEAVY TYPE CASEMENT WINDOWS
Selected visible evidence only; partial review. Applies to this depicted assembly.
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: TYPICAL FOR WINDOWS FROM 2/1 TO 2/40 UNLESS OTHERWISE SHOWN
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Review correction review-correction-20261013i-detail-20261011i-img1082-2: Same-image section note reads OBSCURE GLASS FRAME IN TOILET ROOMS DOTTED SEE SHEET No 235, not a transom omitted instruction. Corrects note transcription; does not alter installed glazing extents.
Drawing notation: OBSCURE GLASS FRAME IN TRANSOM OMITTED SEE SHEET NO.235
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: HARDWOOD WOOD TRIM
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Drawing notation: CAULK
Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.
Same-image section note; earlier transom-omitted transcription preserved pending explicit correction. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: OBSCURE GLASS FRAME IN TOILET ROOMS DOTTED SEE SHEET No 235
Same-image section note; earlier transom-omitted transcription preserved pending explicit correction. Source-local detail/type only; no installed quantity or physical placement.
Calculated from: detail-20261011i-img1082-2
235 sheet-number
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SEE SHEET No 235
Source-local detail/type only; no installed quantity or physical placement.
Conditional wood wall finish in D-D. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: LINE OF WOOD WAINSCOT IN P.O. WORK ROOM
Conditional wood wall finish in D-D. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: WOOD MOULD
Source-local detail/type only; no installed quantity or physical placement.
Alternative adjoining finish beyond same head profile. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: LINE OF PLASTER IN ROOMS WHERE MARBLE WAINSCOT OCCURS
Alternative adjoining finish beyond same head profile. Source-local detail/type only; no installed quantity or physical placement.
Accessory frame/screen level associated with member, not missing transom. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: LINE TOP OF FRAME OF OBSCURE GLASS SCREENS IN TOILET ROOMS WITH THIS MEMBER
Accessory frame/screen level associated with member, not missing transom. Source-local detail/type only; no installed quantity or physical placement.
Separate section instance from brick alternative. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SEC. E-E TYPICAL CONDITION IN STONE
Separate section instance from brick alternative. Source-local detail/type only; no installed quantity or physical placement.
Separate E-E profile reused in brick condition; no new geometry. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SEC. E-E TYPICAL BRICK CONDITION AS NOTED
Separate E-E profile reused in brick condition; no new geometry. Source-local detail/type only; no installed quantity or physical placement.
Joint context; individual materials recorded separately below, assembly text not universal. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: WOOD / PLASTER / LINE OF WAINS-COT CAP / SECTION THRU WINDOWS IN POST OFFICE WORK ROOM
Joint context; individual materials recorded separately below, assembly text not universal. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: WOOD
Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: PLASTER
Source-local detail/type only; no installed quantity or physical placement.
Numeric value unresolved
Dimension order/terminal notation not fully resolved; no numeric member-size claim. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 3 X ¾ X [1′-8″… suffix uncertain] CONTINUOUS JAMB ANCHOR
Dimension order/terminal notation not fully resolved; no numeric member-size claim. Source-local detail/type only; no installed quantity or physical placement.
20 in
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Terminal 1′-8″ L length token only. First 3 and ¾ components kept literally; no angle/plate class, unprinted unit, continuous installed extent or instance count inferred.
Drawing notation: 3 X ¾ X 1′-8″ L CONTINUOUS JAMB ANCHOR
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Terminal 1′-8″ L length token only. First 3 and ¾ components kept literally; no angle/plate class, unprinted unit, continuous installed extent or instance count inferred.
3 size-sequence-token
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. First designation component; its unit/section class is not explicitly printed and it is not an accepted 3-inch member width.
Drawing notation: 3 X ¾ X 1′-8″ L
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. First designation component; its unit/section class is not explicitly printed and it is not an accepted 3-inch member width.
0.75 size-sequence-token
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Second designation component; do not promote to actual anchor thickness without unit/class authority.
Drawing notation: 3 X ¾ X 1′-8″ L
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Second designation component; do not promote to actual anchor thickness without unit/class authority.
72 in
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Left E-E stone-condition control; stone jamb faces distinct from plaster jambs and steel finish dimensions.
Drawing notation: 6′-0″ BETWEEN STONE JAMBS
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Left E-E stone-condition control; stone jamb faces distinct from plaster jambs and steel finish dimensions.
71.25 in
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate F-F plaster-jamb control; no substitution for 6-foot stone jamb span.
Drawing notation: 5′-11¼″ BETWEEN PLASTER JAMBS
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate F-F plaster-jamb control; no substitution for 6-foot stone jamb span.
72 in
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Right E-E brick-condition/wood-plaster return control; separate witness from left stone-condition view.
Drawing notation: 6′-0″ BETWEEN STONE JAMBS
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Right E-E brick-condition/wood-plaster return control; separate witness from left stone-condition view.
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. A-A dimension reference note only; no equivalence to stone/plaster/clear or rough faces inferred.
Drawing notation: FINISH DIMENSIONS TO STEEL
Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. A-A dimension reference note only; no equivalence to stone/plaster/clear or rough faces inferred.
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 7/1-6/1 TO 7/9-6/9
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 7/11-6/11 TO 7/18-6/18
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 7/21-6/21 TO 7/29-6/29
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: 7/32-6/32 TO 7/39-6/39
Printed lower elevation TYPICAL FOR WINDOWS FROM range; hyphens/slashes are preserved as window marks, not measurement units. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Qualification on the four lower-elevation window-mark ranges. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: UNLESS OTHERWISE SHOWN
Qualification on the four lower-elevation window-mark ranges. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
210 sheet-number
Companion sheet note directly below selected applicability block. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Drawing notation: NOTE: FOR SECTIONS K-K, L-L, M-M & N-N REFER TO SHEET #210
Companion sheet note directly below selected applicability block. Source-local reading only; no installed quantity, physical geometry or historical issue authority established.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Top depicted transom tier.
Drawing notation: FIXED SASH
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Top depicted transom tier.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Large casement tier immediately beneath upper fixed sash.
Drawing notation: SASH TO SWING OUT
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Large casement tier immediately beneath upper fixed sash.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Short tier between the two upper outward-opening groups.
Drawing notation: SASH TO SWING IN
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Short tier between the two upper outward-opening groups.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Large tier below inward-swinging short tier; separate source witness.
Drawing notation: SASH TO SWING OUT
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Large tier below inward-swinging short tier; separate source witness.
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Leader addresses the horizontal mullion immediately below the lower large casement; insertion depth unspecified.
Drawing notation: CONTINUE HORIZONTAL MULLION BACK INTO STONE JAMBS
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Leader addresses the horizontal mullion immediately below the lower large casement; insertion depth unspecified.
118 in
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Section dimension runs from upper head reference to the seventh-floor reference line; face classification and complete vertical chain remain open.
Drawing notation: 9′-10″
Source-local printed witness only; no accepted physical geometry, installed quantity or source-issue selection. Section dimension runs from upper head reference to the seventh-floor reference line; face classification and complete vertical chain remain open.
