The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1080 · Folder 191

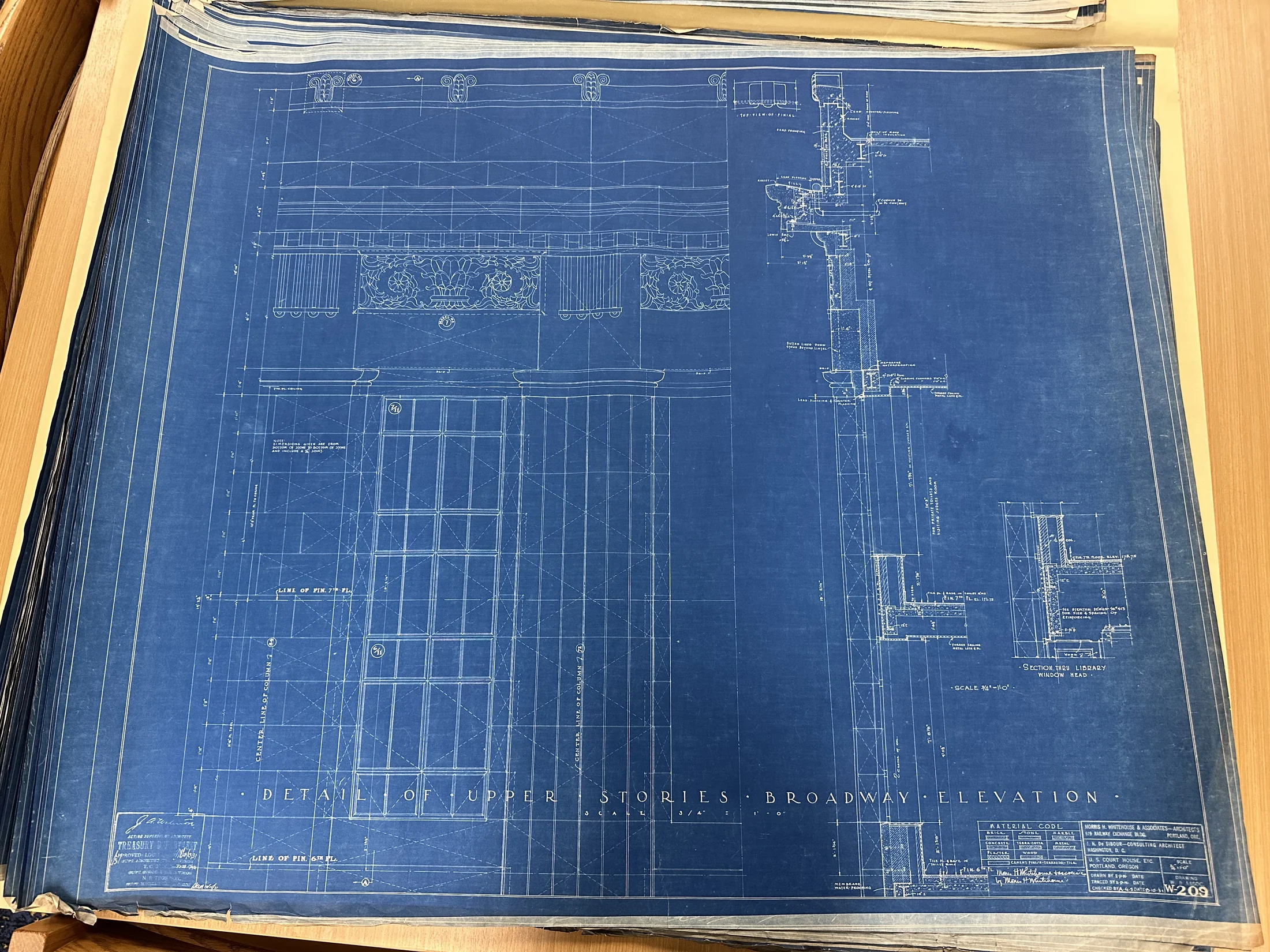

Upper stories—Broadway elevation detail view

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Bounded architectural wall-chain search; applicability reviewed, whole sheet not extracted. Partial timed visual review: Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Partial timed visual review: Library-head companion-reference evidence only. Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized. Partial timed visual review: Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Partial timed visual review: WOOD is readable; following glyph remains unresolved. No fascia closure or complete material/thickness chain. Partial timed visual review: Structured partial first-pass repair of legacy coverage-only gap. Read existing reports/OCR before one <=1000px JPEG65 locator. No complete extraction/geometry claim. Source region is normalized access image; actual rotation0. Prior audit supplied sheet identity where recorded. Partial timed visual review: undefined

Unresolved extraction work

classified interior finish-face location in the same W207/W403 section reference system
printed or independently controlled total perpendicular exterior-to-interior wall thickness
stone, backup, air space, waterproofing and room-side finish layer thicknesses with continuous endpoints
fourth-floor middle-bay applicability of each W207 local jamb/return condition
source-picked W-6 room-side face to W403 stone-face registration and independent check
masonry, frame, sash and clear-opening boundary reconciliation
complete W207/W208 callout, note and companion-detail coverage
Fine dimension fractions, witness endpoints and remaining small material callouts require targeted high-resolution review
Companion sheets, duplicate photographs and revision authority require reconciliation
Installed floor/room registration and whole-building modeling acceptance remain outstanding
Unresolved wood fascia and structural reinforcing specification
Remaining fine head/facade dimensions and registration
Uninspected/cropped regions and unreadable dimension fractions remain open as listed in regional inventory
Remaining dimension chains, hardware, fasteners, schedules, finish/material exceptions and witness classes not fully extracted
Installed quantities, room/floor identities, revisions and companion authority unresolved
Broadway upper-story elevation and stone-joint note: All remaining elevation marks and dimensions
Cornice, finial and tall construction section: Copper drip contract note, fine fractions, member sizes, remaining sixth-floor portion cropped
Library window-head section: Wood fascia exact word/dimensions and continuous finish-face chain; reinforcement sheet 415 companion
Sixth-floor lower continuation, title, scale and authorship: Remaining floor profile, revision/date authority and all annotations
Remaining fine fractions, witness endpoints, material/finish exceptions and regional notes require targeted review.
Original/revision and companion authority remains unreconciled; no historical layer selected.
Installed instances, quantities, floor/room hosts and physical registration remain unestablished; no modeling or architectural release.
WOOD note remains incomplete; no closure of either prior wood-fascia question.
Selected 3-foot drop does not establish overall library-window geometry.
Wood-fascia remainder and exact trim dimensions remain unresolved.
Remaining notes, dimensions, endpoint classes and companion details outside the bounded crop require review.
Historical issue/revision authority, installed instances, quantities and physical registration remain unresolved; no geometry or architectural acceptance.
all remaining notes, dimensions and schedules
full-sheet completeness
original/annotation reconciliation and physical instance mapping
Wood-fascia wording, cornice drip contract clause, fine dimensions and complete wall-face chain remain open.
Remaining regional dimensions, notes, schedules, companion details and original/revision authority require review.
Installed instances, quantities, floor/room registration and continuous physical geometry remain unestablished; no architectural acceptance.
