The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters

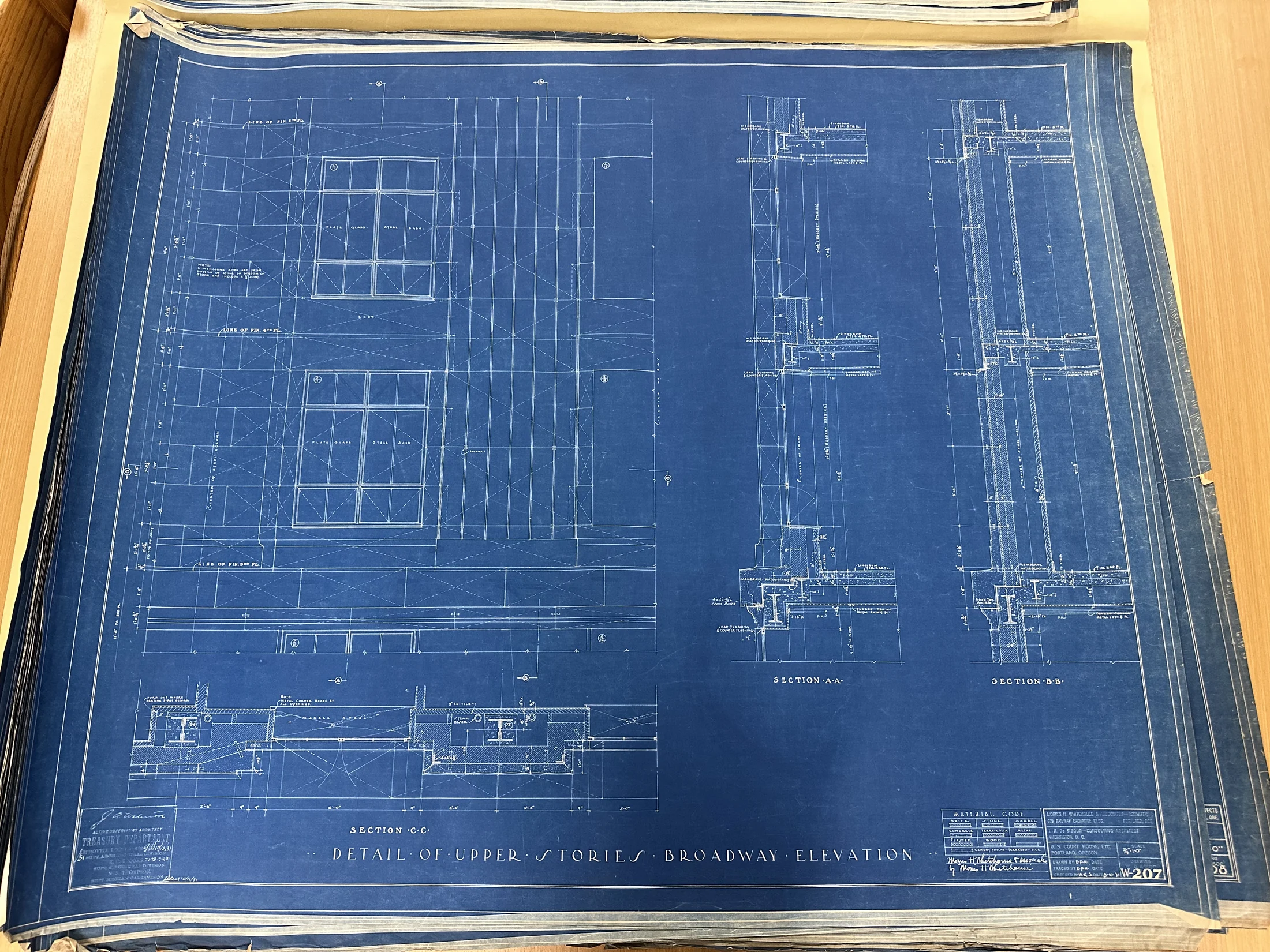

IMG_1078 · Folder 191

Upper stories—Broadway elevation details

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Targeted W207 duplicate review decoded split-circle marks 4/11 and 4/12. Bounded architectural wall-chain search; applicability reviewed, whole sheet not extracted. Partial timed visual review: Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established. Partial timed visual review: Source-local annotation interpretation only; no accepted physical geometry. Partial timed visual review: undefined Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized. Partial timed visual review: Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Partial timed visual review: Text-only reuse of 1014i: stone-note terminal joint fraction, B-B fractional height and wall-depth witnesses lack better new evidence; no repeat native crop.

Unresolved extraction work
  • Direct transcription of the remaining Broadway fourth-floor historic marks after 4/12
  • Formal printed legend sentence defining the split-circle syntax
  • Accepted equivalence between W207 masonry/jamb limits and the IMG_1231 traced visible-envelope boundary
  • Exact wall-face X and physical opening depth
  • Accepted rough, masonry, frame and clear opening boundary classifications
  • Accepted W207 Section C-C return-depth assignment to a verified opening
  • Independent surveyed station for the W207 4/11 instance
  • Opening frame profile, sill, head, anchors and construction interfaces
  • Whole-sheet review of all W207/W208 notes, material codes, revisions and callouts
  • classified interior finish-face location in the same W207/W403 section reference system
  • printed or independently controlled total perpendicular exterior-to-interior wall thickness
  • stone, backup, air space, waterproofing and room-side finish layer thicknesses with continuous endpoints
  • fourth-floor middle-bay applicability of each W207 local jamb/return condition
  • source-picked W-6 room-side face to W403 stone-face registration and independent check
  • masonry, frame, sash and clear-opening boundary reconciliation
  • complete W207/W208 callout, note and companion-detail coverage
  • Fine dimension fractions, witness endpoints and remaining small material callouts require targeted high-resolution review
  • Companion sheets, duplicate photographs and revision authority require reconciliation
  • Installed floor/room registration and whole-building modeling acceptance remain outstanding
  • Complete fine section and elevation dimension extraction
  • Companion/revision reconciliation and installation registration
  • Stone-note joint fraction and complete wording remain open; earlier ALL JOINTS transcription retained separately pending primary review.
  • Floor-specific3in versus2in tile backing is reused; no total stone-to-finish assembly thickness established.
  • B-B height suffix, unique Broadway bay and installed transforms remain open.
  • Classify finished/rough/masonry/frame witnesses and reconcile companion/source issue authority.
  • Installed room/floor instance and world transform remain unaccepted.
  • Remaining regional notes, sections, material schedules, fastenings and whole-source coverage remain partial.
  • Uninspected/cropped regions and unreadable dimension fractions remain open as listed in regional inventory
  • Remaining dimension chains, hardware, fasteners, schedules, finish/material exceptions and witness classes not fully extracted
  • Installed quantities, room/floor identities, revisions and companion authority unresolved
  • Broadway upper-stories elevation, opening marks and principal note: All remaining historic marks, elevation fractions, approved face classes and physical registration
  • Section A-A: Full layers, dimensions, finish faces and attachment interfaces
  • Section B-B: Ceiling fraction suffix, full stone/backing/waterproofing chains and finish/structural endpoint continuity
  • Section C-C lower opening return detail: Complete return profile, thickness chain and bay-specific applicability
  • Title, note/code context and margins: Whole-sheet callout/register reconciliation, title/date/revisions and legends
  • Remaining fine fractions, witness endpoints, material/finish exceptions and regional notes require targeted review.
  • Original/revision and companion authority remains unreconciled; no historical layer selected.
  • Installed instances, quantities, floor/room hosts and physical registration remain unestablished; no modeling or architectural release.
  • Section B-B floor-to-ceiling fractional suffix still illegible; no closure.
  • No continuous exterior-stone-to-room-finish thickness chain established.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

30 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

bway-W207-F4-unique-opening-match-gateverified · derived

Unique opening match gate

RETRACTED — 4/11 to B02 conflicts with oriented W-6 plan

The W207 4/11 and adjacent 4/12 marks remain verified printed readings, but the earlier assignment of 4/11 to elevation B02 is retracted. W-6 independently prints 4/11 on the Broadway/page-right strip near Madison/south; its north arrow points page-bottom. The W-6 position conflicts with B02 near Main/north. B09 is only a nearby station candidate, not an accepted identity.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1251 · sheet-W208 · Locate on drawing ↗

Drawing notation: 6/10; 7/10

split-circle decoder and corner-sequence witness. rounded corner/cornice context, vertically repeated opening and split circles 7/10 and 6/10

Calculated from: opening-broadway-F4-B02-existence

bway-W207-F4-unique-opening-match-gateverified · printed

Printed split-circle floor field

4

4 count

Upper field of printed W207 split circle 4/11.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

bway-W207-F4-unique-opening-match-gateverified · printed

Printed split-circle facade object field

11

11 count

Lower field of printed W207 split circle 4/11.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

bway-W207-F4-unique-opening-match-gateunreviewed · derived

Remaining fourth-floor candidate openings after key correlation

Unresolved; no unique elevation bay

Numeric value unresolved

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1251 · sheet-W208 · Locate on drawing ↗

Drawing notation: 6/10; 7/10

split-circle decoder and corner-sequence witness. rounded corner/cornice context, vertically repeated opening and split circles 7/10 and 6/10

Calculated from: opening-broadway-F4-B02-existence

bway-W207-F4-unique-opening-match-gateverified · observed

Physical geometry authorization

NOT PASSED — identity correlation only

Direct transcription of the remaining Broadway fourth-floor historic marks after 4/12; Formal printed legend sentence defining the split-circle syntax; Accepted equivalence between W207 masonry/jamb limits and the IMG_1231 traced visible-envelope boundary; Exact wall-face X and physical opening depth; Accepted rough, masonry, frame and clear opening boundary classifications; Accepted W207 Section C-C return-depth assignment to a verified opening; Independent surveyed station for the W207 4/11 instance; Opening frame profile, sill, head, anchors and construction interfaces; Whole-sheet review of all W207/W208 notes, material codes, revisions and callouts

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

bway-W207-F4-unique-opening-match-gateverified · derived

Transfer of the separate B05 diagnostic geometry to the W207 target

PROHIBITED — no elevation bay is accepted for 4/11

The B05 horizontal-placement packet is a separate diagnostic built before the W207 split circle was decoded. Its provisional station, traced envelope and candidate wall host do not describe the W207 4/11 instance and must not be copied to B02.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1251 · sheet-W208 · Locate on drawing ↗

Drawing notation: 6/10; 7/10

split-circle decoder and corner-sequence witness. rounded corner/cornice context, vertically repeated opening and split circles 7/10 and 6/10

Calculated from: opening-broadway-F4-B05-existence

bway-W6-W207-F4-B02-placement-gateverified · derived

Analytical envelope building-placement gate

FAIL — cited W-6 source is east/Sixth Avenue; Broadway placement withheld

The W207 local 6-foot by 7-foot-8.75-inch analytical envelope remains valid, but no building translation or rotation is accepted from the cited W-6 page-left/east-side crop.

IMG_1212 · sheet-W6 · Locate on drawing ↗

Drawing notation: 4/11; 4/12; 4/13; 4/14; 4'-0" + 6'-0" + 4'-0" = 14'-0"

Direct W-6 page-left/east-side opening mark and centered bay-chain control; not a Broadway placement source

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1212 · sheet-W6 · Locate on drawing ↗

Drawing notation: NORTH

Printed north-arrow region; arrow points toward page-bottom.

Calculated from: f4-w6-page-left-cardinal-direction, f4-w6-room-band-401-407-canonical-side

bway-W6-W207-F4-B02-placement-gateunreviewed · observed

Accepted masonry-opening control sill world Y

Unresolved

Numeric value unresolved

The W207 vertical control remains local to its Broadway detail but is not attached to a verified W-6 Broadway instance.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1212 · sheet-W6 · Locate on drawing ↗

Drawing notation: 4/11; 4/12; 4/13; 4/14; 4'-0" + 6'-0" + 4'-0" = 14'-0"

Direct W-6 page-left/east-side opening mark and centered bay-chain control; not a Broadway placement source

bway-W6-W207-F4-B02-placement-gateunreviewed · observed

Accepted masonry-opening control head world Y

Unresolved

Numeric value unresolved

No verified plan-side Broadway instance exists for this head elevation.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

IMG_1212 · sheet-W6 · Locate on drawing ↗

Drawing notation: 4/11; 4/12; 4/13; 4/14; 4'-0" + 6'-0" + 4'-0" = 14'-0"

Direct W-6 page-left/east-side opening mark and centered bay-chain control; not a Broadway placement source

bway-W6-W207-F4-B02-placement-gateverified · observed

Physical opening and wall-cut authorization

NOT PASSED — control envelope only

Exterior-stone face to masonry-opening boundary depth; Interior finish face and complete wall thickness; Rough, masonry, frame, sash and clear-opening boundary equivalence; Jamb return handedness and complete Section C-C construction; Head, sill, anchors, glazing and steel-sash profiles; Independent survey/as-built check; Verified W-6 Broadway/page-right plan-side 4/11 correspondence

IMG_1212 · sheet-W6 · Locate on drawing ↗

Drawing notation: 4/11; 4/12; 4/13; 4/14; 4'-0" + 6'-0" + 4'-0" = 14'-0"

Direct W-6 page-left/east-side opening mark and centered bay-chain control; not a Broadway placement source

IMG_1078 · sheet-W207 · Locate on drawing ↗

Drawing notation: 4/11; 4/12

decisive target-mark reading. detailed fourth-floor steel-sash opening marked 4/11 and adjacent opening field marked 4/12

assembly-broadway-F4-middle-exterior-wall-candidateunreviewed · observed

Classified interior finish-face world X

Unresolved

Numeric value unresolved

analytical source overlay and provisional candidate references only

IMG_1078 · sheet-W207 · Locate on drawing ↗

Direct architectural Broadway upper-story detail including the fourth floor; exact middle-bay/room assignment remains unverified.

IMG_1317 · sheet-W403 · Locate on drawing ↗

Drawing notation: FACE OF STONE; 10"; C.L. OF COL.; SECTION FOR 13',14' AND 15' SPANS

Direct fourth-/fifth-floor middle structural span control, reused from the existing audited package; image not reopened.

assembly-broadway-F4-middle-exterior-wall-candidateunreviewed · observed

Stone backing and intermediate layer thicknesses

Unresolved

Numeric value unresolved

analytical source overlay and provisional candidate references only

IMG_1078 · sheet-W207 · Locate on drawing ↗

Direct architectural Broadway upper-story detail including the fourth floor; exact middle-bay/room assignment remains unverified.

IMG_1317 · sheet-W403 · Locate on drawing ↗

Drawing notation: FACE OF STONE; 10"; C.L. OF COL.; SECTION FOR 13',14' AND 15' SPANS

Direct fourth-/fifth-floor middle structural span control, reused from the existing audited package; image not reopened.

assembly-broadway-F4-middle-exterior-wall-candidateunreviewed · observed

Exterior stone to interior finish total depth

Unresolved

Numeric value unresolved

analytical source overlay and provisional candidate references only

IMG_1078 · sheet-W207 · Locate on drawing ↗

Direct architectural Broadway upper-story detail including the fourth floor; exact middle-bay/room assignment remains unverified.

IMG_1317 · sheet-W403 · Locate on drawing ↗

Drawing notation: FACE OF STONE; 10"; C.L. OF COL.; SECTION FOR 13',14' AND 15' SPANS

Direct fourth-/fifth-floor middle structural span control, reused from the existing audited package; image not reopened.

assembly-broadway-F4-middle-exterior-wall-candidateverified · observed

Physical wall and opening pilot authorization

FAIL — no continuous exterior-to-interior wall chain

The W207 Section C-C local returns differ by 1 1/2 inches; their differing endpoint conditions and bay assignment prohibit a single generic reveal depth. W207 Section C-C does not supply a dimension from its exterior stone face to a classified interior finish face; its 3-inch T.C. tile cannot be added to the W403 face-to-column-axis control because the references are not chained. W-6 fourth-floor plan has an observed west room-side wall/finish trace, but its exterior stone face and world registration are null. It cannot close this face chain. Both the earlier W-6/W207 4/11-to-B02 placement and the subsequent ordinal B02 identity are retracted. The page-right W-6 crop verifies the printed 4/11 key and its match to W207, but the oriented plan places it near Madison/south rather than B02 near Main/north. B09 is a diagnostic station candidate only; no metric placement, wall host or room-side face is accepted.

IMG_1078 · sheet-W207 · Locate on drawing ↗

Direct architectural Broadway upper-story detail including the fourth floor; exact middle-bay/room assignment remains unverified.

IMG_1317 · sheet-W403 · Locate on drawing ↗

Drawing notation: FACE OF STONE; 10"; C.L. OF COL.; SECTION FOR 13',14' AND 15' SPANS

Direct fourth-/fifth-floor middle structural span control, reused from the existing audited package; image not reopened.

parallel-img1078-assemblyverified · printed

sash-material

STEEL SASH

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: STEEL SASH

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

parallel-img1078-assemblyverified · printed

glazing

PLATE GLASS

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: PLATE GLASS

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

parallel-img1078-assemblyverified · printed

floor-datum

LINE OF FIN. 4TH FL.

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: LINE OF FIN. 4TH FL.

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

parallel-img1078-assemblyverified · printed

flashing-material

LEAD FLASHING & COUNTER FLASHING

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: LEAD FLASHING & COUNTER FLASHING

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

parallel-img1078-assemblyverified · printed

floor-ceiling-finish

FURRED CEILING / METAL LATH & PL.

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: FURRED CEILING / METAL LATH & PL.

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

parallel-img1078-assemblyunreviewed · printed

stone-joint-reference

[note on bottom-of-stone dimension references; fine wording unresolved]

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: [note on bottom-of-stone dimension references; fine wording unresolved]

Source-local additive detail review; no installed quantity, accepted room geometry, physical placement or wall cuts established.

metal1012h-img1078-facade-noteverified · printed

stone_dimension_reference_note

NOTE: DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE AND INCLUDE ALL JOINTS.

Targeted crop resolves note wording. No length or joint thickness calculated; unresolved earlier reading remains preserved.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: NOTE: DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE AND INCLUDE ALL JOINTS.

Targeted crop resolves note wording. No length or joint thickness calculated; unresolved earlier reading remains preserved.

parallel-img1078-assemblyverified · printed

stone_dimension_reference_prefix

DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE

Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Only readable prefix adopted. Terminal joint clause and earlier ALL JOINTS transcription remain separately unresolved; no joint thickness inferred.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE

Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Only readable prefix adopted. Terminal joint clause and earlier ALL JOINTS transcription remain separately unresolved; no joint thickness inferred.

parallel-img1078-assemblyillegible · printed

stone_dimension_note_joint_fraction

AND INCLUDE A [fraction] JOINT [terminal clause not adopted]

Numeric value unresolved

Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Looks like singular joint with fractional token; fraction withheld. This is not a verified correction to earlier ALL JOINTS wording.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: AND INCLUDE A [fraction] JOINT [terminal clause not adopted]

Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Looks like singular joint with fractional token; fraction withheld. This is not a verified correction to earlier ALL JOINTS wording.

parallel-img1078-assemblyverified · printed

section-bb-membrane-material

MEMBRANE WATERPROOFING

Leader at fifth-floor connection; repeated at fourth/third levels, no continuous wall-thickness conclusion. Source-local detail/type only; no installed quantity or physical placement.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: MEMBRANE WATERPROOFING

Leader at fifth-floor connection; repeated at fourth/third levels, no continuous wall-thickness conclusion. Source-local detail/type only; no installed quantity or physical placement.

parallel-img1078-assemblyverified · printed

section-bb-third-floor-stone-fixing

DOWEL ANCHORS

Third-floor stone fixing leader only; sizes/counts unresolved. Source-local detail/type only; no installed quantity or physical placement.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: DOWEL ANCHORS

Third-floor stone fixing leader only; sizes/counts unresolved. Source-local detail/type only; no installed quantity or physical placement.

parallel-img1078-assemblyverified · printed

section-bb-third-floor-inner-backing-thickness

2″ T.C. TILE

2 in

Thin inner backing callout; not total exterior wall. Source-local detail/type only; no installed quantity or physical placement.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: 2″ T.C. TILE

Thin inner backing callout; not total exterior wall. Source-local detail/type only; no installed quantity or physical placement.

parallel-img1078-assemblyverified · printed

section-bb-fourth-floor-selected-vertical-span

1′-6″

18 in

Printed short floor-band line near fourth floor; visible endpoints stone-band floor zone, exact finish/structural face classification remains open. Source-local detail/type only; no installed quantity or physical placement.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: 1′-6″

Printed short floor-band line near fourth floor; visible endpoints stone-band floor zone, exact finish/structural face classification remains open. Source-local detail/type only; no installed quantity or physical placement.

parallel-img1078-assemblyillegible · printed

section-bb-floor-to-ceiling-fraction-unresolved

[9′-11… fractional suffix unresolved]

Numeric value unresolved

No numeric value chosen from ambiguous suffix. Source-local detail/type only; no installed quantity or physical placement.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: [9′-11… fractional suffix unresolved]

No numeric value chosen from ambiguous suffix. Source-local detail/type only; no installed quantity or physical placement.

parallel-img1078-assemblyverified · printed

bb-fifth-floor-tile-backing

3″ T.C. TILE

3 in

Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Printed fifth-floor backing note; leader does not establish a complete wall chain.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: 3″ T.C. TILE

Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Printed fifth-floor backing note; leader does not establish a complete wall chain.

parallel-img1078-assemblyverified · printed

bb-fourth-floor-tile-backing

3″ T.C. TILE

3 in

Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate fourth-floor backing note; do not merge with verified third-floor 2-inch note.

IMG_1078 · W-207 · Locate on drawing ↗

Drawing notation: 3″ T.C. TILE

Printed source-local type/component or section control only; no accepted physical geometry, installed quantity or world registration. Original layer retained separately from revisions. Separate fourth-floor backing note; do not merge with verified third-floor 2-inch note.

View all source photographs →
