Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review from catalogue/OCR then one 1000px JPEG locator derivative of public/archive/drawings/complete-upright/IMG_1077.webp. Regions normalized in unrotated access image; actual principal text is upright (0 degrees). Small blurry values remain unresolved; no modeling authorized. Partial timed visual review: Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established. Partial timed visual review: Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible evidence only; partial review. Applies to this depicted assembly.

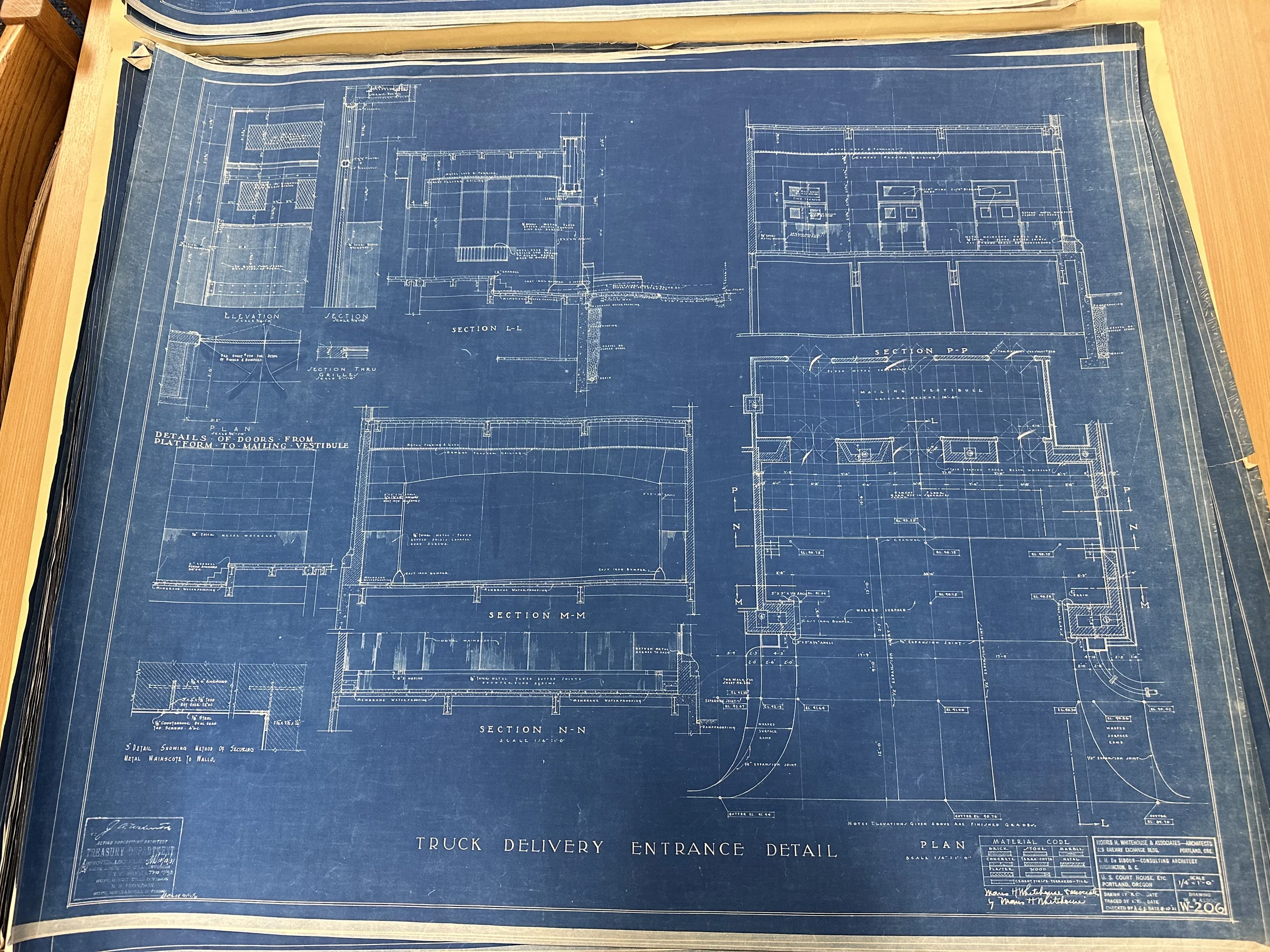

Drawing notation: TRUCK DELIVERY ENTRANCE DETAIL
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: PLAN
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: SECTION L-L
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: SECTION M-M
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: SECTION N-N
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: SECTION P-P
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: Large truck doorway, curved vehicle approach edges, and platform/mail vestibule door details shown
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: NOTE: elevations given above are [remainder blurred]
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: DETAILS OF DOORS FROM PLATFORM TO MAILING VESTIBULE
Selected visible evidence only; partial review. Applies to this depicted assembly.
Numeric value unresolved
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: NOTE: ELEVATIONS GIVEN ABOVE ARE FINISHED GRADES.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: MEMBRANE WATERPROOFING
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: CAST IRON BUMPER
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: WARPED SURFACE RAMP
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: 3″ DETAIL SHOWING METHOD OF SECURING METAL WAINSCOT TO WALLS
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: CEMENT PLASTER CEILING
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Numeric value unresolved
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: [remaining platform door dimension chain unresolved]
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Section M-M wall label requires clearer crop before assigning stone facing scope. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: STONE WALL ... [remaining callout unresolved]
Section M-M wall label requires clearer crop before assigning stone facing scope. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Leader/text at section N-N wall lining; plate thickness remains unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: METAL WAINSCOT
Leader/text at section N-N wall lining; plate thickness remains unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Section N-N upper floor line note is too small for a secure material transcription; requires targeted crop. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: [floor-covering material callout unresolved]
Section N-N upper floor line note is too small for a secure material transcription; requires targeted crop. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Numeric value unresolved
Plate layer and joints text not sufficiently legible; does not imply exact plate thickness. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: [fraction unresolved] THICK METAL PLATE ...
Plate layer and joints text not sufficiently legible; does not imply exact plate thickness. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Plan marks a transverse channel below three upper grade tags; channel size, slope, invert and outlet relationship remain unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: CHANNEL
Plan marks a transverse channel below three upper grade tags; channel size, slope, invert and outlet relationship remain unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Numeric value unresolved
Existing finished-grade note establishes grade interpretation, not legibility or unit/datum of each tag. Numeric grade values intentionally null. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: EL. [multiple individual decimals remain unresolved]
Existing finished-grade note establishes grade interpretation, not legibility or unit/datum of each tag. Numeric grade values intentionally null. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
0.125 in
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. N-N floor-covering clause; independently printed inch mark.
Drawing notation: ⅛″ THICK METAL TILES
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. N-N floor-covering clause; independently printed inch mark.
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Same exact N-N floor-covering leader, not wainscot or stone wall.
Drawing notation: METAL TILES
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Same exact N-N floor-covering leader, not wainscot or stone wall.
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. N-N clause explicitly uses BUTTED JOINTS; does not supply numerical joint gap.
Drawing notation: BUTTED JOINTS
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. N-N clause explicitly uses BUTTED JOINTS; does not supply numerical joint gap.
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Exact prior M-M STONE WALL candidate locus resolves to a metal-tile clause. Separate witness from N-N floor note.
Drawing notation: ⅛″ THICK METAL TILES / BUTTED JOINTS / COUNTERSUNK SCREWS
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Exact prior M-M STONE WALL candidate locus resolves to a metal-tile clause. Separate witness from N-N floor note.
0.125 in
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Distinct M-M wall detail printed token; no whole wall thickness established.
Drawing notation: ⅛″ THICK METAL TILES
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Distinct M-M wall detail printed token; no whole wall thickness established.
0.125 in
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Securing detail STEEL leader; not angle leg length or nominal screw diameter.
Drawing notation: ⅛″ STEEL
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Securing detail STEEL leader; not angle leg length or nominal screw diameter.
4 in
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Printed4-inch on-center spacing in securing detail only; no installed total screws.
Drawing notation: TAP SCREWS 4″ O.C.
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Printed4-inch on-center spacing in securing detail only; no installed total screws.
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Readable fastening nouns; nominal screw diameter left unresolved.
Drawing notation: COUNTERSUNK ROUND HEAD / TAP SCREWS
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Readable fastening nouns; nominal screw diameter left unresolved.
Numeric value unresolved
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Separate angle notation not adopted; no same-witness full anchor-size closure.
Drawing notation: [angle leg/thickness fractions unresolved]
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Separate angle notation not adopted; no same-witness full anchor-size closure.
93.27 unknown
Upper interior plan grade leader above CHANNEL. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 93.27
Upper interior plan grade leader above CHANNEL. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
90.75 unknown
Left leader immediately below CHANNEL line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 90.75
Left leader immediately below CHANNEL line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
90.75 unknown
Central leader immediately below CHANNEL line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 90.75
Central leader immediately below CHANNEL line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
91 unknown
Leader at left cast-iron-bumper return. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 91.00
Leader at left cast-iron-bumper return. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
90.75 unknown
Leader in interior warped surface, above transverse expansion joint. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 90.75
Leader in interior warped surface, above transverse expansion joint. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
91.64 unknown
Front line leader at inner edge of left ramp. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 91.64
Front line leader at inner edge of left ramp. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
91 unknown
Central leader on front transverse grade line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 91.00
Central leader on front transverse grade line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
90.75 unknown
Right leader immediately below channel line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
Drawing notation: EL. 90.75
Right leader immediately below channel line. Source-local numeric glyph; no unit, benchmark, conversion, accepted datum, installation or geometry inferred.
