Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

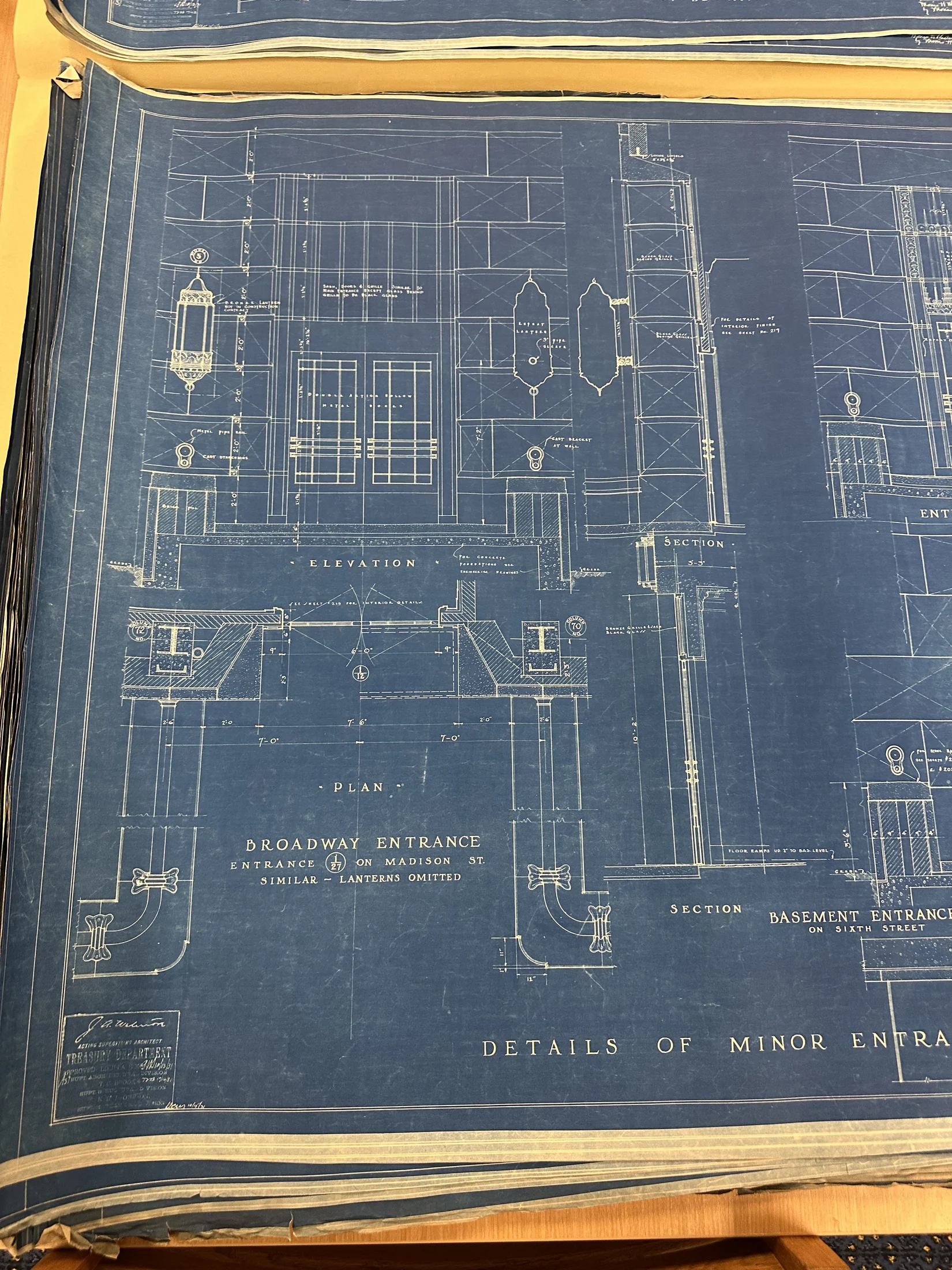

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass review from catalogue/OCR then one 1000px JPEG locator derivative of public/archive/drawings/complete-upright/IMG_1076.webp. Regions normalized in unrotated access image; actual principal text is upright (0 degrees). Small blurry values remain unresolved; no modeling authorized. Partial timed visual review: Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established. Partial timed visual review: Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Source-local printed detail/type evidence. FloorIds remain empty until physical instance registration; no installed quantity, world dimension, geometry or historical revision preference authorized.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: BROADWAY ENTRANCE
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ENTRANCE [21] ON MADISON ST. SIMILAR - LANTERNS OMITTED
Selected visible evidence only; partial review. Applies to this depicted assembly.
84 in
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: 7'-0"
Selected visible evidence only; partial review. Applies to this depicted assembly.
84 in
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: 7'-0"
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: Paired doors under tall transom; hanging lantern shown beside entrance
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: BASEMENT ENTRANCE ON SIXTH STREET
Selected visible evidence only; partial review. Applies to this depicted assembly.
Numeric value unresolved
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: FLOOR RAMPS UP 1" TO BAS. LEVEL [small unit reading unresolved]
Selected visible evidence only; partial review. Applies to this depicted assembly.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: ENTRANCE 1/27 ON MADISON ST. SIMILAR - LANTERNS OMITTED
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: DOUBLE ACTION HOLLOW METAL DOORS
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: SASH, DOORS & GRILLE SIMILAR TO MAIN ENTRANCE EXCEPT UPPER TRANSOM SHALL BE OF BLACK GLASS
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
217 sheet-number
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: FOR DETAILS OF INTERIOR FINISH SEE SHEET NO. 217
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
72 in
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: 6′-0″
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
90 in
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: 7′-6″
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
2 in
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: FLOOR RAMPS UP 2″ TO BAS. LEVEL
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Material word CAST appears on lamp-support leader, without alloy specification. Do not assign bronze from adjacent lantern. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: CAST BRACKET AT FACE
Material word CAST appears on lamp-support leader, without alloy specification. Do not assign bronze from adjacent lantern. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
3 in
Printed sleeve size beside lamp-support outline; not a rail diameter. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: 3″ PIPE SLEEVE
Printed sleeve size beside lamp-support outline; not a rail diameter. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
11 in
Bottom right local guard/rail curved return detail horizontal annotation; reference-face/centerline endpoints unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: 11″
Bottom right local guard/rail curved return detail horizontal annotation; reference-face/centerline endpoints unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
11 in
Orthogonal vertical annotation at same local curved return, kept separate from horizontal. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: 11″
Orthogonal vertical annotation at same local curved return, kept separate from horizontal. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
39 in
Second exposure of local section span on IMG1075; no sheet authority or duplicate geometry assertion. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: 3′-3″
Second exposure of local section span on IMG1075; no sheet authority or duplicate geometry assertion. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
2 in
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Exact prior floor ramp clause;2-inch rise only, run/slope and benchmark remain unresolved.
Drawing notation: FLOOR RAMPS UP 2″ TO BAS. LEVEL
Printed source-local witness only; not installed quantity, actual member profile, outside diameter or accepted physical geometry. Exact prior floor ramp clause;2-inch rise only, run/slope and benchmark remain unresolved.
Broadway plan split-circle mark, separate from Madison similar entrance. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 1/12
Broadway plan split-circle mark, separate from Madison similar entrance. Source-local detail/type only; no installed quantity or physical placement.
9 in
Left horizontal chain segment adjacent to 6′-0″ inner span; endpoints frame boundary/inner witness, masonry/clear classification remains provisional. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 9″
Left horizontal chain segment adjacent to 6′-0″ inner span; endpoints frame boundary/inner witness, masonry/clear classification remains provisional. Source-local detail/type only; no installed quantity or physical placement.
9 in
Right independent printed segment; not derived by symmetry. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 9″
Right independent printed segment; not derived by symmetry. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: METAL PIPE RAIL
Source-local detail/type only; no installed quantity or physical placement.
Distinct from existing at-face bracket. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: CAST BRACKET AT WALL
Distinct from existing at-face bracket. Source-local detail/type only; no installed quantity or physical placement.
219 sheet-number
Plan note differs from separate section reference to 217; no revision preference. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: SEE SHEET #219 FOR INTERIOR DETAILS
Plan note differs from separate section reference to 217; no revision preference. Source-local detail/type only; no installed quantity or physical placement.
Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: BRONZE LANTERN NOT IN CONSTRUCTION CONTRACT
Source-local detail/type only; no installed quantity or physical placement.
90 in
Central elevation leaf-height line; exact clear/rough opening boundary remains unaccepted. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 7′-6″
Central elevation leaf-height line; exact clear/rough opening boundary remains unaccepted. Source-local detail/type only; no installed quantity or physical placement.
