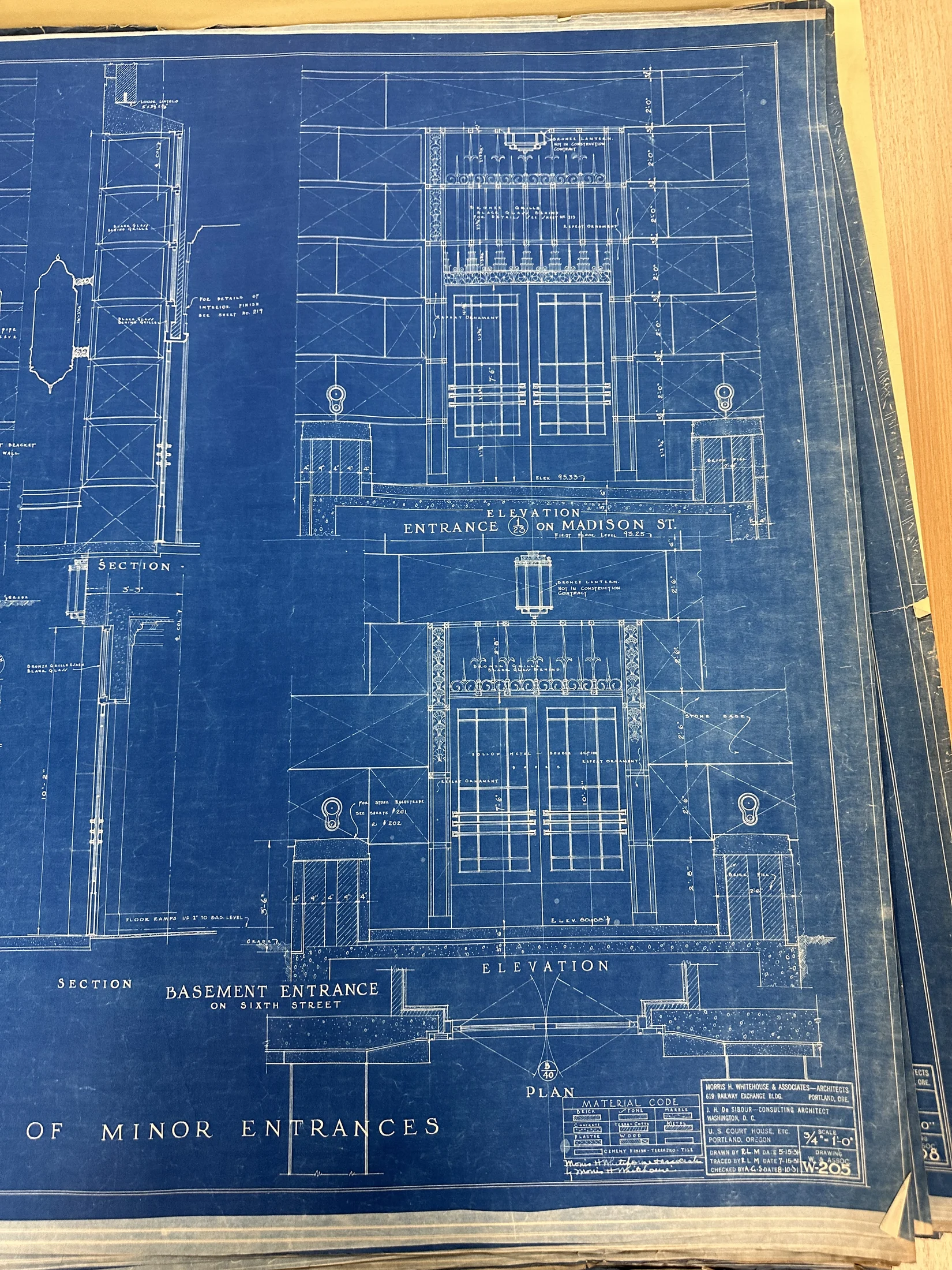

Drawing notation: ENTRANCE [23] ON MADISON ST.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: ELEV. 95.337
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: Paired entrance leaves beneath ornamental transom
Selected visible evidence only; partial review. Applies to this depicted assembly.
OCR suggests STONE; full material coding and surround notes remain unresolved at locator size.
Drawing notation: STONE
OCR suggests STONE; full material coding and surround notes remain unresolved at locator size.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: BASEMENT ENTRANCE ON SIXTH STREET
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: Paired doors with ornamental transom and flanking masonry piers
Selected visible evidence only; partial review. Applies to this depicted assembly.
Numeric value unresolved
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Selected visible evidence only; partial review. Applies to this depicted assembly.
Drawing notation: 3/4"=1'-0"
Selected visible evidence only; partial review. Applies to this depicted assembly.
90 in
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: 7′-6″
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
217 sheet-number
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: FOR DETAILS OF INTERIOR FINISH SEE SHEET NO. 217
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: BRONZE LANTERN NOT IN CONSTRUCTION CONTRACT
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
2 in
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: FLOOR RAMPS UP 2″ TO BAS. LEVEL
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
84 in
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established. Review correction review-correction-20261013i-detail-20261011h-img1075-5: Same-image high-resolution Sixth Street elevation central leaf-height line reads 7′-6″; earlier transcription 7′-0″ is disproved. Threshold/head witness scope unchanged; no revision selection or geometry approval.
Drawing notation: 7′-0″
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: STONE BASE
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
39 in
Horizontal section notation above transom/door plane; exact interior/exterior face classes unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: 3′-3″
Horizontal section notation above transom/door plane; exact interior/exterior face classes unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Sixth Street basement paired-door elevation; not Broadway doorway assignment. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: HOLLOW METAL - DOUBLE ACTION
Sixth Street basement paired-door elevation; not Broadway doorway assignment. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Leader to door-applied ornament; independent from hollow-metal door construction. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: STEEL ORNAMENT
Leader to door-applied ornament; independent from hollow-metal door construction. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Sixth Street section transom leader; glazing thickness unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: BLACK GLASS
Sixth Street section transom leader; glazing thickness unresolved. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
23 mark-number
Circular entrance mark reads 23 in this exposure. Confirms batch07-b tentative [23], not a room number. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: ENTRANCE 23 ON MADISON ST.
Circular entrance mark reads 23 in this exposure. Confirms batch07-b tentative [23], not a room number. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
90 in
Central paired-leaf height line, sill baseline to leaf head, same line formerly transcribed 7′-0″. Pending explicit correction preserves earlier record. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 7′-6″
Central paired-leaf height line, sill baseline to leaf head, same line formerly transcribed 7′-0″. Pending explicit correction preserves earlier record. Source-local detail/type only; no installed quantity or physical placement.
Calculated from: detail-20261011h-img1075-5
122 in
Central overall line from lower threshold to transom head; endpoint observed as assembly limits, not a certified rough opening. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 10′-2″
Central overall line from lower threshold to transom head; endpoint observed as assembly limits, not a certified rough opening. Source-local detail/type only; no installed quantity or physical placement.
32 in
Central transom dimension; distinct from right-side masonry course chain. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 2′-8″
Central transom dimension; distinct from right-side masonry course chain. Source-local detail/type only; no installed quantity or physical placement.
42 in
Left flanking pier line begins at drawn grade and ends at cap; no grade datum transformation. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 3′-6″
Left flanking pier line begins at drawn grade and ends at cap; no grade datum transformation. Source-local detail/type only; no installed quantity or physical placement.
4 in
One indicated brick-strip chain component; repeated printed 4″ segments not installed count. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 4″
One indicated brick-strip chain component; repeated printed 4″ segments not installed count. Source-local detail/type only; no installed quantity or physical placement.
9 in
One indicated tile-strip chain component; no thickness assignment. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: 9″
One indicated tile-strip chain component; no thickness assignment. Source-local detail/type only; no installed quantity or physical placement.
201 sheet-number
First companion number. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: FOR STONE BALUSTRADE SEE SHEETS 201 & 202
First companion number. Source-local detail/type only; no installed quantity or physical placement.
202 sheet-number
Second companion number. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: FOR STONE BALUSTRADE SEE SHEETS 201 & 202
Second companion number. Source-local detail/type only; no installed quantity or physical placement.
Printed split-circle mark preserved literally; object is not assigned installed basement opening. Source-local detail/type only; no installed quantity or physical placement.
Drawing notation: B/40
Printed split-circle mark preserved literally; object is not assigned installed basement opening. Source-local detail/type only; no installed quantity or physical placement.
