The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

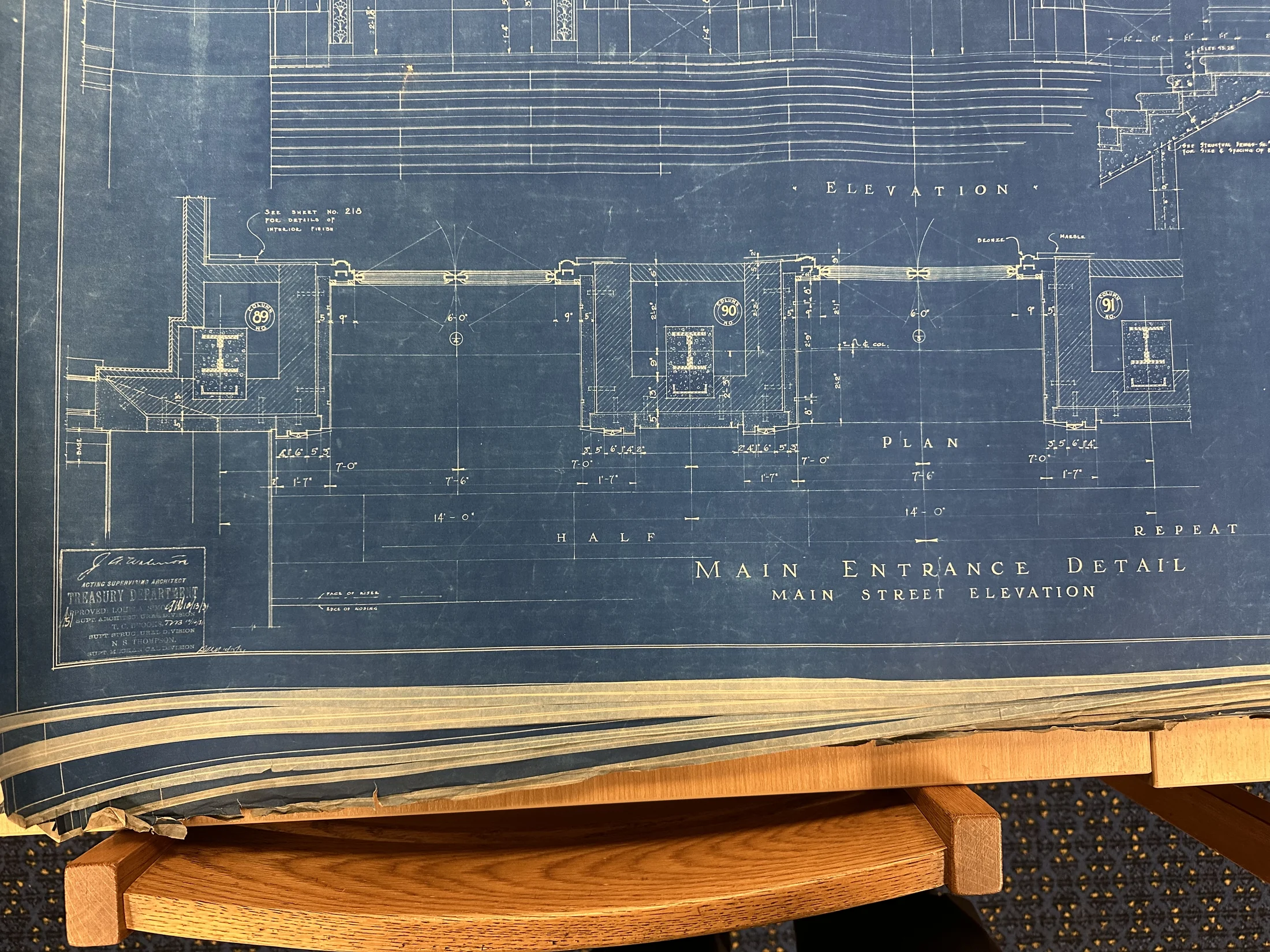

IMG_1073 · Folder 191

MAIN ENTRANCE DETAIL · MAIN STREET ELEVATION

Sheet number unresolved

Extraction: Reviewed · extraction partial. Bounded review of the complete upright sheet, Main entrance plan, printed bay/door width chains, Columns 89–91, the REPEAT note, and the upper-right stair/structural fragment. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Center entrance bronze-leaf physical placement gate; one IMG_1298 region checked against prior entrance packages. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Conditional Q-Y central-axis/printed-chain comparison against held-out W3 trace. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Main exterior center framed-entrance physical gate; no finite frame or host-wall cut authorized. Partial timed visual review: Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established. Partial timed visual review: Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Text-only reuse disposition; no new image-view attempt and no new visual evidence. Partial timed visual review: Text-first reuse only; no image reopened for this record. Prior packages and explicit missing work remain controlling.

Unresolved extraction work

Drawing number and complete title-block transcription
Every upper-elevation dimension and ornamental profile
Exact endpoints for the small 3-inch/4-inch/5-inch/6-inch/9-inch jamb chains
Door height, threshold, reveal depth, frame section, hinges and hardware
Stair structural member size and spacing referenced to another structural sheet
As-built correspondence
Exact leaf height from a labeled sill-to-leaf-head chain
Leaf thickness or closed section/profile, including the glazed portion
Sill/threshold elevation and relation to the 93.24 exterior landing and 93.25 first-floor datum
Accepted door-plane Z and host wall-face/reveal depth
Leaf hinge/pivot axis and closed-position offset from the bay center
Glazing thickness, panel build-up and hardware if detailed physical construction is attempted
directly classified W3/W214 corresponding bay-boundary faces or axes
an independent dimensioned station tying U or one Q/Y endpoint to the Main column/door grid
north-wall Z face and section thickness
bay pier/return and opening cuts
held-out source check against the same physical edge class rather than 2-foot-tolerance locators
Two classified finished host-wall face stations and a closed host segment
Frame outer/inner face depths, actual section thickness and reveal return
Accepted left/right finished frame jamb stations and rough opening limits
Frame sill/threshold top and underside tied to the exterior landing and first-floor finish
Frame head elevation and vertical transom/glazing limits
Material/profile build-up for bronze frame and glass
Accepted opening cut through the host wall and as-built correspondence
Remaining fine dimension fractions, witness endpoints and full material-symbol assignments need targeted high-resolution crops
Companion sheets and duplicate/revision authority require reconciliation
Installed floor/room registration and modeling/whole-building acceptance checks outstanding
Fine fractional profile dimensions and endpoint face/centerline classes: not yet reviewed at sufficient resolution
Installed opening/finish assignment, companion authority and revisions: not yet reconciled
Physical registration and model acceptance: not established
33/26in local chains remain reused without approved face classification; center-frame glazing build-up is not closed.
White/yellow coexistence observed; issue authority and revised/original identities remain unresolved. Small dimension glyphs do not establish bronze frame profile or installed transform.
Classify finished/rough/masonry/frame witnesses and reconcile companion/source issue authority.
Installed room/floor instance and world transform remain unaccepted.
Remaining regional notes, sections, material schedules, fastenings and whole-source coverage remain partial.
Depth-chain endpoint classification and frame/glazing construction remain unresolved; prior 2-foot9/2-foot2 glyphs are reused without fresh duplication.
Complete remaining notes, dimensions, schedules, section profiles and companion details remain to be reviewed.
Original/revision authority, finished/rough/masonry/frame endpoint classes, installed quantities, world registration and model acceptance remain unresolved.
Prior33/26-inch local depths reused; exact endpoints remain unresolved, so detail-20261011h-img1073-4 is not closed. W218 glazing build-up is a companion/multi-image question and is not closed here.
Classified finished/rough/masonry/frame witness endpoints and installation registration remain unresolved.
Companion drawings, original/revision authority and as-built applicability remain unresolved.
Complete remaining notes, courses, profiles, opening construction and whole-source/model acceptance remain outstanding.
Door threshold/sill tied to93.24 landing and93.25 first-floor datum
Host-wall face/reveal depth and accepted door-plane station
Full opening section, remaining fine dimensions and as-built registration

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

46 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

main-north-entrance-door-groupverified · printed

Repeated entrance bay spacing

14′0″

14 ft

Printed centerline module in the Main entrance plan; repeated between successive numbered columns.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

main-north-entrance-door-groupverified · printed

Framed door-assembly width

7′6″

7.5 ft

Printed plan width across the framed entrance assembly; not labeled as clear opening or rough opening.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

main-north-entrance-door-groupverified · printed

Bronze double-door pair width

6′0″

6 ft

Printed across the paired swinging bronze leaves in plan.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

f1-door-main-exterior-eastverified · derived

Registered bay center X

-14.000 ft

-14 ft

Midpoint of verified Columns 89 and 90; canonical +X is west.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: column-89-registered-world-x, column-90-registered-world-x, main-entrance-img1073-bay-spacing

f1-door-main-exterior-eastunreviewed · derived

Provisional door-plane center Z

75.434 ft

75.434 ft

Mean of the two W3 traced door endpoints; uncertainty remains 1.25 feet.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: f1-door-main-exterior-east-jamb-1-north, f1-door-main-exterior-east-jamb-2-north

f1-door-main-exterior-eastunreviewed · derived

W3 traced center minus grid-bay center

-0.5535 ft

-0.5535 ft

Absolute residual is below the 1.25-foot W3 registration uncertainty.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: f1-door-main-exterior-east-jamb-1-west, f1-door-main-exterior-east-jamb-2-west, main-entrance-east-bay-center-world-x

f1-door-main-exterior-centerverified · derived

Registered bay center X

0.000 ft

0 ft

Midpoint of verified Columns 90 and 91; canonical +X is west.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: column-90-registered-world-x, column-91-registered-world-x, main-entrance-img1073-bay-spacing

f1-door-main-exterior-centerunreviewed · derived

Provisional door-plane center Z

75.577 ft

75.577 ft

Mean of the two W3 traced door endpoints; uncertainty remains 1.25 feet.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: f1-door-main-exterior-center-jamb-1-north, f1-door-main-exterior-center-jamb-2-north

f1-door-main-exterior-centerunreviewed · derived

W3 traced center minus grid-bay center

-0.1900 ft

-0.19 ft

Absolute residual is below the 1.25-foot W3 registration uncertainty.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: f1-door-main-exterior-center-jamb-1-west, f1-door-main-exterior-center-jamb-2-west, main-entrance-center-bay-center-world-x

f1-door-main-exterior-westverified · derived

Registered bay center X

14.000 ft

14 ft

Midpoint of verified Columns 91 and 92; canonical +X is west.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: column-91-registered-world-x, column-92-registered-world-x, main-entrance-img1073-bay-spacing

f1-door-main-exterior-westunreviewed · derived

Provisional door-plane center Z

75.637 ft

75.637 ft

Mean of the two W3 traced door endpoints; uncertainty remains 1.25 feet.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: f1-door-main-exterior-west-jamb-1-north, f1-door-main-exterior-west-jamb-2-north

f1-door-main-exterior-westunreviewed · derived

W3 traced center minus grid-bay center

-0.6115 ft

-0.6115 ft

Absolute residual is below the 1.25-foot W3 registration uncertainty.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 7'-0"; 6'-0"; BRONZE; MARBLE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Printed plan controls only. The complete access image is 2200 × 1650; the master is 4032 × 3024. Sheet number remains unreadable.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Three Main exterior door groups with swing arcs

Existing W3 registration supplies provisional door-plane positions; it does not establish printed door sizes.

Calculated from: f1-door-main-exterior-west-jamb-1-west, f1-door-main-exterior-west-jamb-2-west, main-entrance-west-bay-center-world-x

f1-door-main-exterior-centerverified · printed

Paired bronze door width in plan

6'-0"

6 ft

Pair width only; it does not state an individual leaf width or physical thickness. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

The 6-foot dimension spans a paired bronze door opening. Jamb chains are not converted into a leaf thickness or reveal depth. The 7-foot-6-inch callout lies on the transverse frame-width chain, not a vertical leaf-height chain.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 6'-0"; BRONZE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Prior verified entrance-door registration; this pass did not reopen IMG_1073.

f1-door-main-exterior-centerverified · printed

Framed entrance assembly plan width

7'-6"

7.5 ft

This horizontal assembly width is not a 7-foot-6-inch leaf height. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 6'-0"; BRONZE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Prior verified entrance-door registration; this pass did not reopen IMG_1073.

f1-door-main-exterior-centerverified · derived

Parent bay center in canonical building X

Columns 90-91, 14'-0" module

0 ft

Bay center is not an individual leaf hinge or leaf centroid. Physical leaf and building placement withheld.

IMG_1298 · Locate on drawing ↗

Drawing notation: PLAN; 6'-0"; 7'-6"; 14'-0"; COLUMN 89; COLUMN 90; COLUMN 91; REPEAT

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; 14'-0"; 7'-6"; 6'-0"; BRONZE; COLUMN NO. 89; COLUMN NO. 90; COLUMN NO. 91; REPEAT

Prior verified entrance-door registration; this pass did not reopen IMG_1073.

Calculated from: column-90-registered-world-x, column-91-registered-world-x, main-entrance-img1073-bay-spacing

w3-qy-boundary-00-west-qunreviewed · inferred

conditional bay boundary canonical X

65 ft, conditional U-center alignment

65 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-01-q-runreviewed · inferred

conditional bay boundary canonical X

51 ft, conditional U-center alignment

51 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-02-r-sunreviewed · inferred

conditional bay boundary canonical X

36 ft, conditional U-center alignment

36 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-03-s-tunreviewed · inferred

conditional bay boundary canonical X

21 ft, conditional U-center alignment

21 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-04-t-uunreviewed · inferred

conditional bay boundary canonical X

7 ft, conditional U-center alignment

7 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-05-u-vunreviewed · inferred

conditional bay boundary canonical X

-7 ft, conditional U-center alignment

-7 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-06-v-wunreviewed · inferred

conditional bay boundary canonical X

-21 ft, conditional U-center alignment

-21 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-07-w-xunreviewed · inferred

conditional bay boundary canonical X

-35 ft, conditional U-center alignment

-35 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-08-x-yunreviewed · inferred

conditional bay boundary canonical X

-50 ft, conditional U-center alignment

-50 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

w3-qy-boundary-09-east-yunreviewed · inferred

conditional bay boundary canonical X

-64 ft, conditional U-center alignment

-64 ft

Printed W214 intervals plus conditional U-center-to-Main-entrance correspondence. Not a surveyed boundary or accepted physical pier station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: BAY Y · BAY X · BAY W · BAY V · BAY U · BAY T · BAY S · BAY R · BAY Q

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1302 · sheet-W214 · Locate on drawing ↗

Drawing notation: Q-R-S-T-U-V-W-X-Y; 14′, 15′, 15′, 14′, 14′, 14′, 14′, 15′, 14′

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 14′ entrance modules at Columns 89–92; registered centers X −14, 0, +14 ft

Conditional axis hypothesis; not a classified wall, pier, opening or finish boundary.

main-north-center-exterior-framed-assemblyunreviewed · derived

parent bay center canonical X

COLUMN NO. 90 / COLUMN NO. 91; 14'-0" module

0 ft

accepted-grid-center-only. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: COLUMN NO. 90 / COLUMN NO. 91; 14'-0" module

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. This is the center of the structural bay, not a verified frame jamb or centroid.

Calculated from: column-90-registered-world-x, column-91-registered-world-x, main-entrance-img1073-bay-spacing

main-north-center-exterior-framed-assemblyverified · printed

nominal framed assembly width in plan

7'-6"

7.5 ft

verified-prior-registration. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 7'-6"

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. Horizontal frame width, not frame height, rough wall opening or clear passage.

Calculated from: main-entrance-img1073-door-frame-width

f1-door-main-exterior-centerverified · printed

paired bronze leaves width in plan

6'-0"

6 ft

verified-prior-registration. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 6'-0"

Calculated from: main-entrance-img1073-bronze-door-pair-width

main-north-center-exterior-framed-assemblyunreviewed · derived

conditional west/positive-X outer frame limit if exactly centered on bay

0 + (7'-6" / 2)

3.75 ft

diagnostic-not-accepted. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 0 + (7'-6" / 2)

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. The printed plan and provisional W3 trace do not independently verify a finished frame edge at this exact station.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: 0 + (7'-6" / 2)

+X west/page-right and +Z north/page-down under the provisional W3 transform; provisional-unreviewed-plan-trace. The printed plan and provisional W3 trace do not independently verify a finished frame edge at this exact station.

Calculated from: center-frame-bay-center-x, center-frame-plan-width

main-north-center-exterior-framed-assemblyunreviewed · derived

conditional east/negative-X outer frame limit if exactly centered on bay

0 - (7'-6" / 2)

-3.75 ft

diagnostic-not-accepted. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: 0 - (7'-6" / 2)

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. Not a verified finished jamb, rough opening or wall-cut edge.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: 0 - (7'-6" / 2)

+X west/page-right and +Z north/page-down under the provisional W3 transform; provisional-unreviewed-plan-trace. Not a verified finished jamb, rough opening or wall-cut edge.

Calculated from: center-frame-bay-center-x, center-frame-plan-width

main-north-center-exterior-framed-assemblyunreviewed · inferred

accepted exterior finished frame/host face canonical Z

Unresolved

Numeric value unresolved

unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; COLUMN NO. 90; COLUMN NO. 91; 14'-0"; 7'-6"; 6'-0"; BRONZE

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Main exterior center door group; door group with swing arcs

+X west/page-right and +Z north/page-down under the provisional W3 transform; provisional-unreviewed-plan-trace.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: PLAN AT MAIN ST. DOORS; METAL THRESHOLD

upright Main Street exterior door plan; page directions not used as canonical stations; targeted-identity-and-threshold-label-review; depth-chain-endpoints-unresolved.

main-north-center-exterior-framed-assemblyunreviewed · inferred

accepted foyer-side finished frame/host face canonical Z

Unresolved

Numeric value unresolved

unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; COLUMN NO. 90; COLUMN NO. 91; 14'-0"; 7'-6"; 6'-0"; BRONZE

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Main exterior center door group; door group with swing arcs

+X west/page-right and +Z north/page-down under the provisional W3 transform; provisional-unreviewed-plan-trace.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: PLAN AT MAIN ST. DOORS; METAL THRESHOLD

upright Main Street exterior door plan; page directions not used as canonical stations; targeted-identity-and-threshold-label-review; depth-chain-endpoints-unresolved.

main-north-center-exterior-framed-assemblyunreviewed · inferred

physical frame front-to-back depth or section thickness

Unresolved

Numeric value unresolved

unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; COLUMN NO. 90; COLUMN NO. 91; 14'-0"; 7'-6"; 6'-0"; BRONZE

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. Small plan chains exist but their endpoints cannot yet be mapped to frame front/back faces.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: PLAN AT MAIN ST. DOORS; METAL THRESHOLD

upright Main Street exterior door plan; page directions not used as canonical stations; targeted-identity-and-threshold-label-review; depth-chain-endpoints-unresolved. Small plan chains exist but their endpoints cannot yet be mapped to frame front/back faces.

main-north-center-exterior-framed-assemblyunreviewed · inferred

physical host-wall thickness across opening

Unresolved

Numeric value unresolved

unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; COLUMN NO. 90; COLUMN NO. 91; 14'-0"; 7'-6"; 6'-0"; BRONZE

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved.

IMG_1202 · sheet-W3 · Locate on drawing ↗

Drawing notation: Main exterior center door group; door group with swing arcs

+X west/page-right and +Z north/page-down under the provisional W3 transform; provisional-unreviewed-plan-trace.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: PLAN AT MAIN ST. DOORS; METAL THRESHOLD

upright Main Street exterior door plan; page directions not used as canonical stations; targeted-identity-and-threshold-label-review; depth-chain-endpoints-unresolved.

main-north-center-exterior-framed-assemblyunreviewed · inferred

accepted frame head canonical Y

Unresolved

Numeric value unresolved

unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; COLUMN NO. 90; COLUMN NO. 91; 14'-0"; 7'-6"; 6'-0"; BRONZE

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. Foyer ceiling height and small elevation component dimensions do not establish the assembly head.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: PART ELEVATION OF FOYER SIDE OF MAIN ST. ENTRANCE DOORS

upright foyer-side elevation; no scale inferred from raster; targeted-identity-and-material-review; dimension endpoints not accepted. Foyer ceiling height and small elevation component dimensions do not establish the assembly head.

main-north-center-exterior-framed-assemblyunreviewed · inferred

host-wall rough opening width

Unresolved

Numeric value unresolved

unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: MAIN ENTRANCE DETAIL; MAIN STREET ELEVATION; PLAN; COLUMN NO. 90; COLUMN NO. 91; 14'-0"; 7'-6"; 6'-0"; BRONZE

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. The printed 7-foot-6-inch frame width is not recast as rough opening width.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: PLAN AT MAIN ST. DOORS; METAL THRESHOLD

upright Main Street exterior door plan; page directions not used as canonical stations; targeted-identity-and-threshold-label-review; depth-chain-endpoints-unresolved. The printed 7-foot-6-inch frame width is not recast as rough opening width.

main-north-center-exterior-framed-assemblyunreviewed · observed

bronze/glass panel and frame section build-up

BRONZE; glass fields shown on W218 foyer-side elevation

Numeric value unresolved

geometry-unresolved. Printed bay control and provisional W3 line do not complete frame XYZ extents or host.

IMG_1073 · sheet-IMG1073-main-entrance-detail · Locate on drawing ↗

Drawing notation: BRONZE; glass fields shown on W218 foyer-side elevation

upright; elevation above plan; page-left/page-right are not world east/west; targeted-reviewed-for-assembly-identity-and-prior-plan-widths; elevation-head-and-jamb-depth-unresolved. Glazing thickness, profiles, attachments and full transom/head limits remain null.

IMG_1099 · sheet-W218 · Locate on drawing ↗

Drawing notation: BRONZE; glass fields shown on W218 foyer-side elevation

upright foyer-side elevation; no scale inferred from raster; targeted-identity-and-material-review; dimension endpoints not accepted. Glazing thickness, profiles, attachments and full transom/head limits remain null.

parallel-img1073-assemblyverified · printed

interior-finish-reference

SEE SHEET NO. 218 FOR DETAILS OF INTERIOR FINISH

218 sheet-number

Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.

IMG_1073 · W-204 · Locate on drawing ↗

Drawing notation: SEE SHEET NO. 218 FOR DETAILS OF INTERIOR FINISH

Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.

parallel-img1073-assemblyverified · printed

plan-riser-endpoint-class

FACE OF RISER

Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.

IMG_1073 · W-204 · Locate on drawing ↗

Drawing notation: FACE OF RISER

Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.

parallel-img1073-assemblyverified · printed

plan-nosing-endpoint-class

EDGE OF NOSING

Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.

IMG_1073 · W-204 · Locate on drawing ↗

Drawing notation: EDGE OF NOSING

Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.

View all source photographs →
