The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs: 464
Identified objects: 4872
Verified printed values: 12046
Disputed values: 20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

IMG_1071 · Folder 191

Entrances, site thresholds and exterior approach

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential visual review after catalogue and OCR using 1000px quality65 JPEG locator derived from public/archive/drawings/complete-upright/IMG_1071.webp. Access image lettering is upright. Normalized regions reference original access image. No modeling or exact geometry inferred. Partial timed visual review: Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established. Partial timed visual review: Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established. Partial timed visual review: undefined Partial timed visual review: undefined Partial timed visual review: Text-only reuse disposition; no new image-view attempt and no new visual evidence.

Unresolved extraction work

full-sheet completeness
all remaining fine dimensions, notes, schedules and callouts
floor and instance registration
Remaining fine dimension fractions, witness endpoints and full material-symbol assignments need targeted high-resolution crops
Companion sheets and duplicate/revision authority require reconciliation
Installed floor/room registration and modeling/whole-building acceptance checks outstanding
Fine fractional profile dimensions and endpoint face/centerline classes: not yet reviewed at sufficient resolution
Installed opening/finish assignment, companion authority and revisions: not yet reconciled
Physical registration and model acceptance: not established

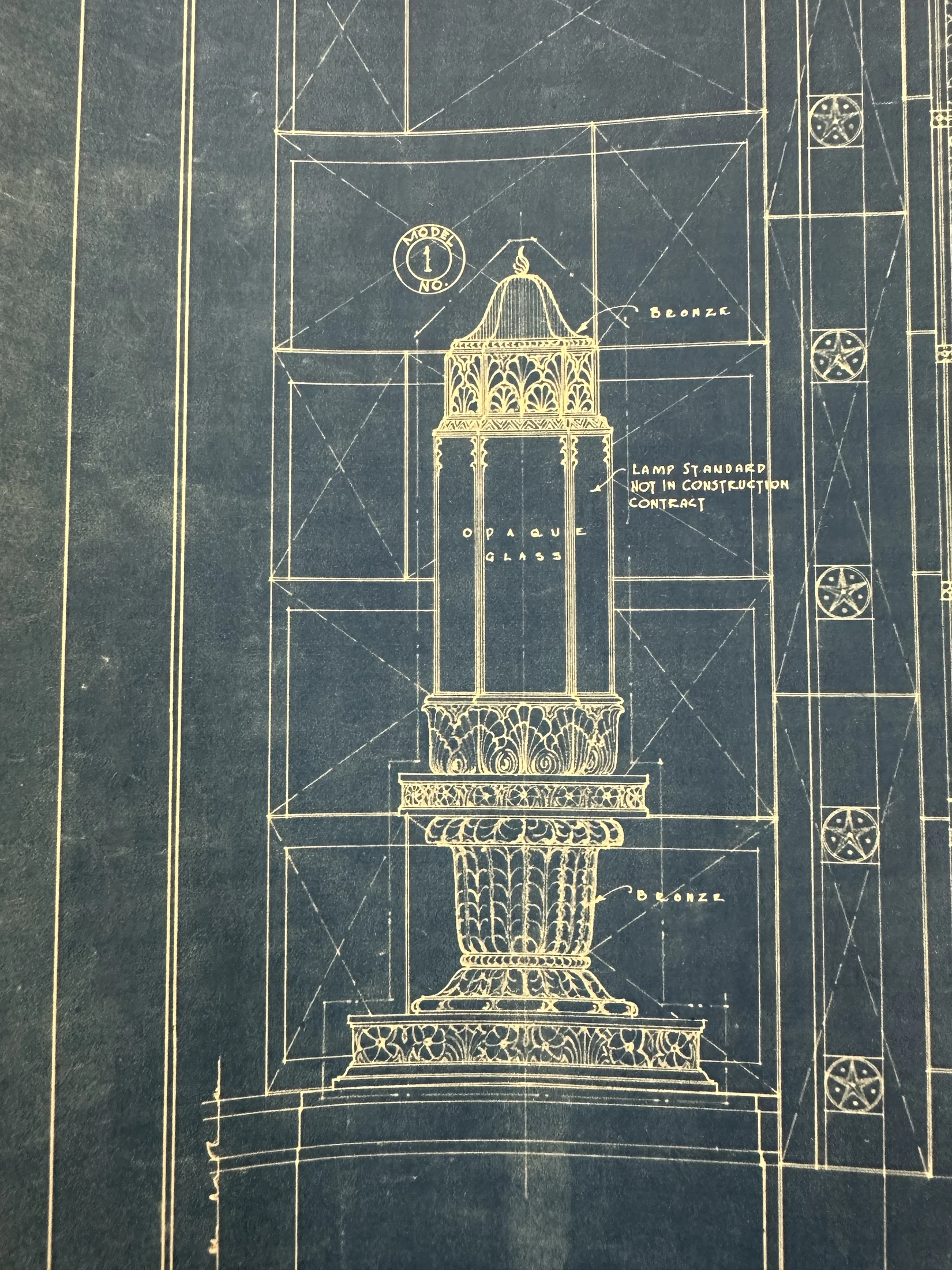

No new lamp-standard dimensional witness inspected; dimensional null remains open.
Classify finished/rough/masonry/frame witnesses and reconcile companion/source issue authority.
Installed room/floor instance and world transform remain unaccepted.
Remaining regional notes, sections, material schedules, fastenings and whole-source coverage remain partial.
Lamp dimensional annotations remain unresolved; no new witness available from text routing.
Complete remaining notes, dimensions, schedules, section profiles and companion details remain to be reviewed.
Original/revision authority, finished/rough/masonry/frame endpoint classes, installed quantities, world registration and model acceptance remain unresolved.
No verified numeric dimension in prior lamp-standard review; absence of a legible dimension does not close numeric null parallel-img1071-m006.
Classified finished/rough/masonry/frame witness endpoints and installation registration remain unresolved.
Companion drawings, original/revision authority and as-built applicability remain unresolved.
Complete remaining notes, courses, profiles, opening construction and whole-source/model acceptance remain outstanding.
