Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential visual review after catalogue and OCR using 1000px quality65 JPEG locator derived from public/archive/drawings/complete-upright/IMG_1069.webp. Access image lettering is upright. Normalized regions reference original access image. No modeling or exact geometry inferred. Partial timed visual review: Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established. Partial timed visual review: Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established. Partial timed visual review: undefined Partial timed visual review: Bounded target crop inspection; source-local printed/observed evidence only. Partial timed visual review: undefined Partial timed visual review: Text-only reuse: primary subject is Broadway lower stories; BALUSTRADE WALL AT GRADE is a neighboring sheet edge, not evidence establishing Main entrance/pole hosts.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visually read evidence; partial assembly-local extraction.

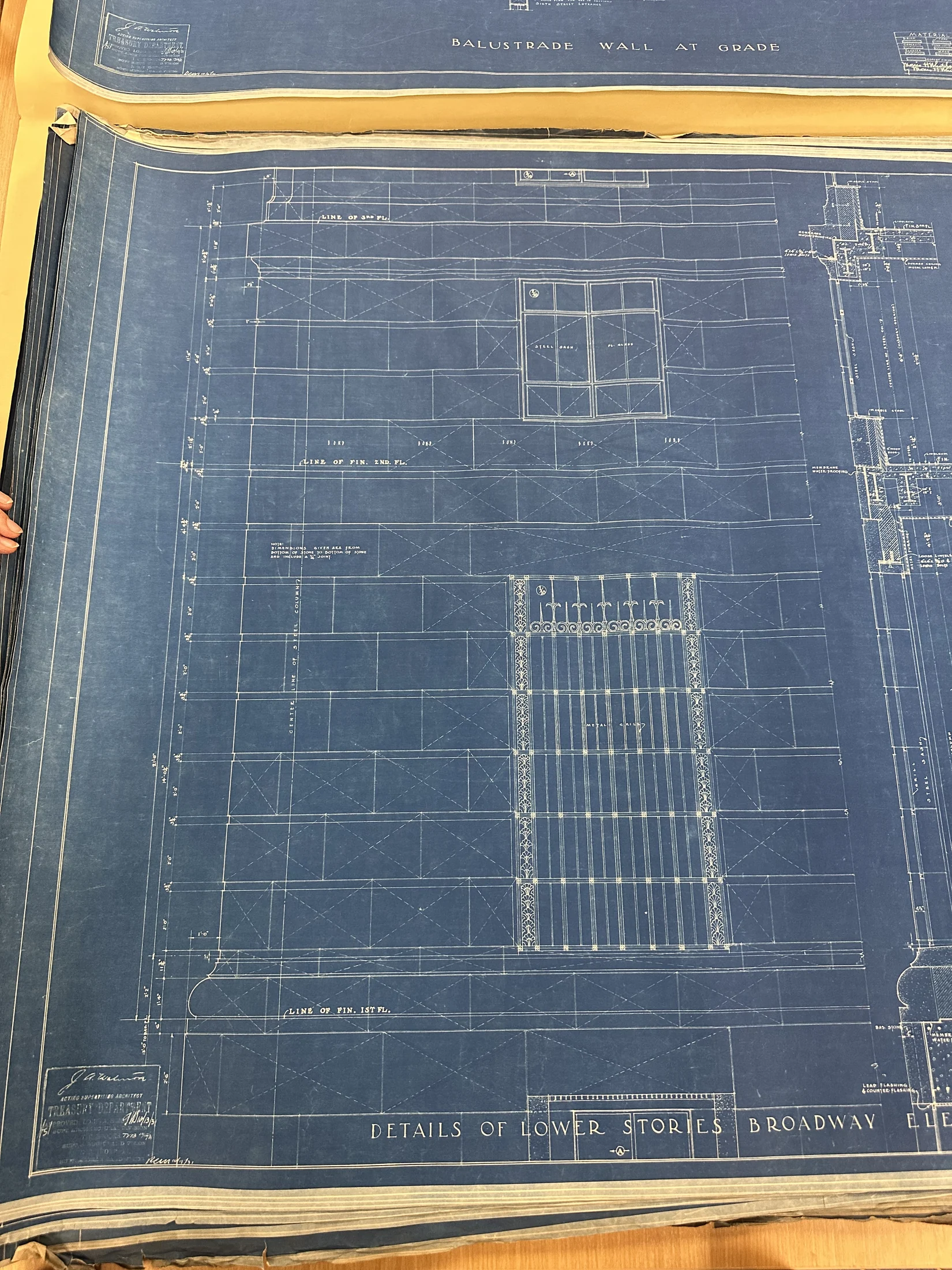

Drawing notation: DETAILS OF LOWER STORIES BROADWAY ELEVATION
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: BALUSTRADE WALL AT GRADE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: LINE OF FIN. 2ND FL.
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: LINE OF FIN. 1ST FL.
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: LINE OF 3RD FL.
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: Ornamental barred lower opening; framed upper sash
Selected visually read evidence; partial assembly-local extraction.
Numeric value unresolved
Uncertain or unreadable detail; value withheld; further review required.
Drawing notation: [course heights, window dimensions and section chains unresolved]
Uncertain or unreadable detail; value withheld; further review required.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: STEEL SASH
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: PL. GLASS
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: METAL GRILLE
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Drawing notation: DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE [remainder unresolved]
Source-local additive review only; no installed quantity, accepted physical placement, wall cuts or room geometry established.
Principal phrase reused from prior review; parenthetical needs a sharper crop. No endpoint class silently accepted. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Drawing notation: DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE (not including joints) [small parenthetical not securely readable]
Principal phrase reused from prior review; parenthetical needs a sharper crop. No endpoint class silently accepted. Source-local detail evidence only. No installed quantity, accepted placement, wall cut, grade datum transform or model geometry established.
Same-image original printed course note. Bottom-of-stone to bottom-of-stone includes joint; it does not say joints are excluded. This convention does not classify a full wall section or give building coordinates.
Drawing notation: NOTE: DIMENSIONS GIVEN ARE FROM BOTTOM OF STONE TO BOTTOM OF STONE AND INCLUDE A ¼″ JOINT.
Same-image original printed course note. Bottom-of-stone to bottom-of-stone includes joint; it does not say joints are excluded. This convention does not classify a full wall section or give building coordinates.
0.25 in
Printed included joint allowance in bottom-to-bottom stone course dimensions, not an opening clearance or material-layer thickness.
Drawing notation: ¼″ JOINT
Printed included joint allowance in bottom-to-bottom stone course dimensions, not an opening clearance or material-layer thickness.
Calculated from: exterior1014a-img1069-stone-course-note
20 in
Selected middle dimension across tall upper cornice profile component, below third-floor line. Numeric term only; companion fractional terms and finish/rough classification remain unresolved.
Drawing notation: 1′-8″
Selected middle dimension across tall upper cornice profile component, below third-floor line. Numeric term only; companion fractional terms and finish/rough classification remain unresolved.
Numeric value unresolved
Native locally rotated crop makes 1′-8″ clear but small adjacent fractional components remain ambiguous. No closure based on arithmetic or neighboring course sizes.
Native locally rotated crop makes 1′-8″ clear but small adjacent fractional components remain ambiguous. No closure based on arithmetic or neighboring course sizes.
