Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential visual review after catalogue and OCR using 1000px quality65 JPEG locator derived from public/archive/drawings/complete-upright/IMG_1065.webp. Access image lettering is upright. Normalized regions reference original access image. No modeling or exact geometry inferred. Partial timed visual review: Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established. Partial timed visual review: Source-local flagpole parapet chain rereading; conflicting prior value preserved, no dimensions transferred to model. Partial timed visual review: undefined Partial timed visual review: Raw master EXIF 1 is sideways. First raw crop was an orientation locator, not an upright fine-chain extraction. Second crop rotates raw raster 90 degrees clockwise, then selects normalized upright region. All new regions below refer to the 3024×4032 upright raster. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visually read evidence; partial assembly-local extraction.

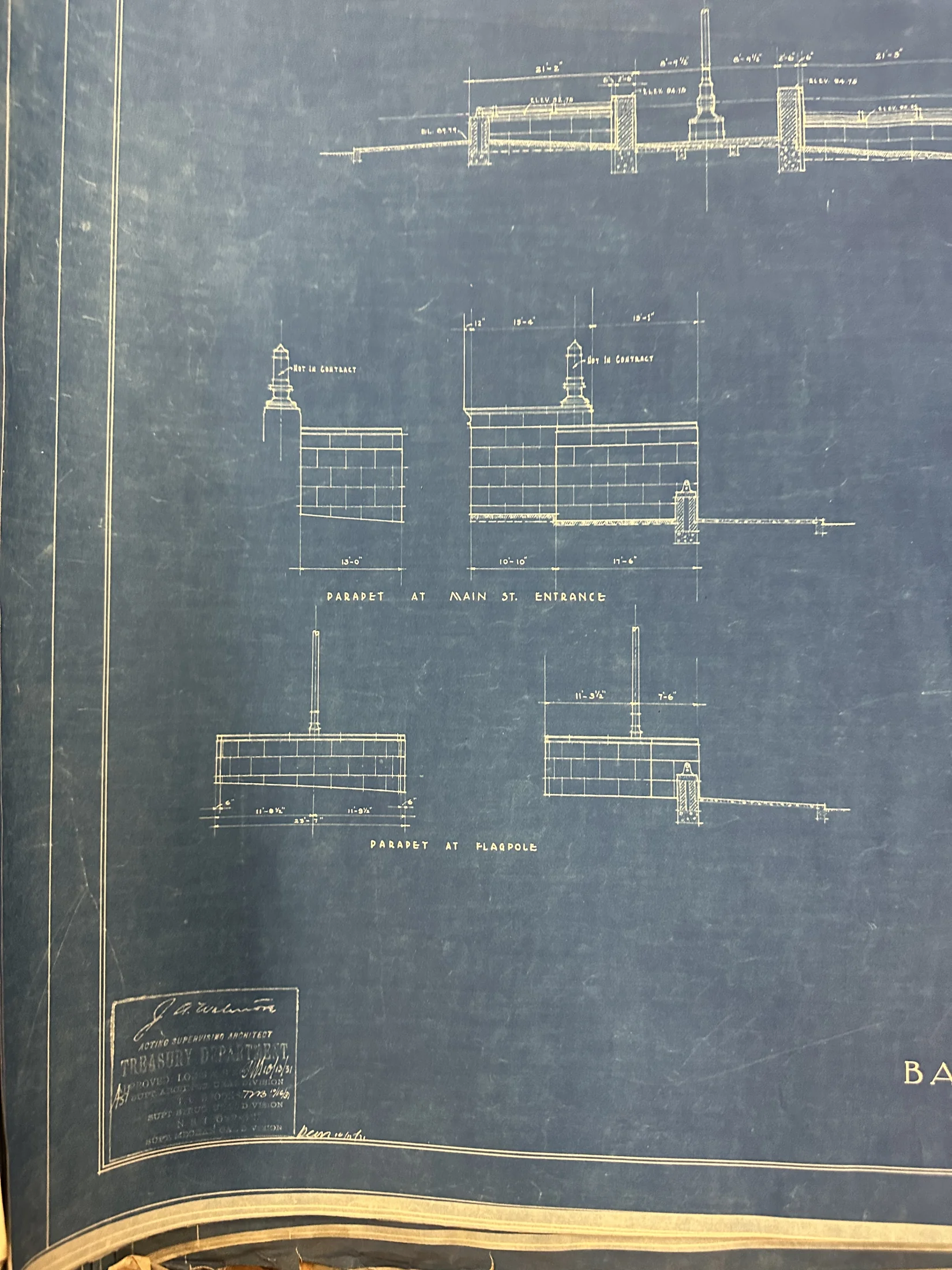

Drawing notation: PARAPET AT MAIN ST. ENTRANCE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: PARAPET AT FLAGPOLE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: NOT IN CONTRACT
Selected visually read evidence; partial assembly-local extraction.
156 in
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: 13'-0"
Selected visually read evidence; partial assembly-local extraction.
130 in
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: 10'-10"
Selected visually read evidence; partial assembly-local extraction.
138 in
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: 11'-6"
Selected visually read evidence; partial assembly-local extraction.
90 in
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: 7'-6"
Selected visually read evidence; partial assembly-local extraction.
Numeric value unresolved
Uncertain or unreadable detail; value withheld; further review required.
Drawing notation: [11 feet plus unreadable fraction]
Uncertain or unreadable detail; value withheld; further review required.
Numeric value unresolved
Uncertain or unreadable detail; value withheld; further review required.
Drawing notation: [upper balustrade chain and flagpole total/half dimensions unresolved]
Uncertain or unreadable detail; value withheld; further review required.
160 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 13'-4"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
157 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 13'-1"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
12 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 12"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
135.5 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 11'-3 1/2"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
281 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established. Review correction review-correction-20261014h-img1065-total-span: Same IMG1065 printed lower total chain beneath divided front spans reads23ft7in/283in, not earlier23ft5in/281in. Same access locus overlaps historicalrectangle[.308,.641,.338,.653] and new[.3,.643,.343,.65], with independent prior master corroboration also283in. Preserve original value/notation; no substituted revision layer or alternate station. Left-half glyph remains ambiguous, no symmetrical derivation, physical endpoints, world coordinates or governing installation accepted.
Drawing notation: 23'-5"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Numeric value unresolved
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 11'-8 1/2 [left] / 11'-9 1/2 [right; verify fractions]
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
283 in
Targeted access crop reads terminal numeral 7 on lower total chain between outer front parapet witness lines. Conflicts with prior 23'-5 reading; previous measurement remains independently preserved and installed acceptance awaits comparison.
Drawing notation: 23'-7"
Targeted access crop reads terminal numeral 7 on lower total chain between outer front parapet witness lines. Conflicts with prior 23'-5 reading; previous measurement remains independently preserved and installed acceptance awaits comparison.
Numeric value unresolved
Small half digits/fractions remain tentative. Chain arithmetic not used to promote either candidate; conflicts with earlier left 11'-8 1/2 candidate preserved.
Drawing notation: 11'-9 1/2" [left candidate] / 11'-9 1/2" [right candidate]
Small half digits/fractions remain tentative. Chain arithmetic not used to promote either candidate; conflicts with earlier left 11'-8 1/2 candidate preserved.
283 in
Printed total chain between extreme witness lines beneath the two half spans. Six-inch outer terms remain separate. Same photographed witness as conflicting earlier 23′-5″ transcription; governing installed issue not decided.
Drawing notation: 23′-7″
Printed total chain between extreme witness lines beneath the two half spans. Six-inch outer terms remain separate. Same photographed witness as conflicting earlier 23′-5″ transcription; governing installed issue not decided.
141.5 in
Right half chain from center witness to page-right end witness. Numeral and fraction readable independently; left half not inferred by symmetry or subtraction.
Drawing notation: 11′-9½″
Right half chain from center witness to page-right end witness. Numeral and fraction readable independently; left half not inferred by symmetry or subtraction.
Numeric value unresolved
Tight native crop still leaves the pre-fraction numeral unresolved. No symmetry or arithmetic used to promote it.
Drawing notation: 11′-[8/9 unresolved]½″
Tight native crop still leaves the pre-fraction numeral unresolved. No symmetry or arithmetic used to promote it.
283 in
Master independently corroborates the lower total-chain terminal 7. Prior 23'-5 remains preserved as a conflicting reading; no accepted revision precedence.
Drawing notation: 23'-7"
Master independently corroborates the lower total-chain terminal 7. Prior 23'-5 remains preserved as a conflicting reading; no accepted revision precedence.
Conflicting readings: detail-20261011h-img1065-5
141.5 in
Middle vertical axis/witness to page-right end witness of upper divided chain; stone face classification not fully closed. Direct glyph reading, not half of the total.
Drawing notation: 11'-9½"
Middle vertical axis/witness to page-right end witness of upper divided chain; stone face classification not fully closed. Direct glyph reading, not half of the total.
Numeric value unresolved
Left terminal inch digit remains insecure. Do not use 283 minus 141.5 to manufacture a printed left reading.
Drawing notation: 11'-[8/9 unclear]½"
Left terminal inch digit remains insecure. Do not use 283 minus 141.5 to manufacture a printed left reading.
6 in
Small diagonal dimension at page-left parapet end. Numeric token only; specific finished edge or molding projection remains unreviewed.
Drawing notation: 6"
Small diagonal dimension at page-left parapet end. Numeric token only; specific finished edge or molding projection remains unreviewed.
6 in
Independent small diagonal dimension at page-right end. Do not merge with the total or identify it as a rail diameter.
Drawing notation: 6"
Independent small diagonal dimension at page-right end. Do not merge with the total or identify it as a rail diameter.
