Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential visual review after catalogue and OCR using 1000px quality65 JPEG locator derived from public/archive/drawings/complete-upright/IMG_1064.webp. Access image lettering is upright. Normalized regions reference original access image. No modeling or exact geometry inferred. Partial timed visual review: Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established. Partial timed visual review: Source-local Sixth Street entrance stone/rail plan; no world transform or accepted geometry. Partial timed visual review: undefined Partial timed visual review: Text-first reuse only; no image reopened for this record. Prior packages and explicit missing work remain controlling. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visually read evidence; partial assembly-local extraction.

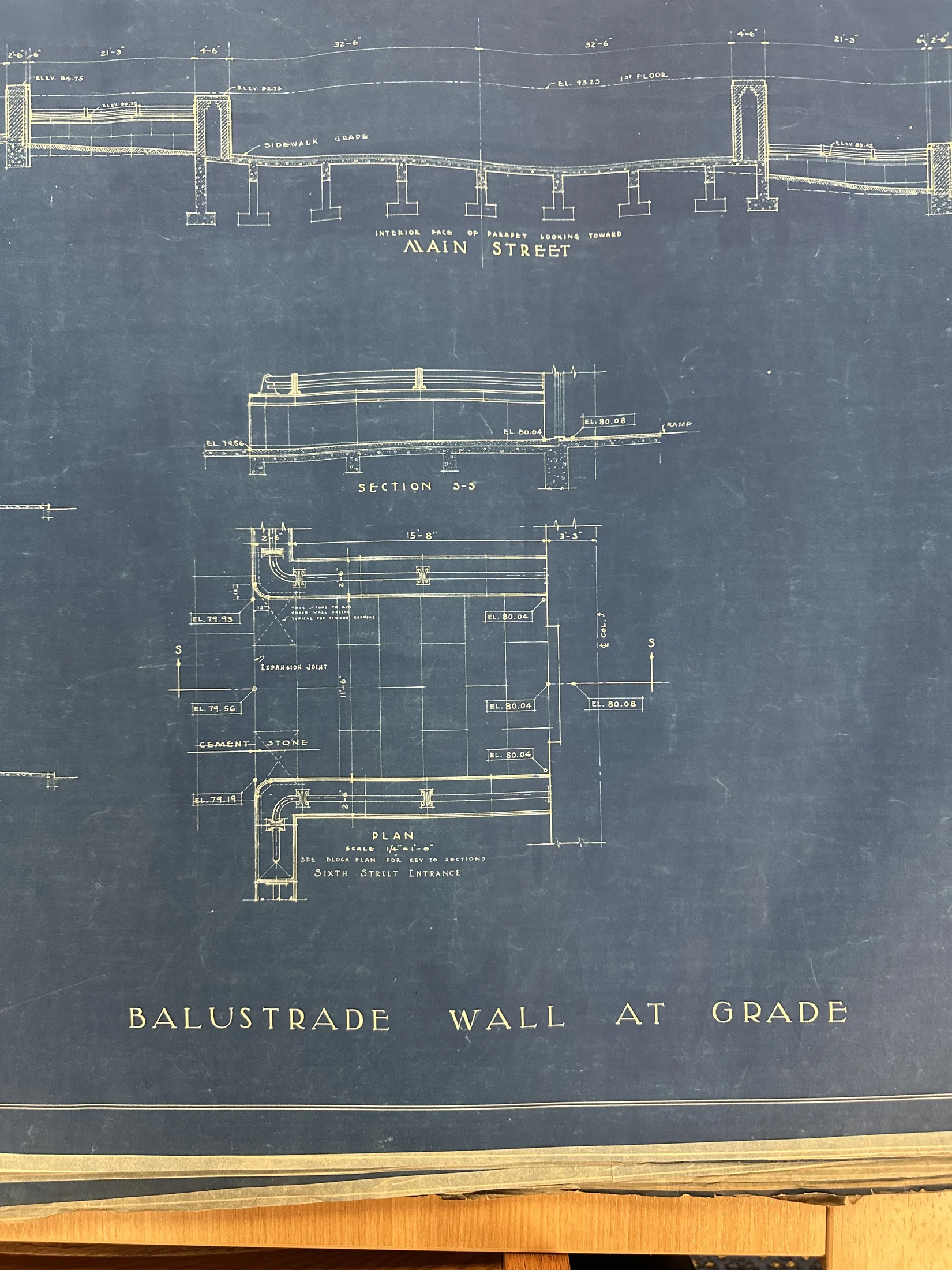

Drawing notation: BALUSTRADE WALL AT GRADE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: INTERIOR FACE OF PARAPET LOOKING TOWARD MAIN STREET
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: SECTION S-S
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: SIXTH STREET ENTRANCE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: SEE BLOCK PLAN FOR KEY TO SECTIONS
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: CEMENT STONE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: EXPANSION JOINT
Selected visually read evidence; partial assembly-local extraction.
188 in
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: 15'-8"
Selected visually read evidence; partial assembly-local extraction.
39 in
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: 3'-3"
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: RAMP
Selected visually read evidence; partial assembly-local extraction.
80.04 ft
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: EL. 80.04
Selected visually read evidence; partial assembly-local extraction.
80.08 ft
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: EL. 80.08
Selected visually read evidence; partial assembly-local extraction.
79.19 ft
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: EL. 79.19
Selected visually read evidence; partial assembly-local extraction.
79.93 ft
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: EL. 79.93
Selected visually read evidence; partial assembly-local extraction.
93.25 ft
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: EL. 93.25 1ST FLOOR
Selected visually read evidence; partial assembly-local extraction.
Numeric value unresolved
Uncertain or unreadable detail; value withheld; further review required.
Drawing notation: [other spot elevations/grade dimensions need finer reading; datum registration absent]
Uncertain or unreadable detail; value withheld; further review required.
390 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 32'-6"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
390 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 32'-6"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
79.56 ft
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: EL. 79.56
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
79.93 ft
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: EL. 79.93
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
79.56 ft
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: EL. 79.56
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
138 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 11'-6"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: SEE BLOCK PLAN FOR KEY TO SECTIONS
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
24 in
Targeted plan crop reads vertical 2'-0 between top/bottom parallel stone strip edges; not a rail diameter or full entrance width.
Drawing notation: 2'-0"
Targeted plan crop reads vertical 2'-0 between top/bottom parallel stone strip edges; not a rail diameter or full entrance width.
Partial note leader points at corner stone below curved rail. Remaining short phrase deliberately not completed.
Drawing notation: THIS STONE TO RUN UNDER WALL [following words unresolved]. TYPICAL FOR SIMILAR CORNERS
Partial note leader points at corner stone below curved rail. Remaining short phrase deliberately not completed.
Exact continuation of existing corner stone note. Leader addresses curved return stone under wall facing. Typical instruction is not an installed count or full facing specification.
Drawing notation: THIS STONE TO RUN UNDER WALL FACING / TYPICAL FOR SIMILAR CORNERS
Exact continuation of existing corner stone note. Leader addresses curved return stone under wall facing. Typical instruction is not an installed count or full facing specification.
30 in
Horizontal upper chain across drawn outer strip at curved corner. Different witness from the 2′-0″ interior strip chain; finish/rough-face classes remain unestablished.
Drawing notation: 2′-6″
Horizontal upper chain across drawn outer strip at curved corner. Different witness from the 2′-0″ interior strip chain; finish/rough-face classes remain unestablished.
24 in
Vertical drawn local strip witness at return run. Same glyph as earlier rails1012i width; no total wall or as-built thickness established.
Drawing notation: 2′-0″
Vertical drawn local strip witness at return run. Same glyph as earlier rails1012i width; no total wall or as-built thickness established.
80.04 unlabeled-number
Section S-S label beside inner entrance support/slab intersection. Distinct from same-number plan token. Numeric glyph only; no survey units or datum conversion.
Drawing notation: EL. 80.04
Section S-S label beside inner entrance support/slab intersection. Distinct from same-number plan token. Numeric glyph only; no survey units or datum conversion.
80.08 unlabeled-number
Boxed label and leader point to section slab/ramp junction right of support. Boxing is observed without inferring annotation chronology or revision authority. Distinct from plan token.
Drawing notation: EL. 80.08 [boxed]
Boxed label and leader point to section slab/ramp junction right of support. Boxing is observed without inferring annotation chronology or revision authority. Distinct from plan token.
Observed paired break marks interrupt the upper rail extension toward the section's ramp-side terminal witness. Do not calibrate continuous rail length from raster distance across break.
Drawing notation: [paired break marks across right-hand rail extension]
Observed paired break marks interrupt the upper rail extension toward the section's ramp-side terminal witness. Do not calibrate continuous rail length from raster distance across break.
