Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial sequential visual review after catalogue and OCR using 1000px quality65 JPEG locator derived from public/archive/drawings/complete-upright/IMG_1063.webp. Access image lettering is upright. Normalized regions reference original access image. No modeling or exact geometry inferred. Partial timed visual review: Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established. Partial timed visual review: Prior-report reuse only; full sheet not reopened or treated as equal revision to close photographs. Partial timed visual review: undefined Partial timed visual review: Two sequential master crops of Main interior parapet elevation. Raw raster and lettering upright (EXIF 1). Source page-right remains page-right; no compass or world-axis assignment. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visually read evidence; partial assembly-local extraction.

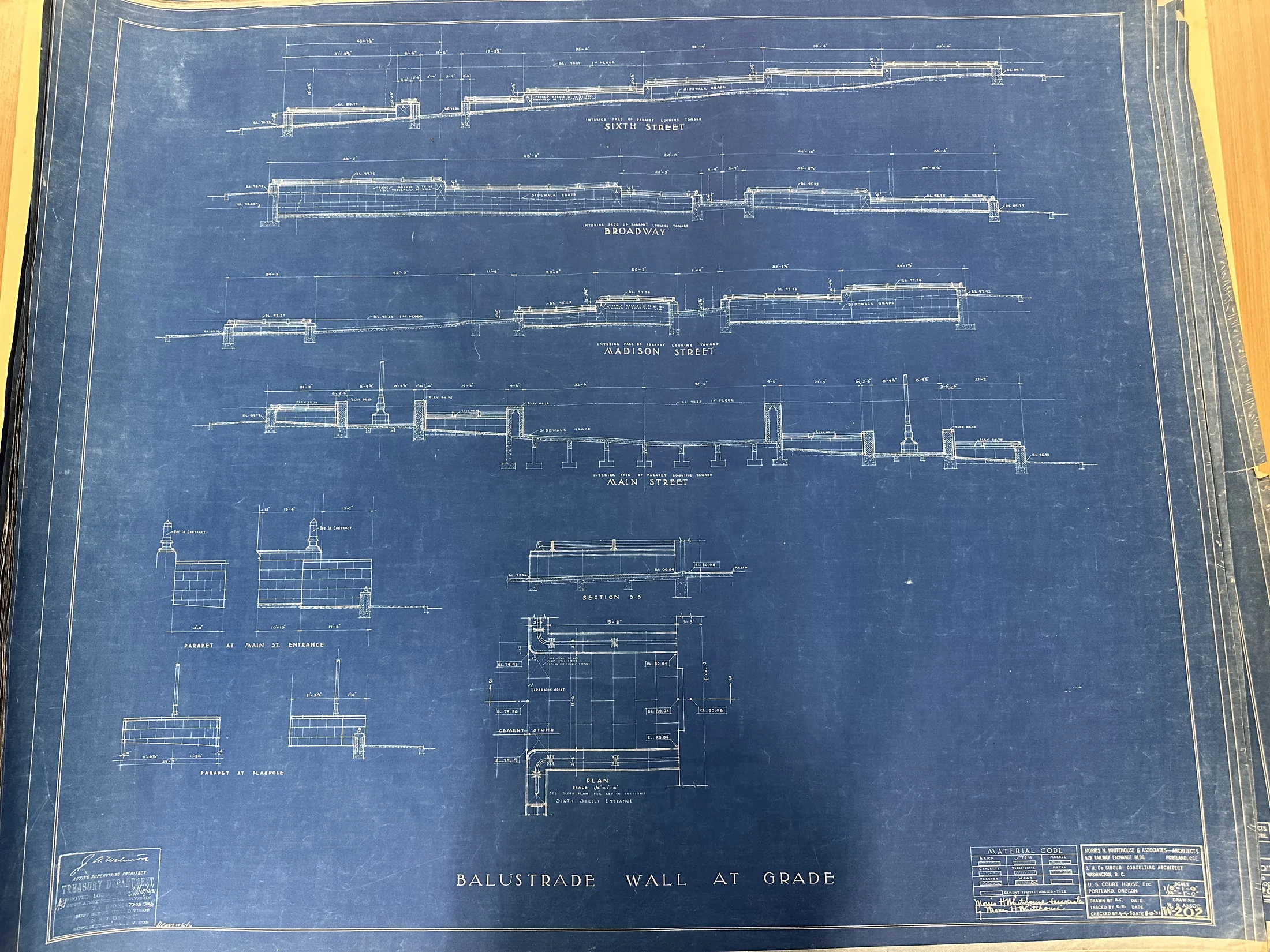

Drawing notation: BALUSTRADE WALL AT GRADE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: SIXTH STREET
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: BROADWAY
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: MADISON STREET
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: MAIN STREET
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: PARAPET AT MAIN ST. ENTRANCE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: PARAPET AT FLAGPOLE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: SIXTH STREET ENTRANCE
Selected visually read evidence; partial assembly-local extraction.
Selected visually read evidence; partial assembly-local extraction.
Drawing notation: SECTION S-S
Selected visually read evidence; partial assembly-local extraction.
Numeric value unresolved
Uncertain or unreadable detail; value withheld; further review required.
Drawing notation: [four street elevation length/elevation chains and entrance dimensions too small to verify]
Uncertain or unreadable detail; value withheld; further review required.
390 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 32'-6"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
390 in
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 32'-6"
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: SIDEWALK RAMP
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
81.5 in
Same Main row page-right pole: horizontal chain from the page-right face of its inner/page-left flanking pier to pole axis. Printed inch/foot marks; not full pole height, world station or an installed topology.
Drawing notation: 6′-9½″
Same Main row page-right pole: horizontal chain from the page-right face of its inner/page-left flanking pier to pole axis. Printed inch/foot marks; not full pole height, world station or an installed topology.
81.5 in
Chain from pole axis to page-left/inner face of the pier on its page-right side. The next 21'-2" run is beyond that pier. No world station or shaft length.
Drawing notation: 6'-9½"
Chain from pole axis to page-left/inner face of the pier on its page-right side. The next 21'-2" run is beyond that pier. No world station or shaft length.
83.25 ft
Leader points to top zone of the pier on the page-right side of the right pole; source-local historic datum. Not the flagpole base or first-floor elevation.
Drawing notation: ELEV. 83.25
Leader points to top zone of the pier on the page-right side of the right pole; source-local historic datum. Not the flagpole base or first-floor elevation.
80.79 ft
Leader addresses the low horizontal rail run farther page-right from pole-flanking pier. Exact manufactured top-face classification remains pending; not sidewalk grade.
Drawing notation: ELEV. 80.79
Leader addresses the low horizontal rail run farther page-right from pole-flanking pier. Exact manufactured top-face classification remains pending; not sidewalk grade.
Numeric value unresolved
Main-row context shows flanking dimension chain; no numeric inner token promoted from the reduced context crop.
Drawing notation: [inner chain not reached in targeted high-resolution crop]
Main-row context shows flanking dimension chain; no numeric inner token promoted from the reduced context crop.
Numeric value unresolved
Printed pole axis and flanking pier witness enrich local host evidence only. Do not trace building world axes from this elevation raster.
Drawing notation: [source-local axis; no accepted companion plan transform]
Printed pole axis and flanking pier witness enrich local host evidence only. Do not trace building world axes from this elevation raster.
