Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

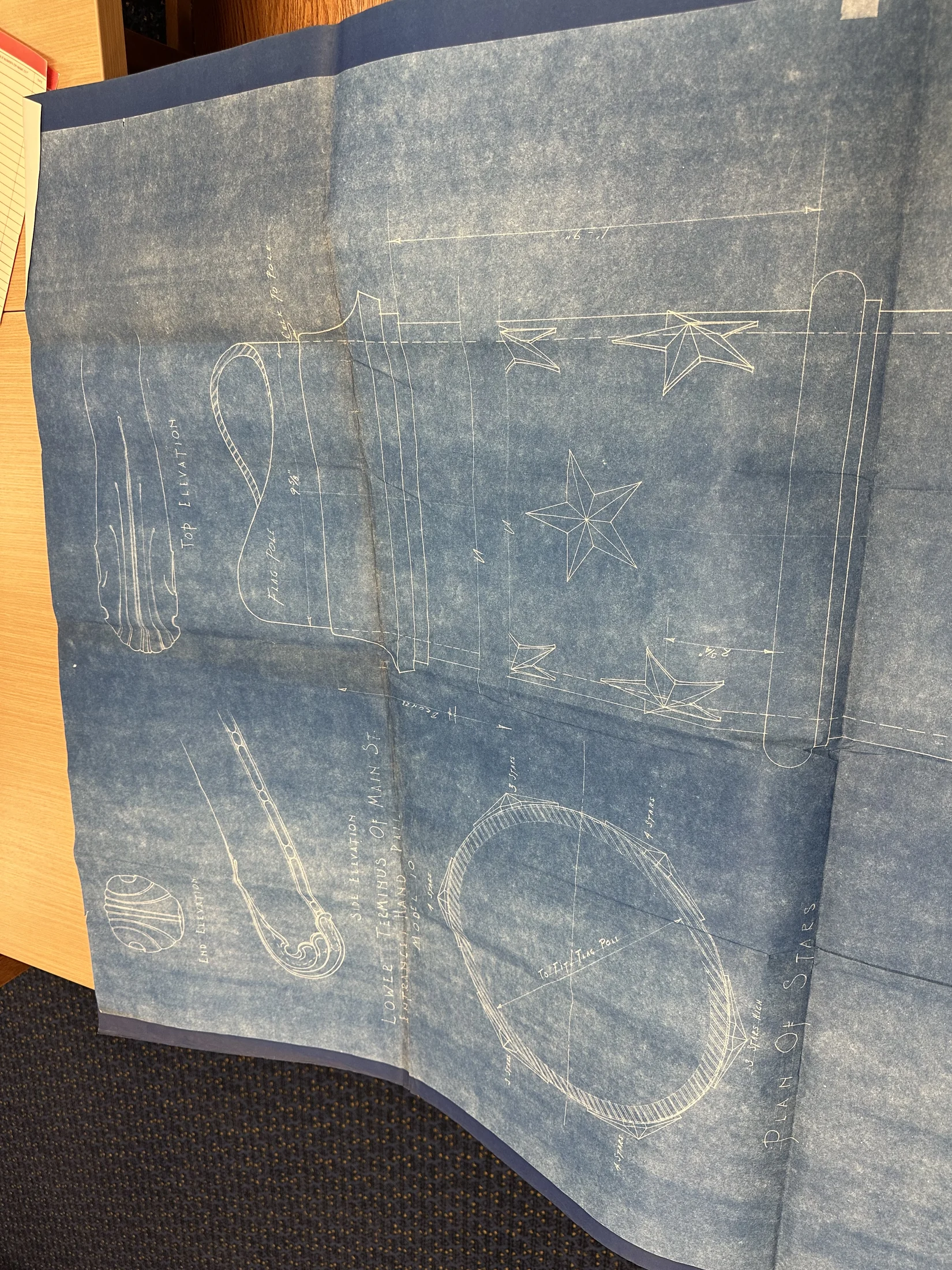

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential review of public/archive/drawings/complete-upright/IMG_1059.webp after catalogue/OCR and existing observations. Coordinates are normalized access-image coordinates before rotation; actual clockwise reading rotation 90 degrees. Foreground only; no installed geometry established. Partial timed visual review: Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established. Partial timed visual review: Coordinates reference unrotated 1650x2200 access image; actual clockwise reading rotation 90 degrees. Source-local fabrication specimen only. Partial timed visual review: Upper local pole/collar crop; 9 5/8-inch local section is not the W213 9 7/8-inch bottom specification. Partial timed visual review: Raw master is upright despite EXIF 6; access derivative requires clockwise 90 degrees. Model 10 title applies to separate rail terminus. Star/pole specimen dimensions are source-local and do not establish full shaft length or world station. Partial timed visual review: Source-local witnesses only; physical geometry and installed quantities remain unapproved. Partial timed visual review: undefined
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: Lower terminus of Main St entrance hand rail
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
10 number
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: Model 10
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: Full size
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: FLAG POLE
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
3 stars
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: 3 Stars High
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
3 stars
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: 3 Stars Low
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: Plan of Stars; alternating high and low profiles shown
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: To fit flag pole
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Numeric value unresolved
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: 1'-9" [vertical dimension when rotated; confirm endpoints]
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Numeric value unresolved
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Drawing notation: 9 5/8" [faint candidate reading]
Type/detail-level evidence only; partial extraction. Installed quantity and room geometry not established.
Numeric value unresolved
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 9 5/8 [candidate; endpoints and fraction require rotated crop]
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Numeric value unresolved
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: 1'-9 [candidate; last mark faint]
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
Drawing notation: END ELEVATION
Source-local additive detail evidence only. No installed quantity, room polygon, revision authority or accepted model geometry established.
9.625 in
Rotated targeted crop confirms fraction; arrows span left/right outside pole section faces immediately above collar. No circular cross-section or installed diameter inferred.
Drawing notation: 9 5/8"
Rotated targeted crop confirms fraction; arrows span left/right outside pole section faces immediately above collar. No circular cross-section or installed diameter inferred.
Leader at right collar/pole junction reads CALK TO POLE; caulking composition and joint size unresolved.
Drawing notation: CALK TO POLE
Leader at right collar/pole junction reads CALK TO POLE; caulking composition and joint size unresolved.
21 in
Rotated view resolves printed token. Witnesses run beside star elevation between upper collar vicinity and lower band top; exact profile-face assignment remains open, so not a modeled band height.
Drawing notation: 1'-9"
Rotated view resolves printed token. Witnesses run beside star elevation between upper collar vicinity and lower band top; exact profile-face assignment remains open, so not a modeled band height.
Numeric value unresolved
Left vertical annotation beside upper collar remains insecure in native crop. Bronze word is legible but numeric fraction is not; no collar height, wall thickness or pole height accepted.
Drawing notation: [small fraction/token] BRONZE
Left vertical annotation beside upper collar remains insecure in native crop. Bronze word is legible but numeric fraction is not; no collar height, wall thickness or pole height accepted.
2.75 in
Small vertical dimension at page-left lower star. Upper witness extends horizontally from the star center; lower witness lies at the top-zone line of the lower molded collar. Local source offset, not total star height, projection/depth or pole height. Exact manufactured tangent/face requires companion profile.
Drawing notation: 2 3/4"
Small vertical dimension at page-left lower star. Upper witness extends horizontally from the star center; lower witness lies at the top-zone line of the lower molded collar. Local source offset, not total star height, projection/depth or pole height. Exact manufactured tangent/face requires companion profile.
Upper witness lies at the narrow lip below the upper collar; lower witness lies at the upper crown zone of the lower collar. The shaft/band between them contains a drawn break. Therefore this is neither full pole height nor a pixel-scale calibration across the broken elevation; exact fabrication face remains unresolved.
Drawing notation: 1'-9"
Upper witness lies at the narrow lip below the upper collar; lower witness lies at the upper crown zone of the lower collar. The shaft/band between them contains a drawn break. Therefore this is neither full pole height nor a pixel-scale calibration across the broken elevation; exact fabrication face remains unresolved.
Reuse both independent verified source tokens. IMG_1059 spans the section immediately above a collar; IMG_1301 specifies bottom outside diameter. Station correspondence, revision precedence and fabrication tolerance are not established, so neither supersedes the other and no tapered-shaft length is derived.
Drawing notation: 9 5/8" [local section] / 9 7/8" [W213 bottom specification]
Reuse both independent verified source tokens. IMG_1059 spans the section immediately above a collar; IMG_1301 specifies bottom outside diameter. Station correspondence, revision precedence and fabrication tolerance are not established, so neither supersedes the other and no tapered-shaft length is derived.
Numeric value unresolved
The annotation lies on a long sloping vertical witness beside the upper collar; BRONZE is legible but fraction/unit glyphs are insecure. No collar thickness/height is established and the prior numeric question remains open.
Drawing notation: BRONZE / [small numeric token illegible]
The annotation lies on a long sloping vertical witness beside the upper collar; BRONZE is legible but fraction/unit glyphs are insecure. No collar thickness/height is established and the prior numeric question remains open.
