The measured building.

Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.

Source photographs
464
Identified objects
4872
Verified printed values
12046
Disputed values
20

464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.

Download the structured register (JSON)

Open the coordinated research model →

Clear filters
IMG_1055 · Folder 192

Flagpole

Original sheet identity has not yet been reconciled.

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass sequential review of public/archive/drawings/complete-upright/IMG_1055.webp after catalogue/OCR and existing observations. Coordinates are normalized access-image coordinates before rotation; actual clockwise reading rotation 90 degrees. Foreground only; no installed geometry established. Partial timed visual review: Depicted detail only; printed floor association does not establish installed room instance, quantity, placement or accepted geometry. Conflicting earlier readings retained separately. Partial timed visual review: Depicted drawing detail and annotations only; installed registration, quantities, revision authority and accepted geometry remain unresolved. Earlier records preserved. Partial timed visual review: Models 8 and 10 companion full-sheet locator. Lower terminus and base profiles; not overall exterior flagpole or installed axis evidence. Partial timed visual review: Full-size companion sheet for lower Main Street rail terminus and flagpole base. Shared title Models 8 & 10 does not assign Model 10 to the flagpole or describe pole height. Partial timed visual review: Source-local witnesses only; physical geometry and installed quantities remain unapproved.

Unresolved extraction work
  • Transcribe remaining faint dimensions and callouts from targeted higher-resolution evidence
  • Reconcile companion sheets and original/revision relationships
  • Register drawing details to installed building instances and establish installed quantities
  • Fine fractional chains, witness endpoints and small profile callouts need targeted master crops
  • Companion sheets, revision authority and installed-instance registration unresolved
  • Remaining regions are partial; architectural acceptance and modeling checks incomplete
  • Remaining regions, fine fractions, marginal notes and companion sheets require review.
  • Installed-instance registration and quantities unresolved; extraction partial and modeling unchecked.
  • Unreviewed fine profile dimensions and all small callouts
  • Pole height and exterior axes require other evidence
  • No full extraction or physical acceptance
  • Full pole height/shaft length
  • Full fine base and rail fabrication dimensions
  • World axes, foundation and installed evidence
  • Remaining regional dimensions, profiles, notes and companion exposures are not exhaustively reviewed.
  • Original/revision authority, installed registration, quantities and model acceptance remain unresolved.
  • Full pole height and shaft length require independent evidence; local bottom token does not close them.

Download OCR observations (unverified)

Loading the selected drawing…

Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.

Open source image separately ↗

13 matching properties

Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.

parallel-img1055-detailverified · printed

drawing_title

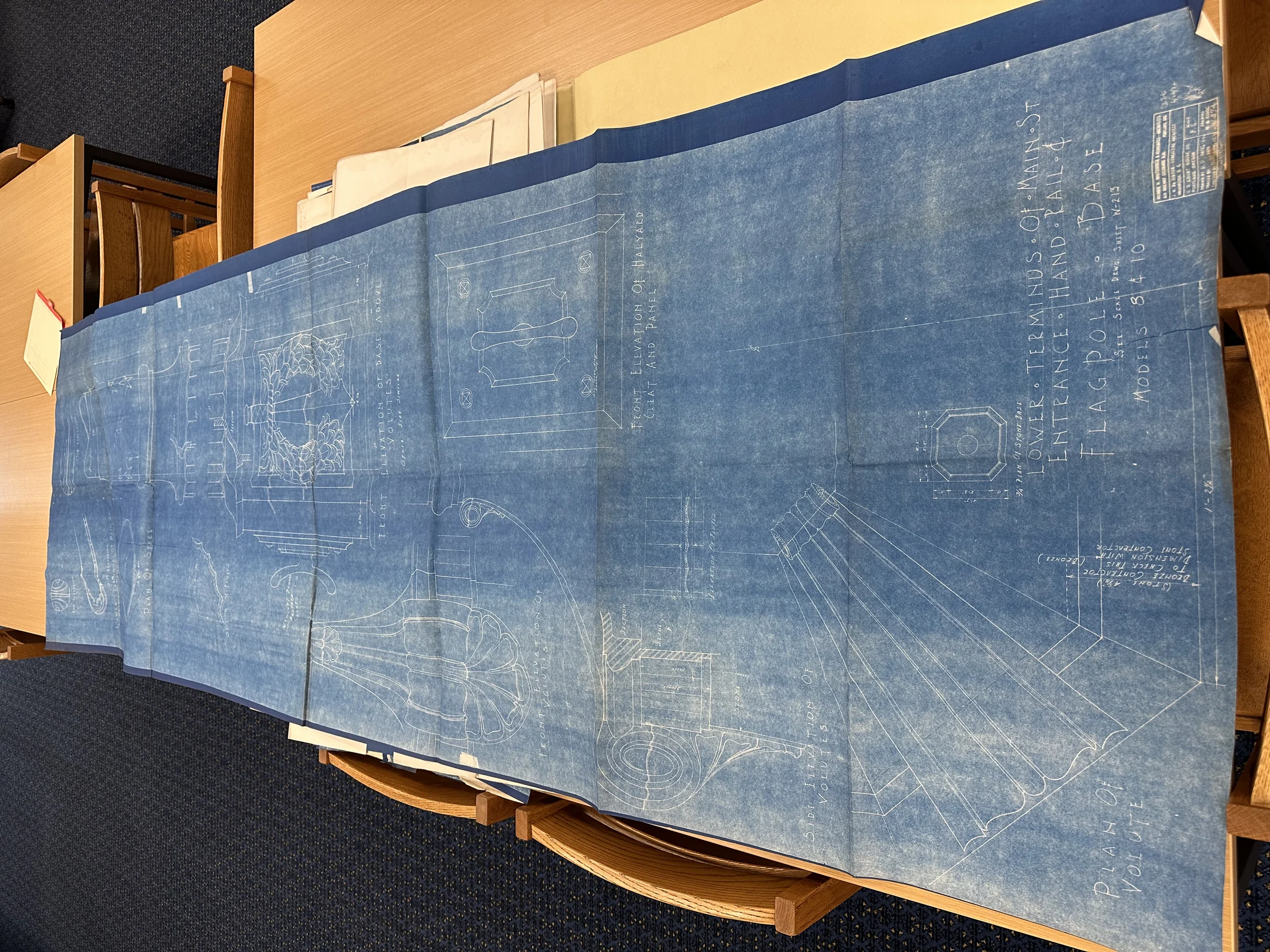

Lower Terminus of Main St Entrance Hand Rail & Flagpole Base
