Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.

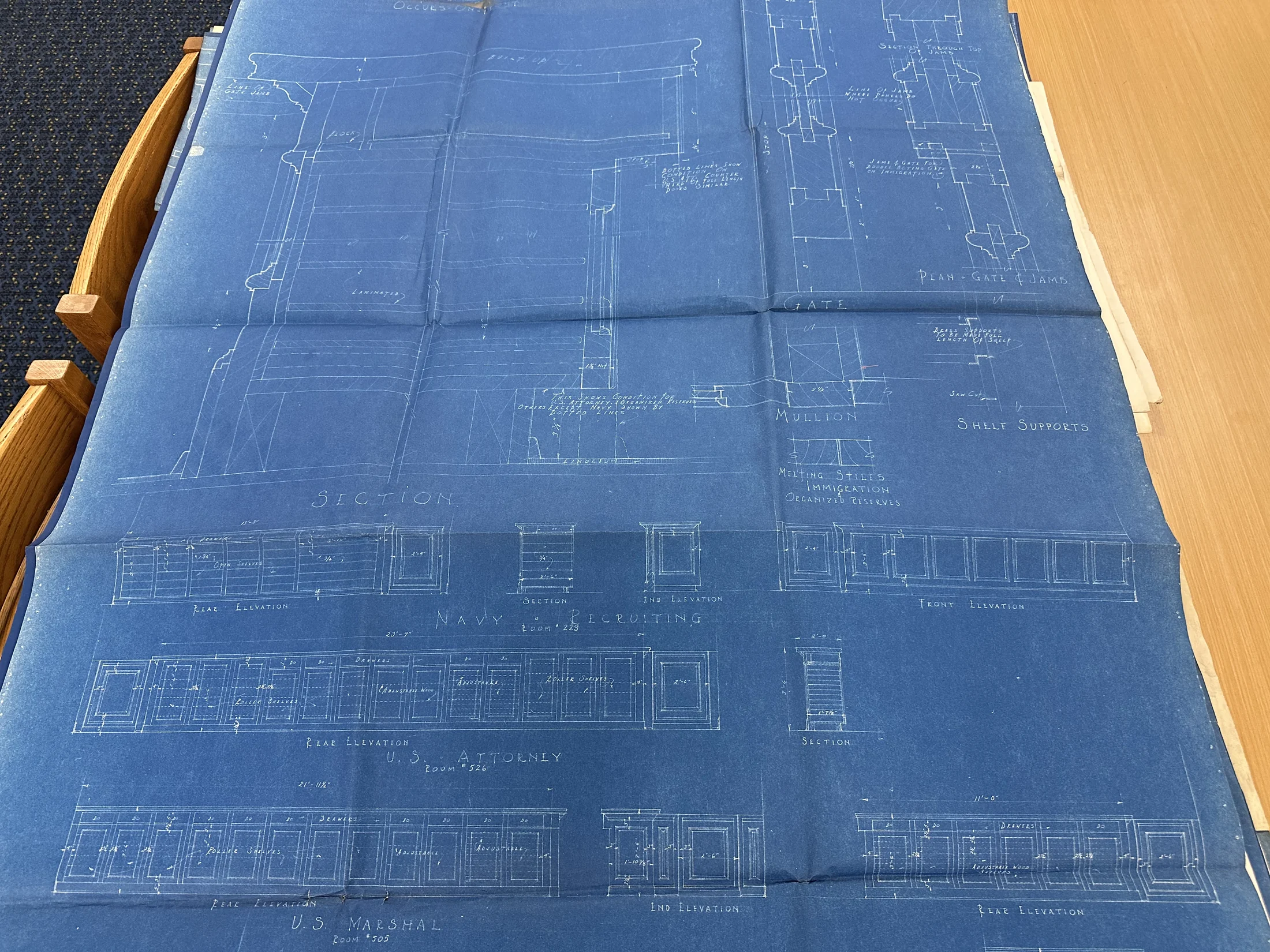

Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_1044.webp after catalogue/OCR search. Regions are normalized in the unrotated access image. rotationDegrees is clockwise correction for principal readable sheet text. Selected evidence only; no model geometry authorized. Partial timed visual review: Selected source-local properties; source-to-building placement and historical authority unestablished. Partial timed visual review: Source-local selected witnesses only; no accepted geometry, historical revision choice, installation count or full-source completion. Partial timed visual review: Selected source-local original visible linework only. No revision ordering, physical placement, or accepted geometry established. Partial timed visual review: Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established. Partial timed visual review: Native crops review Marshal width and typical section/support notes; no full-sheet extraction or installed quantity claimed. Partial timed visual review: Office counter laminated shelving, support and gate details.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: LINOLEUM
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: Brass supports to be mortised length of shelf
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: This shows condition for U.S. Attorney & Organized Reserves; others except Navy shown by dotted lines
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: ROOM #229
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
188 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: 15'-8"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: ROOM #526
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
285 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: 23'-9"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: ROOM #505
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Numeric value unresolved
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
2.5 in
Horizontal witness across lower labeled MULLION detail; local member width only, not bay width.
Drawing notation: 2½″
Horizontal witness across lower labeled MULLION detail; local member width only, not bay width.
1.125 unlabeled
Horizontal annotation across rear vertical section member. Net qualifier retained; no secure inch mark, so value is literal dimensionless numeric glyph.
Drawing notation: 1⅛ Net
Horizontal annotation across rear vertical section member. Net qualifier retained; no secure inch mark, so value is literal dimensionless numeric glyph.
3.75 in
Vertical witness from linoleum/floor line to underside of bottom shelf/base member at right side of section; not total counter height.
Drawing notation: 3¾″
Vertical witness from linoleum/floor line to underside of bottom shelf/base member at right side of section; not total counter height.
Verified leading clause adjacent to upper rear section detail. Following head/full-length-door wording remains outside this partial transcription; no approval or revision selection.
Drawing notation: DOTTED LINES SHOW CONDITION ON U.S. ATTY. COUNTER
Verified leading clause adjacent to upper rear section detail. Following head/full-length-door wording remains outside this partial transcription; no approval or revision selection.
14 in
Source-local left segment of horizontal section chain at shelf level; endpoints between forward profile station and inner shelf/front-member station. Does not supply whole counter depth.
Drawing notation: 14"
Source-local left segment of horizontal section chain at shelf level; endpoints between forward profile station and inner shelf/front-member station. Does not supply whole counter depth.
11 in
Source-local middle segment of horizontal section chain at shelf level between inner member and rear divider station; separate from right segment.
Drawing notation: 11"
Source-local middle segment of horizontal section chain at shelf level between inner member and rear divider station; separate from right segment.
Printed plan caption identifies depicted jamb/gate operation and Immigration association only; no particular installed gate counted.
Drawing notation: JAMB & GATE FOR DOUBLE ACTING GATE ON IMMIGRATION
Printed plan caption identifies depicted jamb/gate operation and Immigration association only; no particular installed gate counted.
Leader identifies alternate jamb line where panels are absent; no numeric wall/jamb position established.
Drawing notation: LINE OF JAMB WHERE PANELS DO NOT OCCUR
Leader identifies alternate jamb line where panels are absent; no numeric wall/jamb position established.
STOP caption follows depicted gate edge. Stop material, fixing and section thickness remain unresolved.
Drawing notation: STOP
STOP caption follows depicted gate edge. Stop material, fixing and section thickness remain unresolved.
Numeric value unresolved
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: 21'-11 [fraction unresolved]
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: OPEN SHELVES
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
132 in
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: 11'-0"
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: ADJUSTABLE
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
263.5 in
Native narrow crop resolves half-inch fraction on overall rear-elevation dimension. Numeric inches are direct unit normalization of printed feet/inches, not a pixel measurement. Endpoints span depicted rear assembly, not the room.
Drawing notation: 21'-11 1/2"
Native narrow crop resolves half-inch fraction on overall rear-elevation dimension. Numeric inches are direct unit normalization of printed feet/inches, not a pixel measurement. Endpoints span depicted rear assembly, not the room.
Calculated from: detail-20261011g-img1044-1, parallel-img1044-m009
Printed LOCK appears in upper section compartment near front/top. Establishes a lock annotation only; exact lock type, keying, and which individual installed drawers receive locks remain unresolved.
Drawing notation: LOCK
Printed LOCK appears in upper section compartment near front/top. Establishes a lock annotation only; exact lock type, keying, and which individual installed drawers receive locks remain unresolved.
LAMINATED is printed between section shelf lines. Records assembly construction without assuming wood species, adhesive, ply count or finish.
Drawing notation: LAMINATED
LAMINATED is printed between section shelf lines. Records assembly construction without assuming wood species, adhesive, ply count or finish.
Native support crop resolves wording MADE FULL LENGTH, replacing prior mortised transcription. Brass material already recorded; this property records support-to-shelf length relationship. No fixing method or numeric length supplied.
Drawing notation: BRASS SUPPORTS TO BE MADE FULL LENGTH OF SHELF
Native support crop resolves wording MADE FULL LENGTH, replacing prior mortised transcription. Brass material already recorded; this property records support-to-shelf length relationship. No fixing method or numeric length supplied.
Calculated from: parallel-img1044-m002
Printed saw-cut label points to support detail slot/line. Cut width, depth and shelf material are not established.
Drawing notation: SAW CUT
Printed saw-cut label points to support detail slot/line. Cut width, depth and shelf material are not established.
