Every dimension belongs to an object and a drawing. Original room numbers, object marks, printed values and source regions stay together—even when the answer is unresolved.
464 of 464 photographs have extraction records, containing 27,517 properties. Initial image review is not exhaustive extraction: 0 photographs have passed the full-region check. 66 numbered sheets are reconciled. Modeling and architectural registration are separate work; these counts do not establish a complete building.
Download the structured register (JSON)Original sheet identity has not yet been reconciled.
Extraction: Reviewed · extraction partial. Partial timed visual review: Partial first-pass visual review of public/archive/drawings/complete-upright/IMG_1043.webp after catalogue/OCR search. Regions are normalized in the unrotated access image. rotationDegrees is clockwise correction for principal readable sheet text. Selected evidence only; no model geometry authorized. Partial timed visual review: Selected source-local properties; source-to-building placement and historical authority unestablished. Partial timed visual review: Source-local selected witnesses only; no accepted geometry, historical revision choice, installation count or full-source completion. Partial timed visual review: Selected source-local original visible linework only. No revision ordering, physical placement, or accepted geometry established. Partial timed visual review: Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established. Partial timed visual review: Typical office-counter sections and companion elevations.
Loading the selected drawing…
Scroll or pinch to inspect this drawing. Archival drawing photograph · Oregon Historical Society research collections.
Open source image separately ↗Printed values, calculations, image traces and observed counts are different kinds of evidence. “Verified” applies to the specific reading—not to the whole room or model.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.

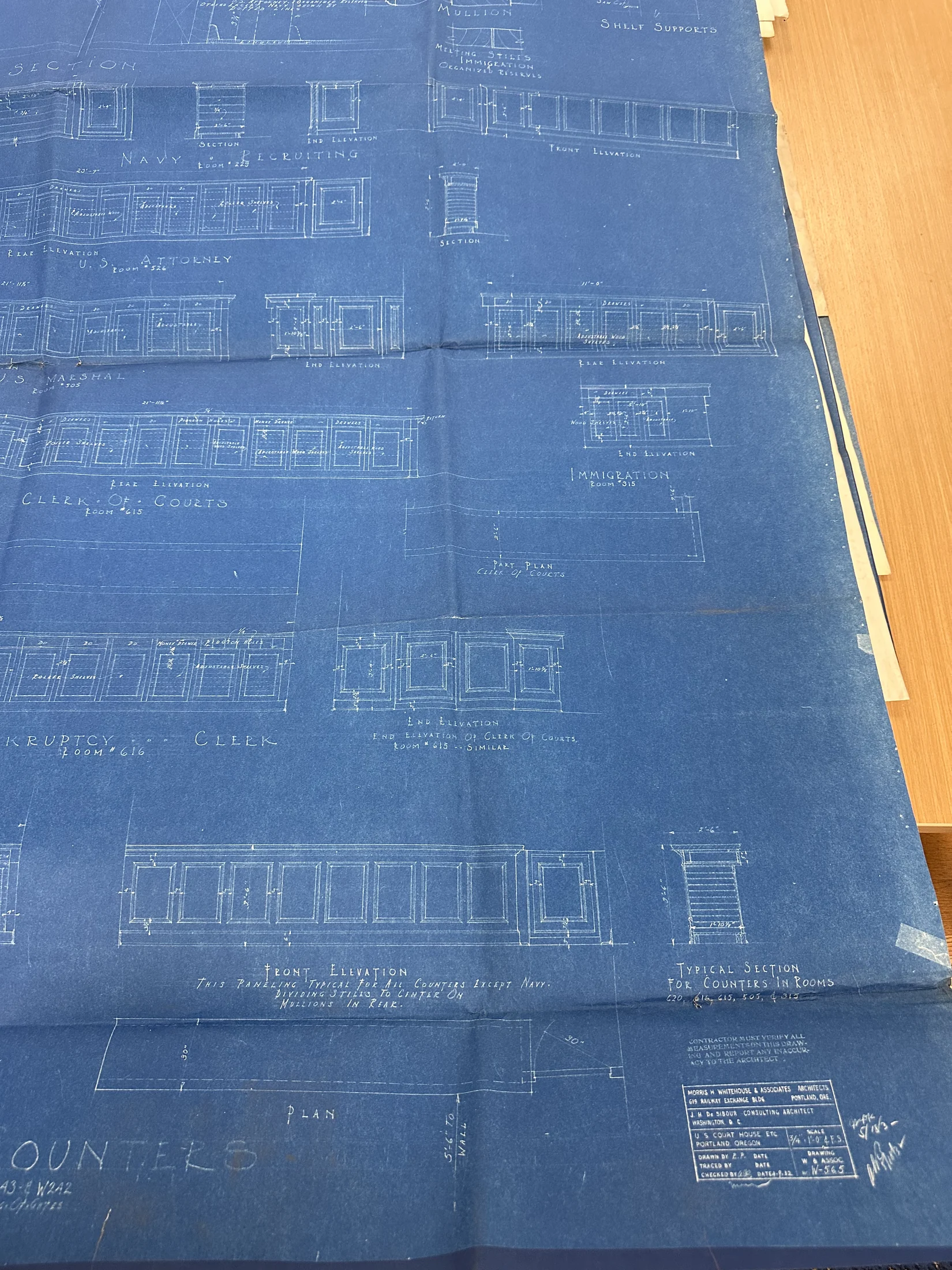

Drawing notation: Navy recruiting counter ROOM #229
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: U.S. Attorney counter ROOM #526
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: U.S. Marshal counter ROOM #505
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: Clerk of Courts counter ROOM #615
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: Immigration counter ROOM #315
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: Bankruptcy clerk counter ROOM #616
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: This paneling typical for all counters except Navy. Dividing stiles to center on mullions in rear.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
30 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: 2'-6"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
30 in
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: 30"
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: CONTRACTOR MUST VERIFY ALL MEASUREMENTS ON THIS DRAWING AND REPORT ANY INACCURACY TO THE ARCHITECT
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
Drawing notation: 3/4" = 1'-0" & F.S.
Selected visible source evidence; partial review. Applies only to depicted assembly, not whole-building geometry.
42 in
Left vertical dimension spans drawn typical section from top profile to base line; source-local42in only, not floor datum.
Drawing notation: 3′-6″
Left vertical dimension spans drawn typical section from top profile to base line; source-local42in only, not floor datum.
9 in
Short right-hand vertical interval at open space immediately below top; endpoint pair is drawn upper compartment, not shelf thickness.
Drawing notation: 9″
Short right-hand vertical interval at open space immediately below top; endpoint pair is drawn upper compartment, not shelf thickness.
Literal caption below section; room numbers retained as printed identifiers only. Does not establish installed instances or current room assignments.
Drawing notation: TYPICAL SECTION FOR COUNTERS IN ROOMS 620, 616, 615, 505, & 315
Literal caption below section; room numbers retained as printed identifiers only. Does not establish installed instances or current room assignments.
263.5 in
Printed overall line above Clerk of Courts rear elevation, room 615. Direct feet/inches normalization; endpoints span depicted counter assembly, not room extent.
Drawing notation: 21'-11 1/2"
Printed overall line above Clerk of Courts rear elevation, room 615. Direct feet/inches normalization; endpoints span depicted counter assembly, not room extent.
132 in
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: 11'-0"
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: ADJUSTABLE WOOD SHELVES
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: ROLLER SHUTTERS
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
Drawing notation: ADJUSTABLE WOOD SHELVES
Additive source-local detail evidence; dimensions apply only to the depicted assembly. No room polygon, installed quantity, revision authority or accepted model placement established.
